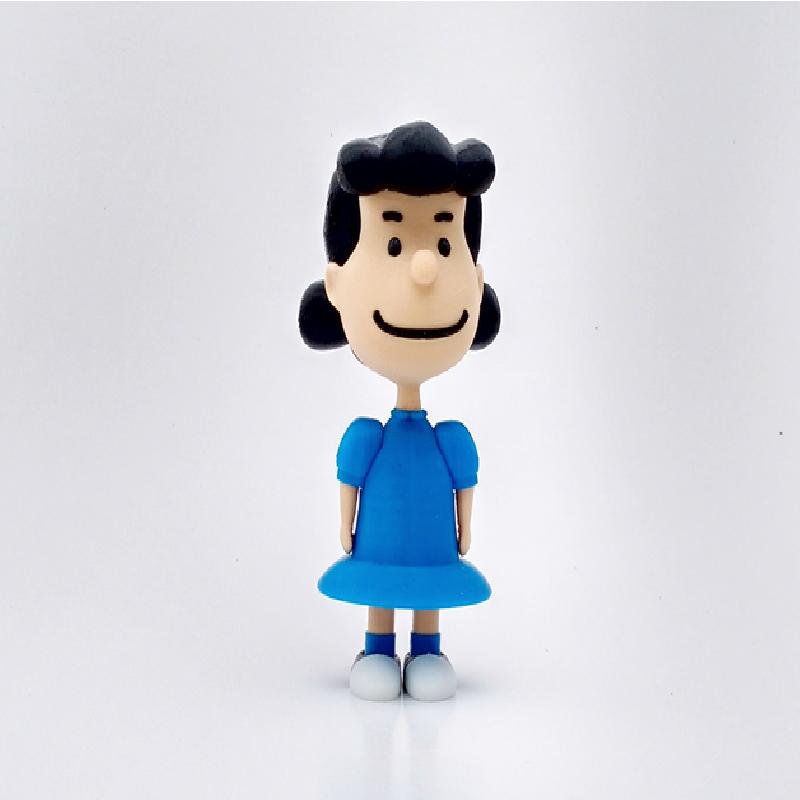

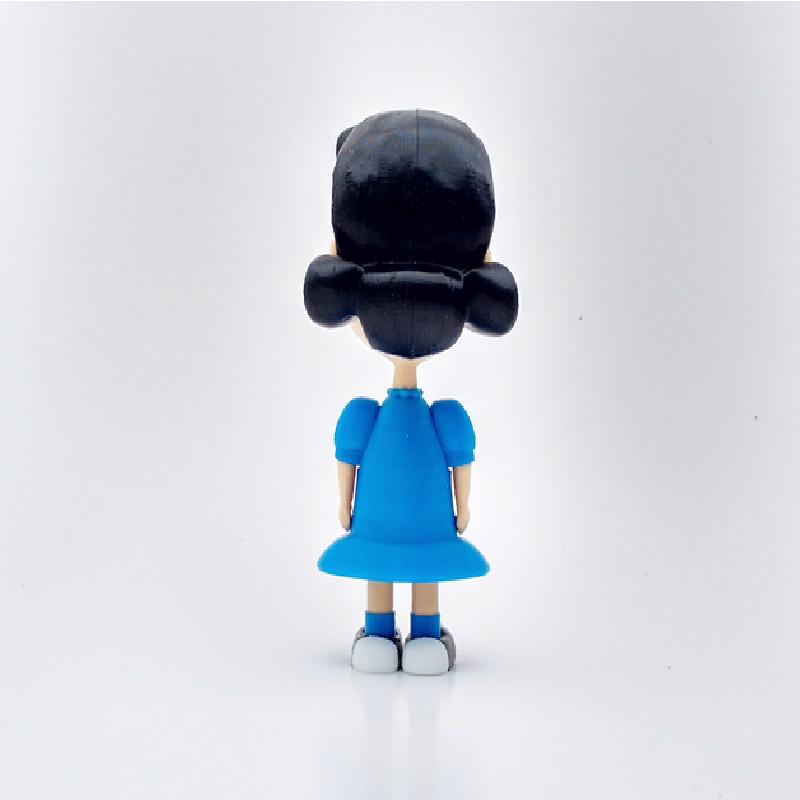

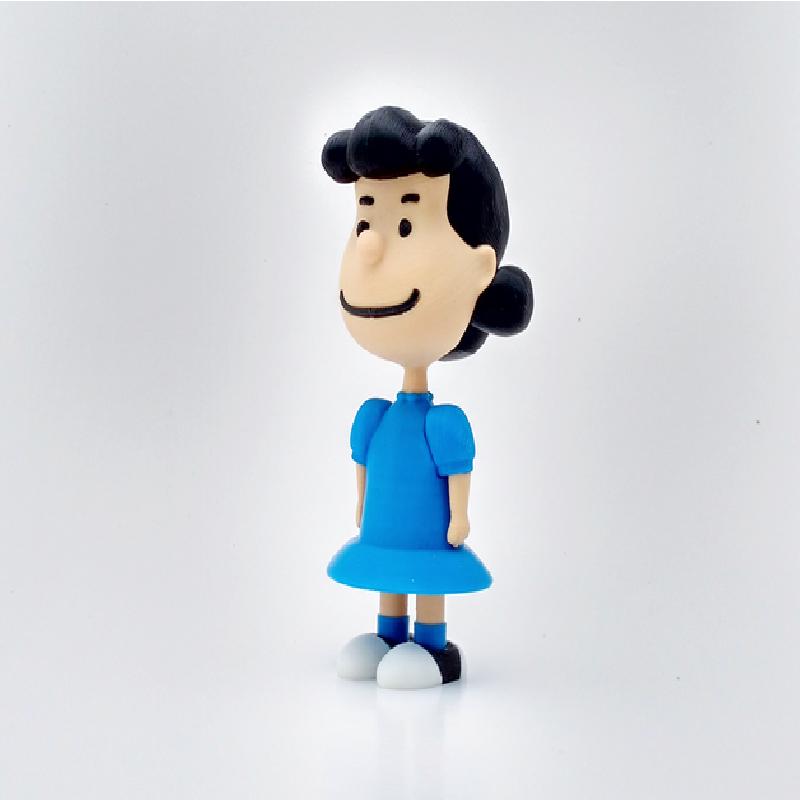

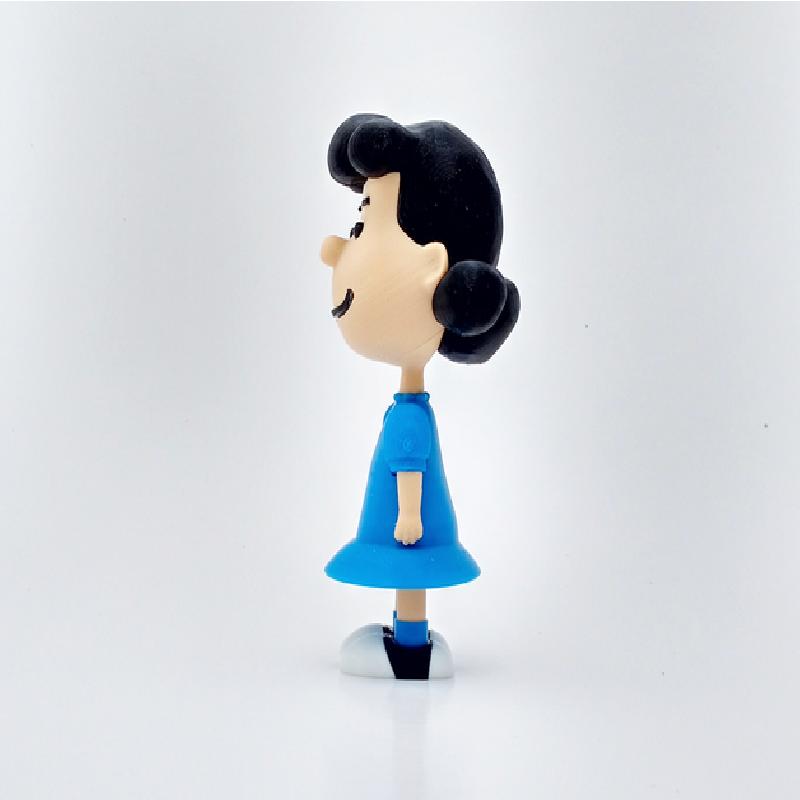

Lucy van Pelt, from the comic strip Peanuts by Charles Schulz.
Lucy is characterized as a "fussbudget", crabby, bossy and opinionated girl who bullies other characters in the strip, particularly Linus and Charlie Brown. While she is not exactly cold-hearted, she can be quite antagonistic, often playing the villain role in a number of stories

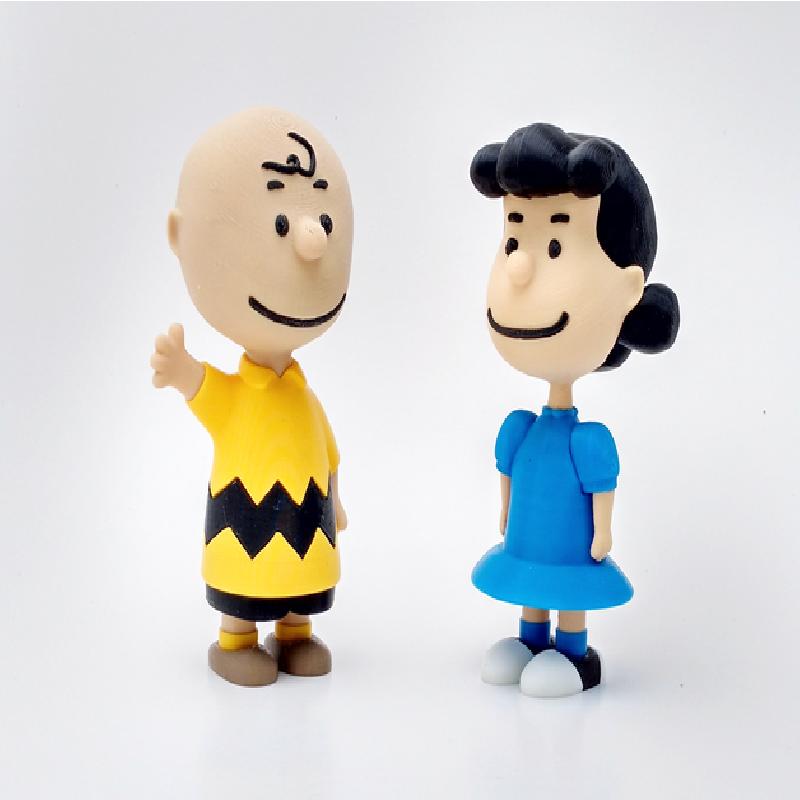

The model is in proportion to my Charlie Brown model:
http://www.semaker.com/productdetail/10061
No supports are required. If you have the proper filament colors, no painting is needed.
The model is 140mm tall.
Enjoy!
Printer:
FlashForge Creator X
Rafts:
Doesn't Matter
Supports:
No
Resolution:
.2mm
Infill:
10%
Notes:
See below for helpful printing and assembly tips.
Colors (there are no multiple printed pieces)
Black:

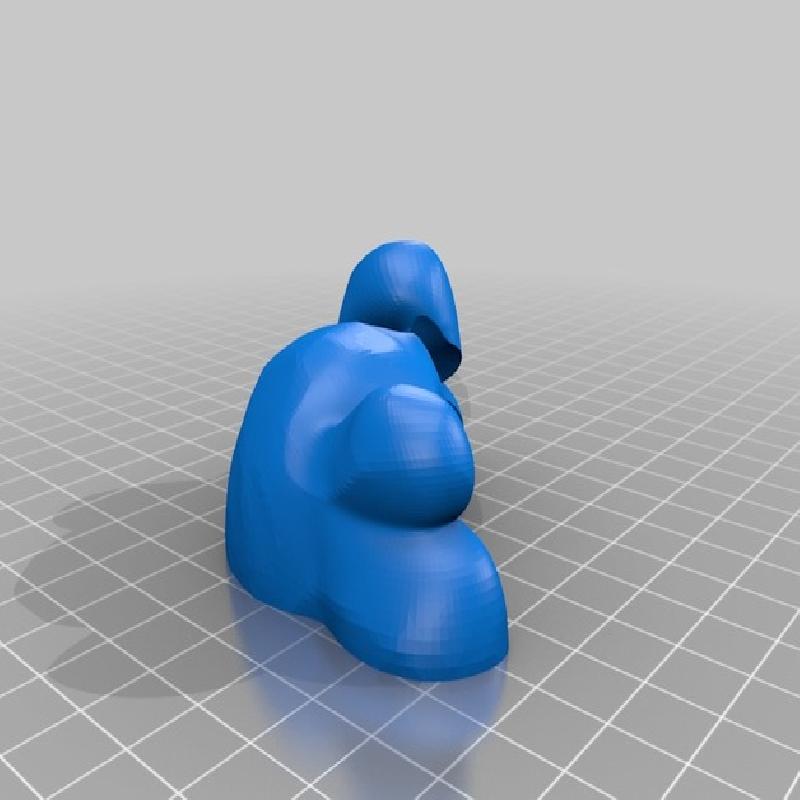

l_hair_right
l_hair_left
l_eyebrows
l_eyes
l_mouth
l_shoes_middle
..
Beige or Flesh:
l_head_top

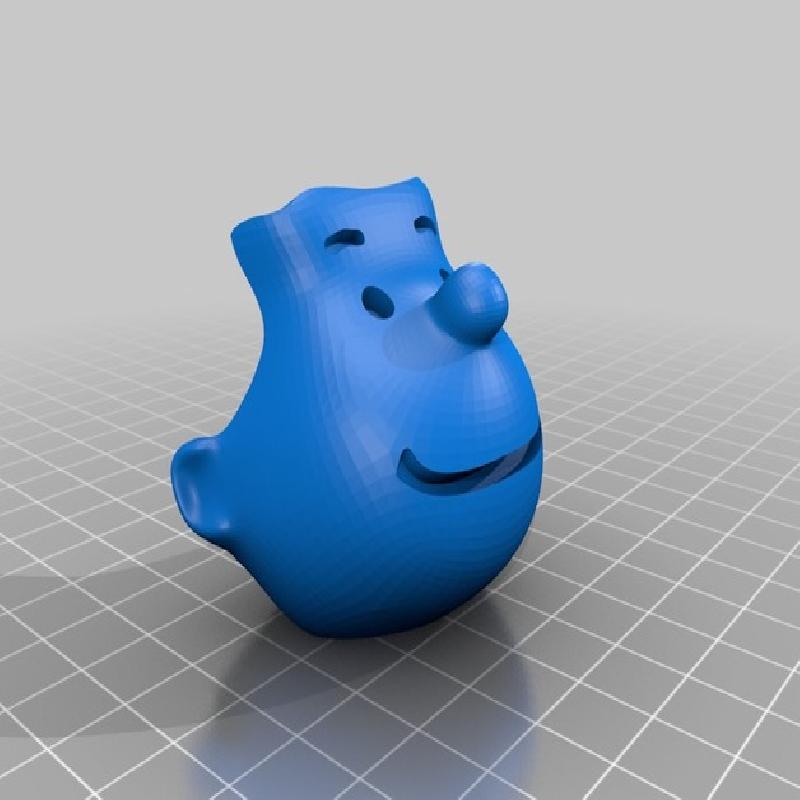

l_head_bottom

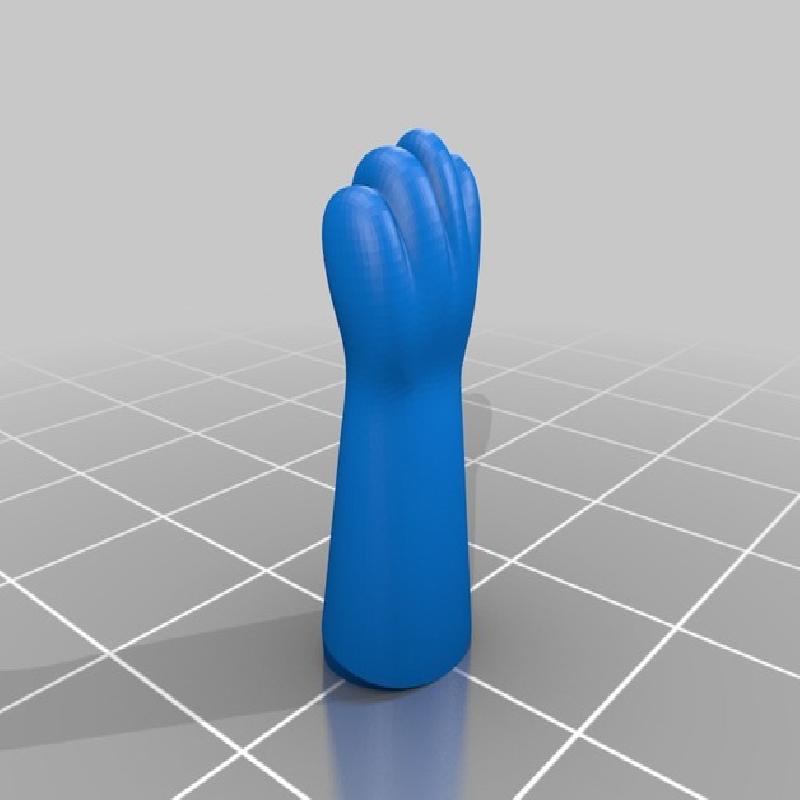

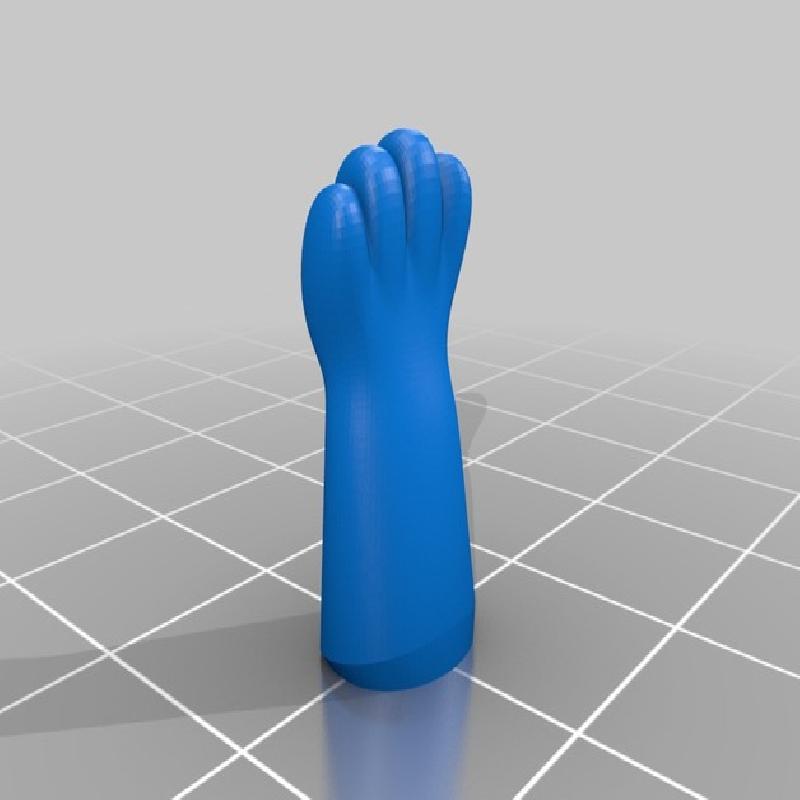

l_arm_left
l_arm_right

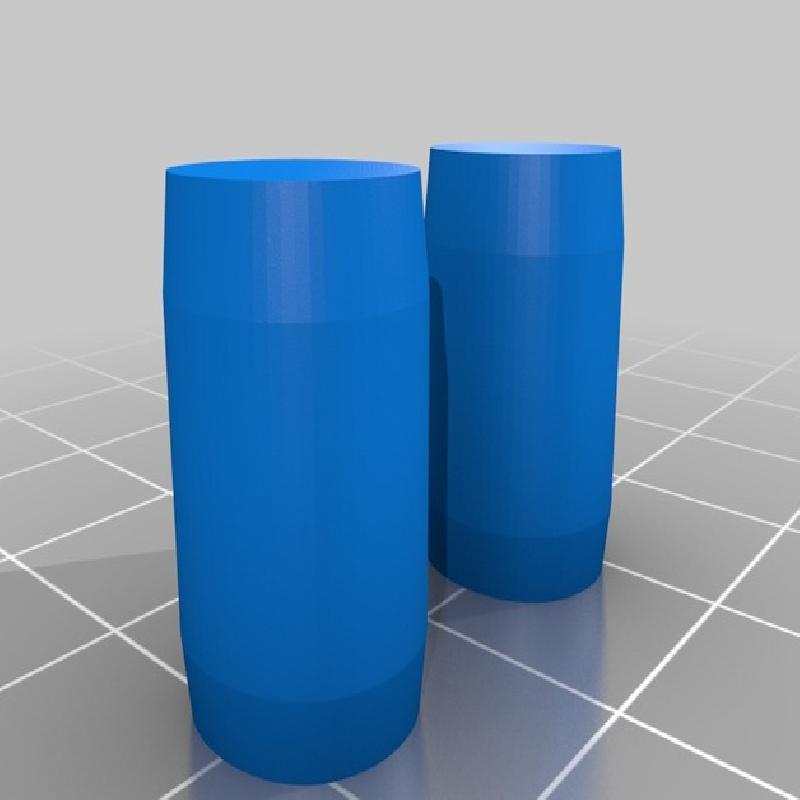

l_legs
..
White:

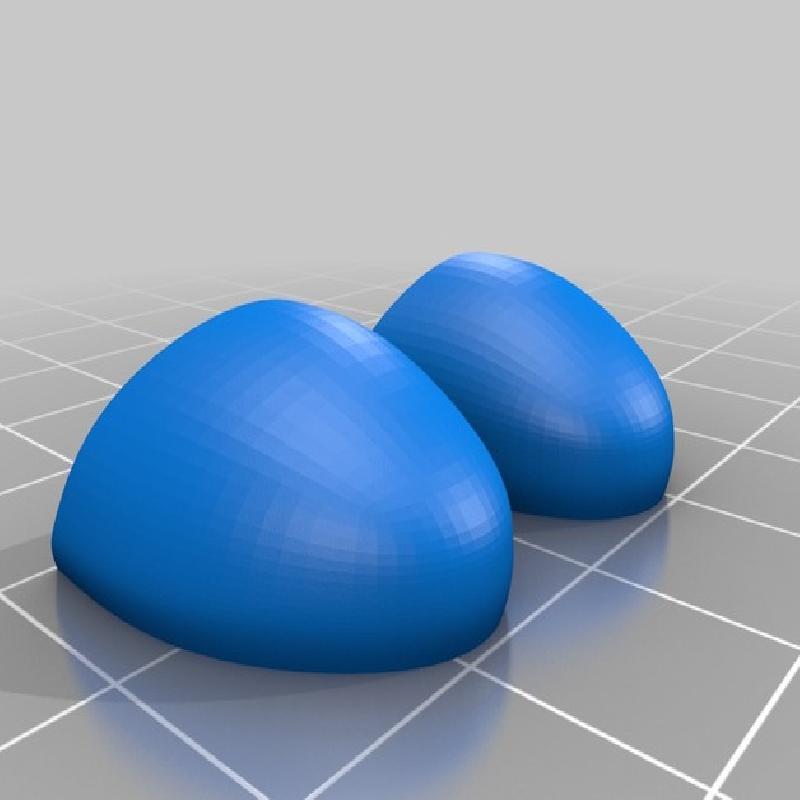

l_shoes_front
l_shoes_back
..
Blue:

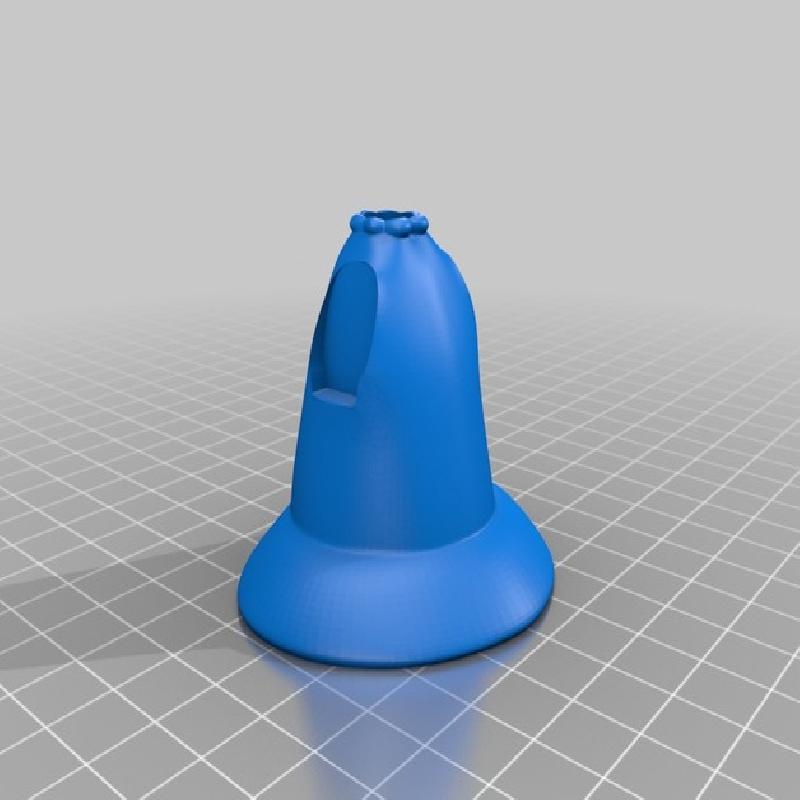

l_dress
l_shoulder_right
l_shoulder_left

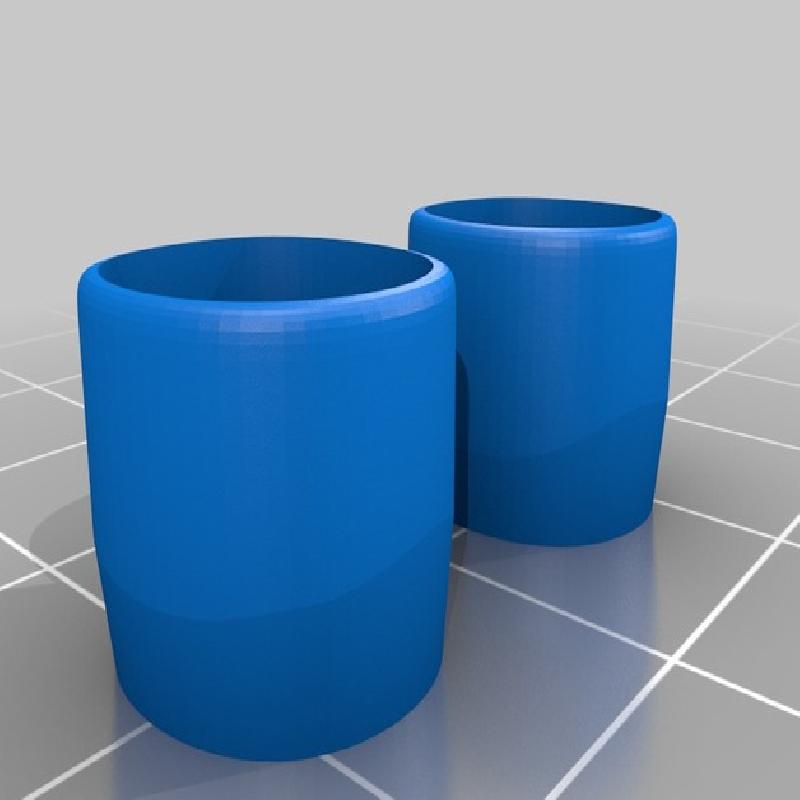

l_socks
..
Any color (hidden pieces)

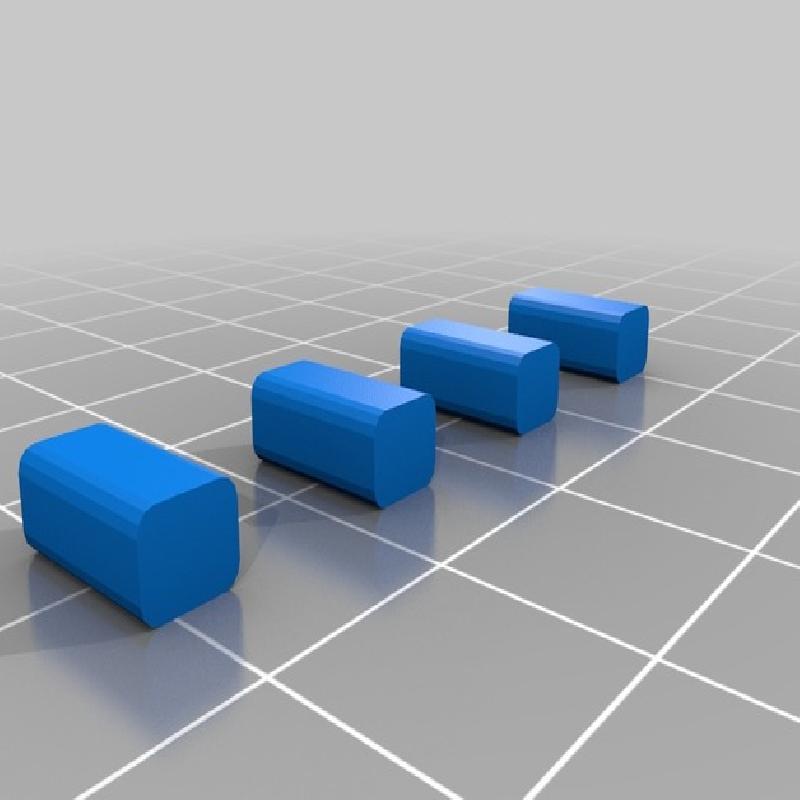

l_pins
..
Printing and assembly tips
Printing tips
1-As with most of my models, no supports are required.
2-Be sure to clean any first layer squish if you have any problem joining parts. The parts should fit nicely when printed cleanly or with a slight first layer squish.
3-I did not require any rafts or brims for any of the parts.
..
Assembly tips:

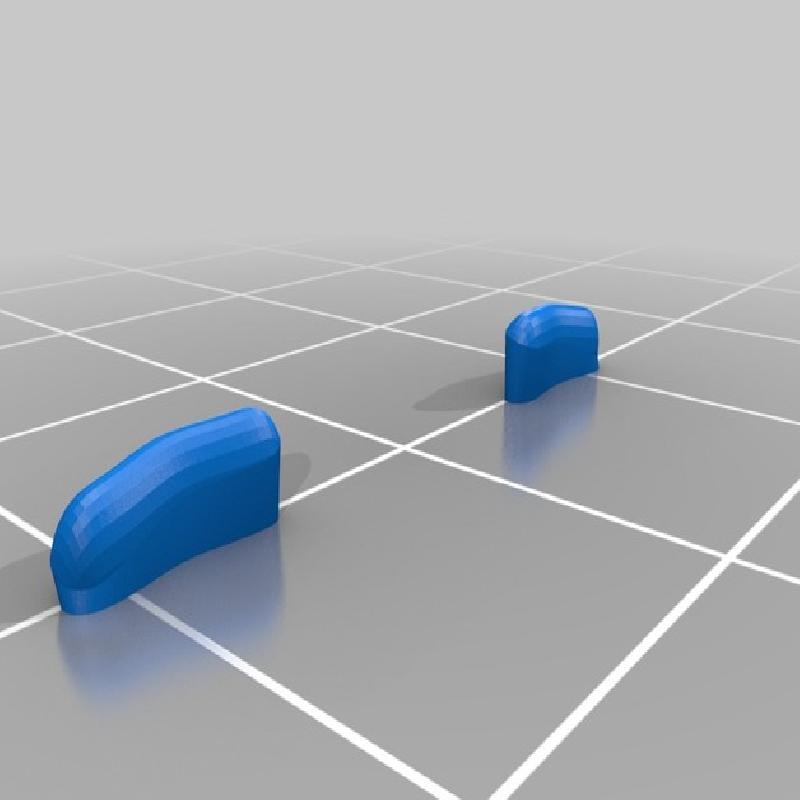

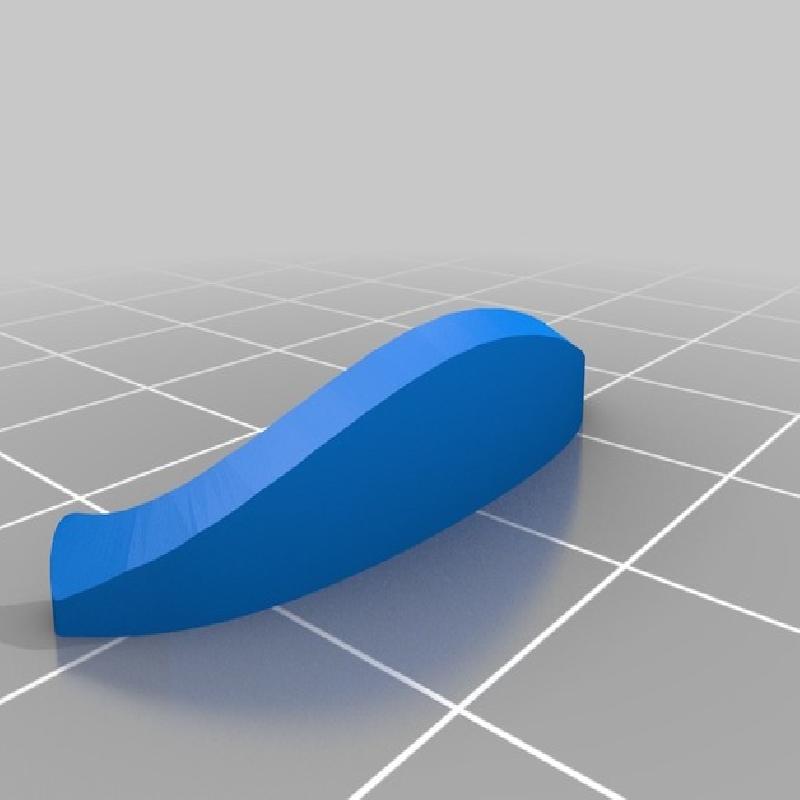

1-The eyebrows are small and print well but if for some reason you have an issue inserting them into the head (over-extrusion or a squish that cannot be cleaned) simply flip them over and put them in with the flat side facing out.

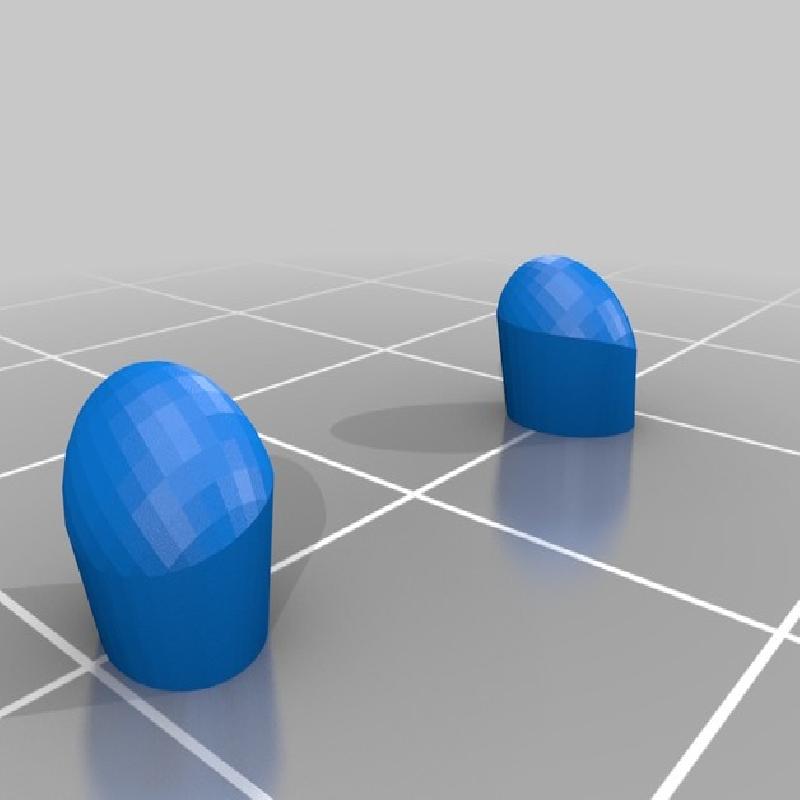

2-The left/right eyes are interchangeable. There is an up/down positioning of each eye. If it does not look right when inserted just rotate the eye piece for a better fit.
3-The left/right shoulders look similar but are slightly different, so take care when connecting them to the dress.
4-The leg holes in the dress should be positioned toward the back.

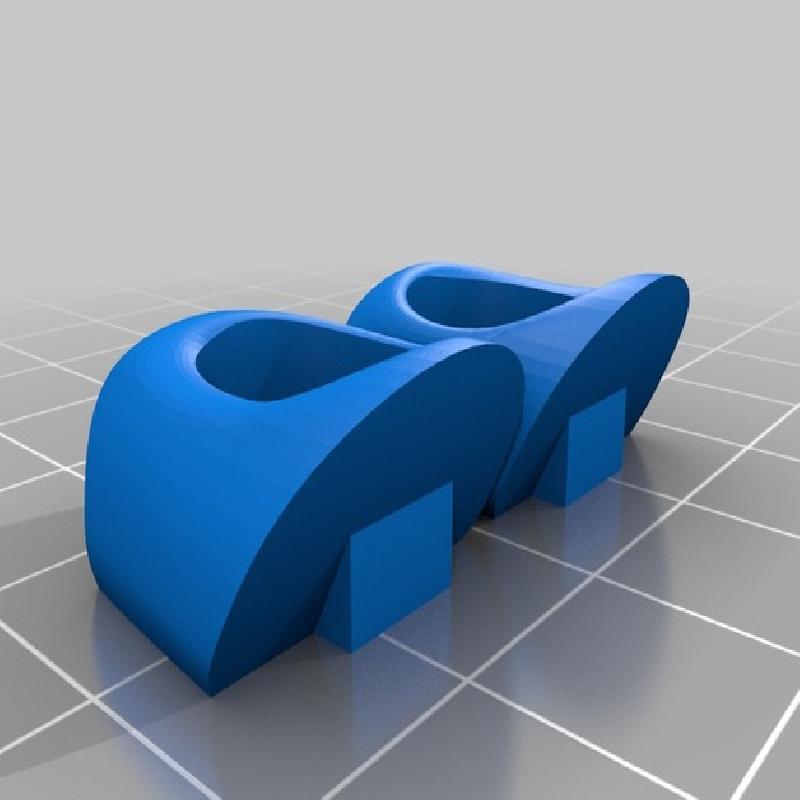

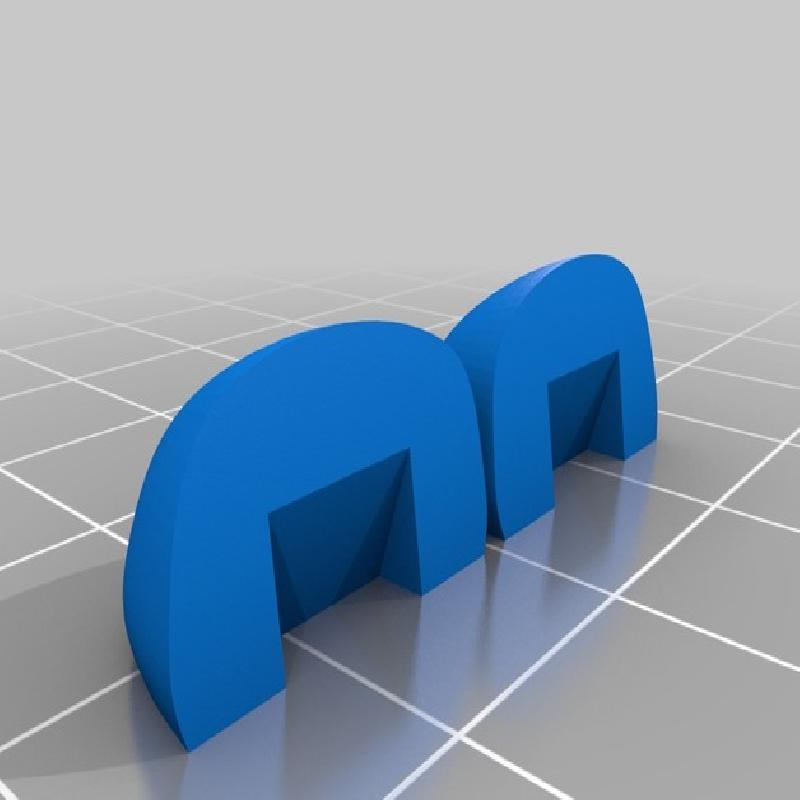

5-The left/right shoe parts are not interchangeable but are easy to distinguish which is left and right.

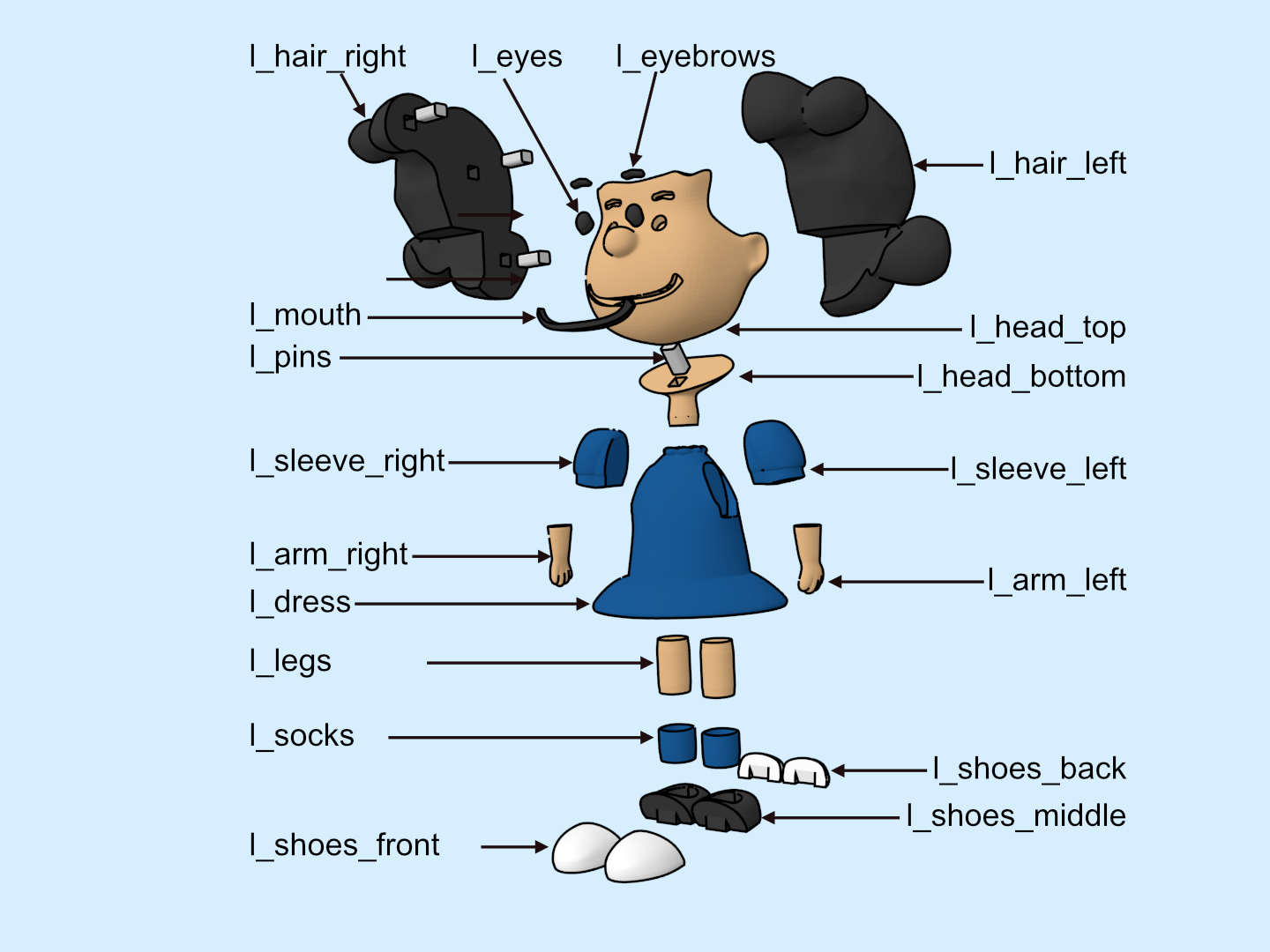

5-Refer to the assembly diagram for putting the model together. The model is meant to be glued.
