by agepbiz, publishedSep 5, 2017

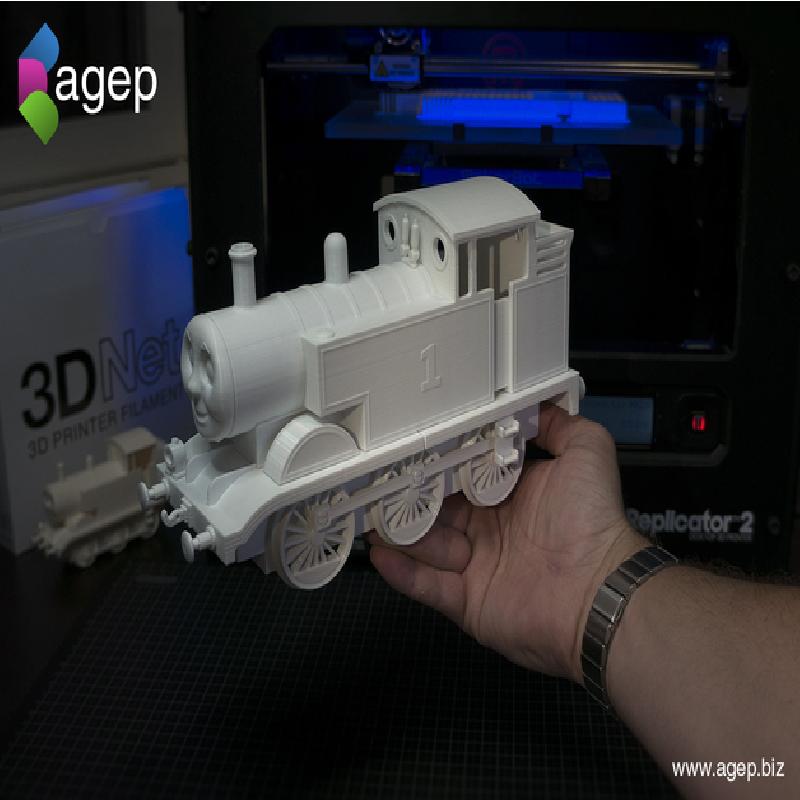

This G-Gauge/Gauge-1 Thomas model is based on my previous S-Gauge Thomas model, but tweaked and upscaled! http://www.semaker.com/productdetail/7212

Please take a look at my "Making of.." video of the small S-Gauge:
https://youtu.be/3TmLReQIERc

The model took about 52 hours to print and is made out of 400gr PLA

Subscribe or follow me on:

Instagram: www.instagram.com/agepbiz

YouTube: www.youtube.com/user/agepbiz

Twitter: www.twitter.com/agepbiz

Print Settings

Printer Brand:

MakerBot

Printer:

MakerBot Replicator 2

Rafts:

Yes

Supports:

Yes

Resolution:

100 microns

Notes:

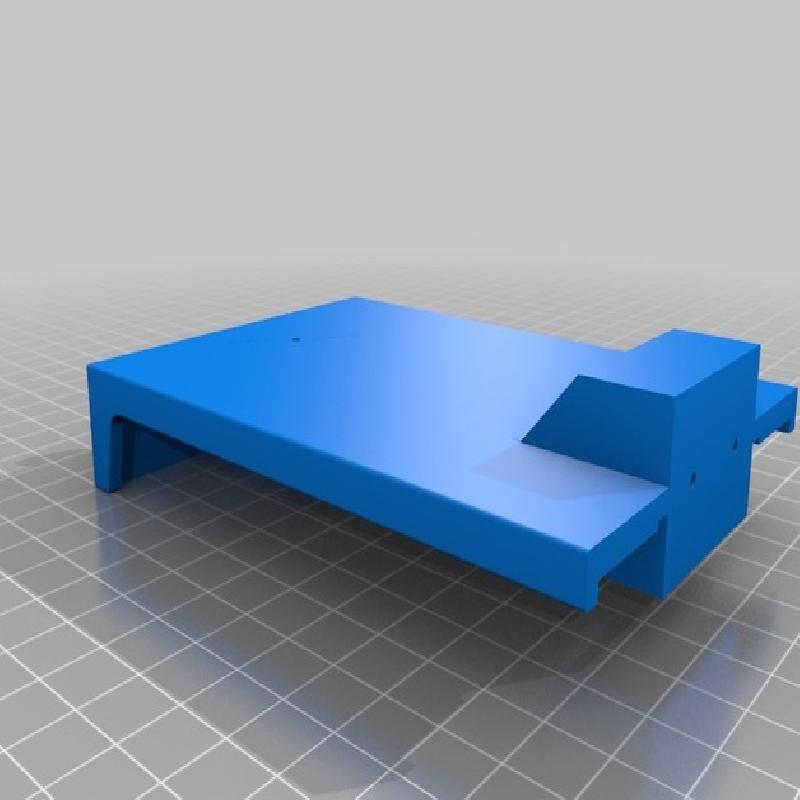

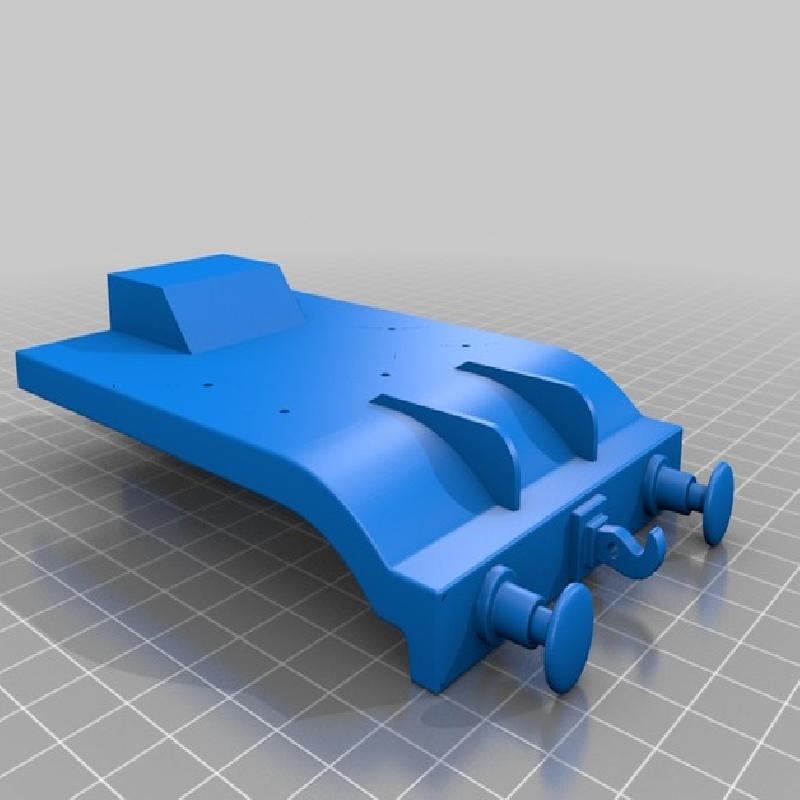

thomas_g_chassis
rotation: as modelled
raft
support
15% infill
0.1mm
2 shells

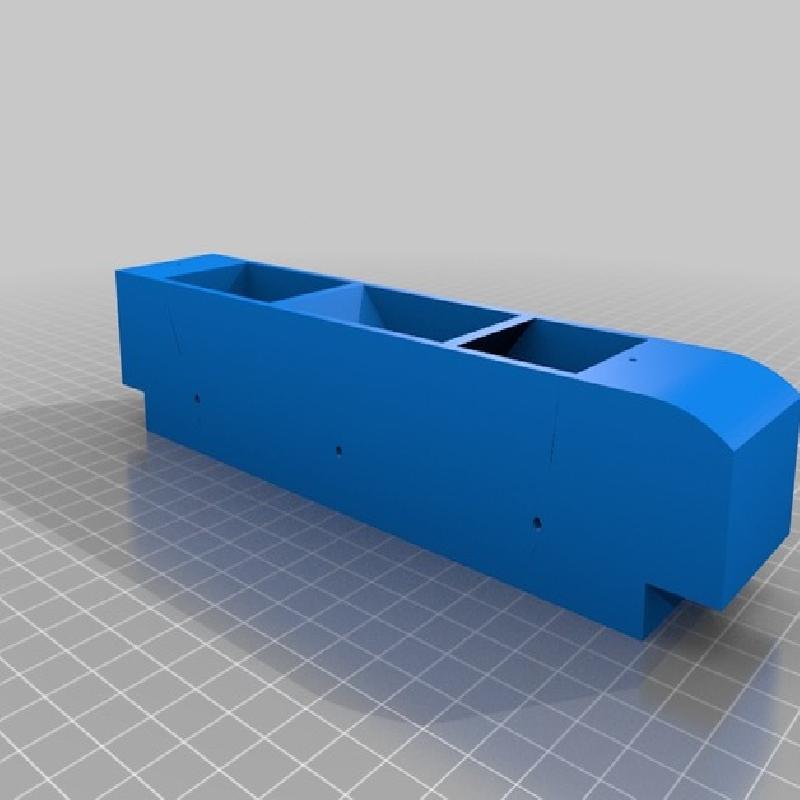

thomas_g_base
rotation: standing
raft
support
15% infill
0.1mm
2 shells

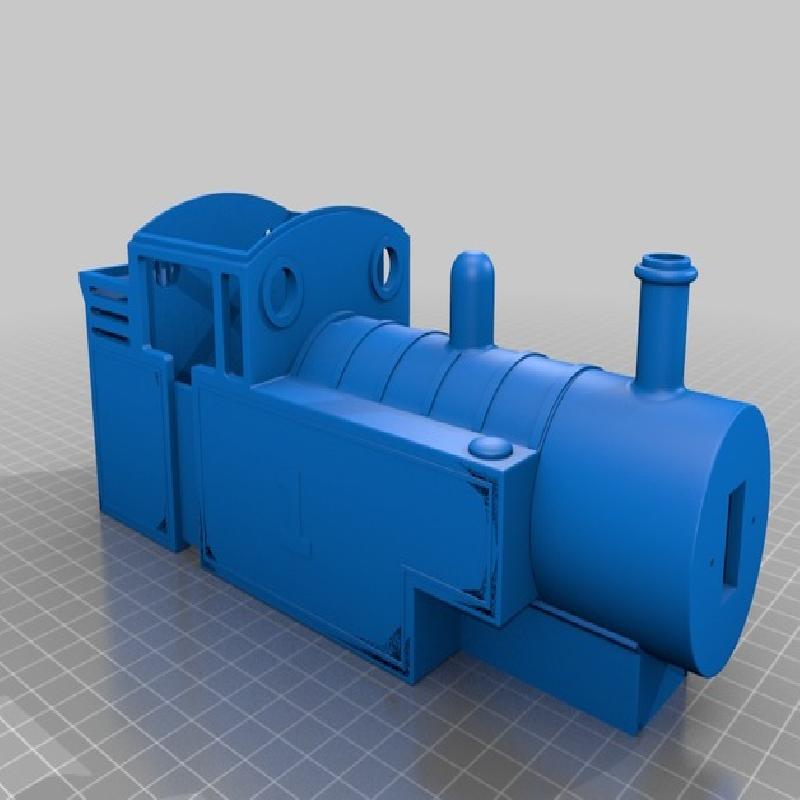

thomas_g_body
raft
support
10% infill
0.1mm
2 shells

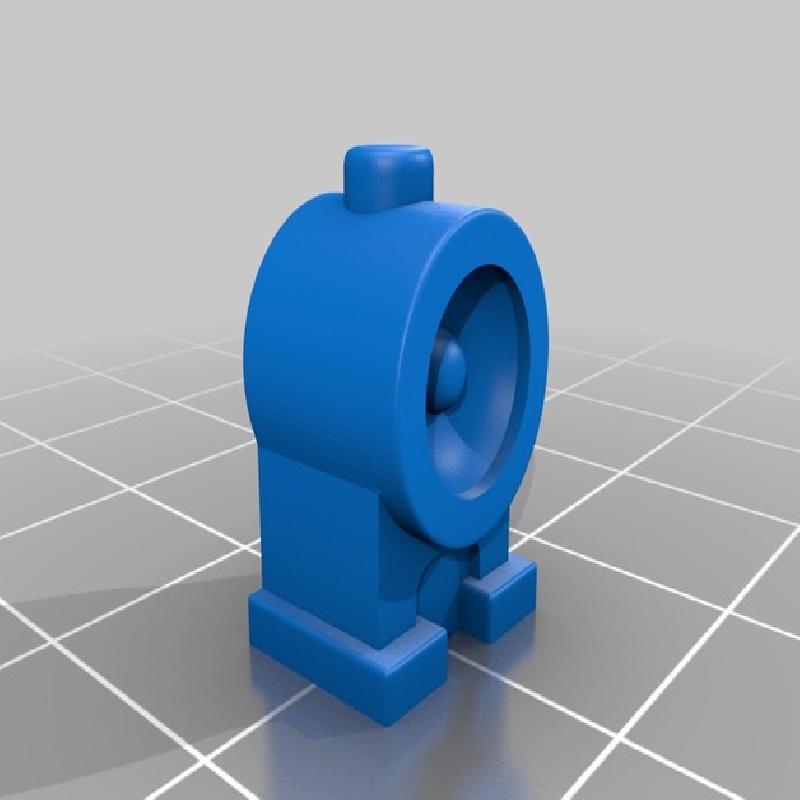

thomas_g_lamps
rotation: laying on back
no raft
support
30% infill
0.1mm
2 shells

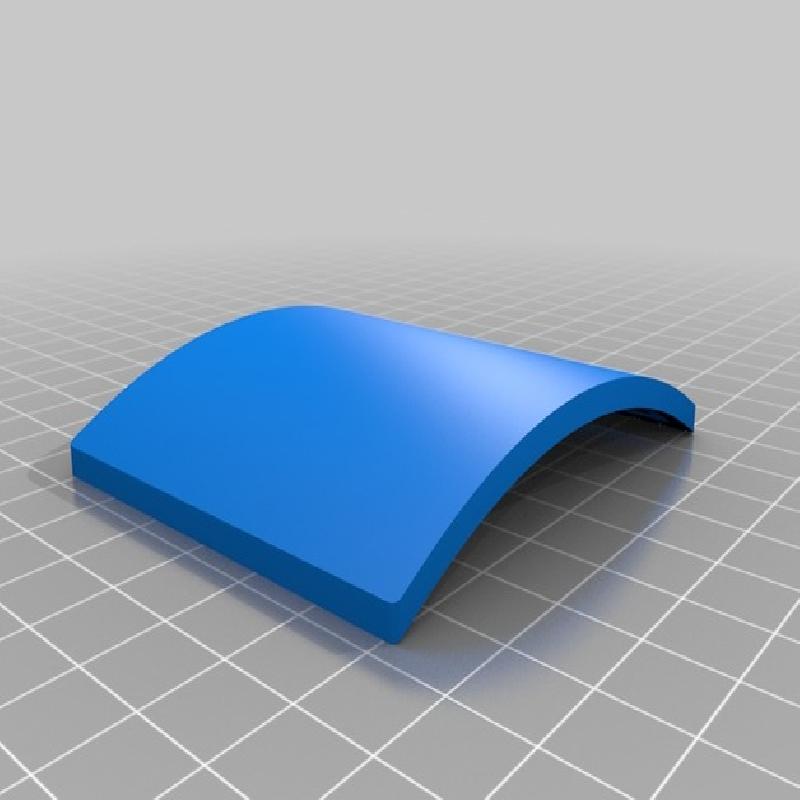

thomas_g_roof
rotation: standing
raft
support
15% infill
0.1mm
2 shells

thomas_g_ladder
rotation: laying on back
no raft
no support
100 infill
0.1mm
2 shells

thomas_g_wheelwell
rotation: laying on back side
no raft
no support
15% infill
0.1mm
2 shells

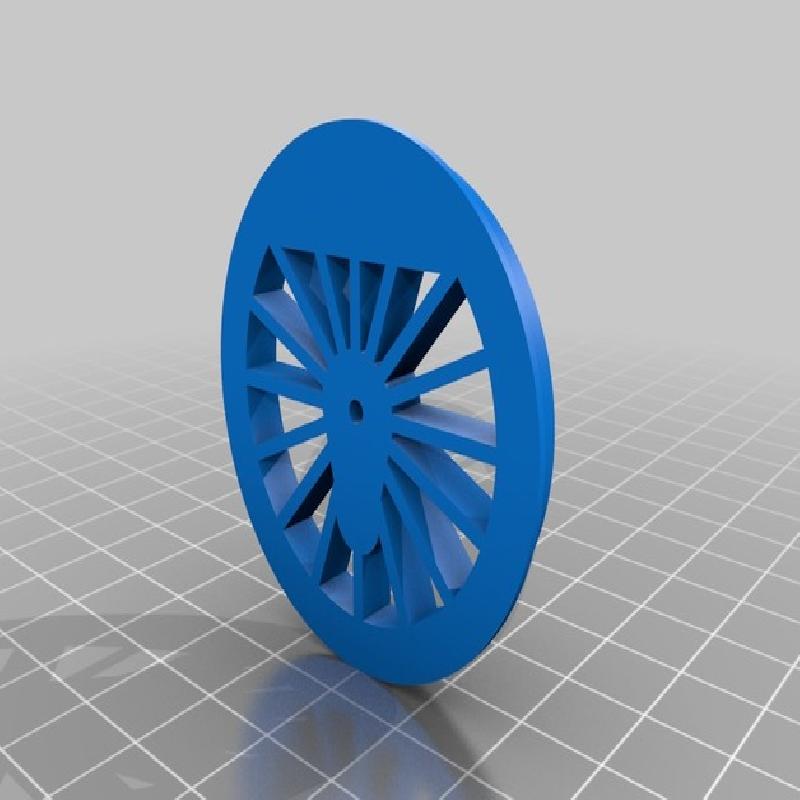

thomas_g_wheel
no raft
no support
30% infill
0.1mm
2 shells

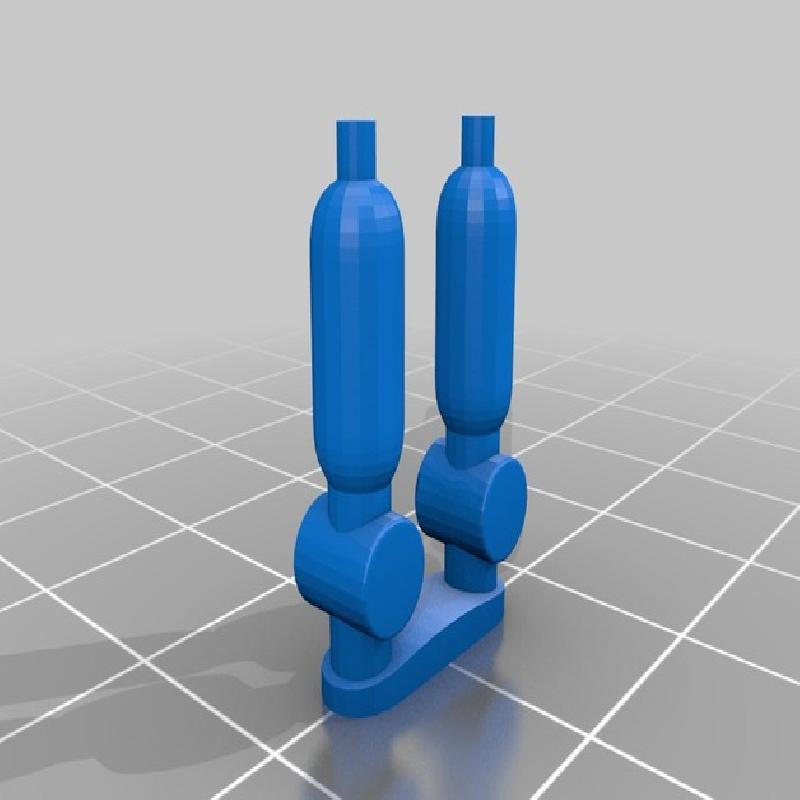

thomas_g_whistle
no raft
support
100% infill
0.1mm
2 shells

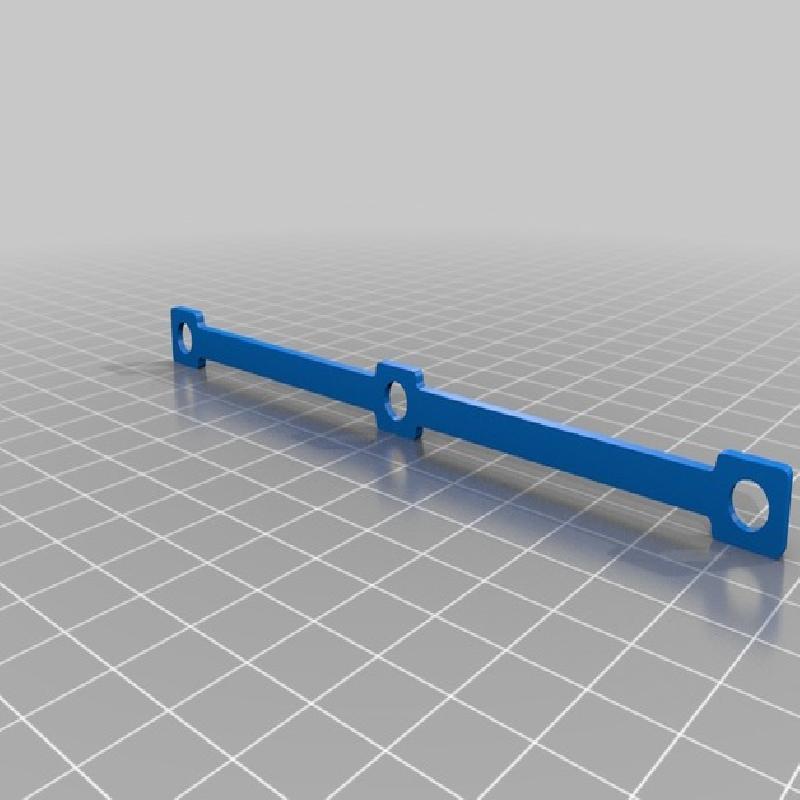

thomas_g_bar
no raft
no support
25% infill
0.1mm
2 shells

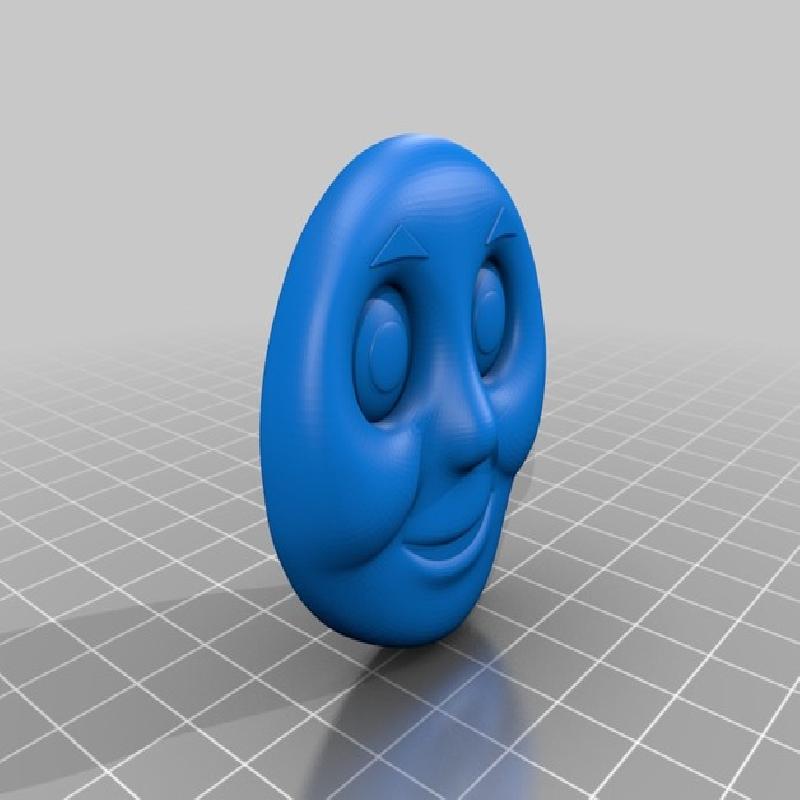

thomas_g_face
rotation: standing
raft
support
25% infill
0.1mm
2 shells

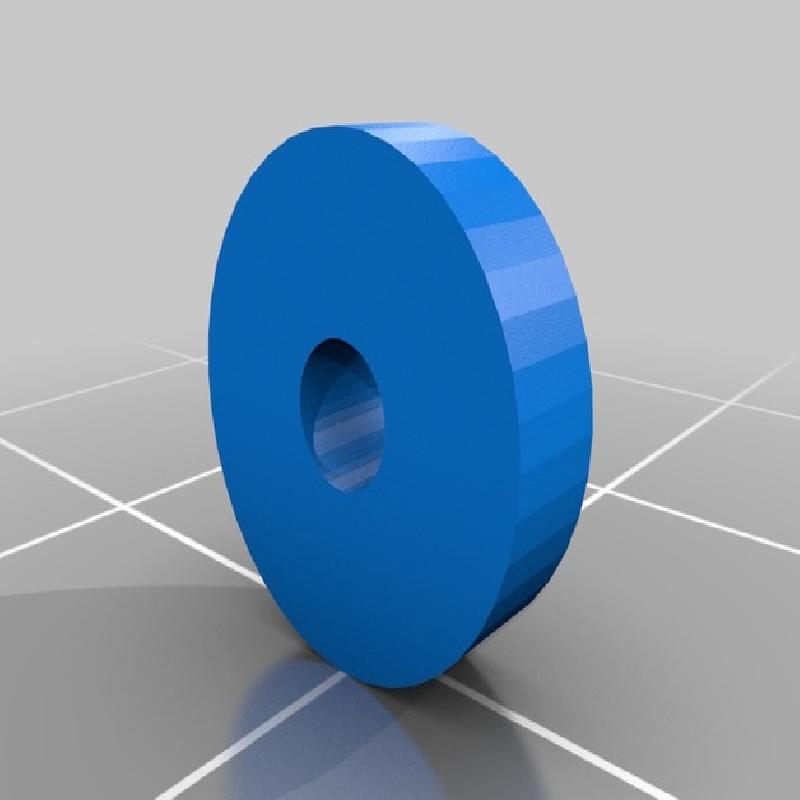

thomas_g_spacers
no raft
no support
100% infill
0.1mm
2 shells

Post-Printing
