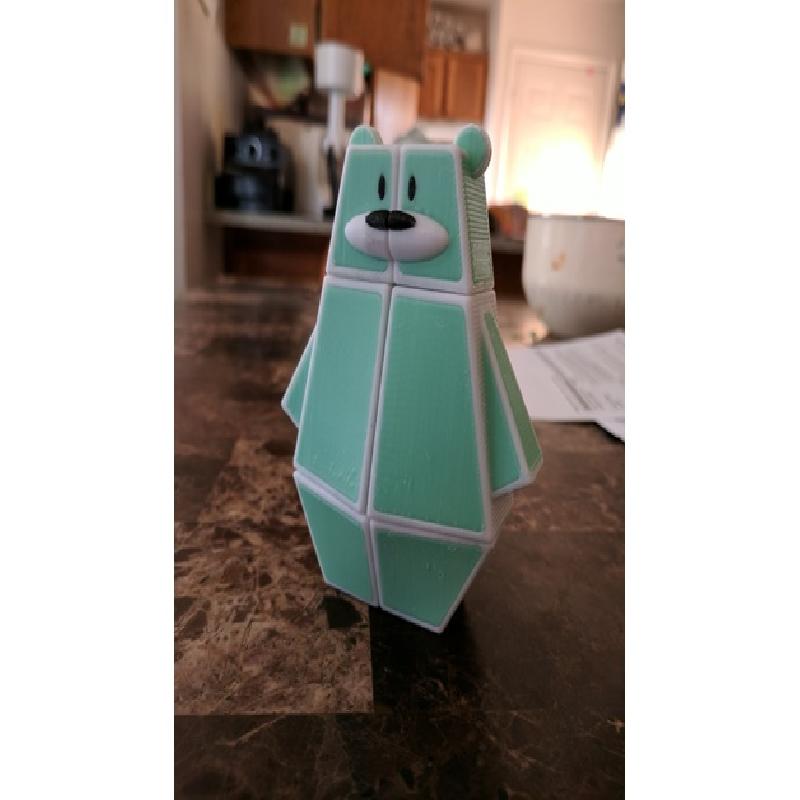

This is a multicolor remix of the elegant Ozo puzzle model. The stickers are now built in!

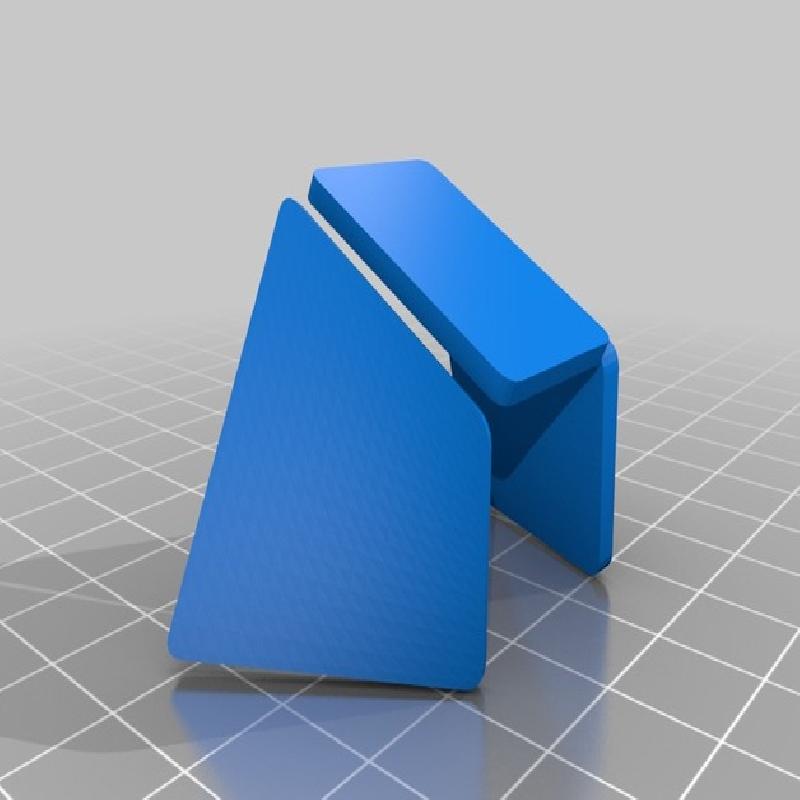

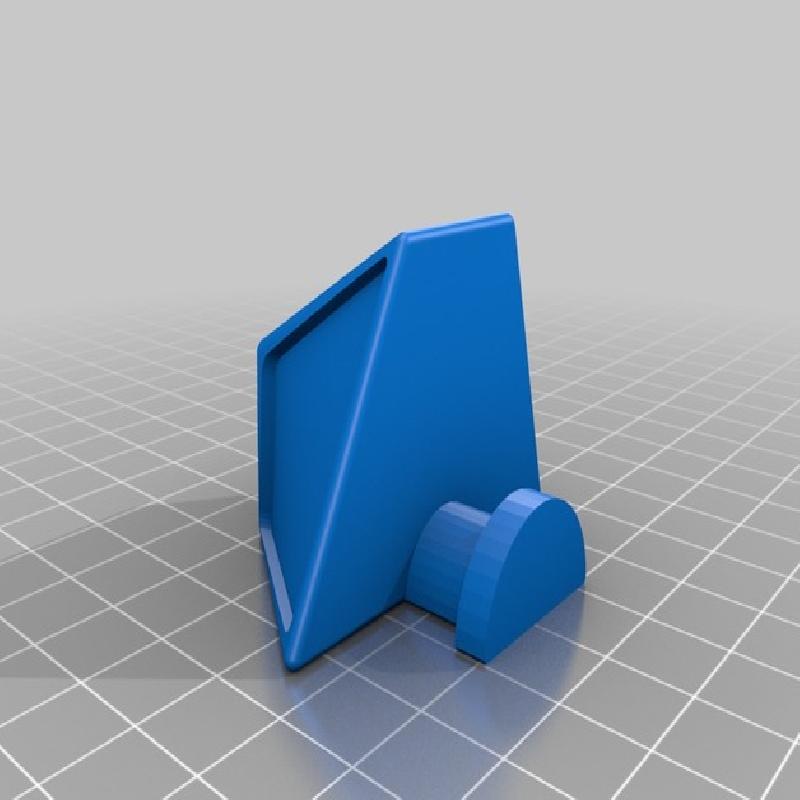

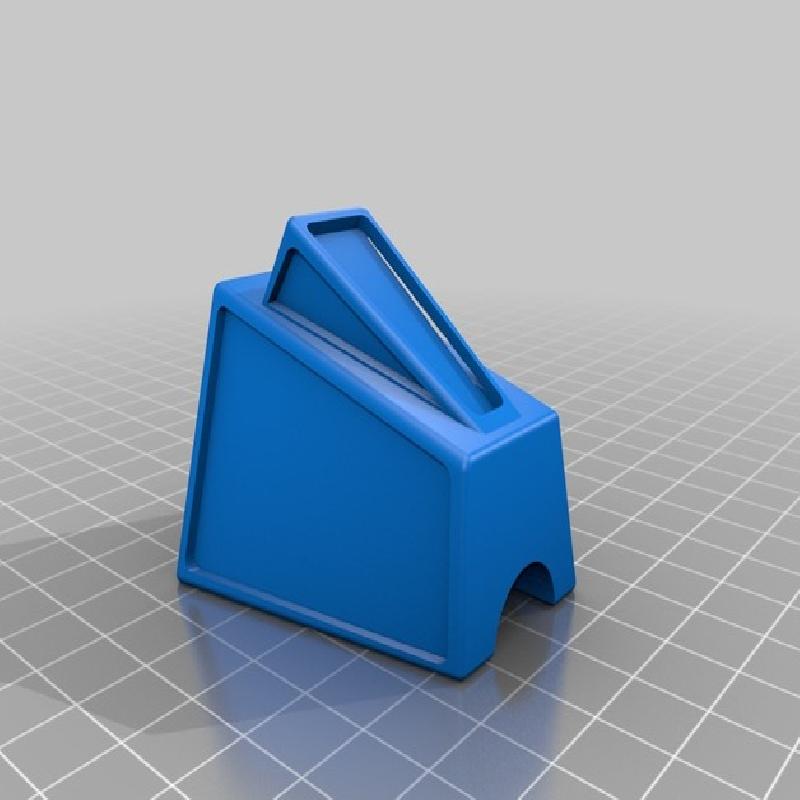

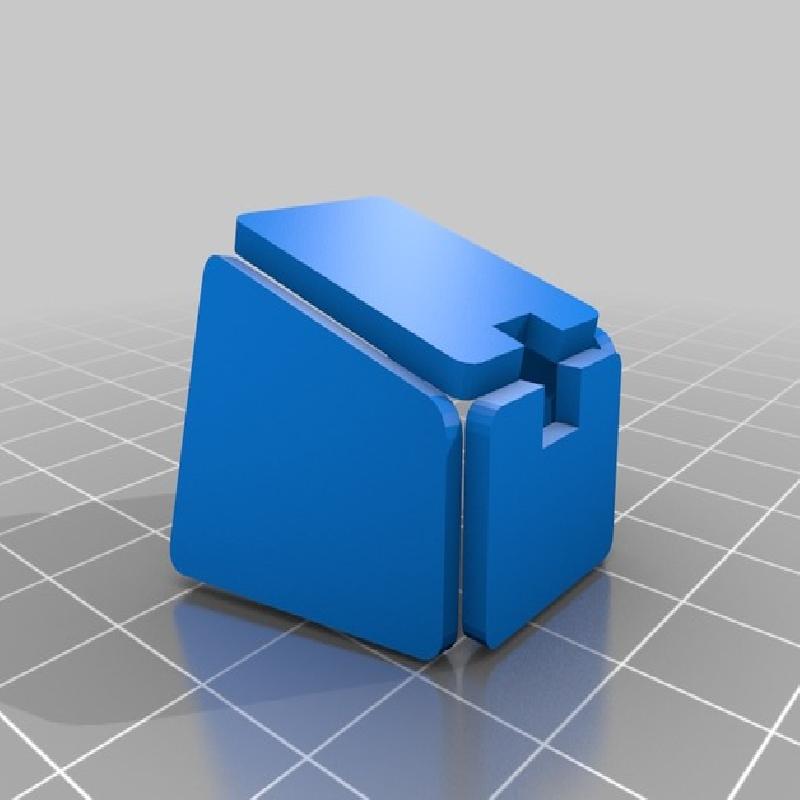

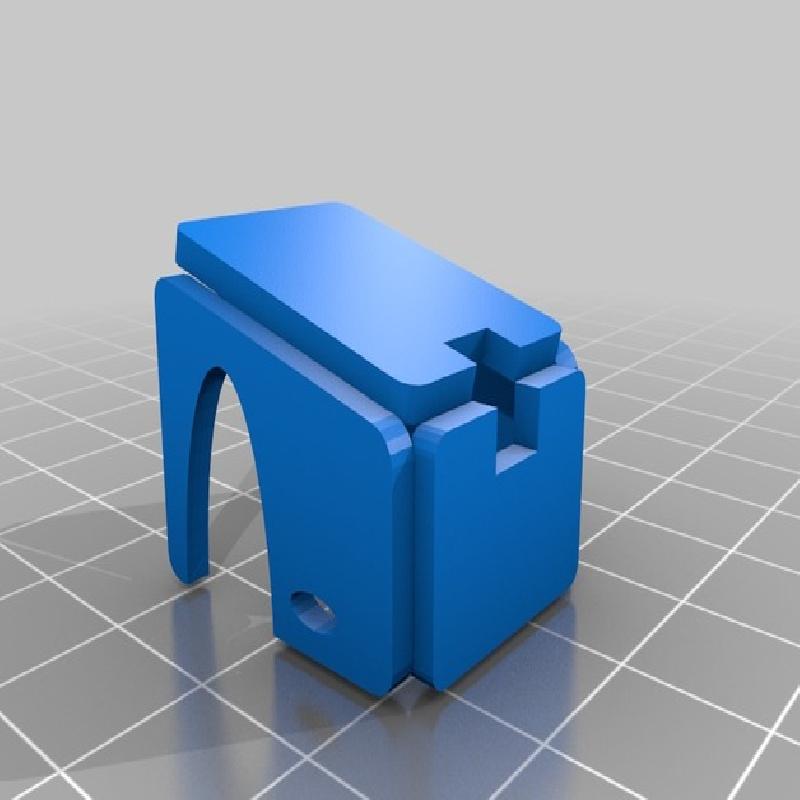

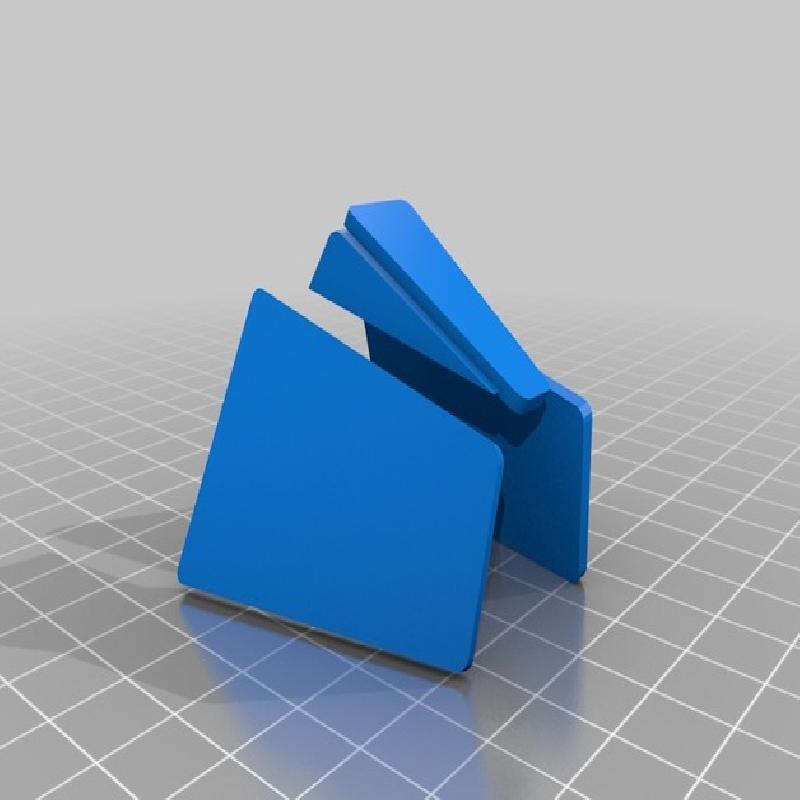

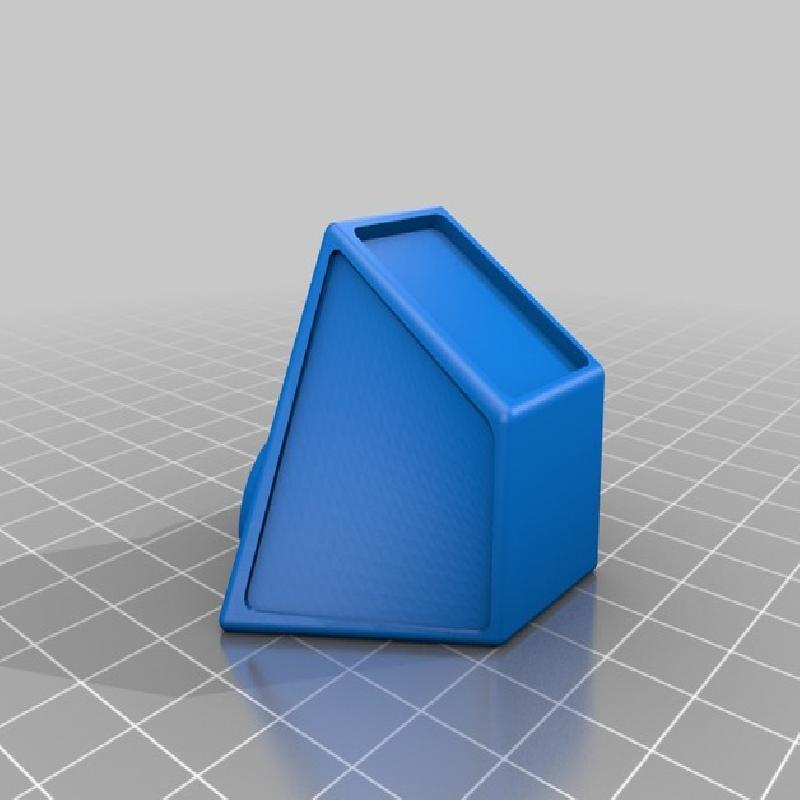

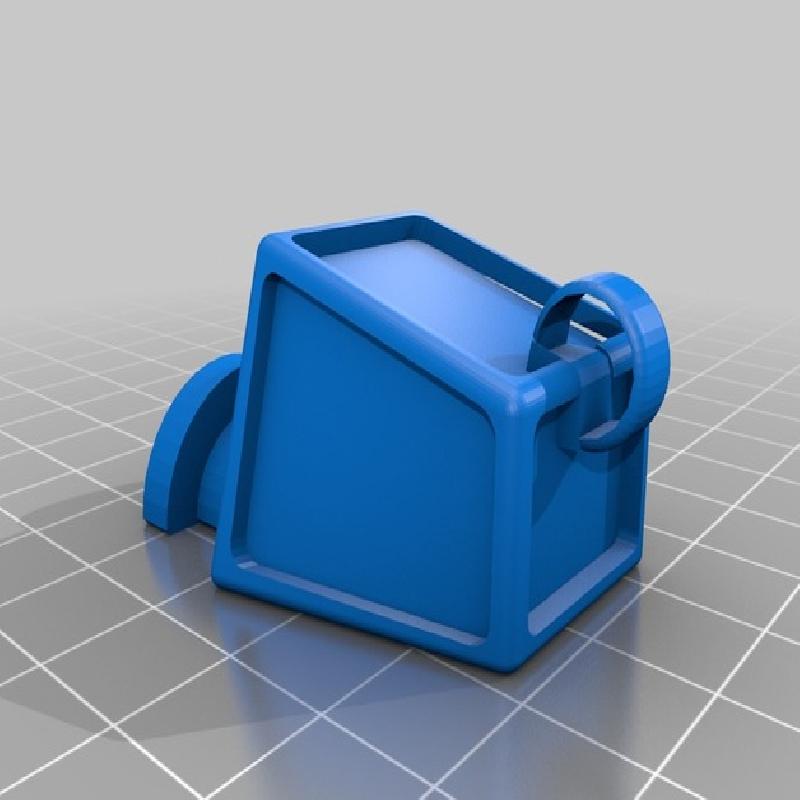

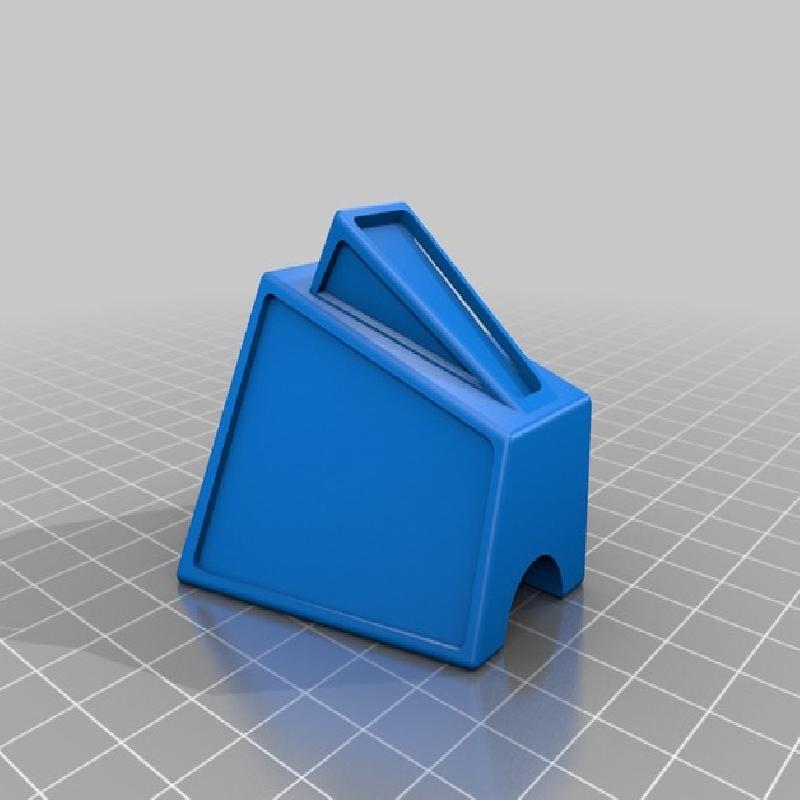

This model has 7 parts:
Top left (up to 6 colors)
Top right (up to 6 colors)
Center left (2 colors)
Center right (2 colors)
Bottom left (2 colors)
Bottom right (2 colors)

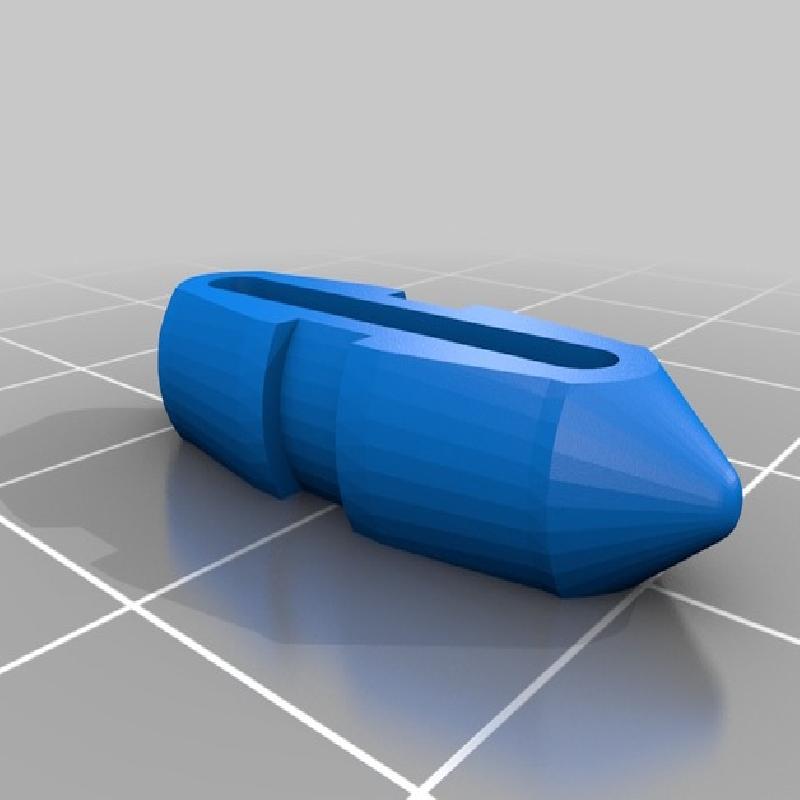

A hidden pin that connects the left and right halves
I plan to work on the "panda" version as well.
Printer Brand:
Prusa
Printer:
Prusa Mk2
Rafts:
No
Supports:
Yes
Resolution:
0.25mm
Infill:
20%
Notes:

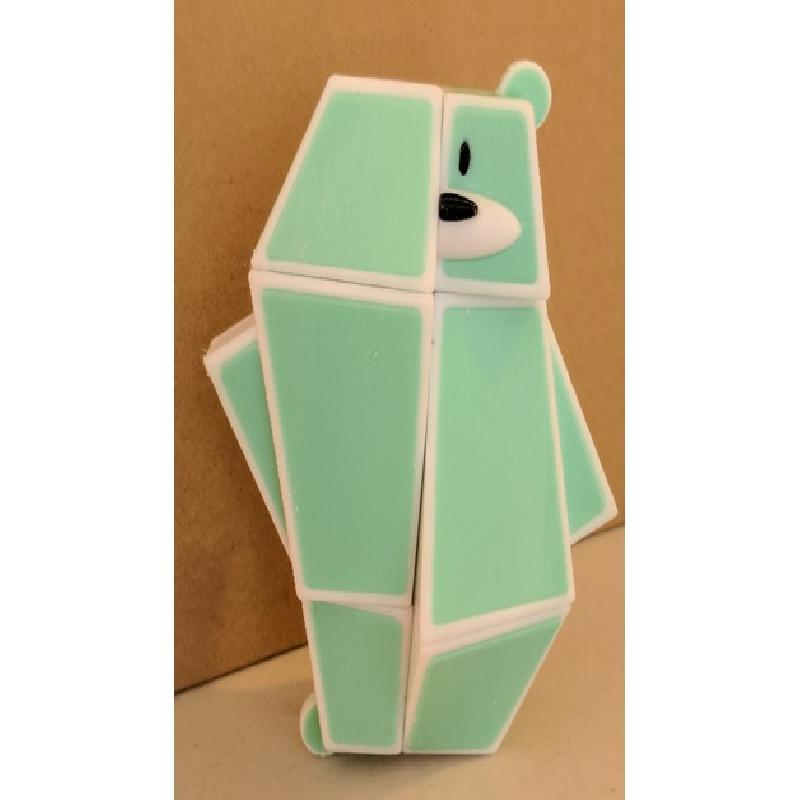

Printed in PETG on the Prusa MK2 with the multi-material upgrade. Ozo's parts move freely and the puzzle is fun. I used Slic3r Prusa edition to slice the print.

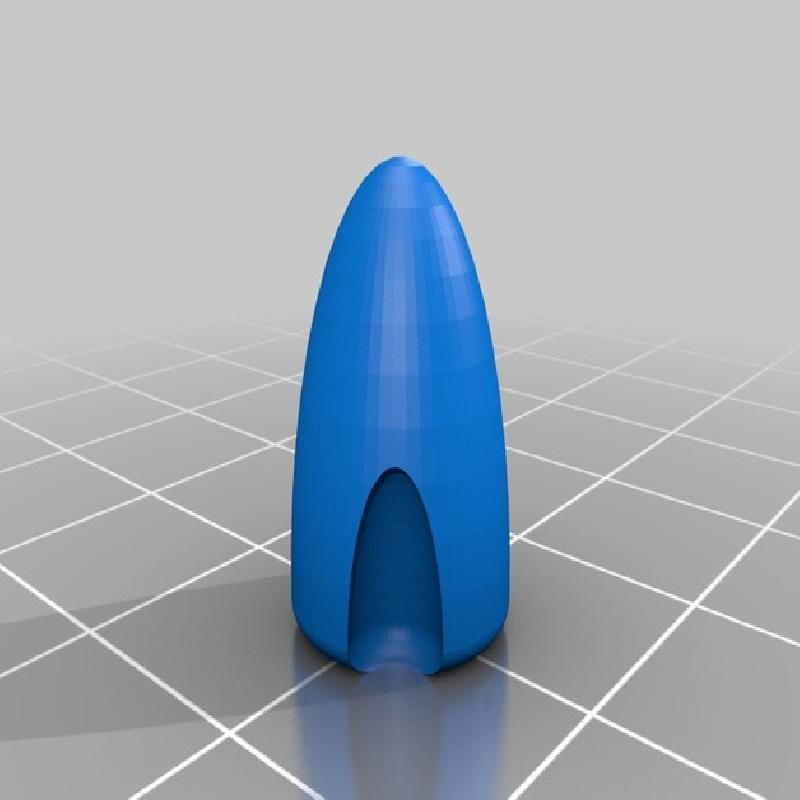

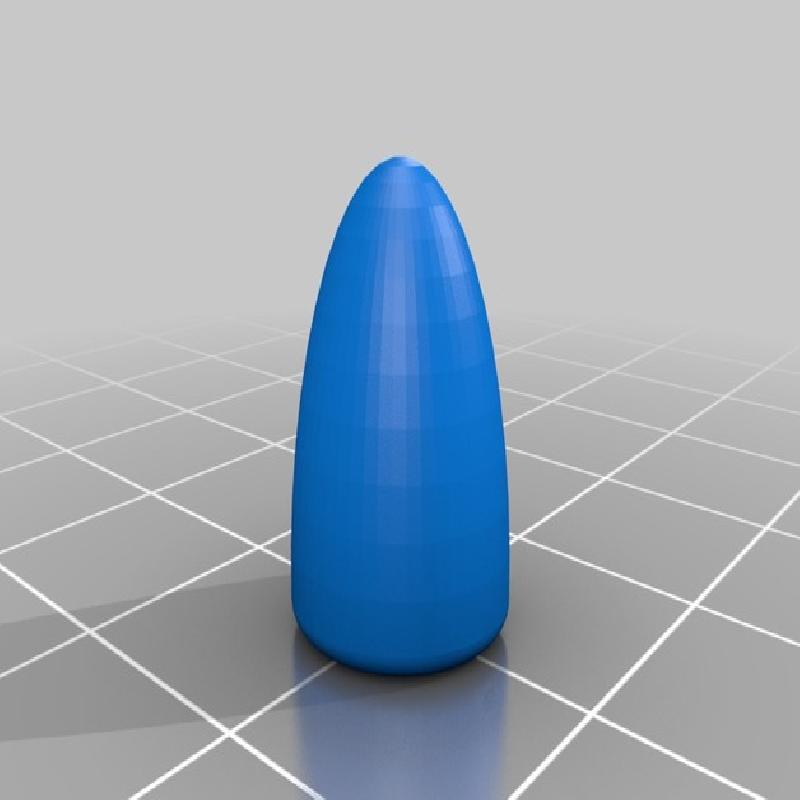

I printed both pins. I'm not sure which one I used; one of them fit better. In PETG the pins feel rather strong.
Don't forget: once you put the pin in both sides, you might not be able to disassemble Ozo without breaking something. Double-check your assembly and save the pin for last.
