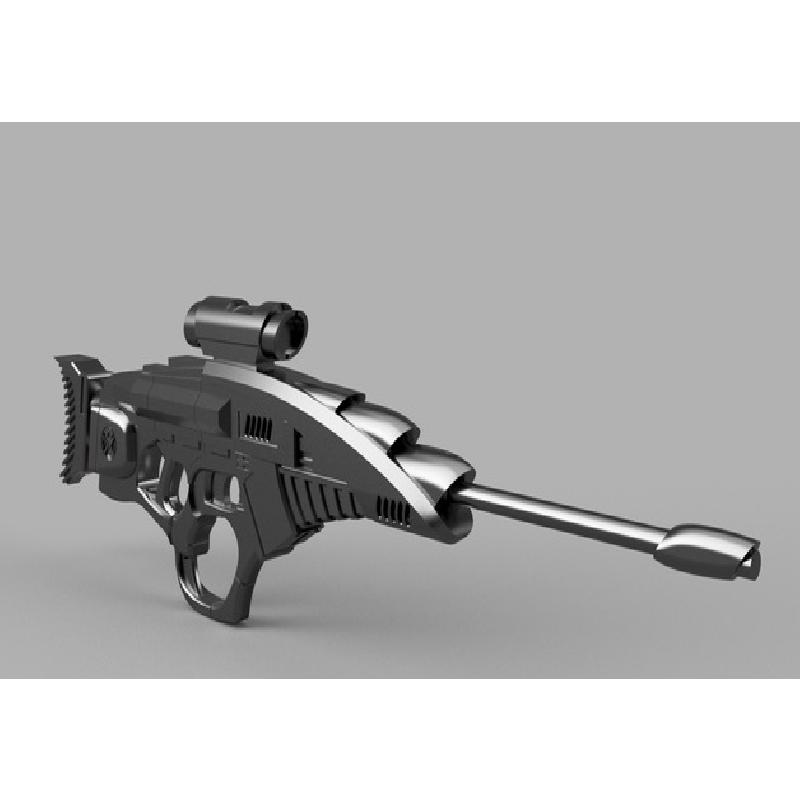

This is a 3d model made using Fusion360
It was my very first attempt on a big weapon.

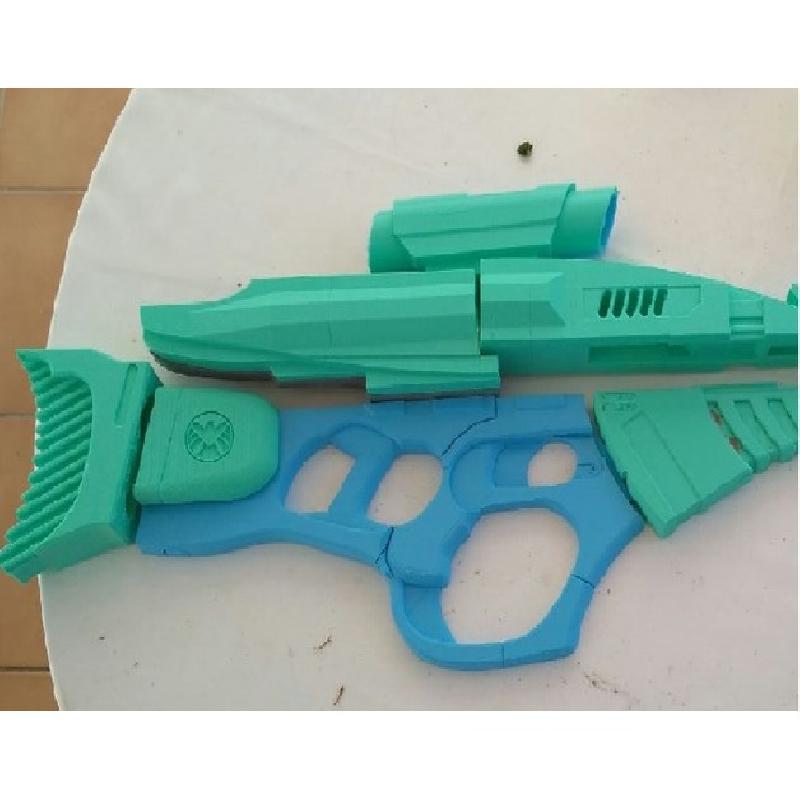

I printed it, but didn't glue all the pieces! So I have no pictures, sorry.

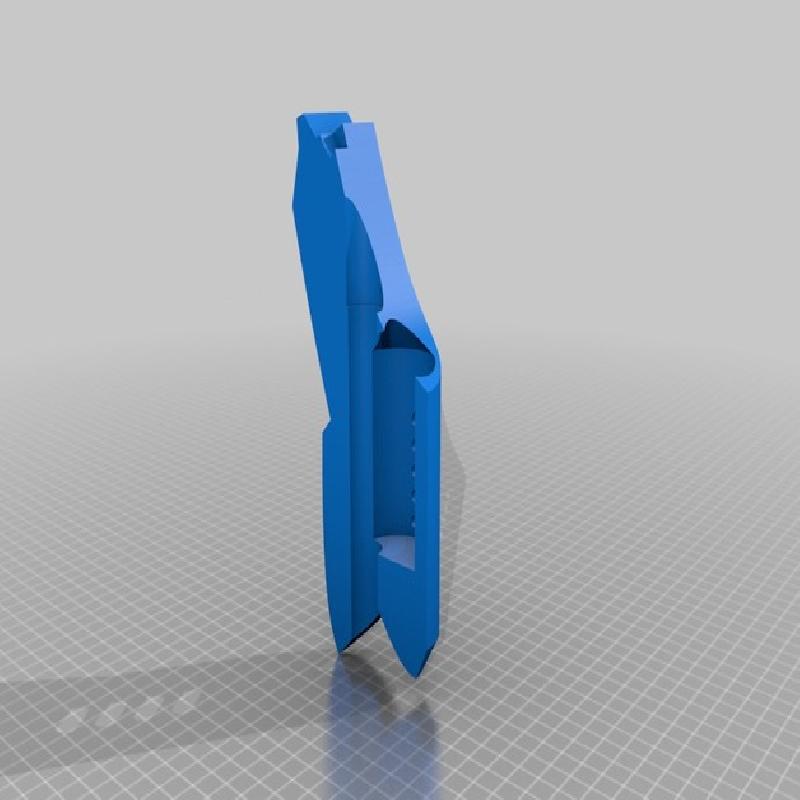

You will find it hollowed to put some leds and batteries inside, and the magazine can be closed using magnets.
Also, you will need 3 rods :
1 x 17.50 mm
2 x 9 mm
Full assembly length is similar to 1m.But re-scale if needed.
In case of doubt, print the right side and mirror the pieces :)
You can also ask me if you find any problem.
Printer:
Creality CR-10
Rafts:
No
Supports:
Yes
Resolution:
0.1
Infill:
20
