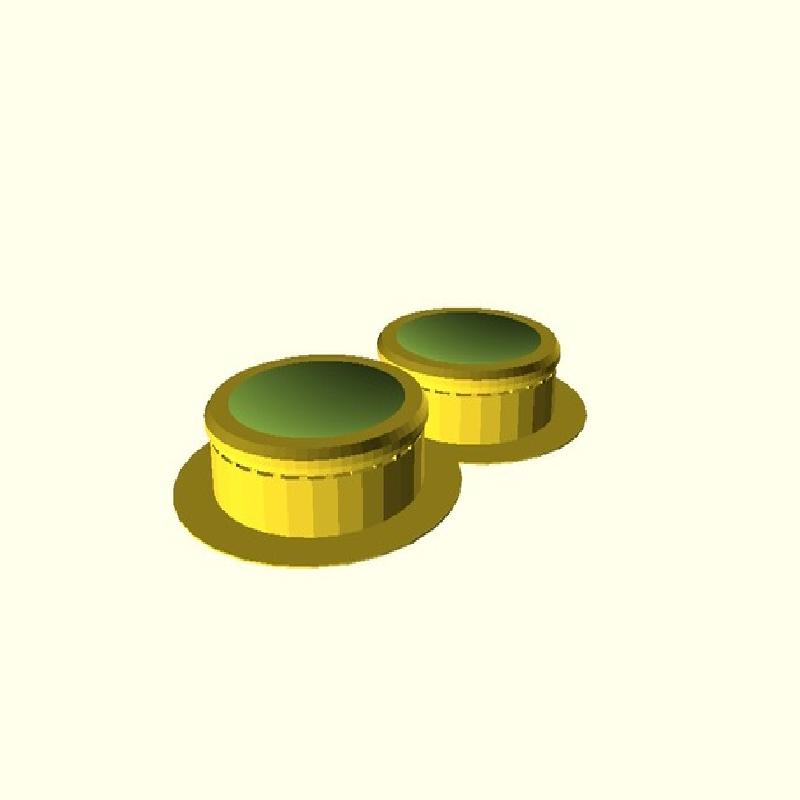

Comfy caps for any bearing (just specify a model of bearing)

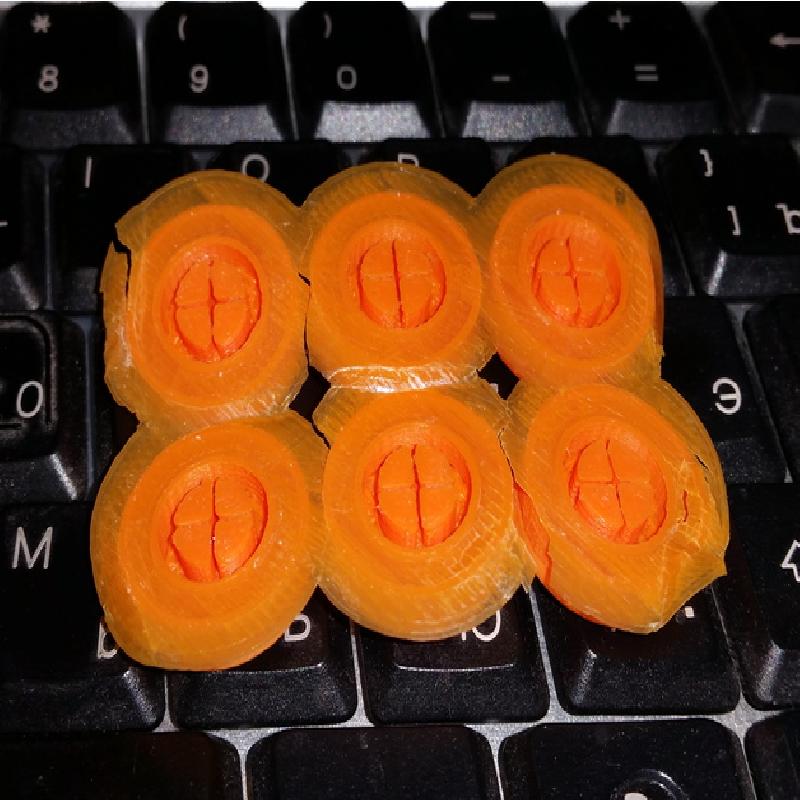

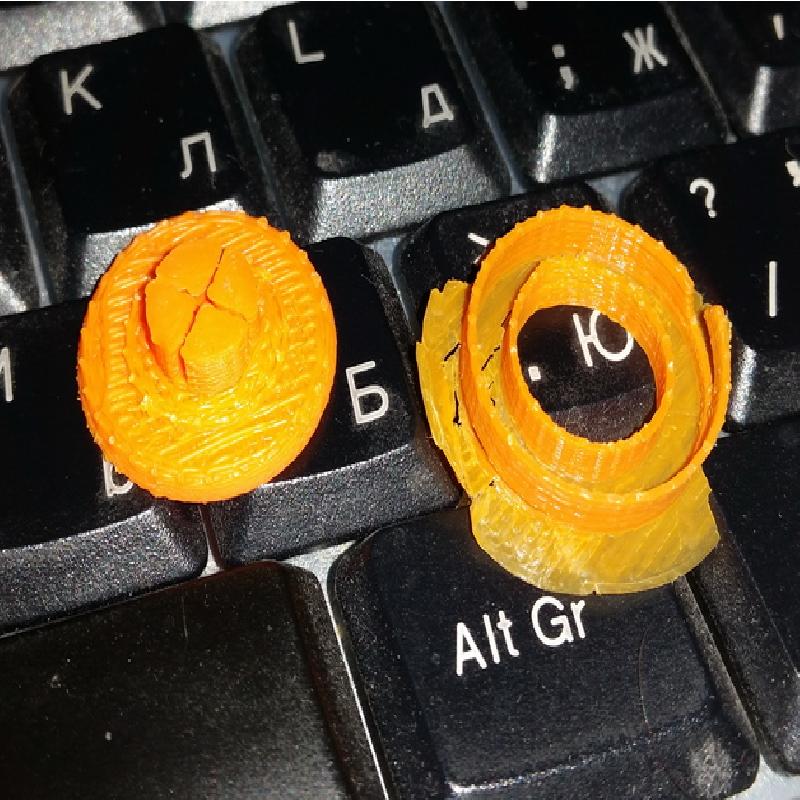

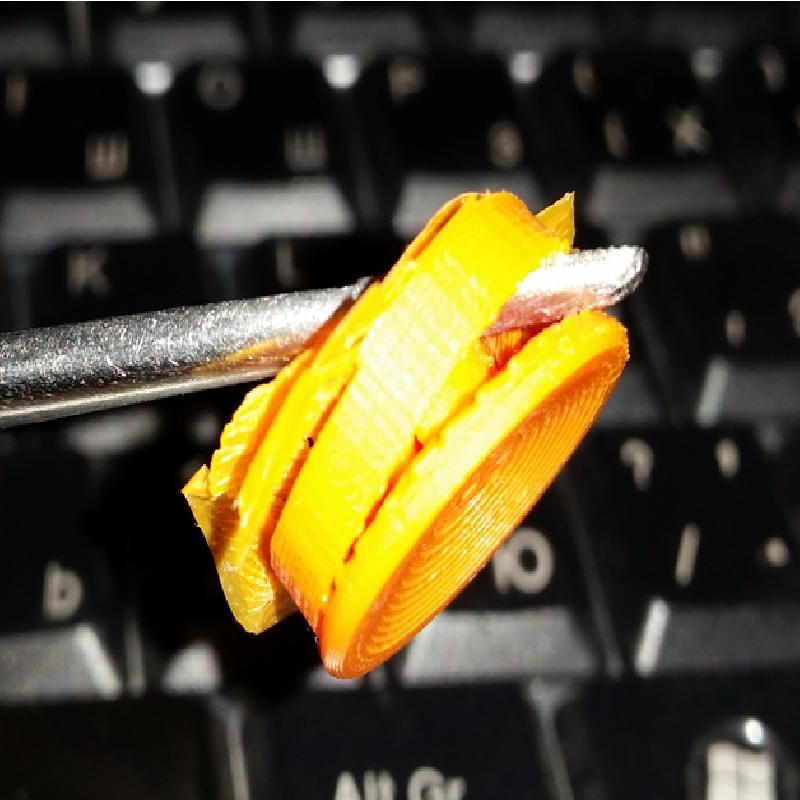

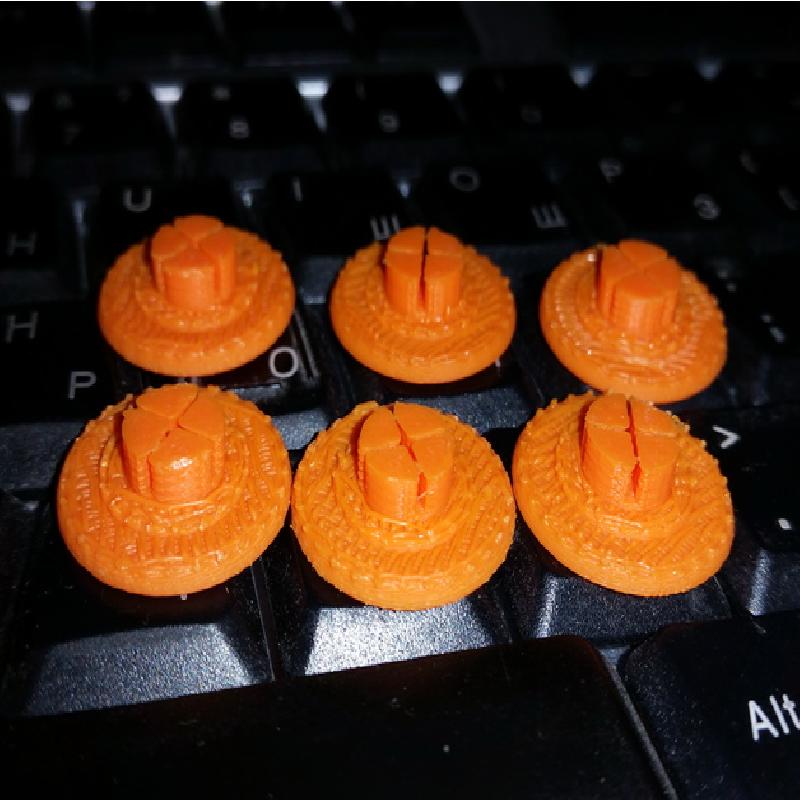

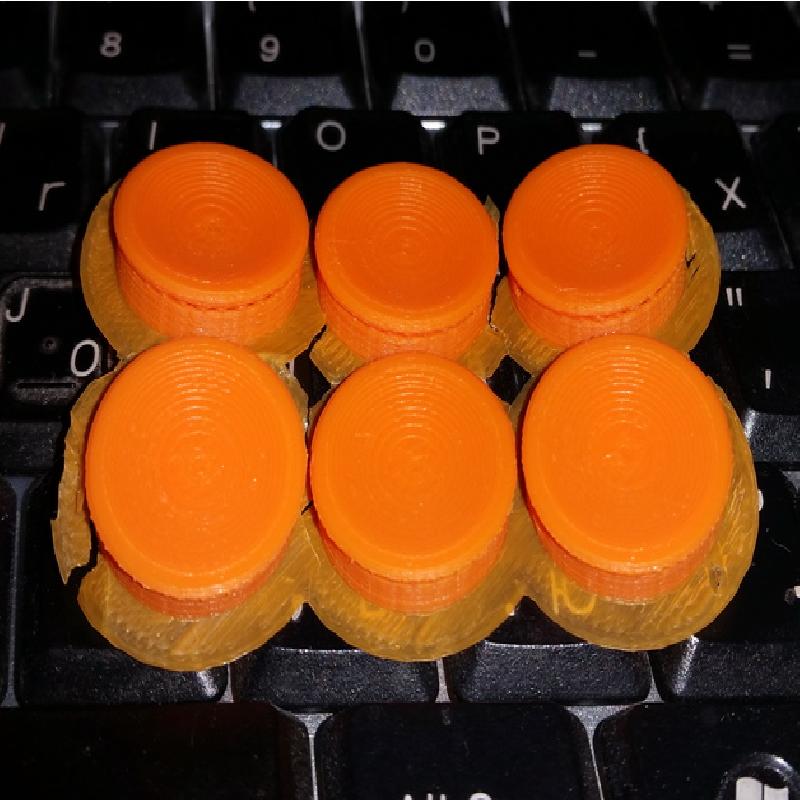

with easy removing support and easy printing (no need additinional support and brim in slicer)

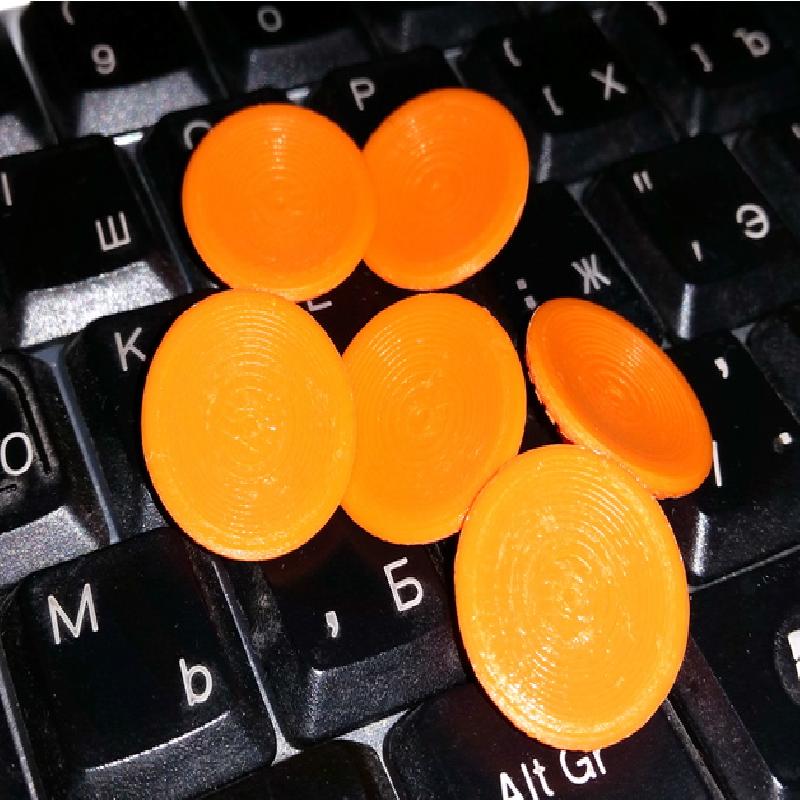

No need sanding after printing.
Supported 31 models of bearings. (и еще 54 типа подшипников по ГОСТУ)
Ready stl for standart 608 and 627,629,696,698 bearings (for nozzle <=0.5 and layer<=0.12)
Parameters:
// minimal diameter of cap, for default 2/3 of outer bearing dimension
dMin = 19;
// thickness of cap
tCap = 1.6;
// model of bearing
model = 608;
// quantity
qty = 2;
// tolerance > 0 for snug fit
o = 0.03;
// true for slot
slot = true;
// depth of pit
pit = 1.2;
You can turn off auto-support in openscad (or in customizer) (set support=false).
Thick of support depends on parameters:
nozzle =0.5;
layer =0.13;
you can set nozzle of you printer and layer which you want.
