Want some freshly squeezed orange juice or do you want some lime in your favorite soda drink?
Use this citrus juicer to make your drink!

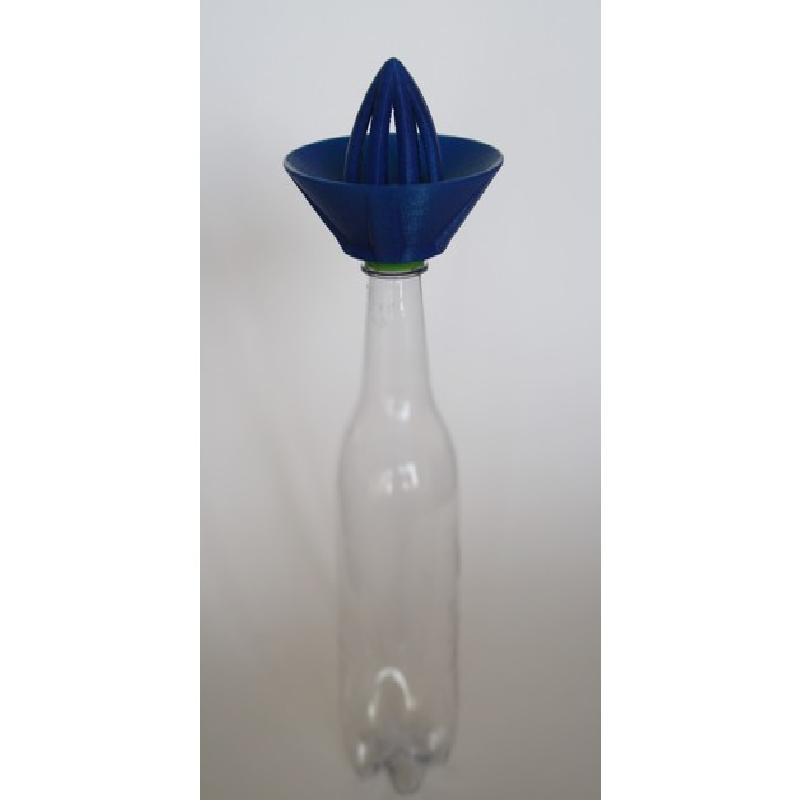

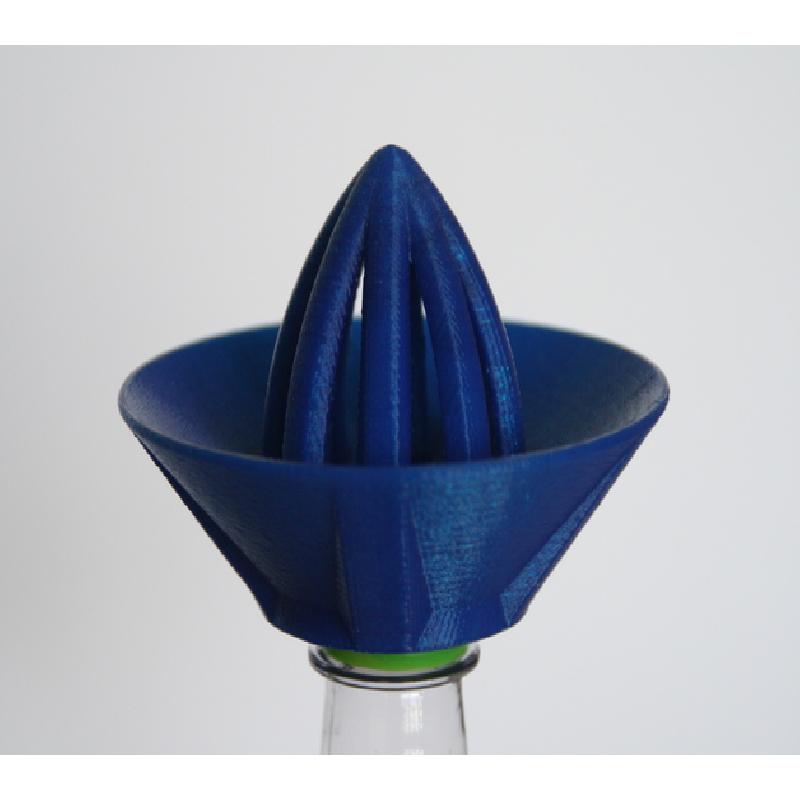

You can screw this juicer on top of almost any bottle and when you squeeze your orange the juice flows right into the bottle. The design is specially made for 3D printing. No support is needed to print this Thing
Although the bottle neck screw of PET bottles is pretty much standardized, the prints are test fitted on bottles from the following countries:
Argentina
Belgium
Czech Republic
Denmark
Germany
Iceland
(The) Netherlands
Norway
Sweden
Turkey
Please leave a comment, make or personal message when you printed the juicer and let others know if it fits on the bottles used in your country! (I think it fits almost every bottle)
Printer:
Velleman K8200
Rafts:
No
Supports:
No
Resolution:
0,2 mm
Infill:
20%
Notes:
Please DO NOT use support material! This design is optimized for 3D printing and has no overhangs bigger than 45 degrees. Support material adds extra trouble because you have to make sure everything is removed and no loose parts will enter your drink.
Make sure your print is watertight (use enough outer shells). Otherwise juice will settle inside your print and mould will start to grow.
Use your own caution with choosing your material to print with.
Make sure all strings are removed before using.
