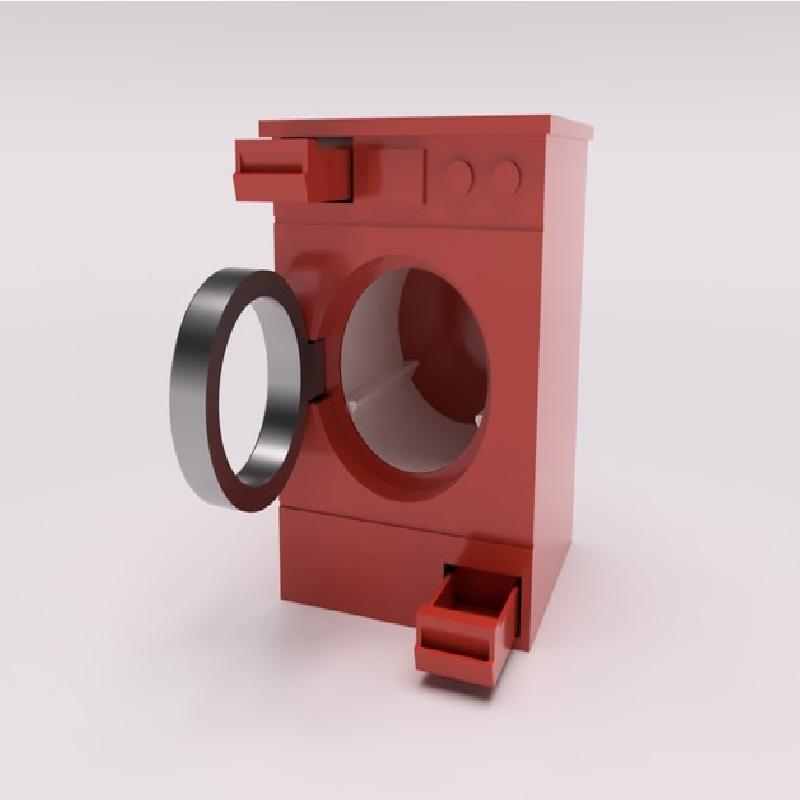

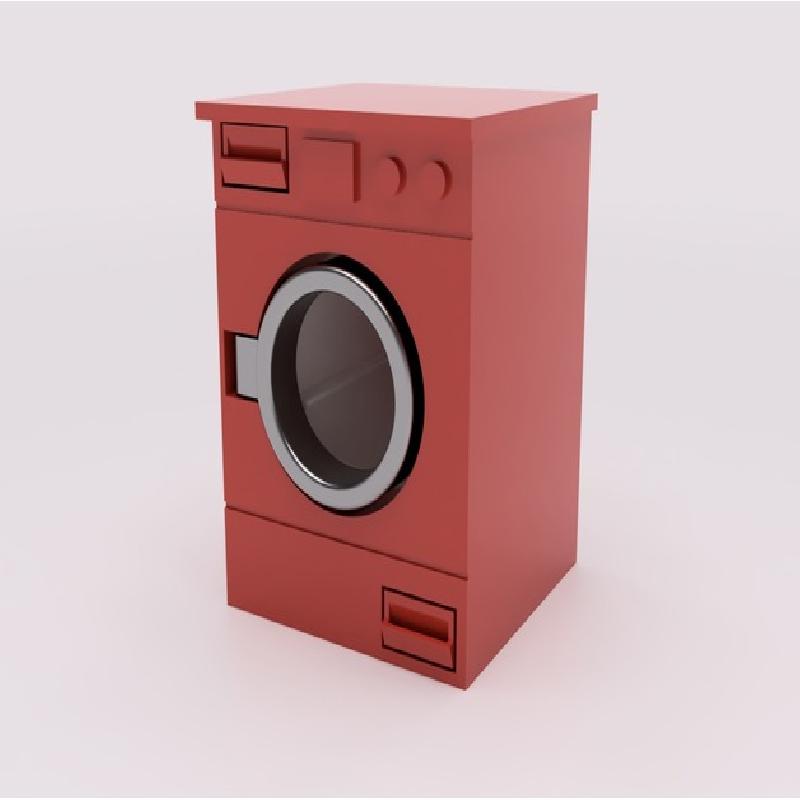

It's a tiny washing machine - with a door, a fluff sieve and a detergent drawer.
Unfortunately, my son won't hand it out for photographic documentation... will update any time soon.
My son and I would love to see it in other colors or even painted... so please show me if you print it!
Printer:
Anet A8
Rafts:
Doesn't Matter
Supports:
No
Resolution:
0.1 - 0.2 mm
Infill:
20% - 30%
Notes:

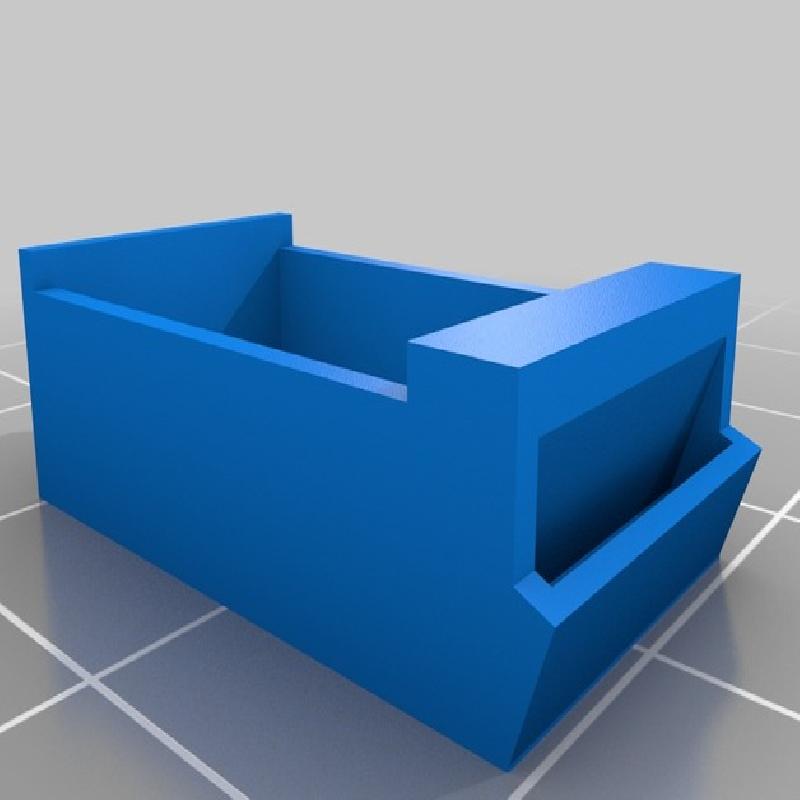

Print 2 drawers. They're fluff sieve and detergent drawer ;)
Use 0.1mm for the drawers. They're tiny. And use a brim for the front part. It needs to be plain for assembly.
Assembly
You will need a nail and some glue. Maybe dremel and hammer.

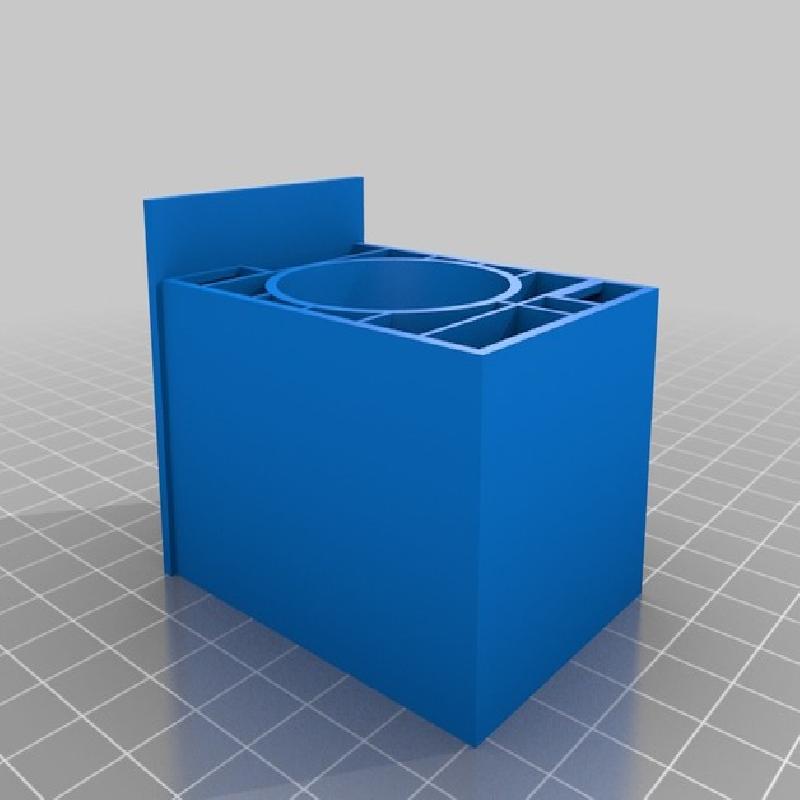

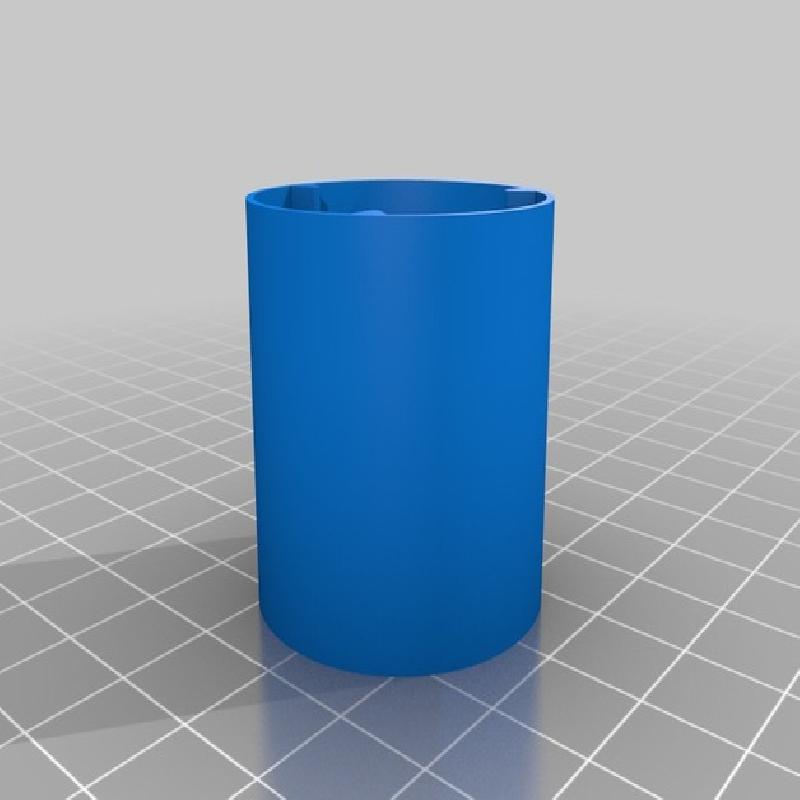

Place the drum in the body
Important: Place the drawers in their holes BEFORE attaching the front! There's a small projection keeping the drawers from dropping out. You will have to apply a little force and a certain angle there to squeeze them in.
Carefully apply some glue to the front of the body (avoiding the drum!)

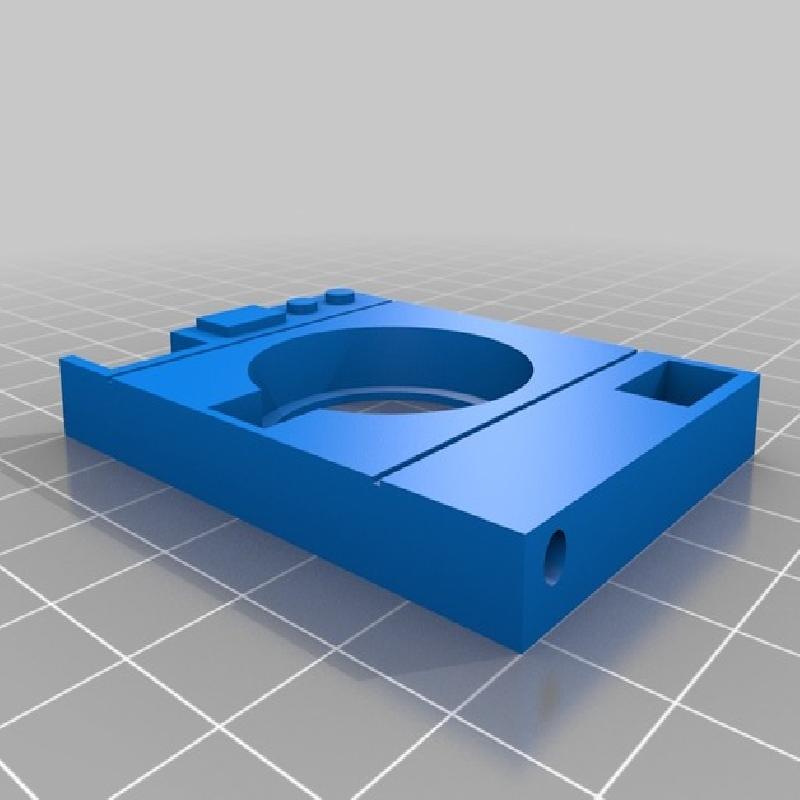

Place front on body
Find an appropriate nail (~1mm diameter / 3mm head / 4cm length if using original scale)

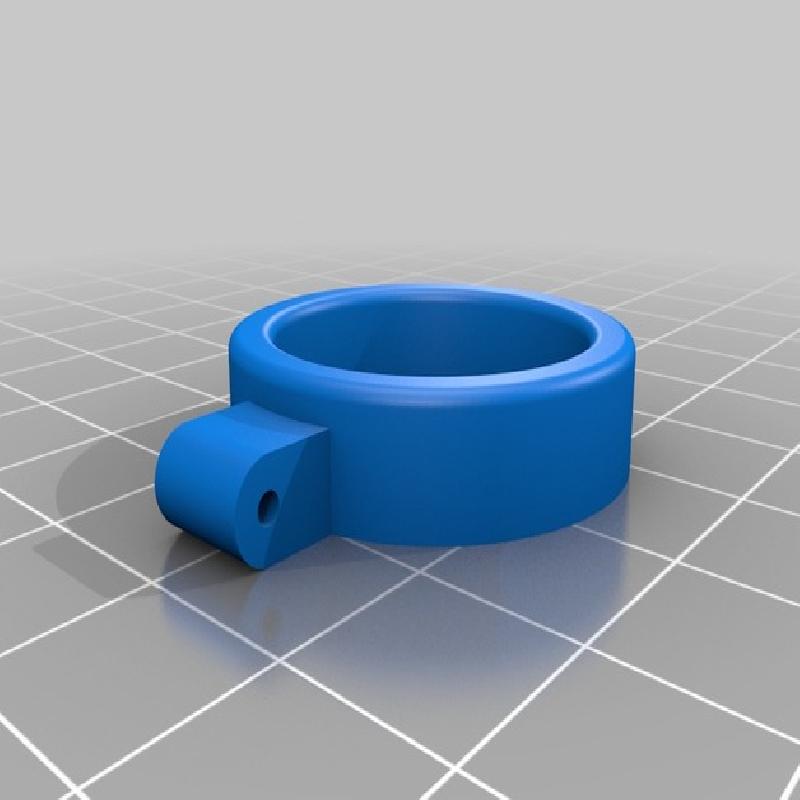

place door in hinge and drive the nail through the bottom hole. You will have to lift the door a little to put the nail through it.
If holes are too tight use a dremel. Or just apply brute force with some caution :)
Additionally you can attach whatever you see fit as a glass behind the door. Maybe a smartphone protective foil or a cd case cut to size... be creative - or leave it as is ;)
