by drmcland, publishedSep 13, 2017

I was inspired to build this gun after seeing it on the series Legends of Tomorrow.

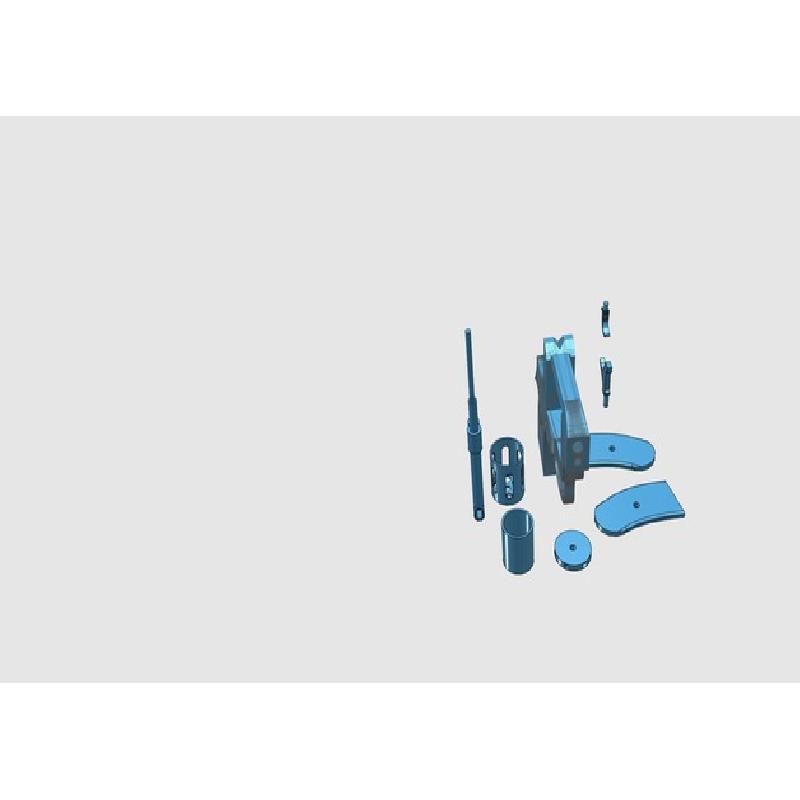

I have designed all the prices so that very little glue is required.

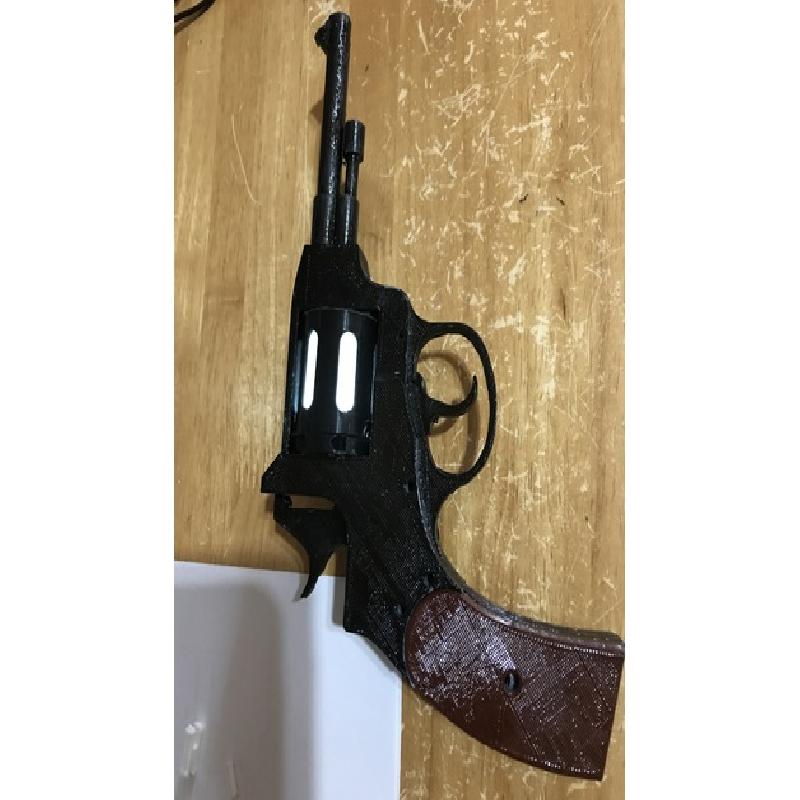

The Chamber is actually 3 pieces. A dark/black outer chamber, a translucent inner chamber and cap. This way you can add an LED or two.

Please note: The Chamber does not revolve. It is designed to lineup with barrel and lock in place.

I recommend printing the barrel and chamber pin at 50% fill for added strength.

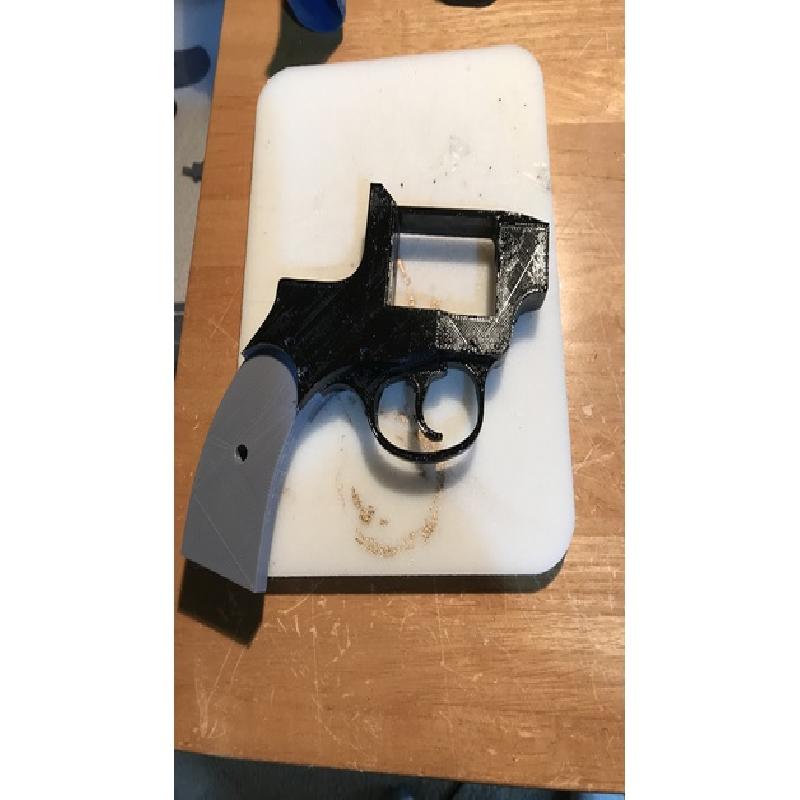

I notice after printing the holes in the grips do not line up exactly with the frame. I am going to fill them with a plug that looks like a rivet anyway. You may wish to do the same.

Also, I recommend spray paint, the brush paint does not look so good. Or print in black like I will for the next one to tweak issues.

You may need to sand the trigger and hammer pin a bit, this is by design.

Download print and enjoy. Feedback is welcome

If don't have access to a printer, I can print and mail it to you. Just reach out to me on ETSY or below
www.pixi3d.com

Cheers

Print Settings

Printer Brand:

Prusa

Printer:

Prusa Clone

Rafts:

No

Supports:

Yes

Resolution:

.15

Infill:

20%

Notes:

Except for Barrel 50%
