RM-01 Model Rocket
Overall very stable rocket, designed to be used with an altimeter. Conservative motor sizing keeps flights manageable for limited launch areas.
Designed for use with BT-55 body tubes
Designed for use with Estes C6-5 motors

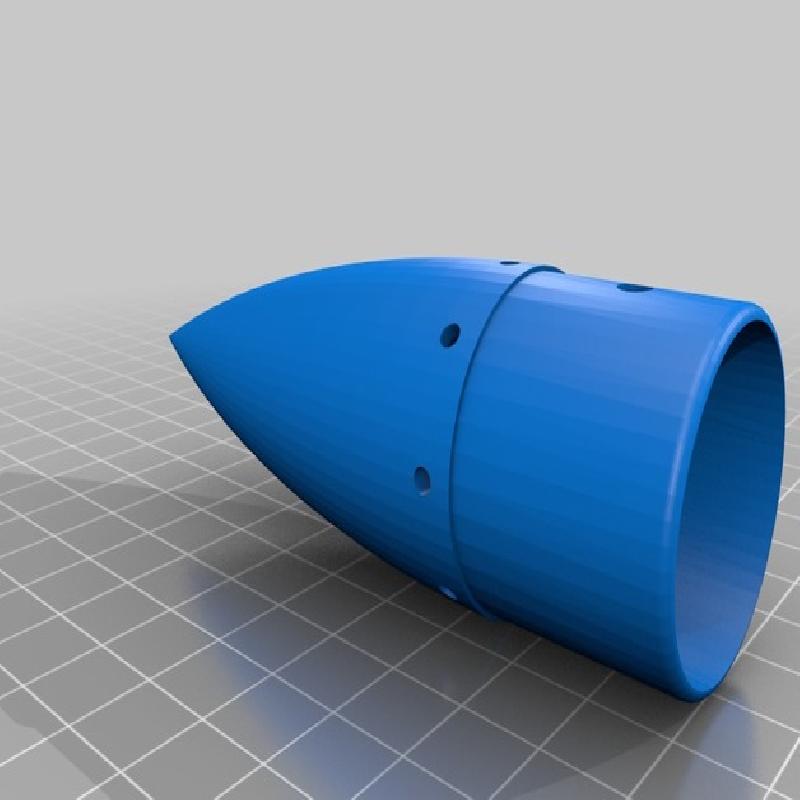

Nose Cone vented for Altimeter use (Altimeter 2 from Jolly Logic)

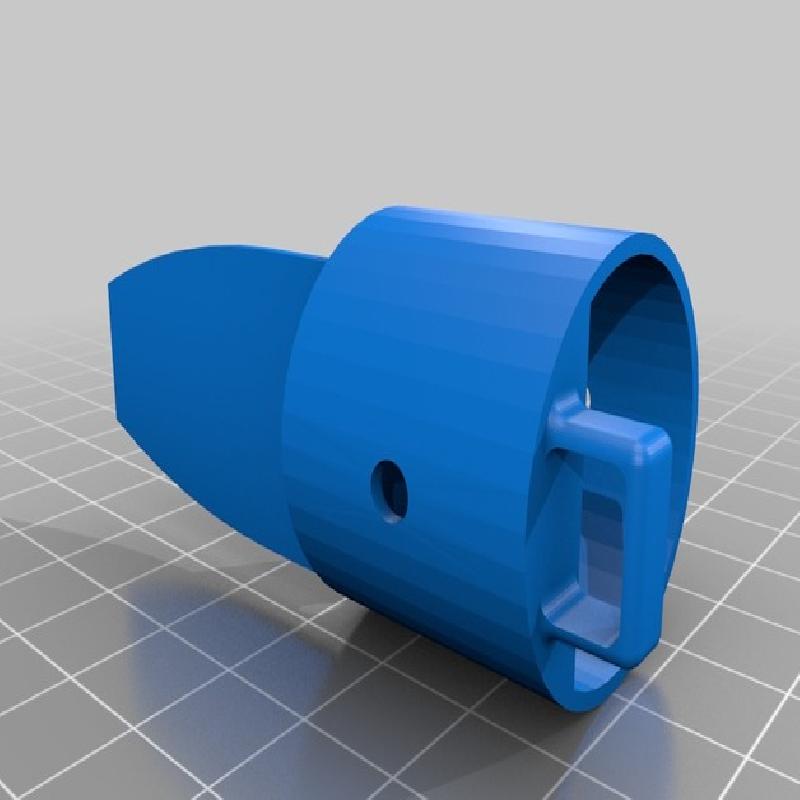

Altimeter Bay inserts into nose cone and is held in place with (2) 1/4" 10/32 NF set screws
Main body tube length: 18"
Parachute bay length: 4"
Designed for 14" parachute

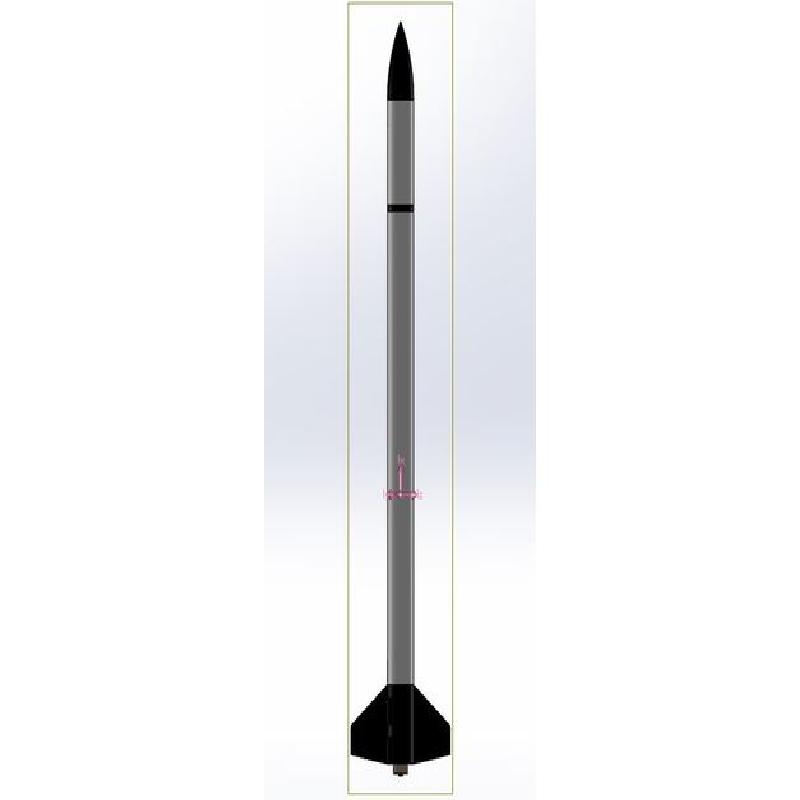

Specifications:
Overall Length: 28.7"
Fuselage Diameter: 1.32"
Nose Cone Height: 4"
Max Width: 5"
Dry Mass: 123 g
Loaded Mass: 155 g

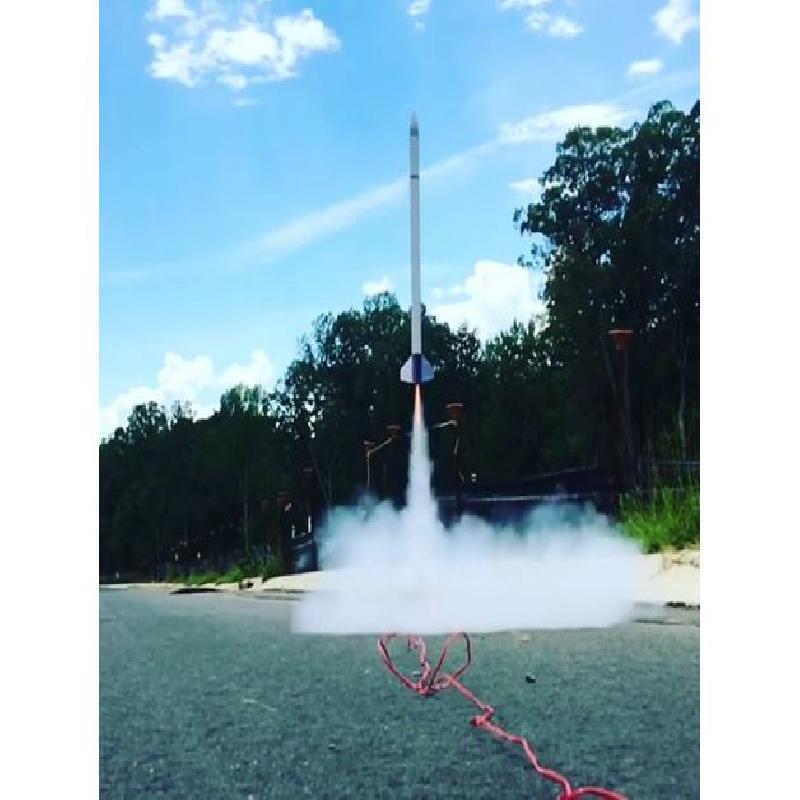

Typical Performance:
Peak Altitude: 250-300'
Peak Speed: ~85 mph
Peak Acceleration: 9.8 G
Descent Speed: ~10 mph
Flight Duration: 15-25 s
