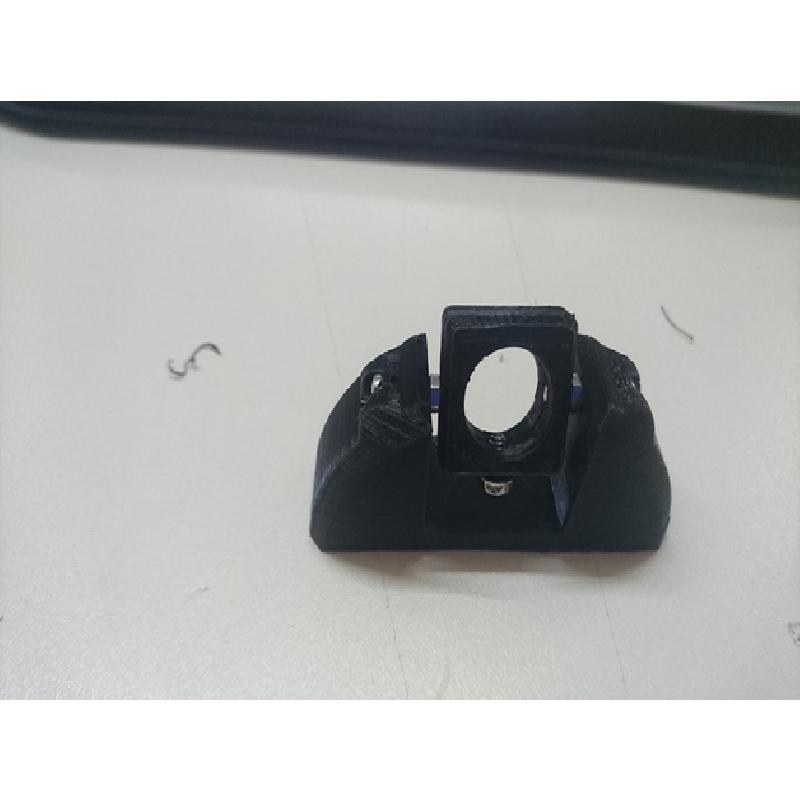

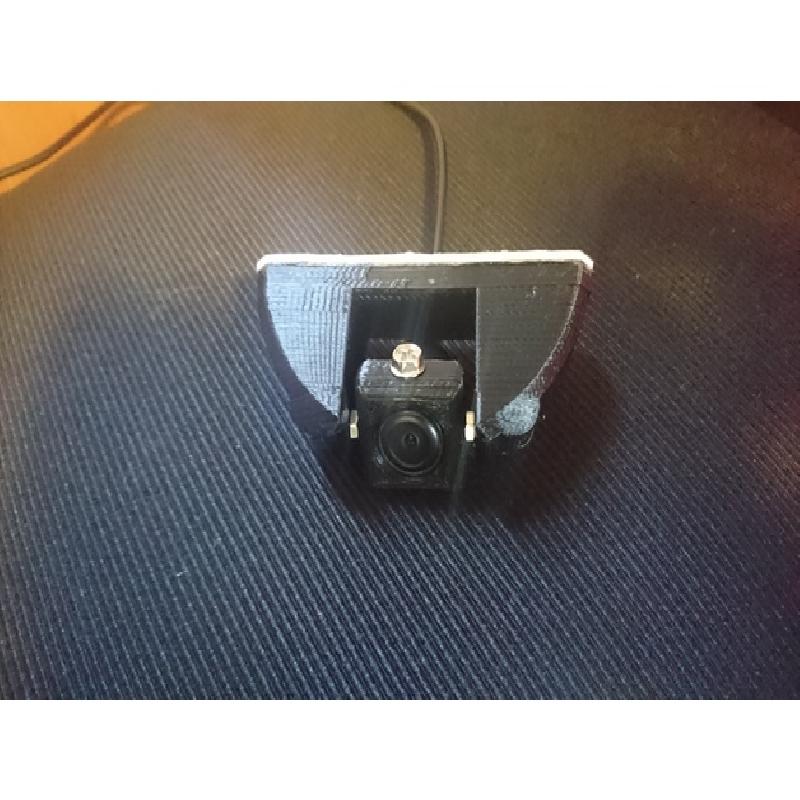

This was a quickly designed gymbal mount for a reversing camera install I had to perform for a customer.

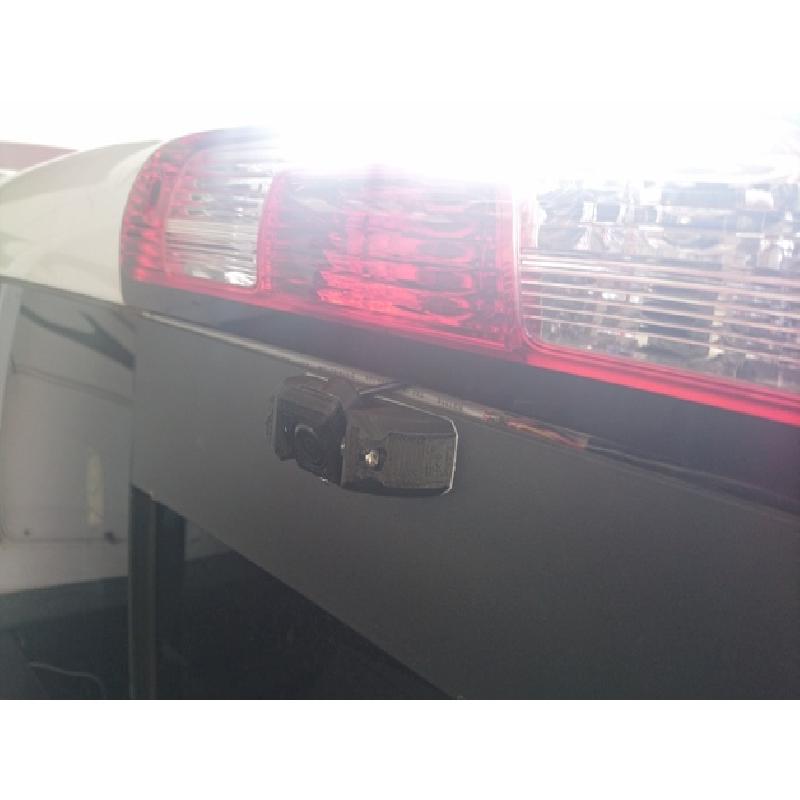

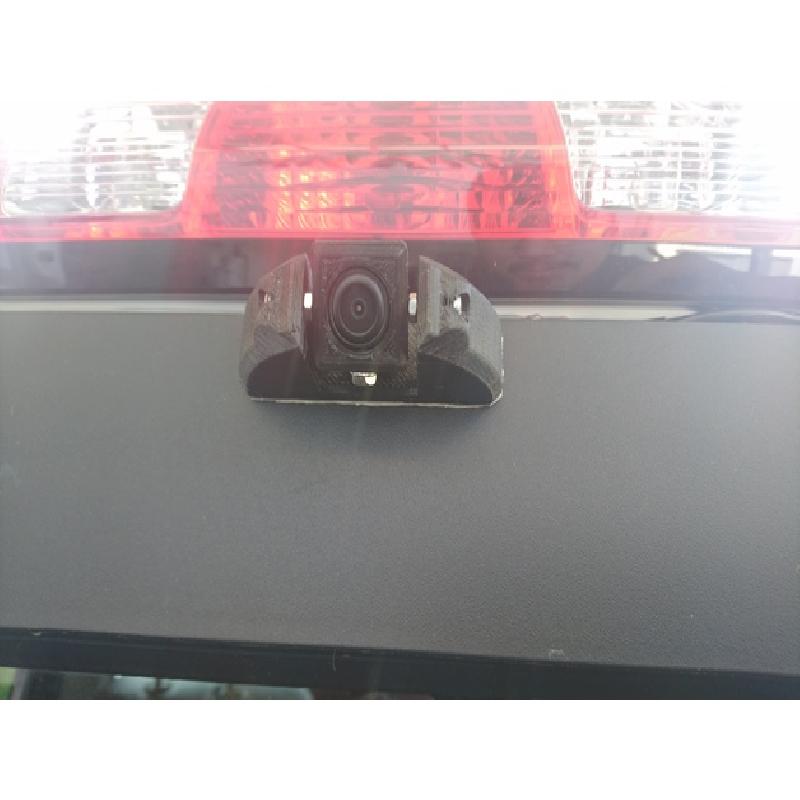

Intended to be mounted with double sided tape - this was aimed at a chevvy silverado.
You will need:
2 X M3X20 screws
2 X M3 nuts.
1 X 3mm computer case screw (lock screw)
Printed in PLA with a 40c bed and 225c extruder (my extruder temp reads high by 10c)
PLA from Aurarum (ebay Australia)
The design is not perfect, and I have only manufactured one to date - feedback welcome.

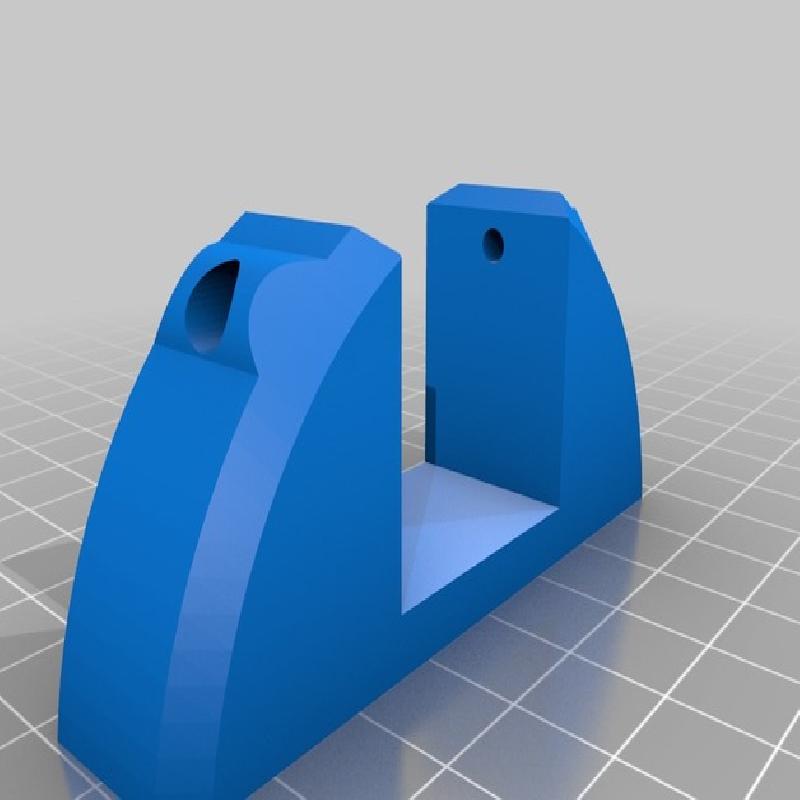

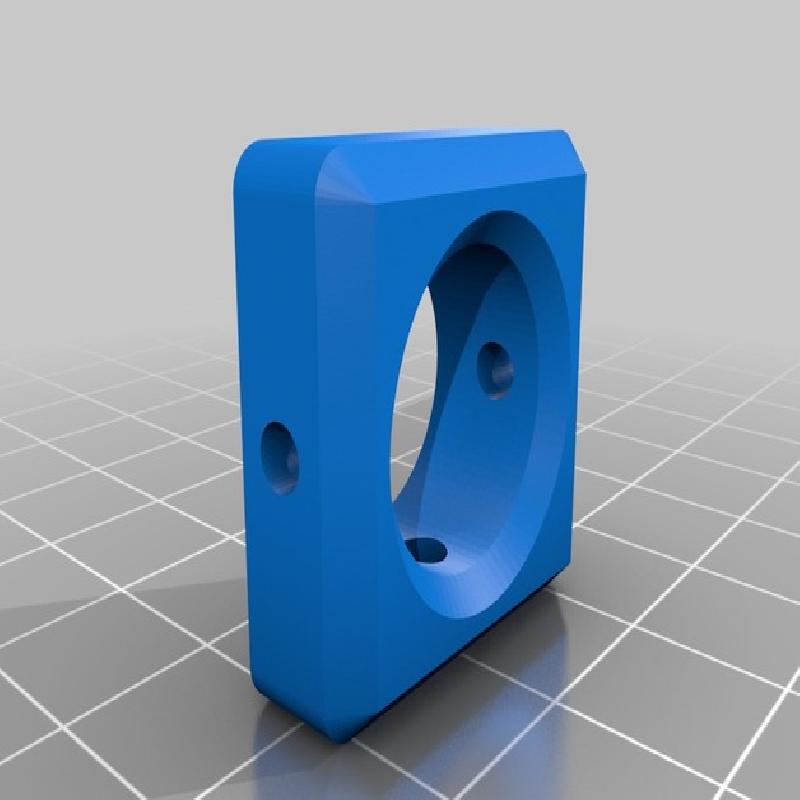

There are two mounts available: 15mm and 16MM ID. for differing styles of Chinese made fisheye reverse cams.
NOTE: the molded junction on most of these cameras contains a 12v to 3.3v regulator.
if you cut it and bypass it, you WILL kill the camera.
Source files included in autocad 2010/Inventor 2015 formats.
