Update: Alignment Pin 3 was not the correct length and my printing instructions had an error. Correct model of Alignment Pin 3 is up and instructions have been fixed.

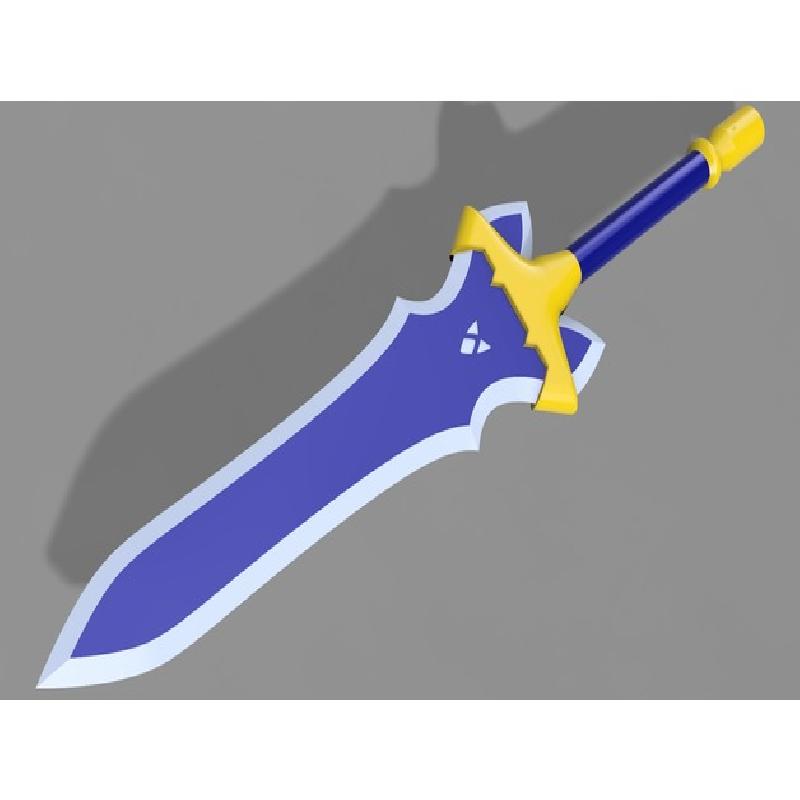

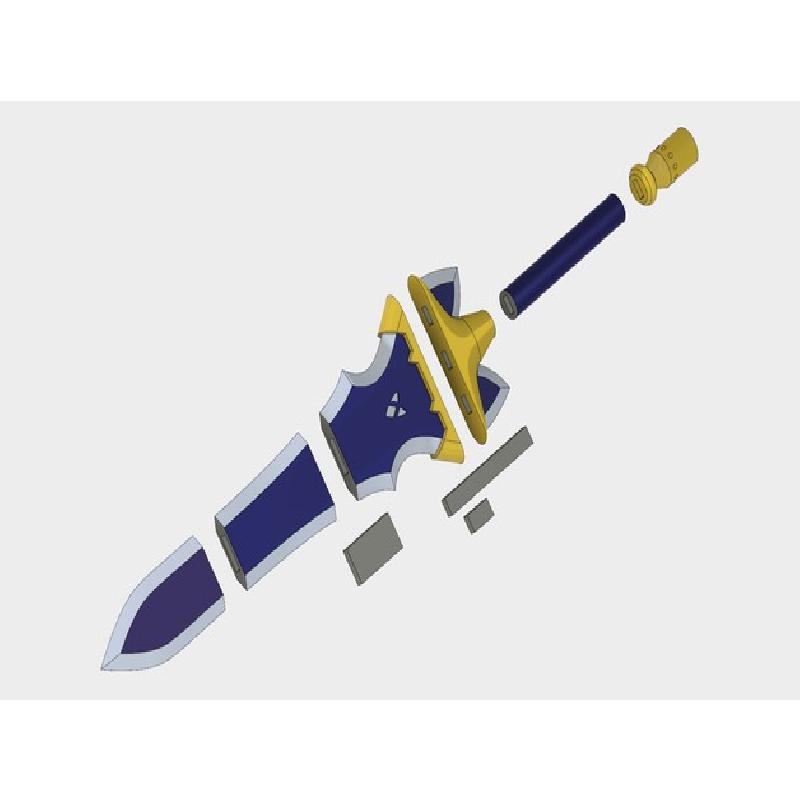

This is the dagger used by Silica in Sword Art Online 2. I tried my best to replicate this from the Anime. It is to proper scale, as far as I could determine. This model has been cut so that the tallest piece is 100mm tall and the widest piece is less than 100mm wide. Perfect for small build plates.
Thank you Masonacdc for the suggestions to make this model.
If you like my work and want to see me design something specific, shoot me a message and I'll consider it for my next big project.
PLEASE READ PRINT INSTRUCTIONS BELOW.
Rafts:
Doesn't Matter
Supports:
No
Resolution:
0.2
Infill:
25%
Notes:
Test fit all components before final assembly.
Print one of each piece except for the pieces stated below.
2 x Alignment Pin 1
3 x Alignment Pin 2
1 x Alignment Pin 3
I always recommend printing alignment pins at 100% infill and laying flat on the build plate.

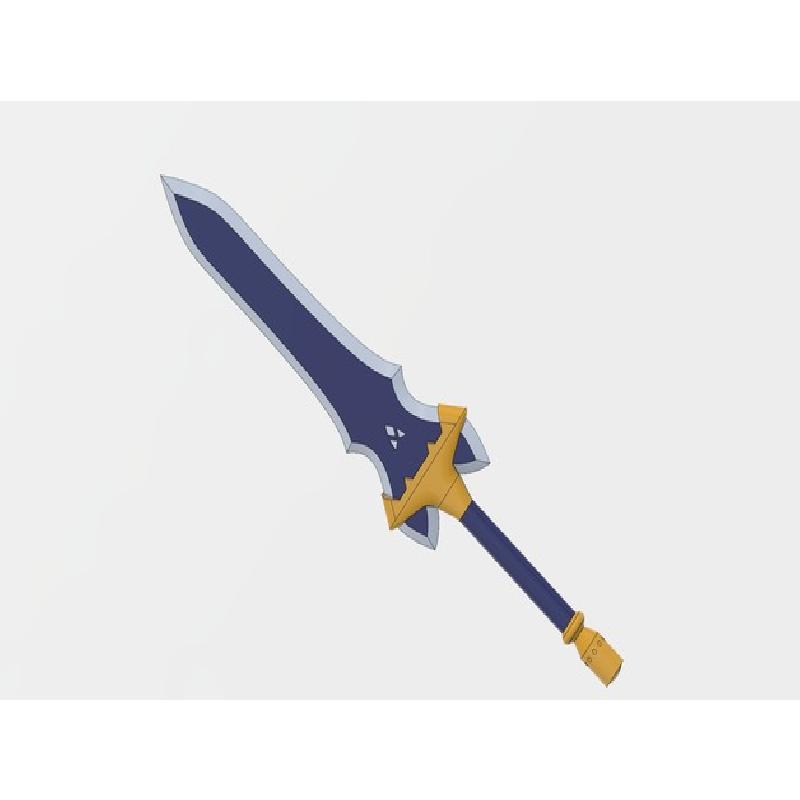

Total length is approximately 445mm long.
