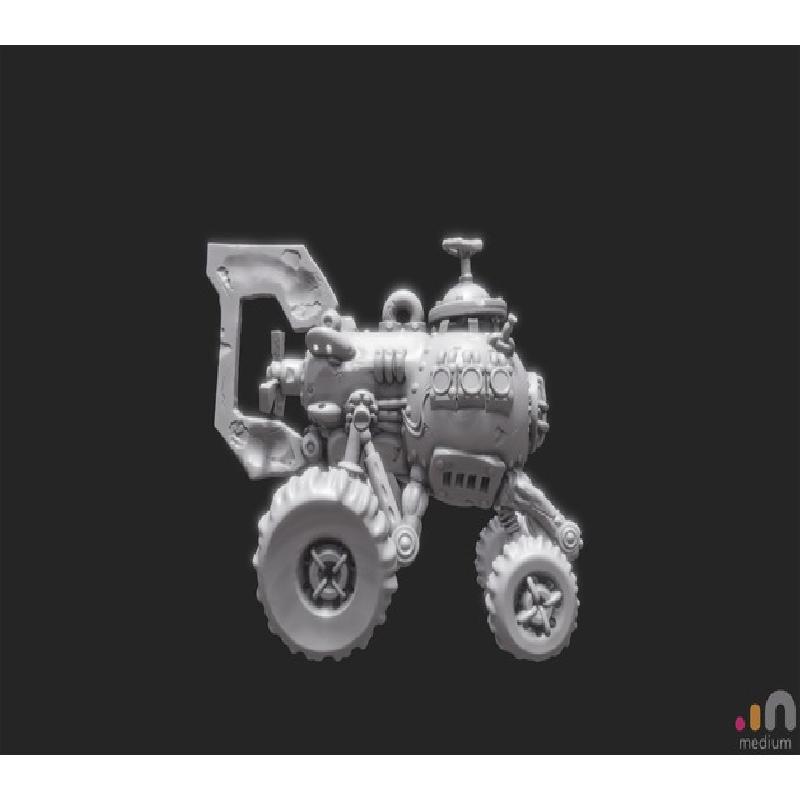

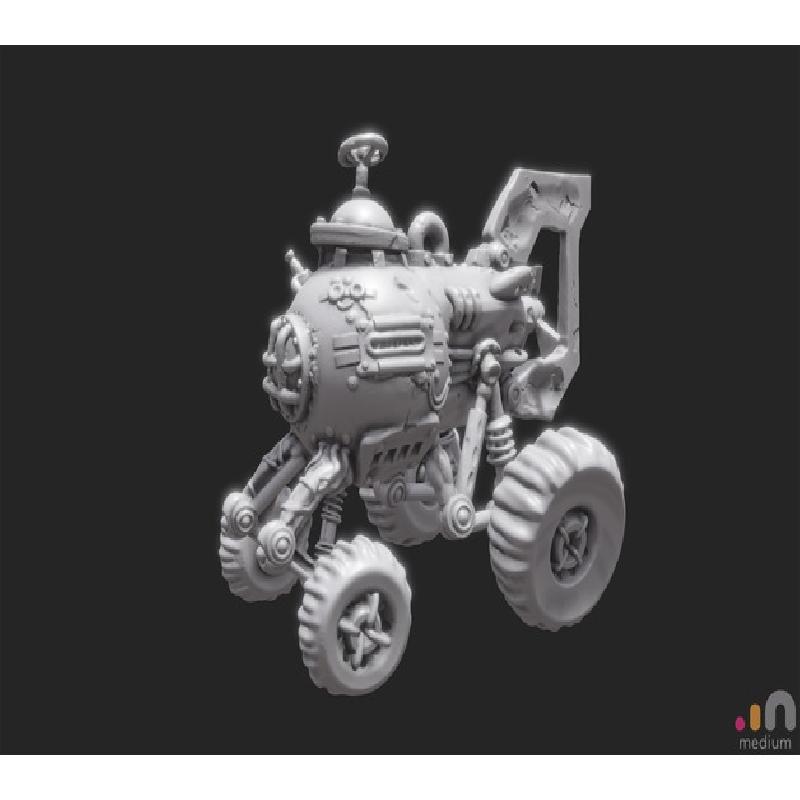

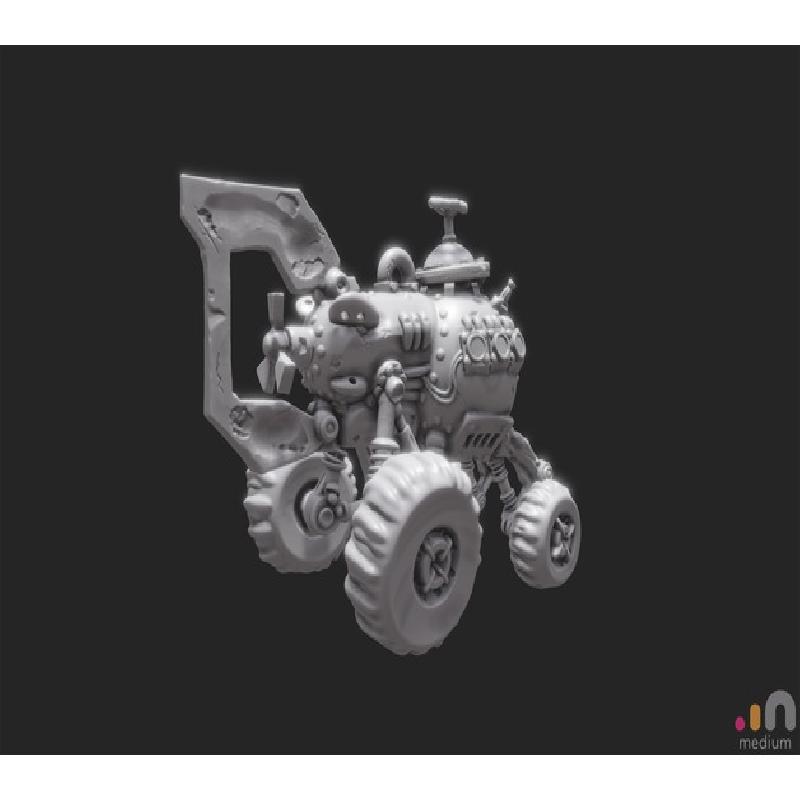

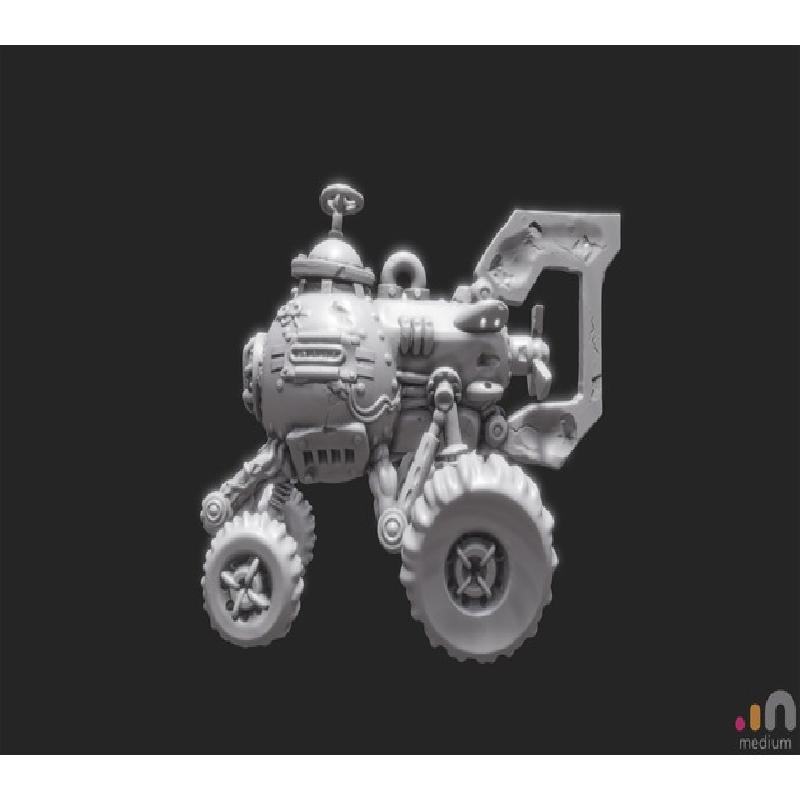

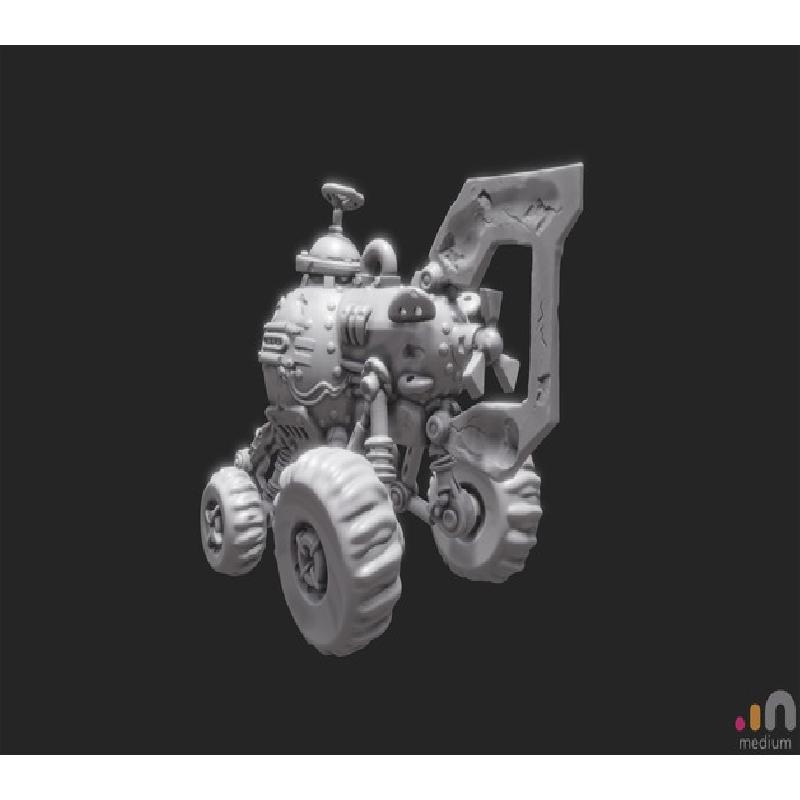

This is an evolution of my previous model: Batisfera Sketch
Print this model only if you know how to setup the supports and remove them carefully.

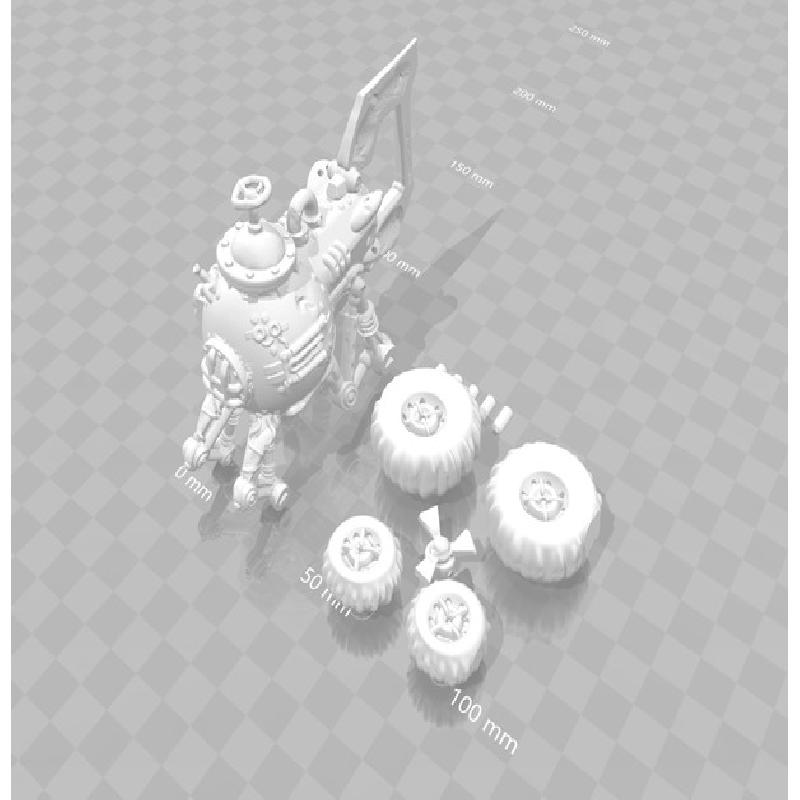

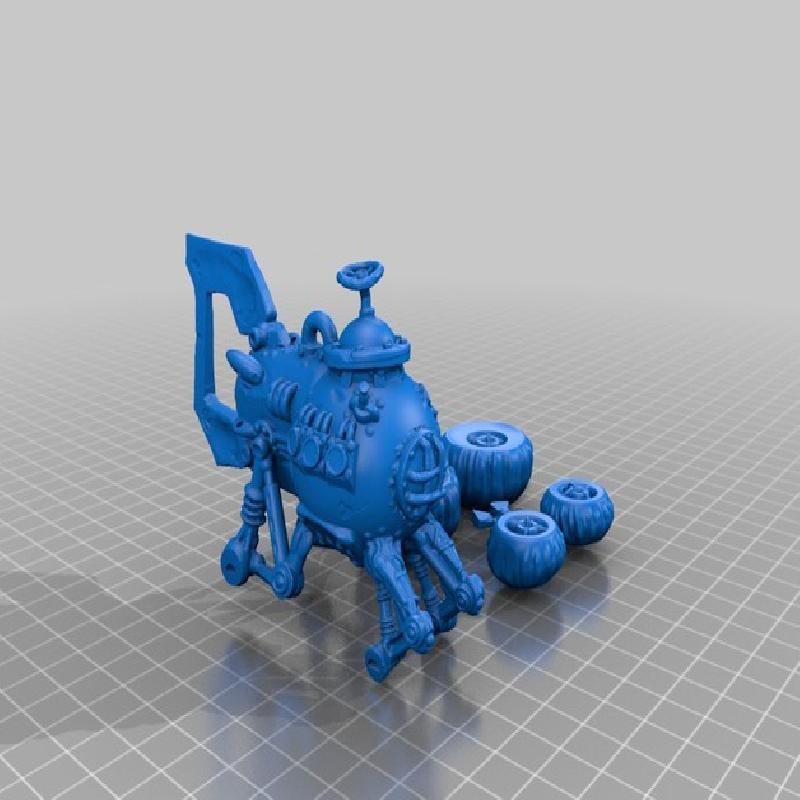

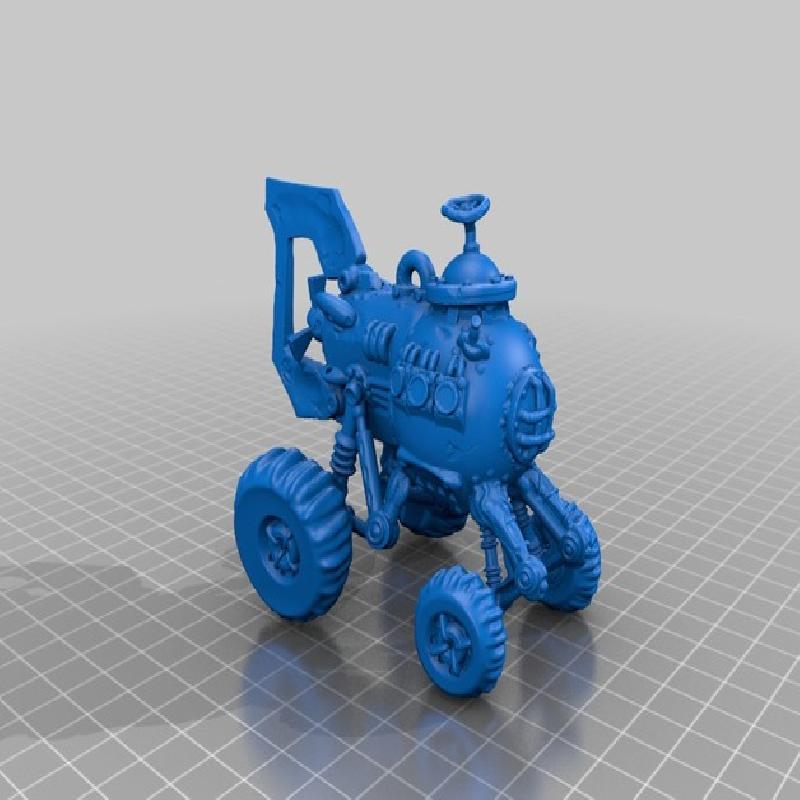

Two models available - one split by parts, for easier printing and other simple solid model (just in case).
The wheels in the split model are floating "in the air" to have better layers pattern/specular after a print. Of course, the supports are necessary.

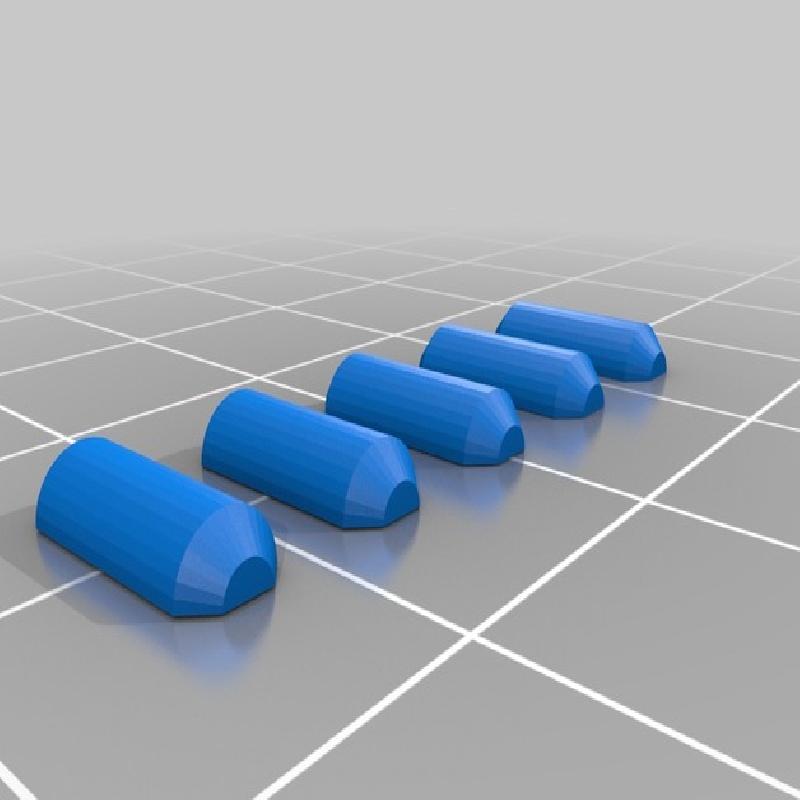

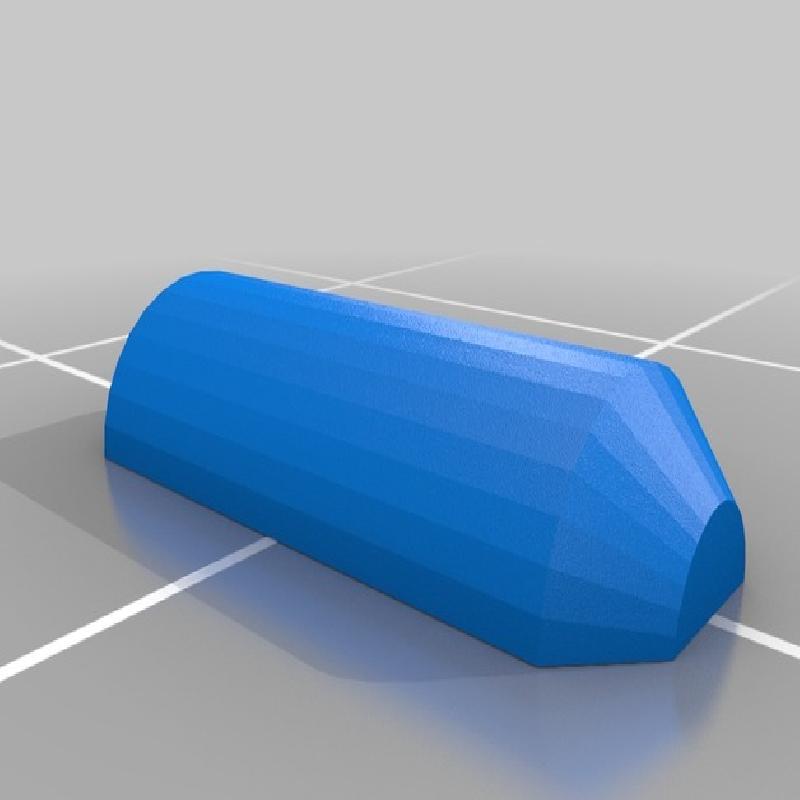

The model has holes in the elements for connection, and by scaling the connectors you can adjust joints tolerance. Connectors has 90% scale by default. Use drop of a glue to fix the joints, in any case.
(full connector/hole size is 10x4x2mm, with 100% scale, in case you need to know)
So in general, you need to print one of each:

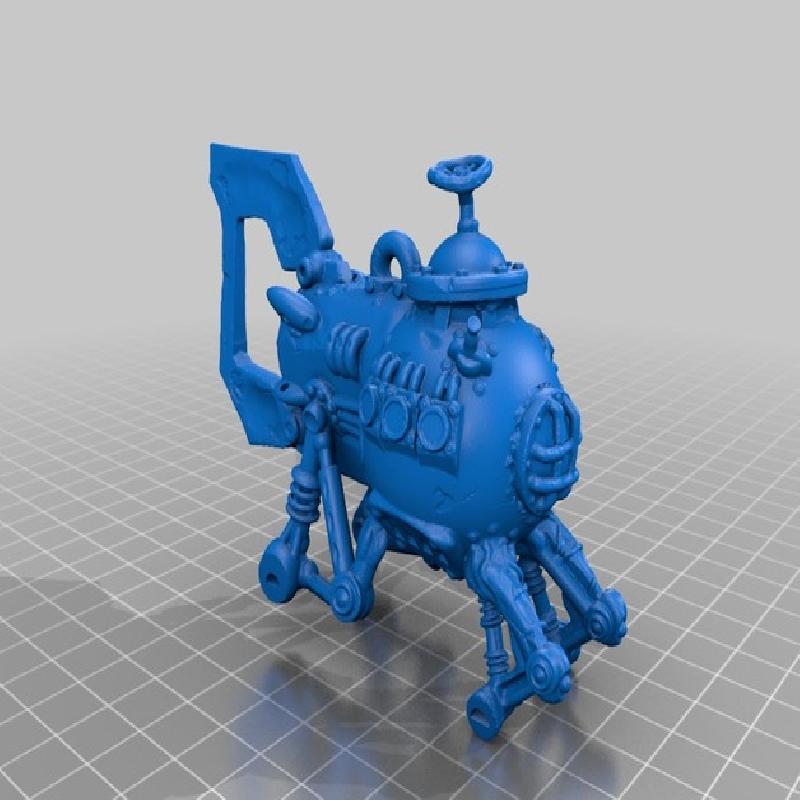

batisfera_body_optimized_repaired.stl

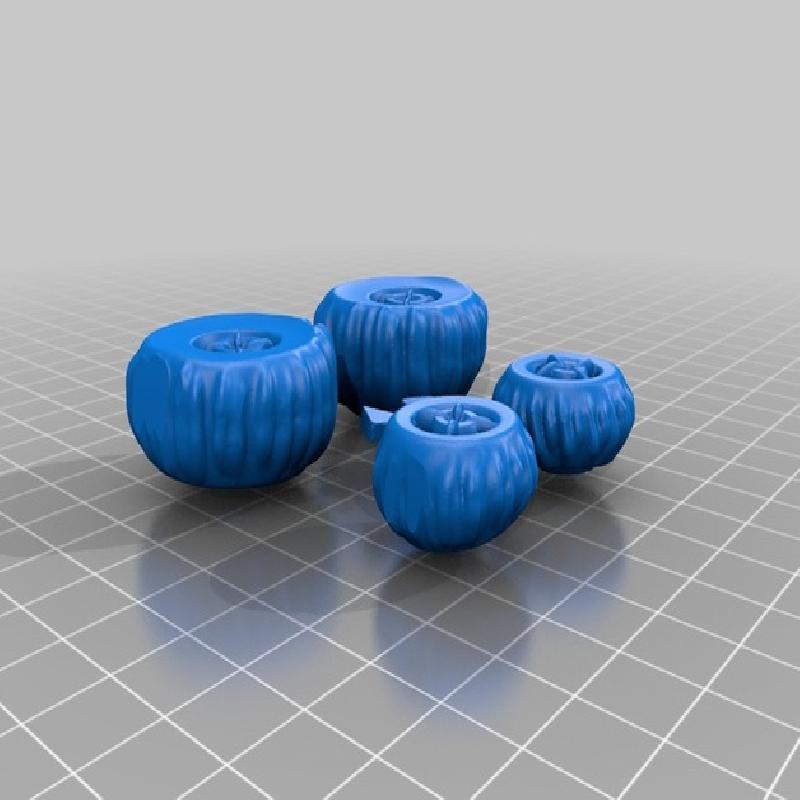

batisfera_wheels_optimized_repaired.stl
batisfera_jointsScale90_x5_repaired.stl
OR
batisfera_fullSet_optimized_repaired.stl
Good luck!
Want to see more models? Press the TIP Designer button! Every $ will be spent on a pizza for another sleepless night, when a new model is born! Thanks in advance!
Update 2018-01-02:
complete joints rebuild, now it will be possible to adjust joints tolerance
single joint model available, in 100% scale (scale down manually to fit the holes in the joints)
single joint model added, in 90% scale (by default)
full set model added, with all needed elements in one file
Update 2018-01-01:
solid model updated - it was not optimized version, sorry
Update 2017-12-31:
my first test showed, that the joints are pretty bad, and I need to improve them. So wait for the updates!
