by mgx, published
Infinite ways to create pegboard holders and bins for tools or display objects.
Highlights:

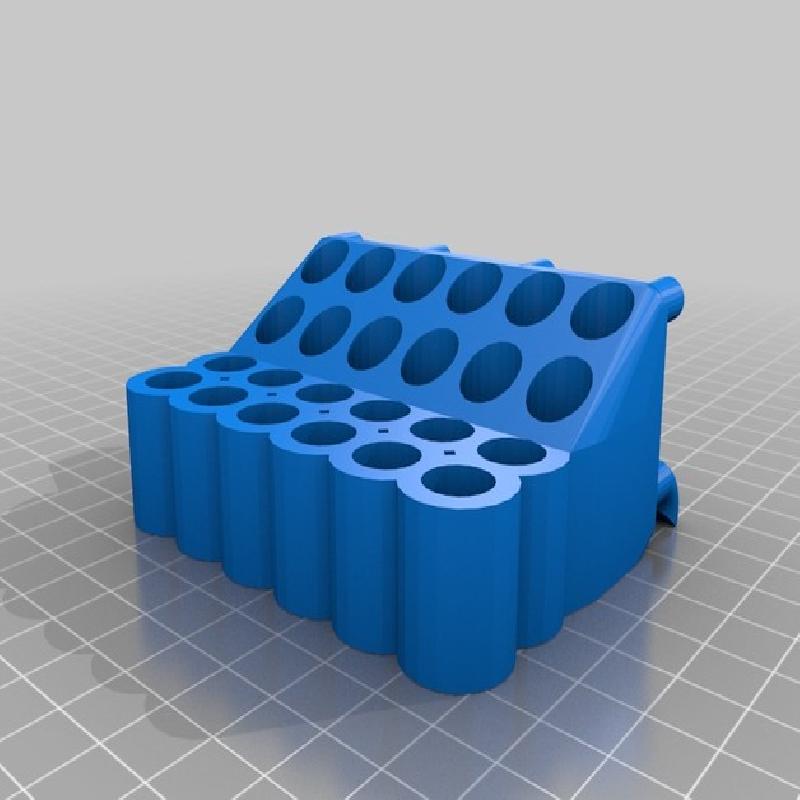

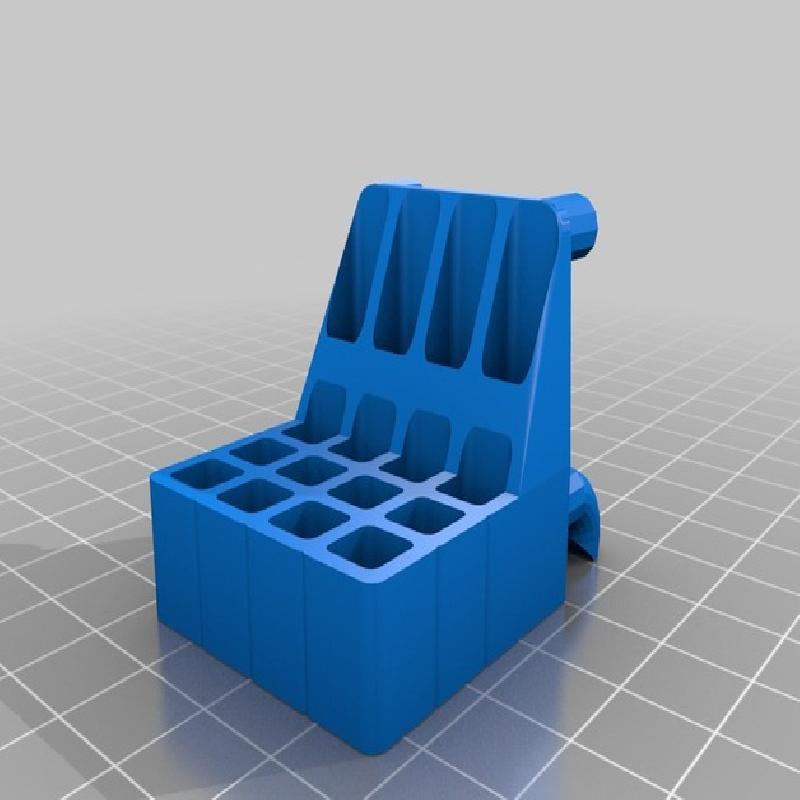

One or multiple (m•n matrix) objects per holder
Round, square or rectangular with rounded corners

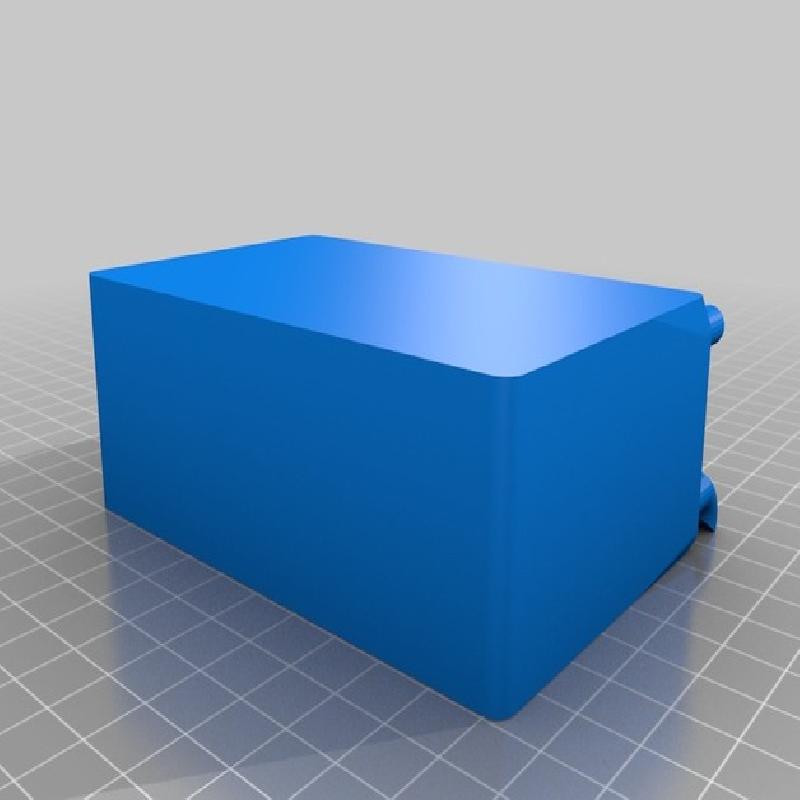

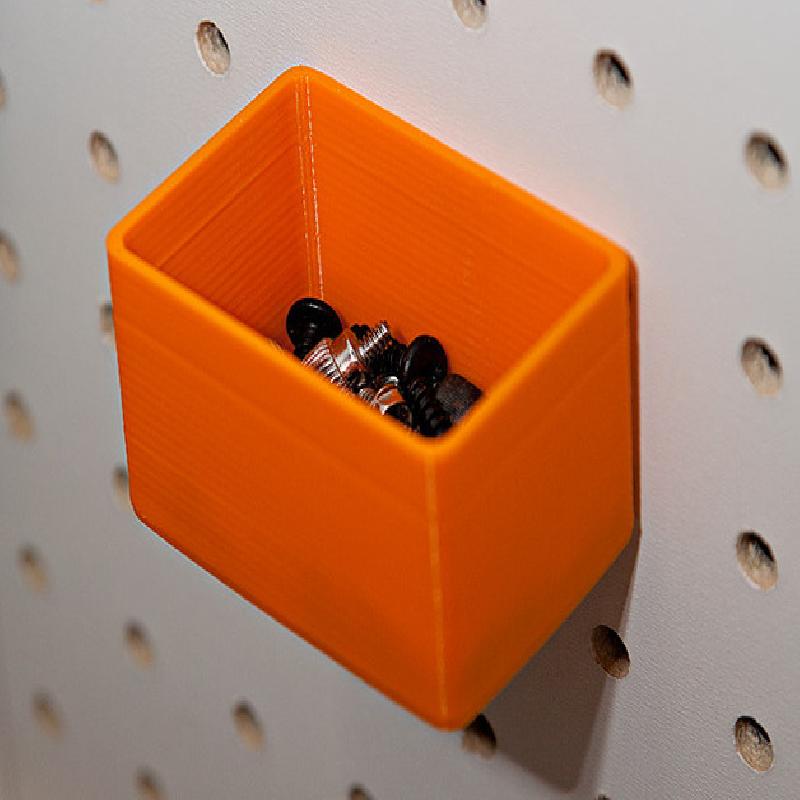

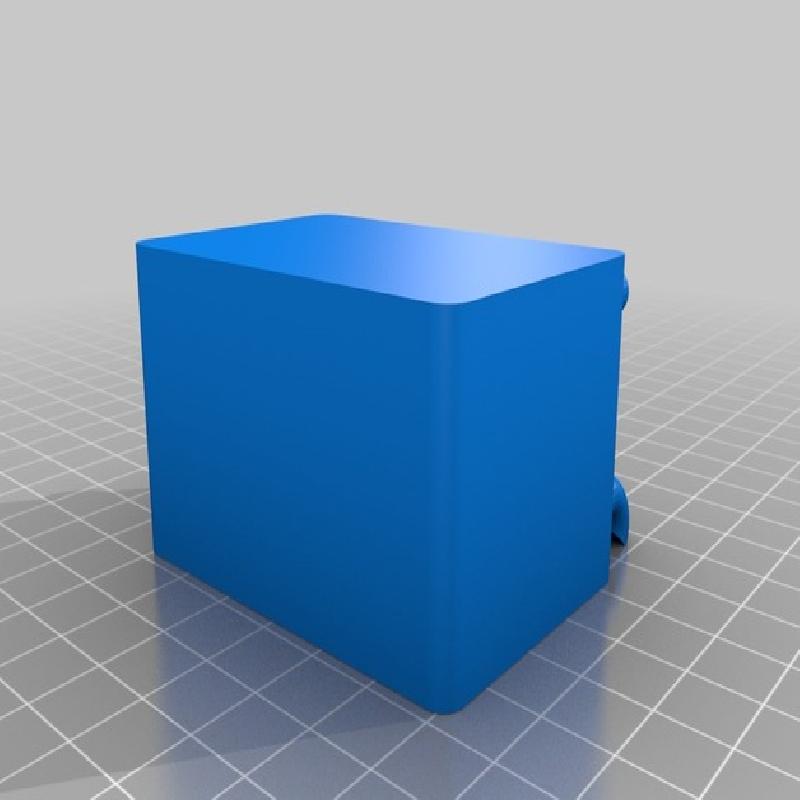

Generate various shapes of bins and trays (closed bottom)
Chose between stronger or economical, straight or tapered, etc

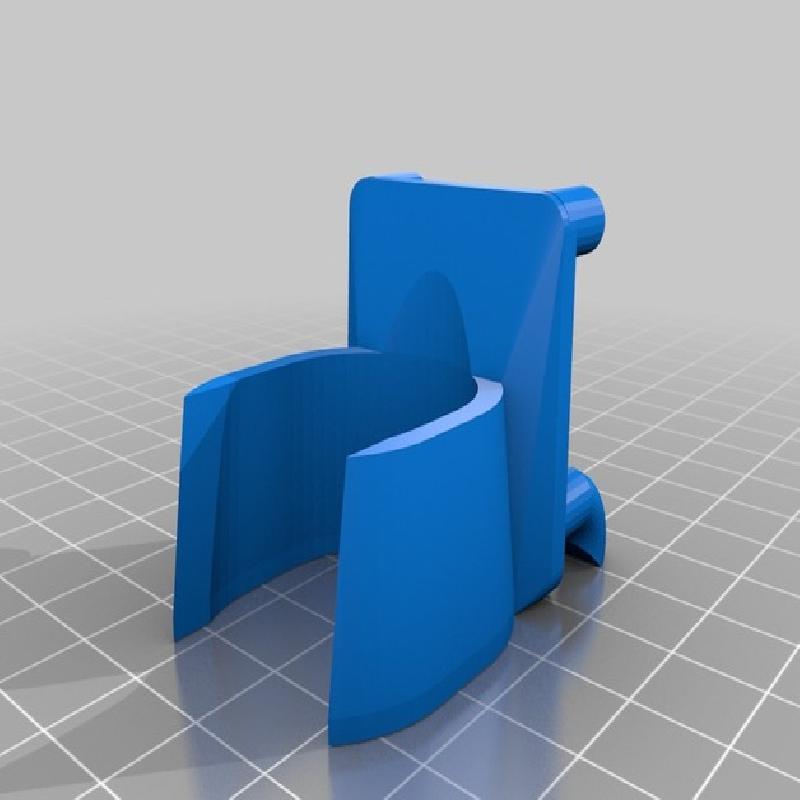

Can be partially open (to click / snap in objects) and angled up or down
Note: if you intend to use this for commercial purposes please contact me.

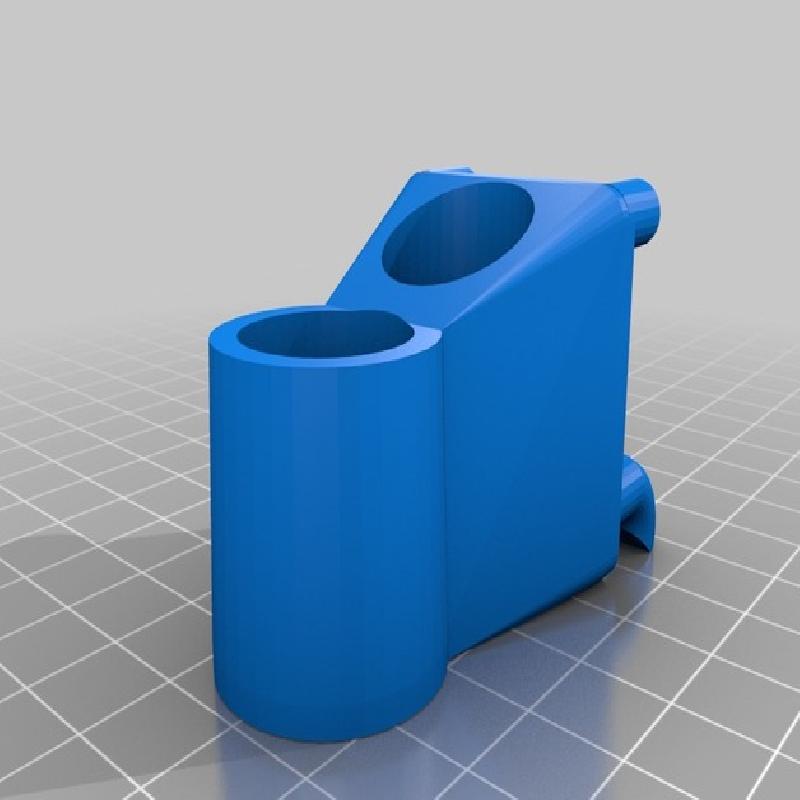

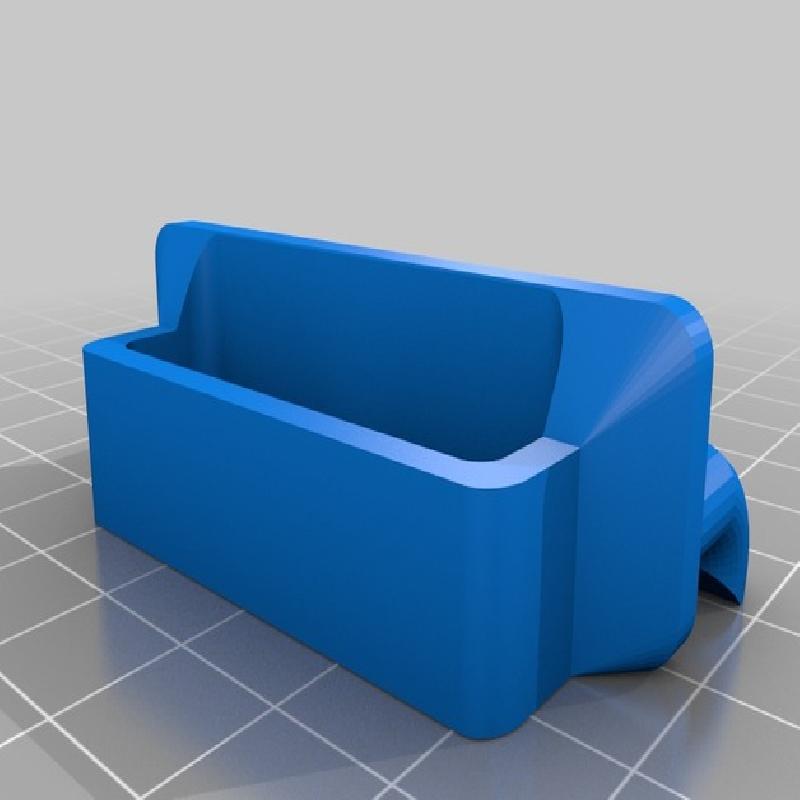

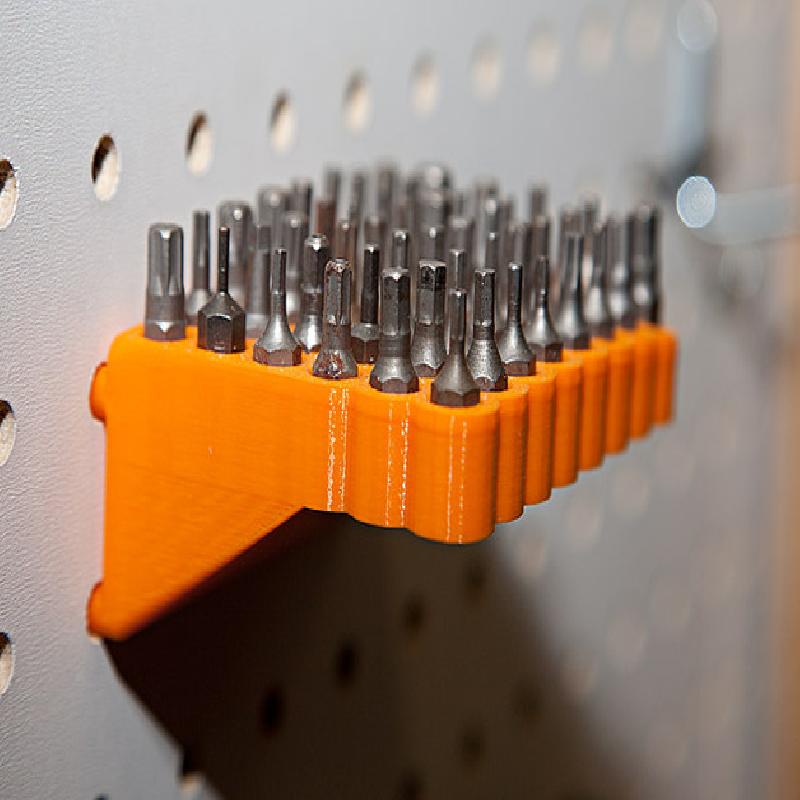

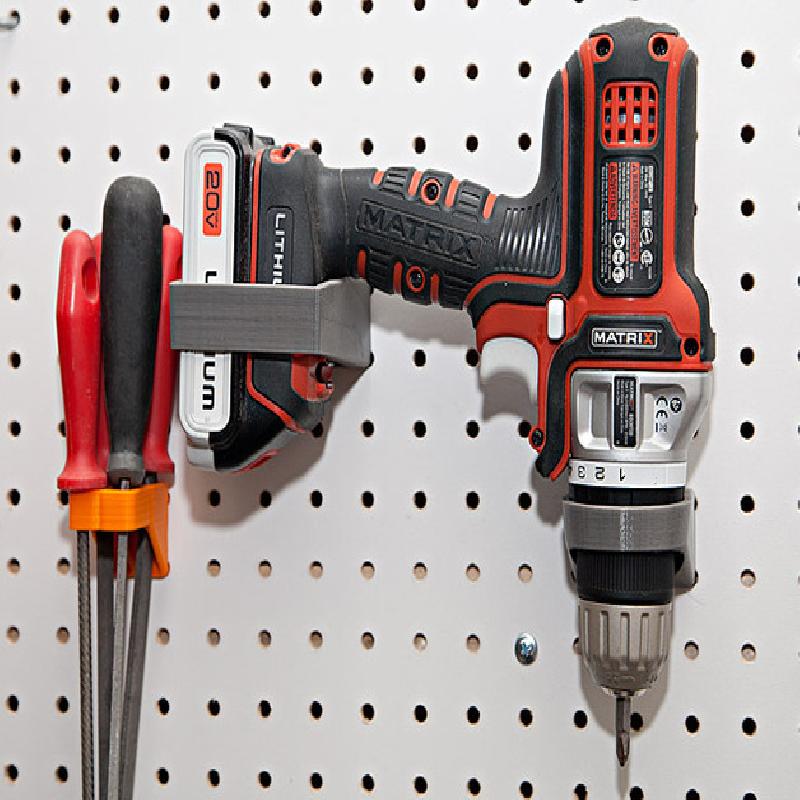

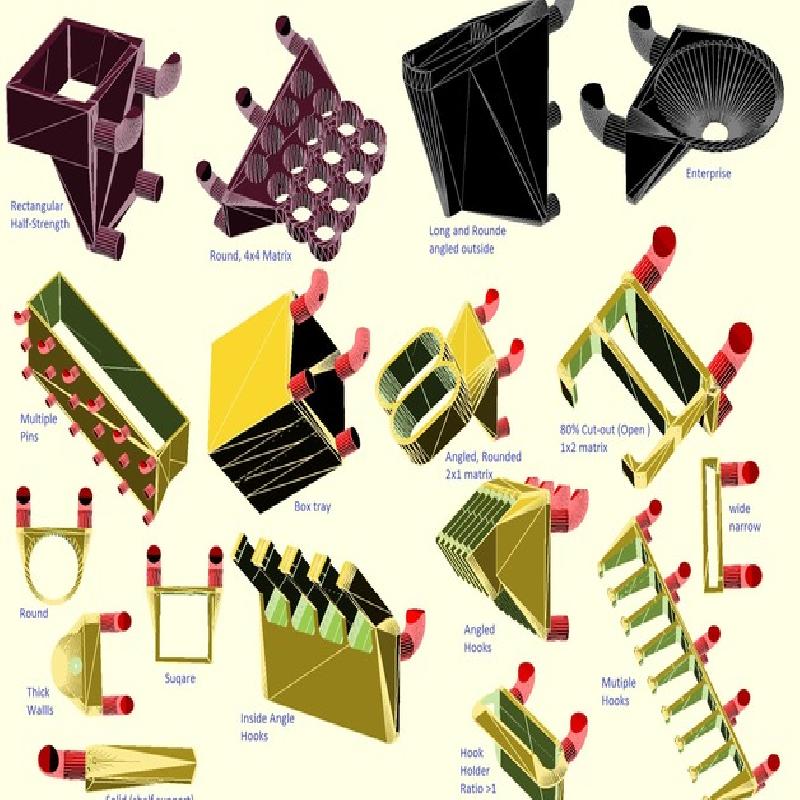

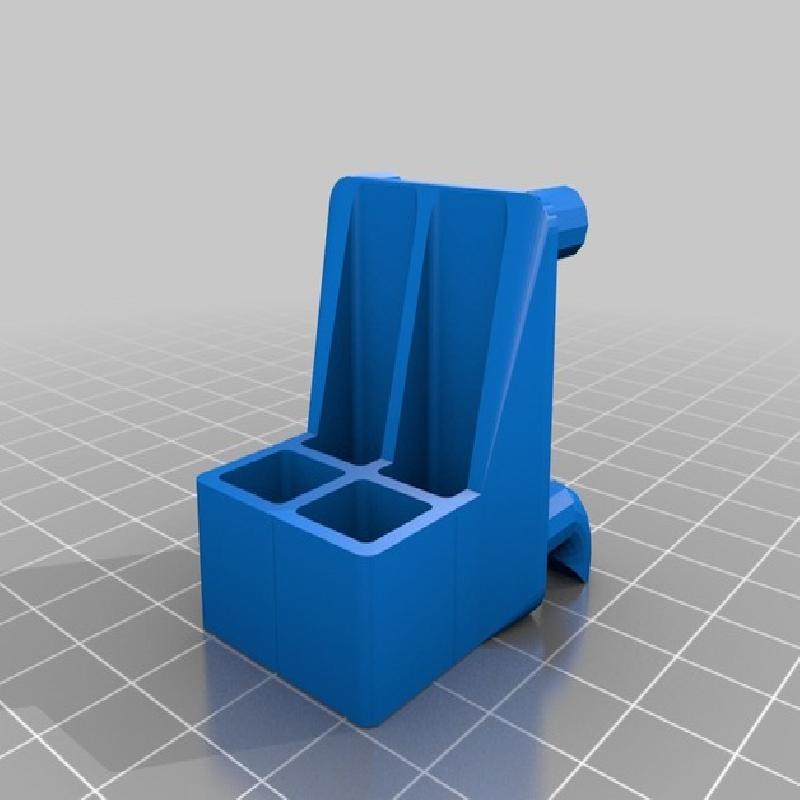

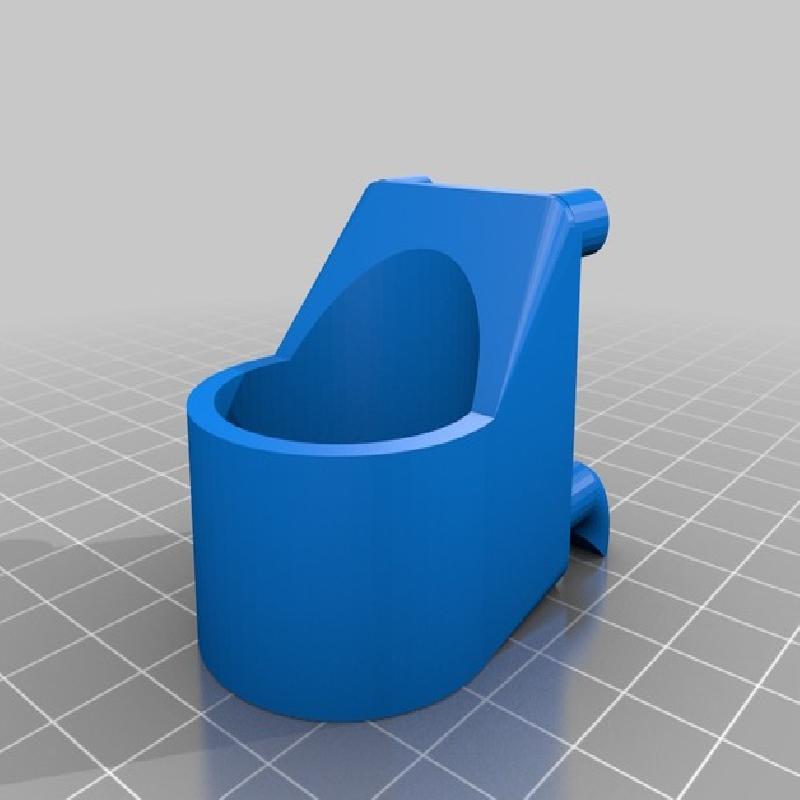

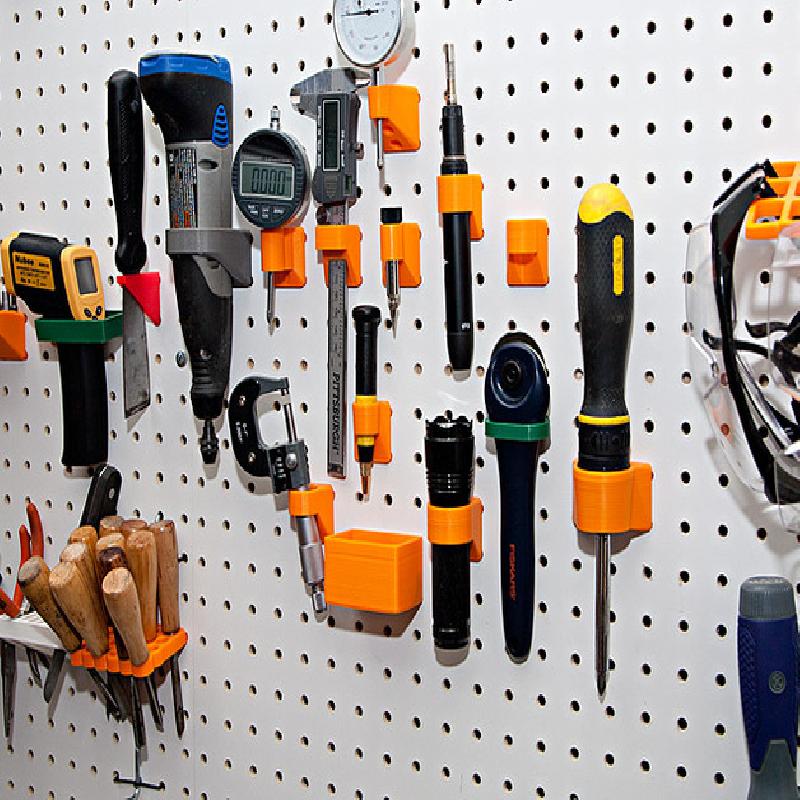

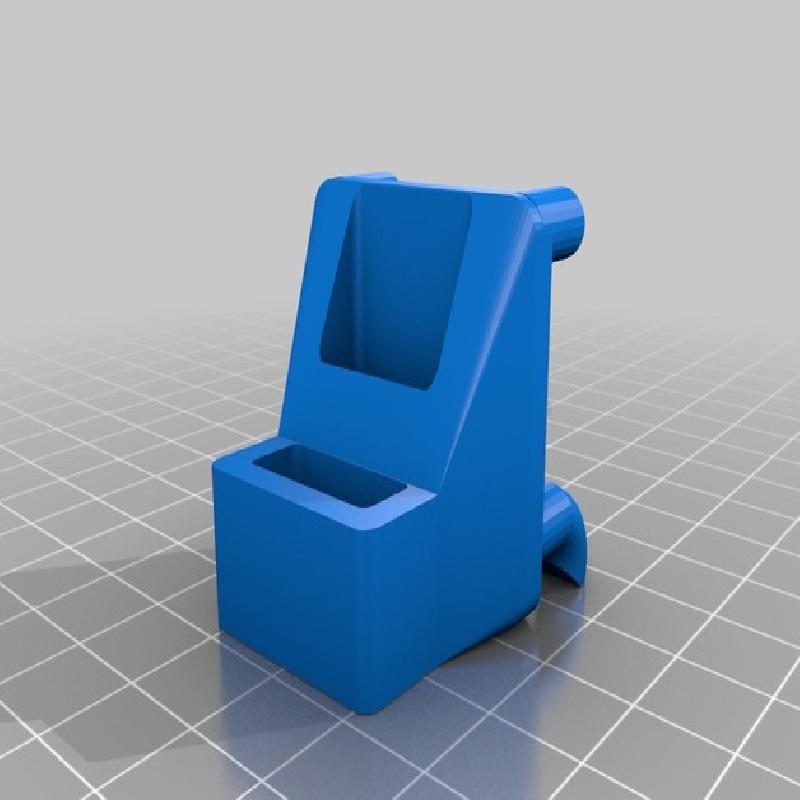

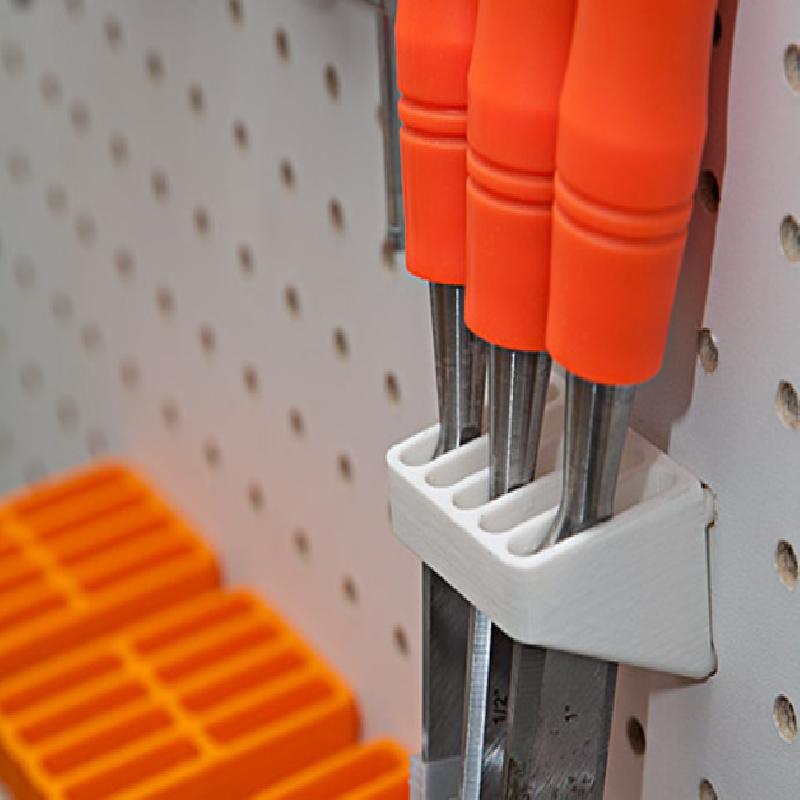

Example objects:
Print with support! Don't worry, the support is easy to remove and if there any dimples left they will not show once this is mounted on a pegboard. You might need to play with the orientation at times.
I typically use 3 shells in the slicer, therefore 6 times extrusion width for wall thickness (typ 2.75mm), this generates very strong supports.
