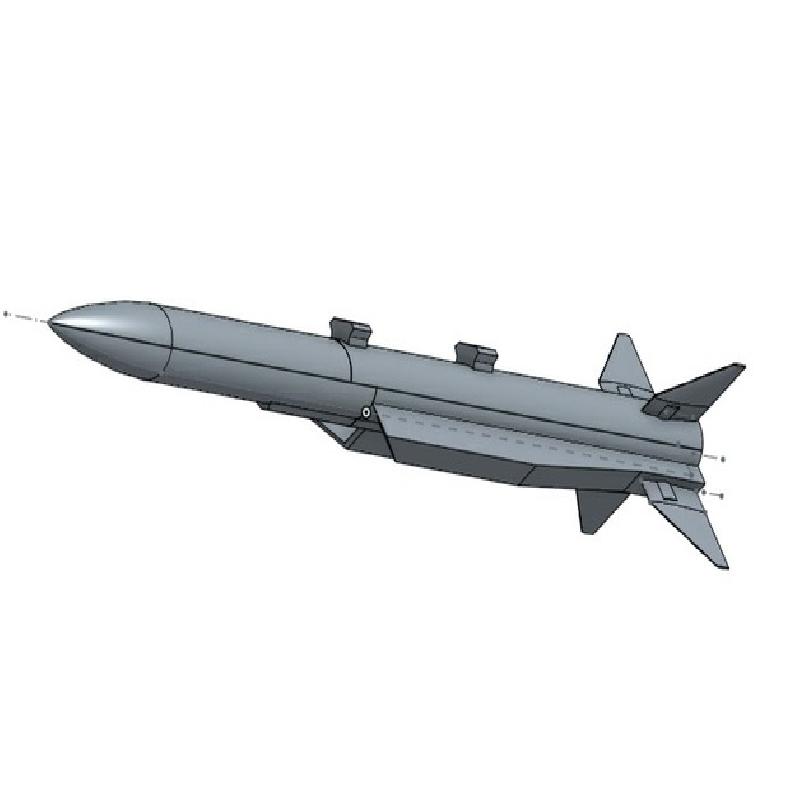

Meteor BVRAAM (Beyond Visual Range Air to Air Missile) is a highly advanced radar guided missile with throttable ramjet and a top speed of over Mach 4.

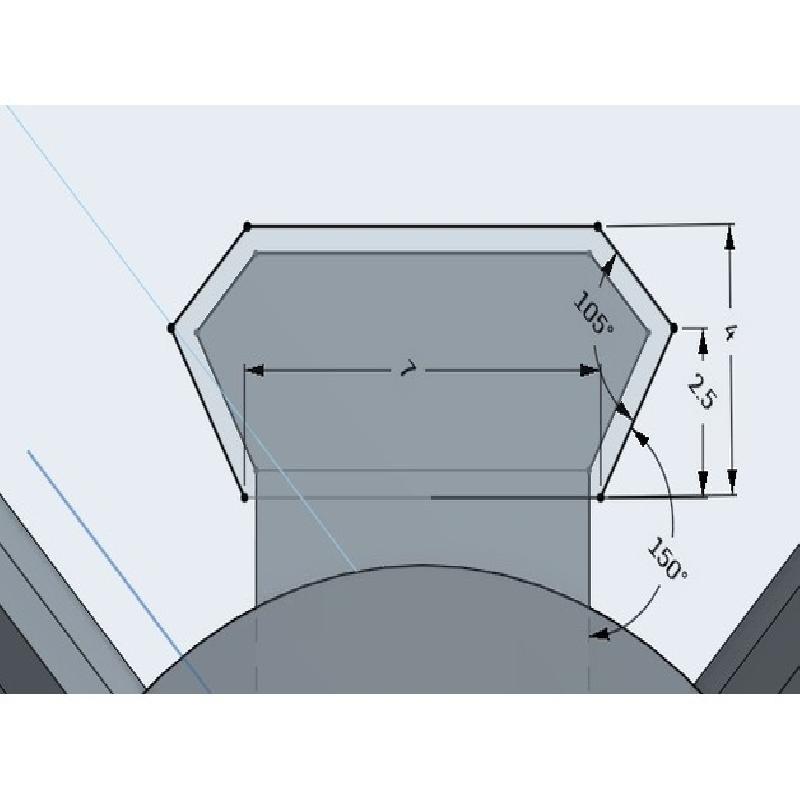

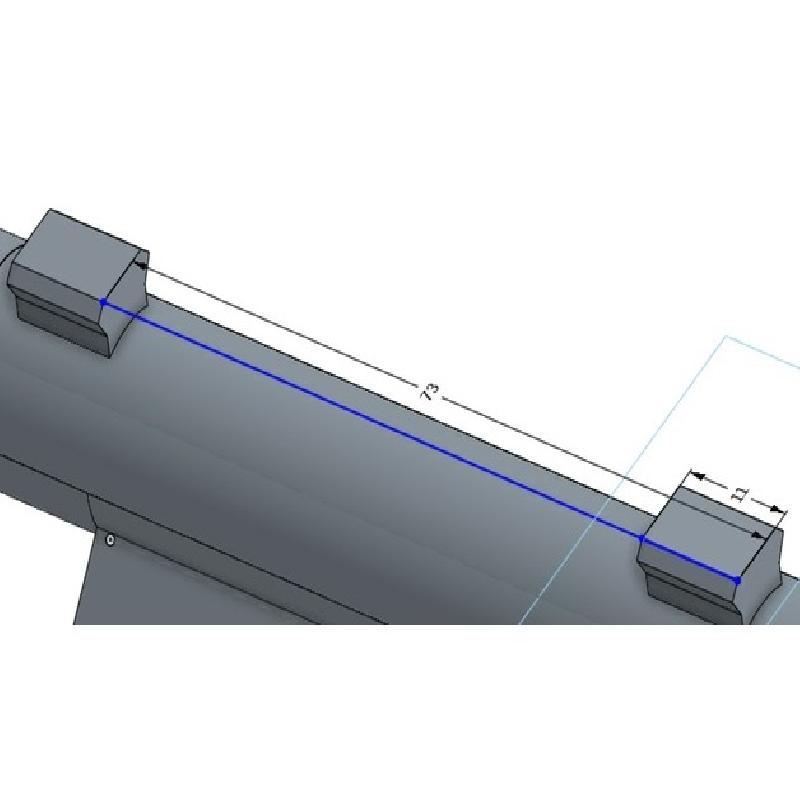

This model is a scale 1/10 replica, intended for use on a RC fighter jet I'm working on. The dimensions for the mounts are described in the pictures.

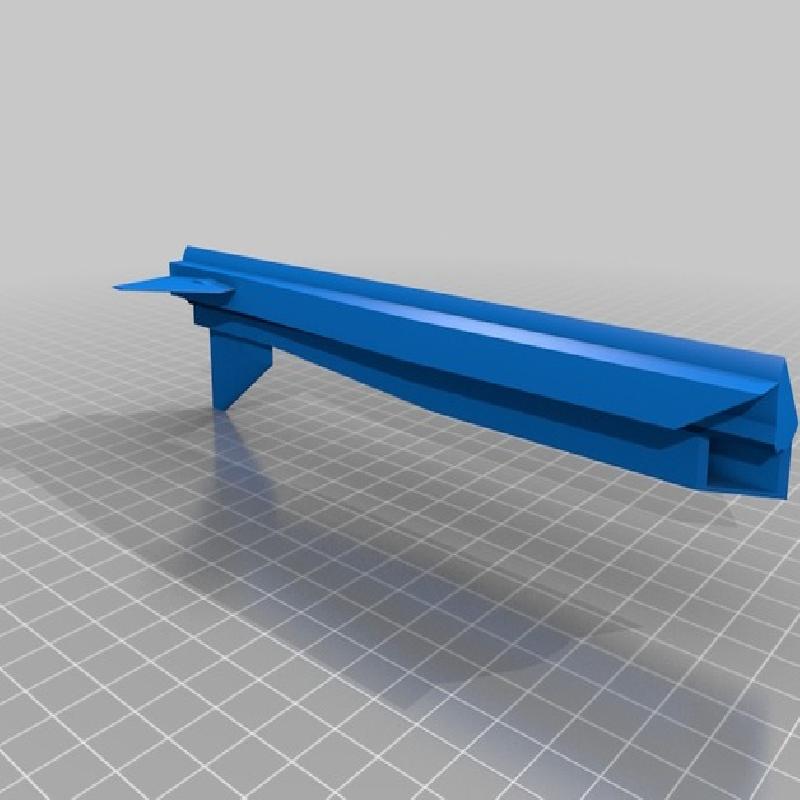

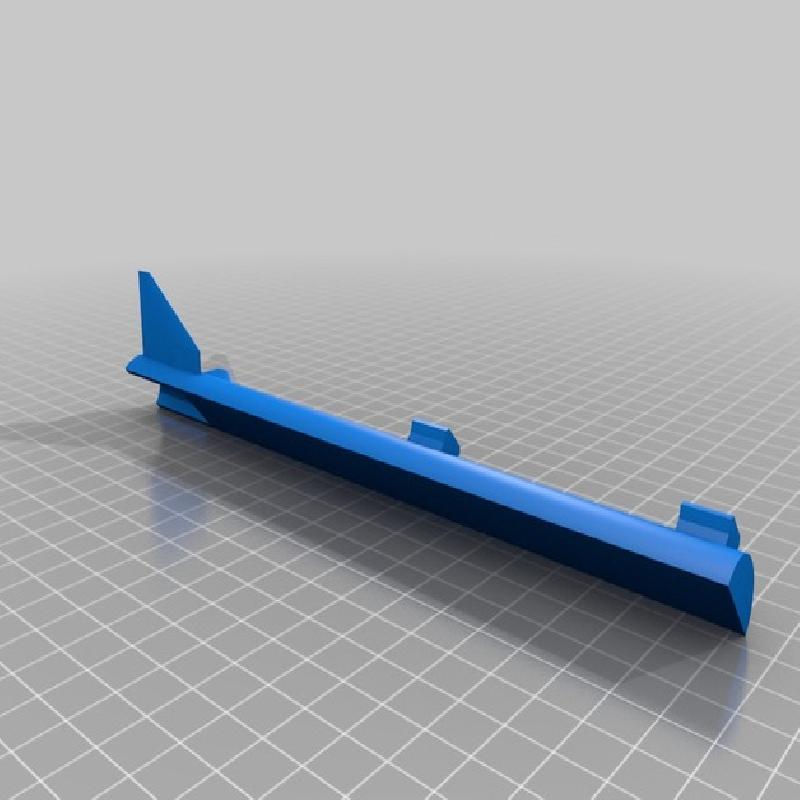

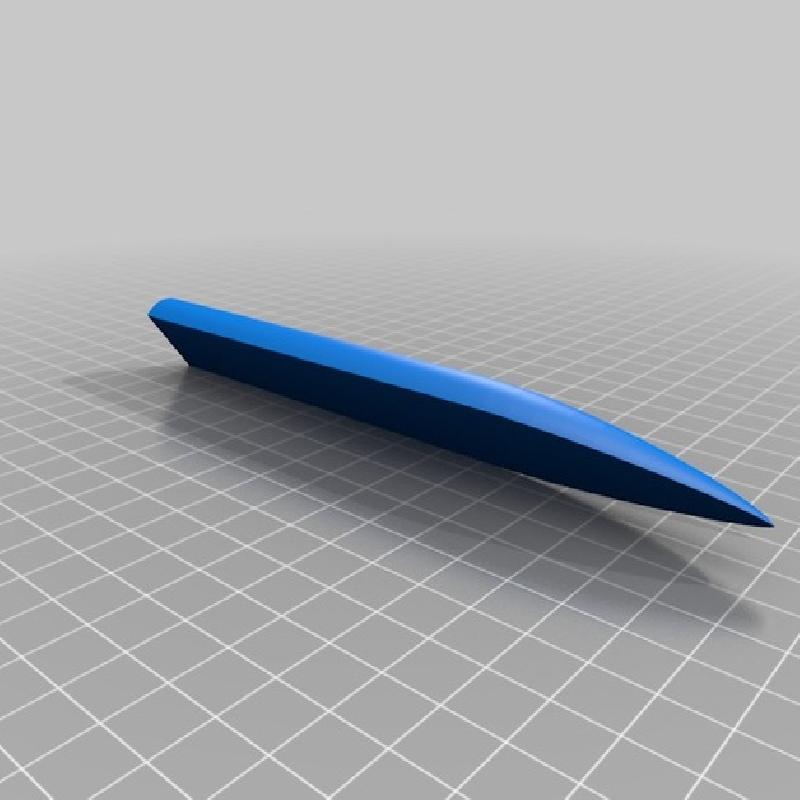

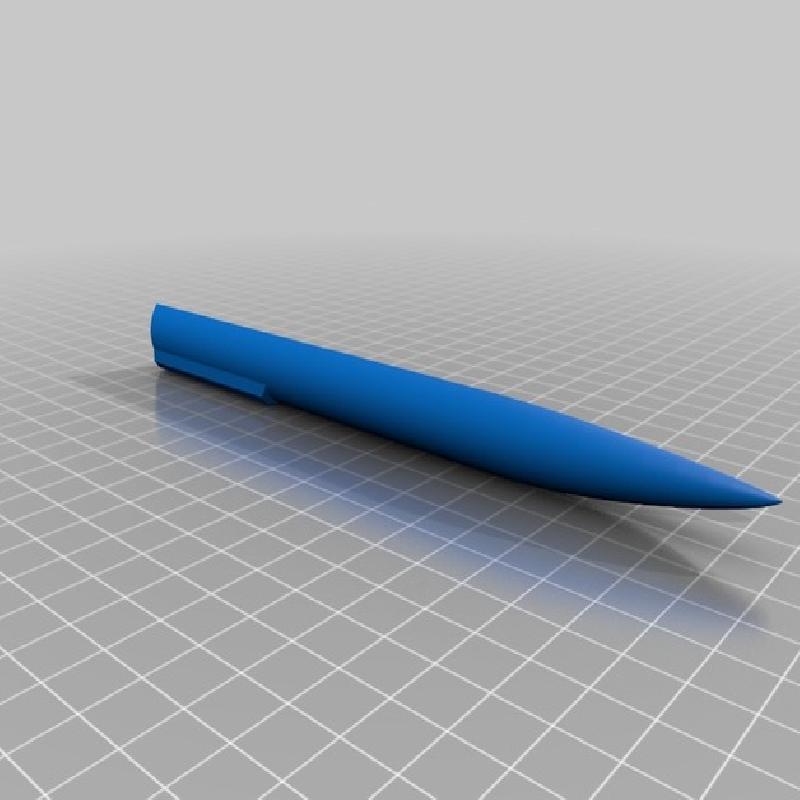

It is split to be able to print on a 20x20 bed, but can be scaled up/down. The fins might however not be looking that nice if scaled too small.
Just orient the parts with the flat side down, print and glue together!
Printer Brand:
Wanhao
Printer:
Rafts:
Doesn't Matter
Supports:
Yes
Resolution:
0.14
Infill:
5%
Notes:
A little bit of support should be added in the nozzle at the back, to prevent hanging. Otherwise no support should be used, neither in the air intakes of under the fins.
