Medieval Spear
This is part of a full set off weapons with the same theme;
Medieval Axe http://www.semaker.com/productdetail/11623
Medieval Sword http://www.semaker.com/productdetail/11542

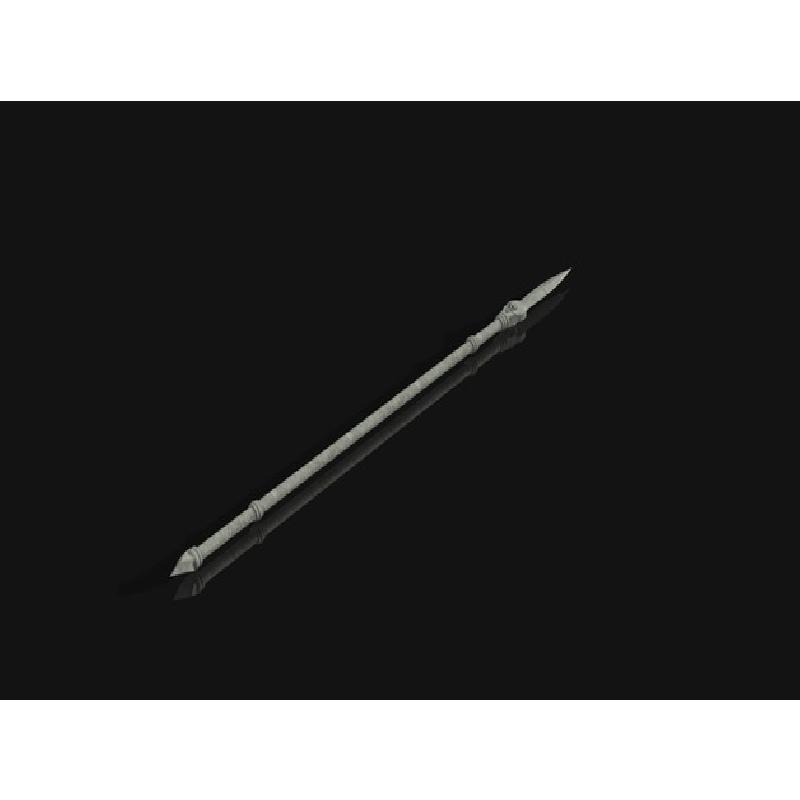

Total length 1.8 metre (70.866 inch).
Components (9);
Printed parts (6)

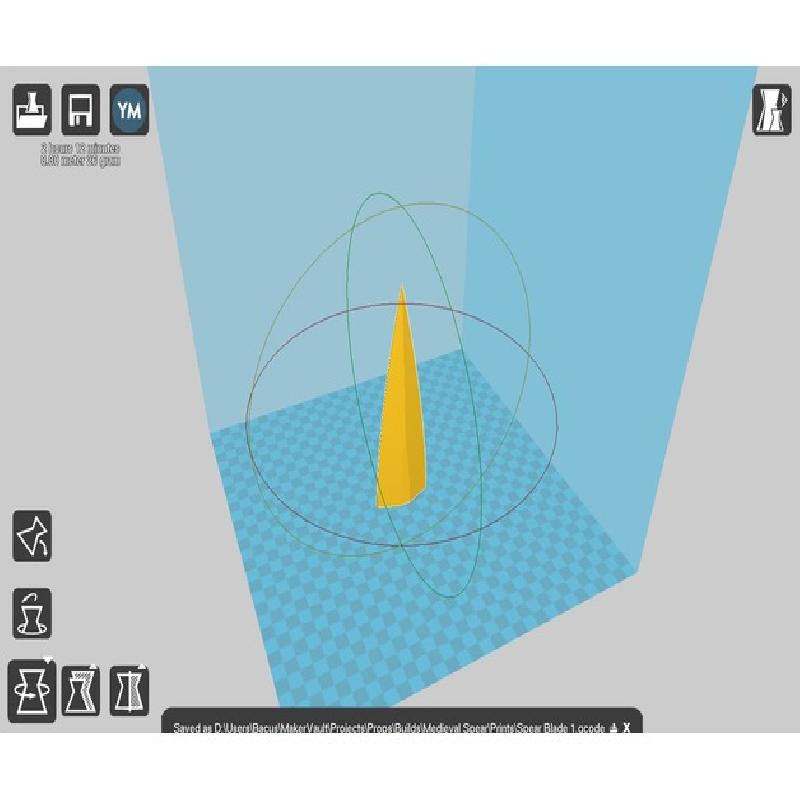

o Spear Tip 1

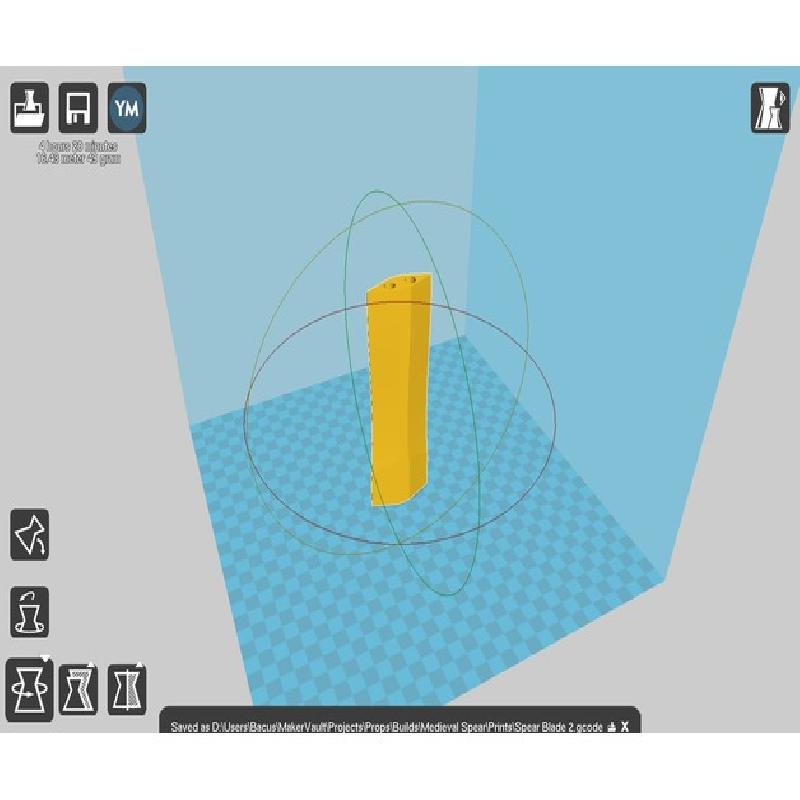

o Spear Tip 2

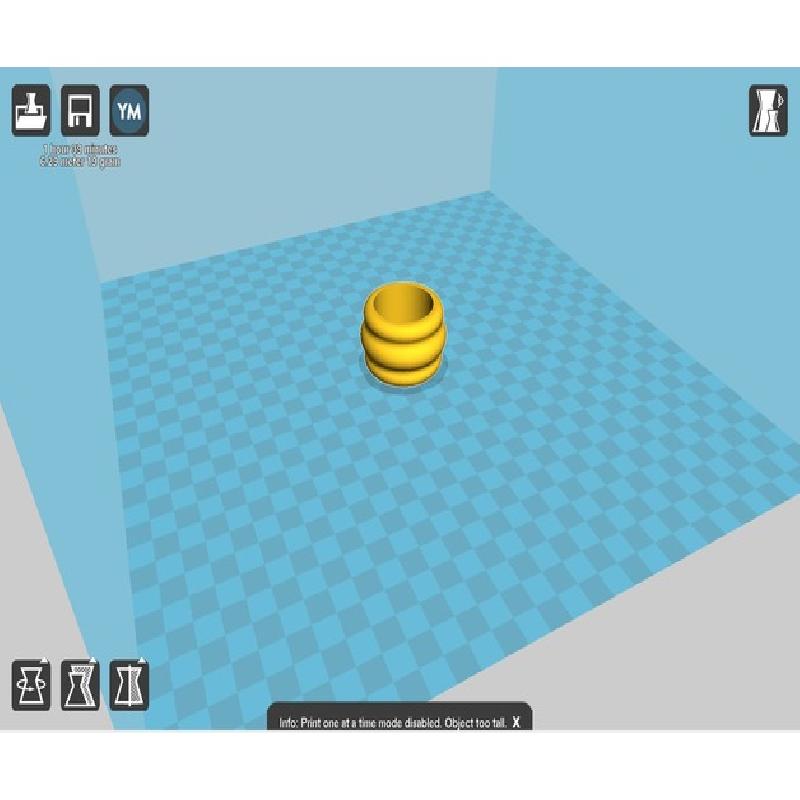

o Ring (2x)

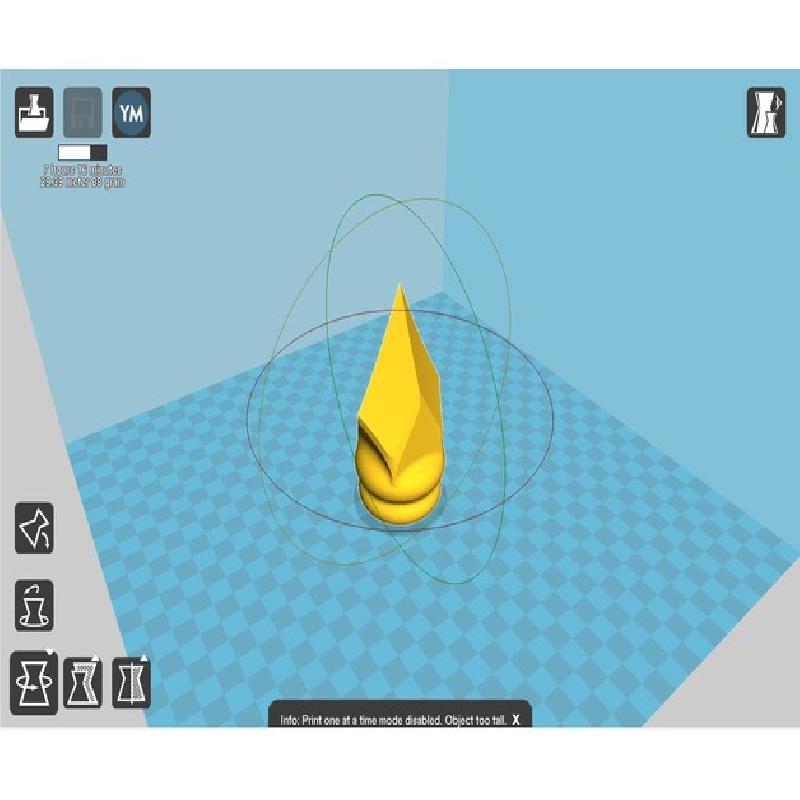

o Pommel

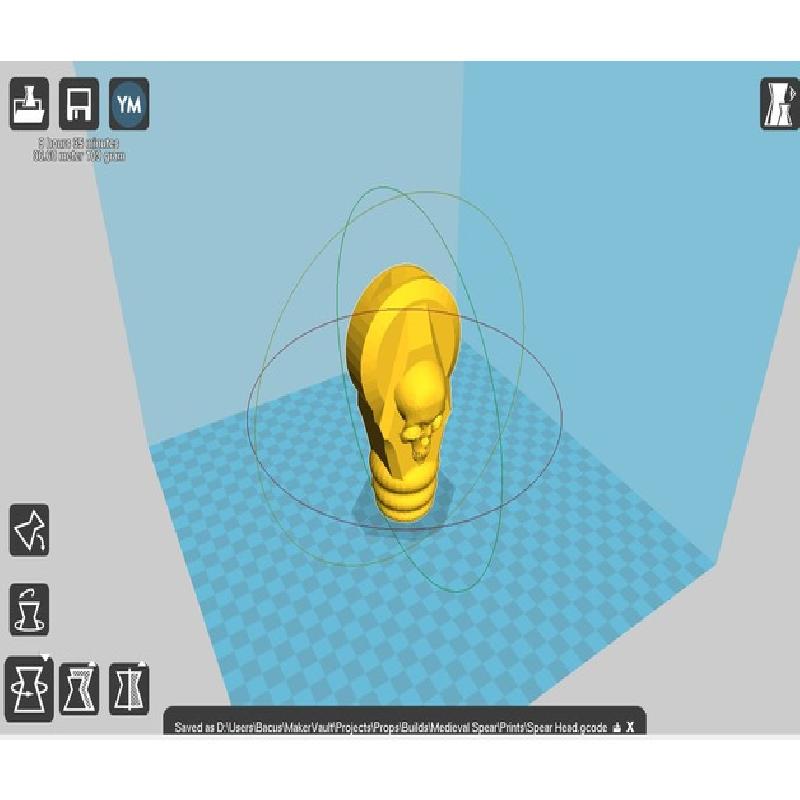

o Spear Head
Standard components (3)
o PVC pipe diameter 32mm length ±1.34m (52.755 inch)
o 2 Wooden dowels 8mm x 35mm
The 2 dowels are used to connect the two pieces of the spear tip together (you could choose print components instead of using the wooden dowels). The dowels actually worked out great, they made for an excellent connection between the 2 pieces.
Pvc pipe will function as grip. You can choose the length of the pvc pipe as you like. I went for a length of ±1.34m (52.755 inch) pipe for the spear to give a total length of 1.8 metre (70.866 inch).
Printer:
Creality CR-10
Rafts:
Doesn't Matter
Supports:
Doesn't Matter
Resolution:
0.2mm
Infill:
5%
Notes:
Slicer Cura
All piece where printed with a Brim.
The pieces of the spear tip (Spear Tip 1 and 2), pommel and the rings where printed without supports.
Spear Head printed with supports.
Modelled in Fusion 360 with mostly basic features like extrudes, revolves, chamfers and rounds.
Skulls where a Brep ( Basic representation) off the beautiful skull model by trailogy and where just placed in the model using the insert Mesh feature.
Original skull http://www.semaker.com/productdetail/9188
