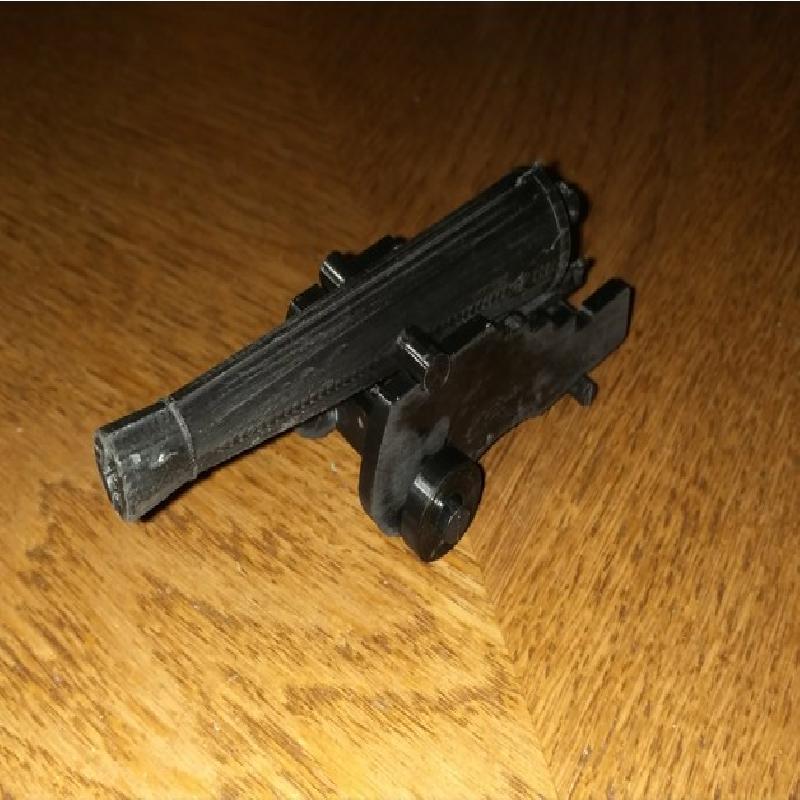

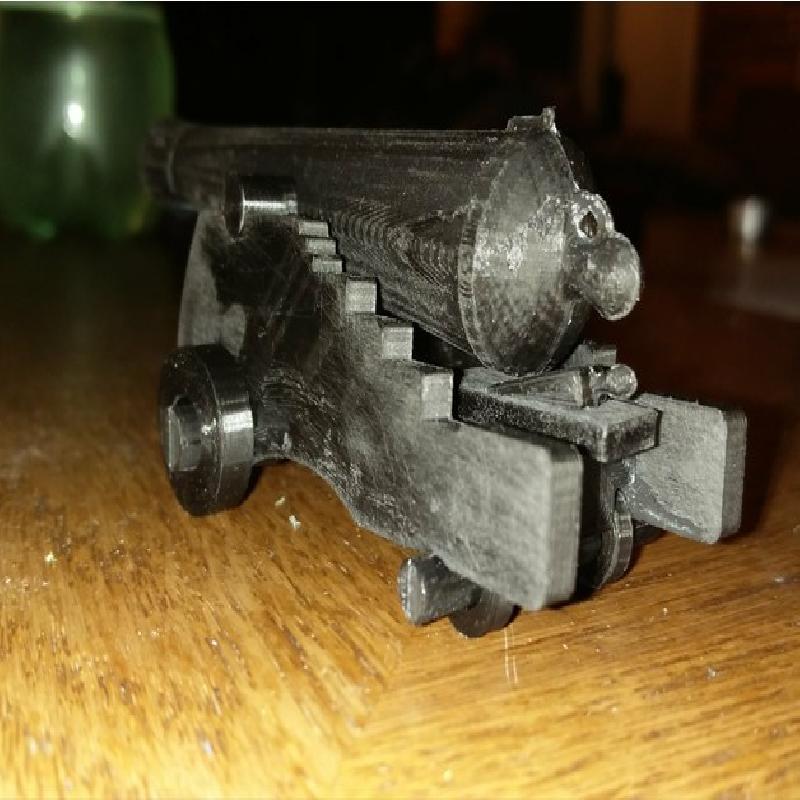

1800 ship cannon. The model is about 1/30 scale, modeled from a picture of the canon from the Danish frigate "Jylland". The last wooden ship built for the danish navy. The board and wedge where used to tilt the cannon barrel. I included these, but they are not needed for the print. There is also an assembled model Cannon.stl if you want to print it in one piece, but then the barrel and wheels will be fixed.
Printer:
Creality CR-10S
Rafts:
No
Supports:
Yes
Resolution:
0.2
Infill:
10%
Notes:
The bore of the cannon might need some support when printing. It depends on the size you print and your printer. Better safe than sorry.

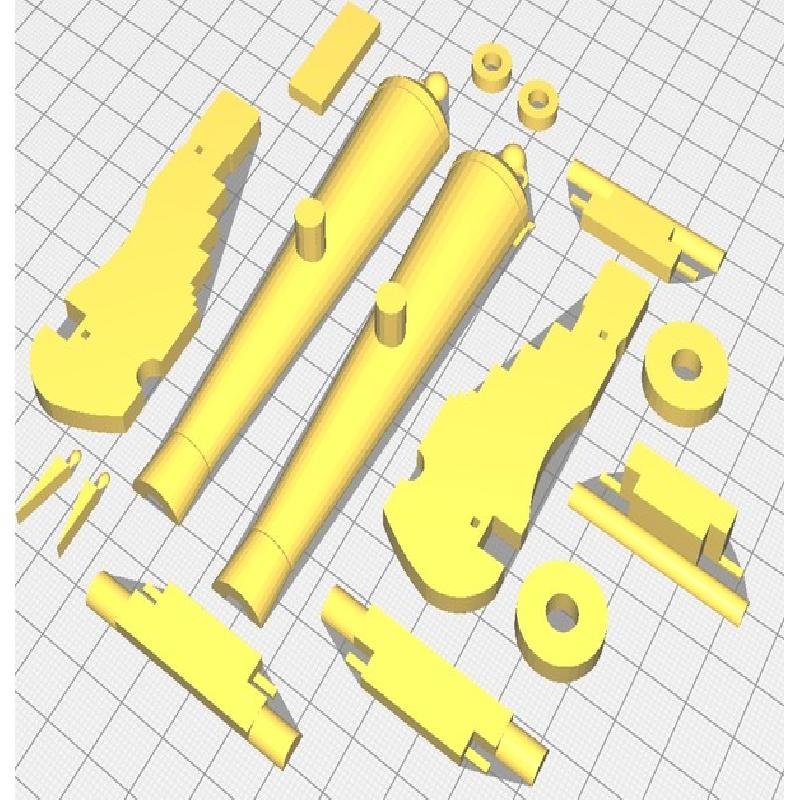

Print two of these files:
carrige
front_wheel
rear_wheel
Glue the A and B parts together (barrel, front and rear axel) before assembly.
You need to make a hole for a small pin to avoid the front wheels falling off. Some eye bolts for ropes can also be added to make the model more detailed (too small print on the model).

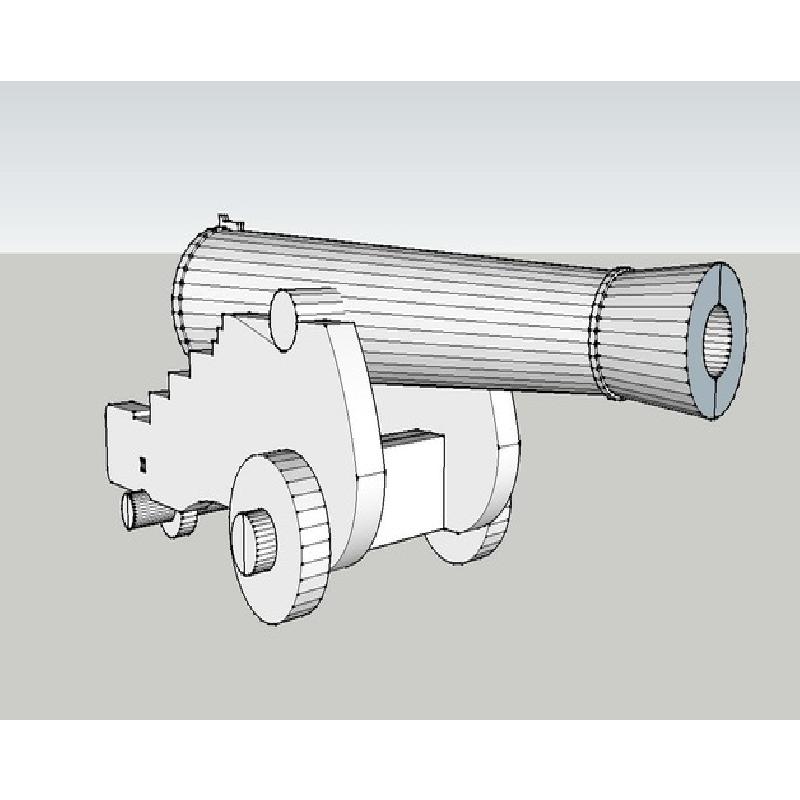

I designed this for a few different photos I found online. I cannot publish these photos as I do not have distribution rights to these photos. I used sketchup to build the model and cut the pieces for printing.
