by MakerVault, publishedFeb 17, 2018

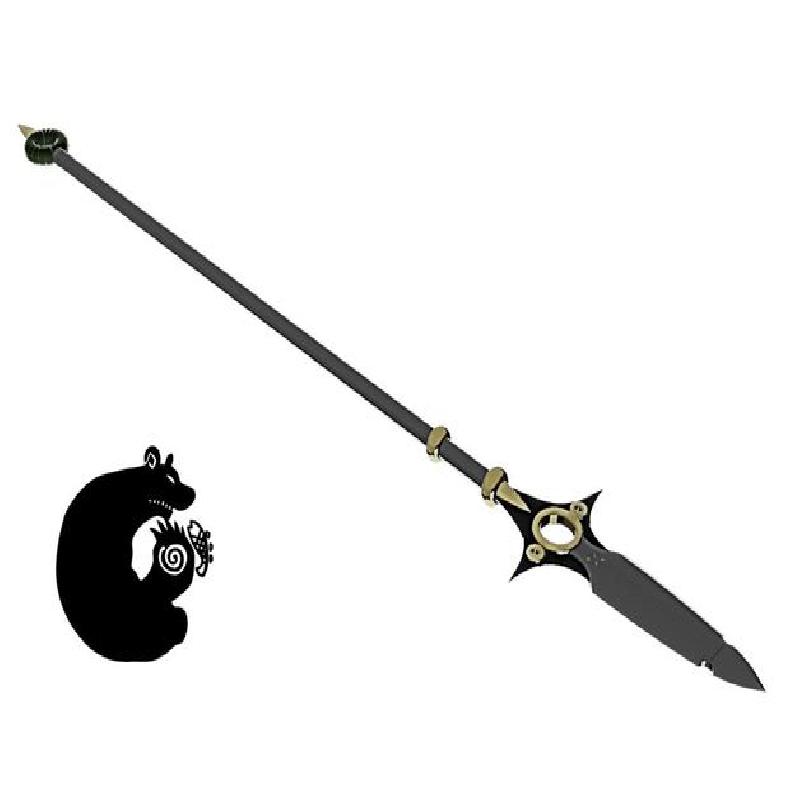

The Seven Deadly Sins (Nanatsu no Taizai) - Kings Spirit Spear Chastiefol

Other weapons from the he Seven Deadly Sins (Nanatsu no Taizai);
Meliodas Lostvayne - http://www.semaker.com/productdetail/11721

Total length = 210cm (82.67 inch).

Total Print Time (depending on your settings) = ±31 hours.

Components (20);

• Printed parts (15);

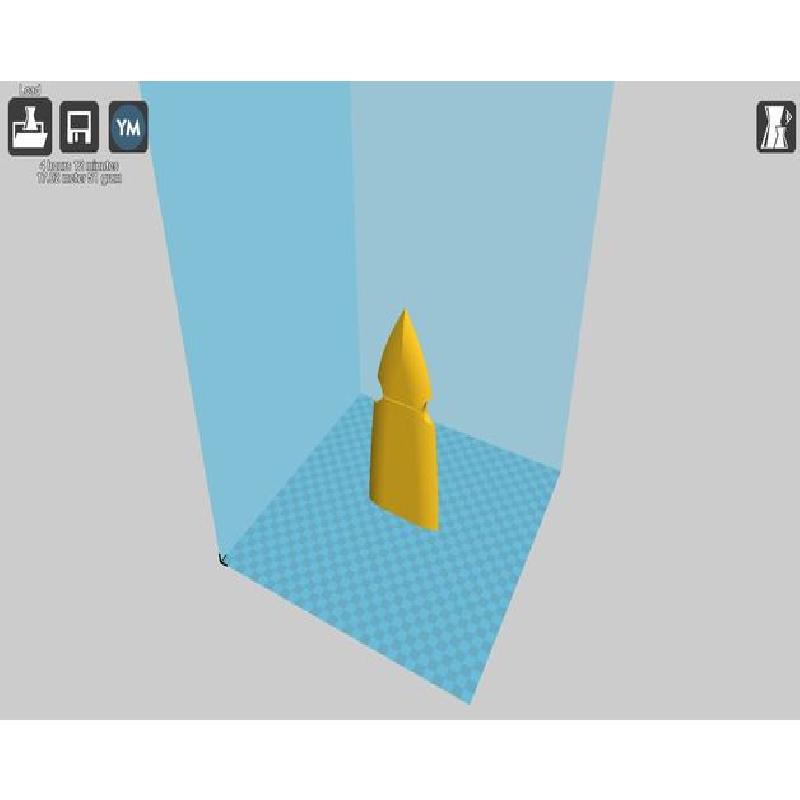

  o   Blade 1
  o   Blade 2

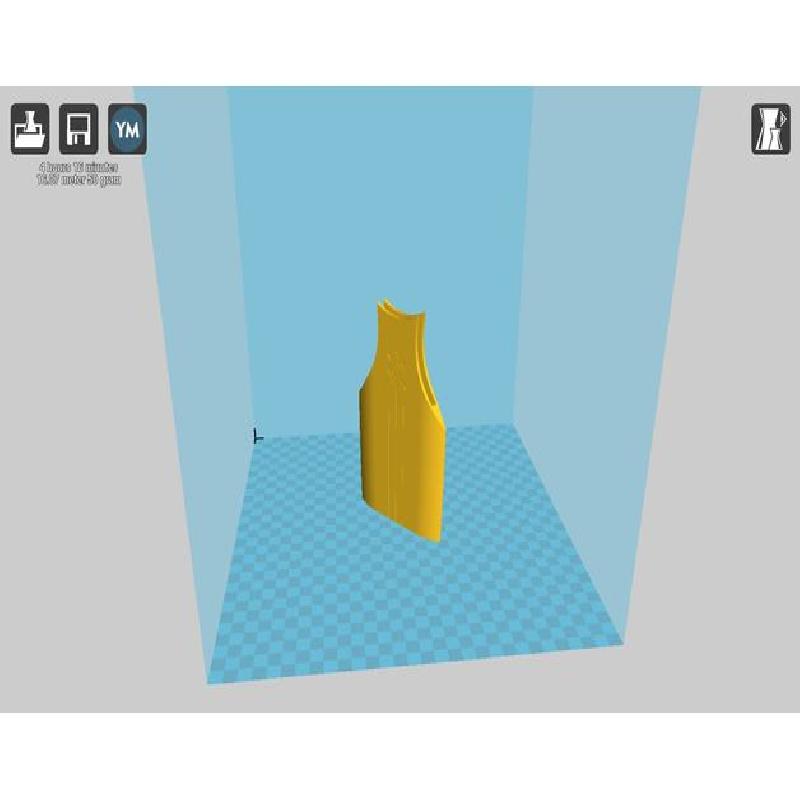

  o   Blade Main Body (2)

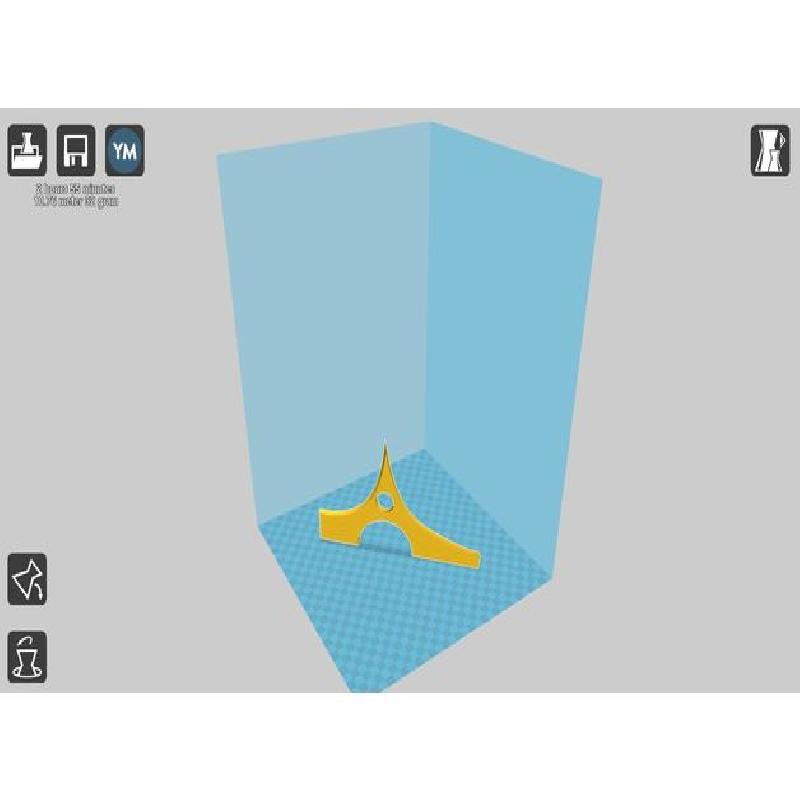

  o   Blade Holder

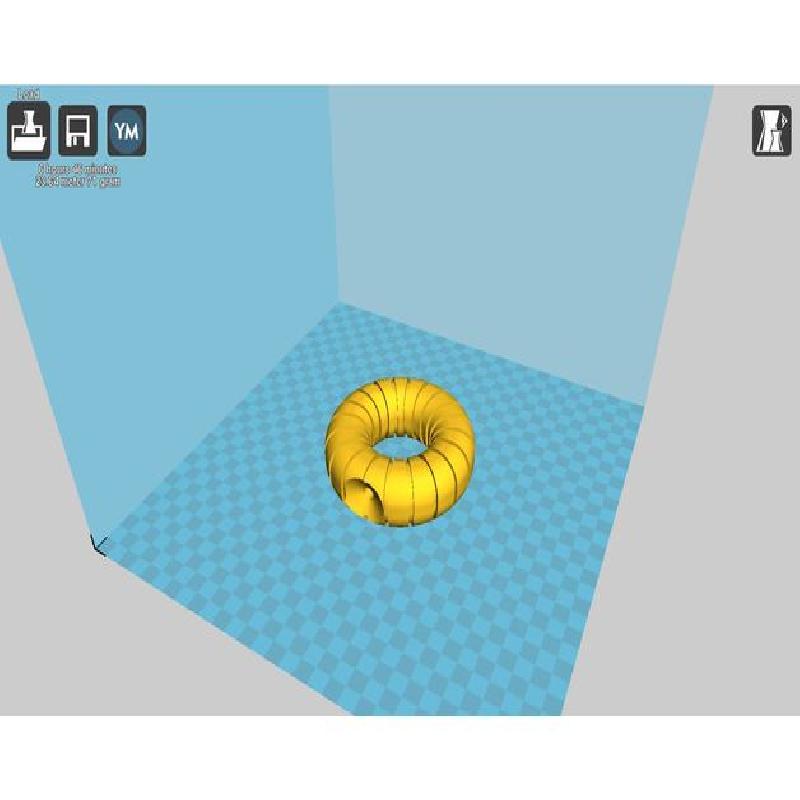

  o   Big Ring (2)
  o   Connection

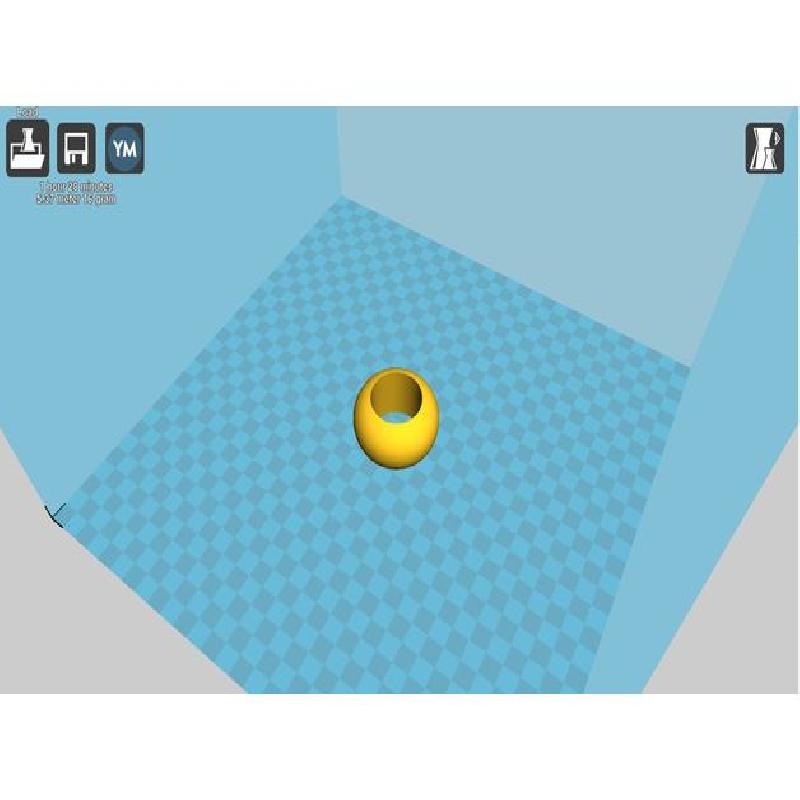

  o   Pommel Ring

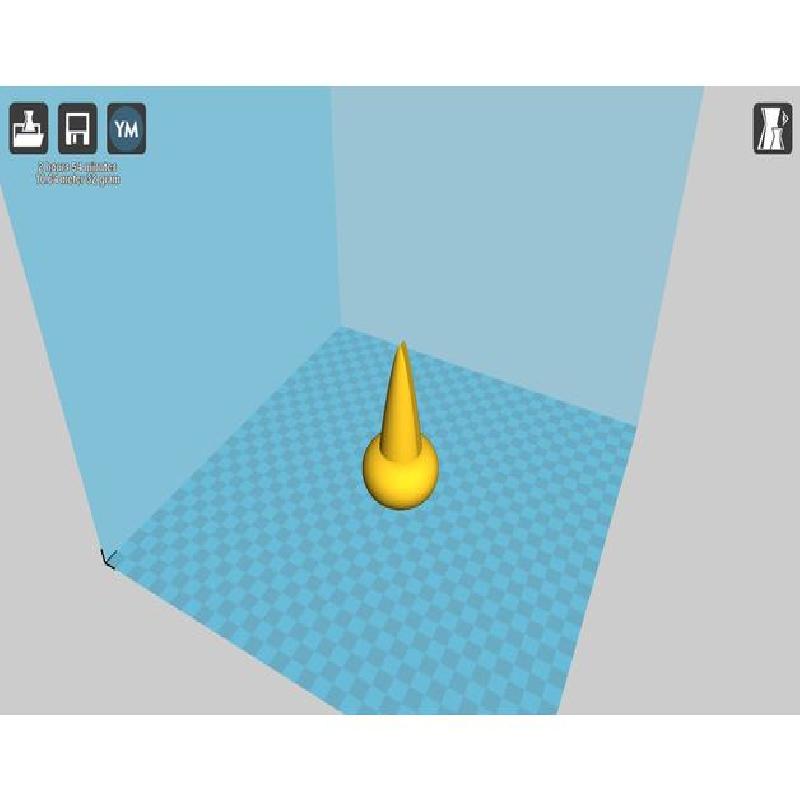

  o   Pommel

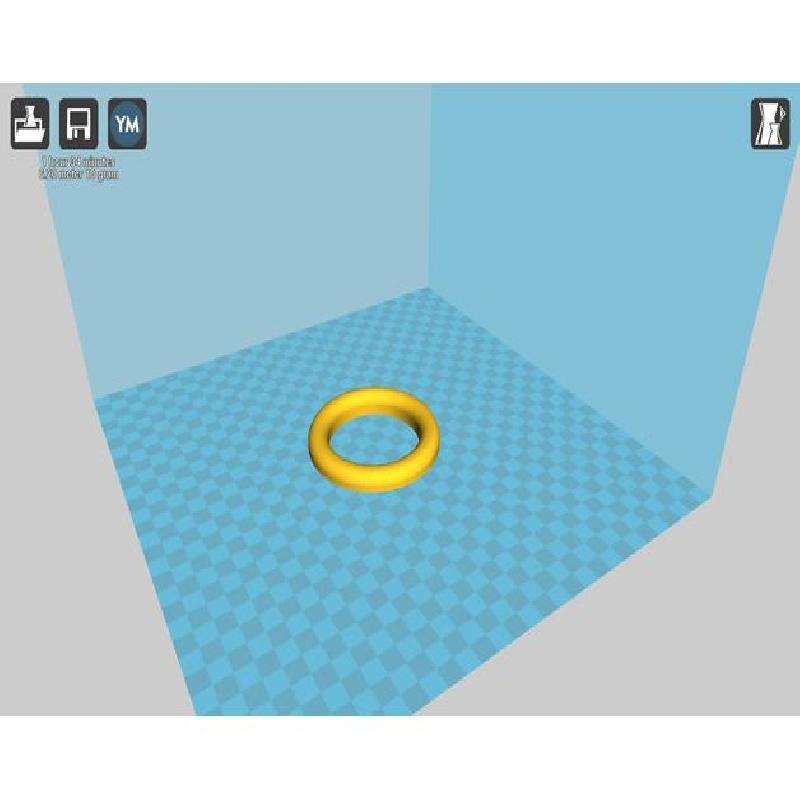

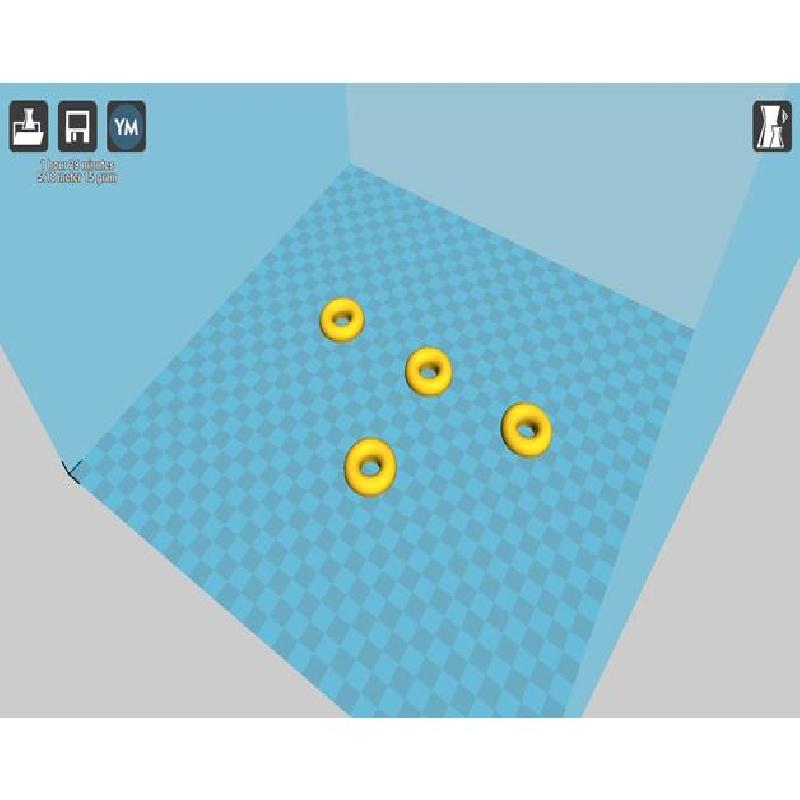

  o   Ring 1 (4)
  o   Ring

• Standard components (5)
  o    4 Wooden dowels 8mm x 35mm
  o    PVC pipe diameter 32mm wall thickness 3.2mm length 1360mm (53.54 inch)

Wooden plugs are used to connect Pommel, Pommel Ring and Connection parts together, same goes for the part Blade 1 and Blade 2.

Emblem is engraved in the guard (no decal).

Print Settings

Printer:

Creality CR-10

Rafts:

No

Supports:

Doesn't Matter

Resolution:

0.2mm

Infill:

5%

Notes:

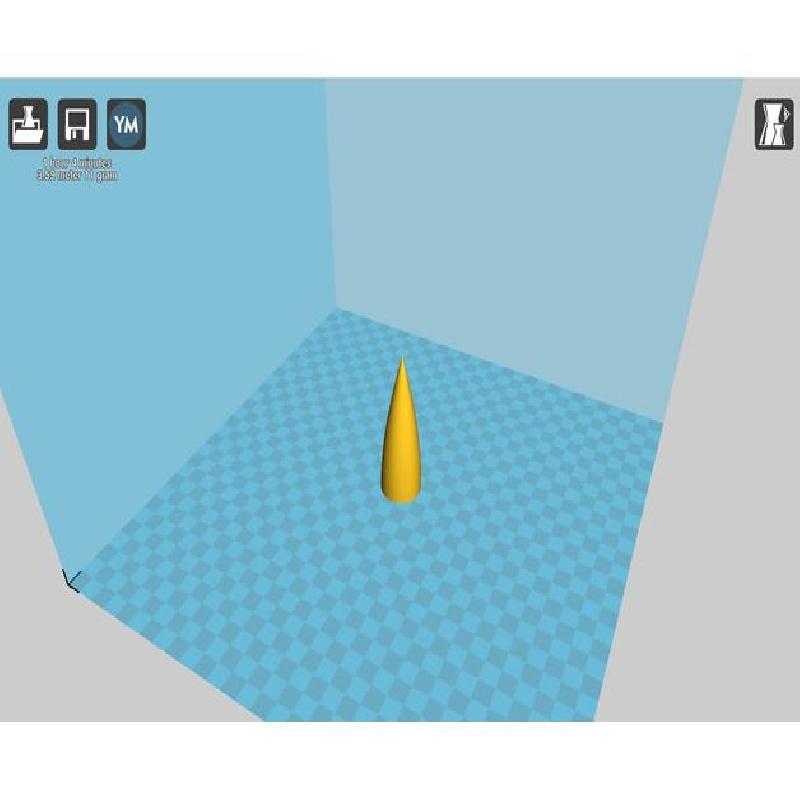

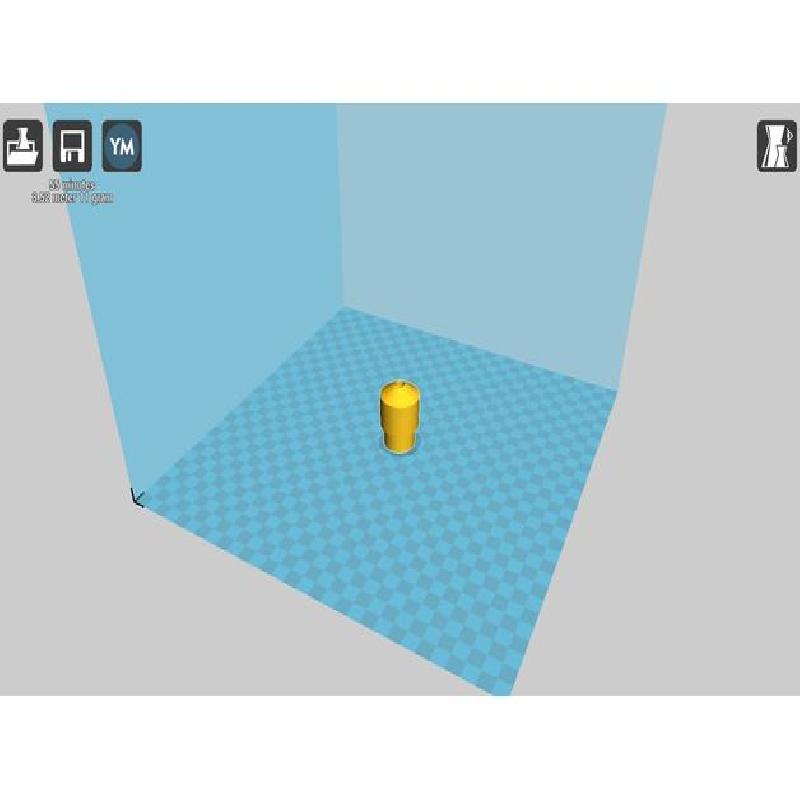

Slicer Cura

All piece where printed with a Brim.

How I Designed This

Modelling

Modelled in Fusion 360 with mostly basic features like extrudes, revolves, chamfers and rounds.

Form and dimensions roughly based on screen captures from the anime
