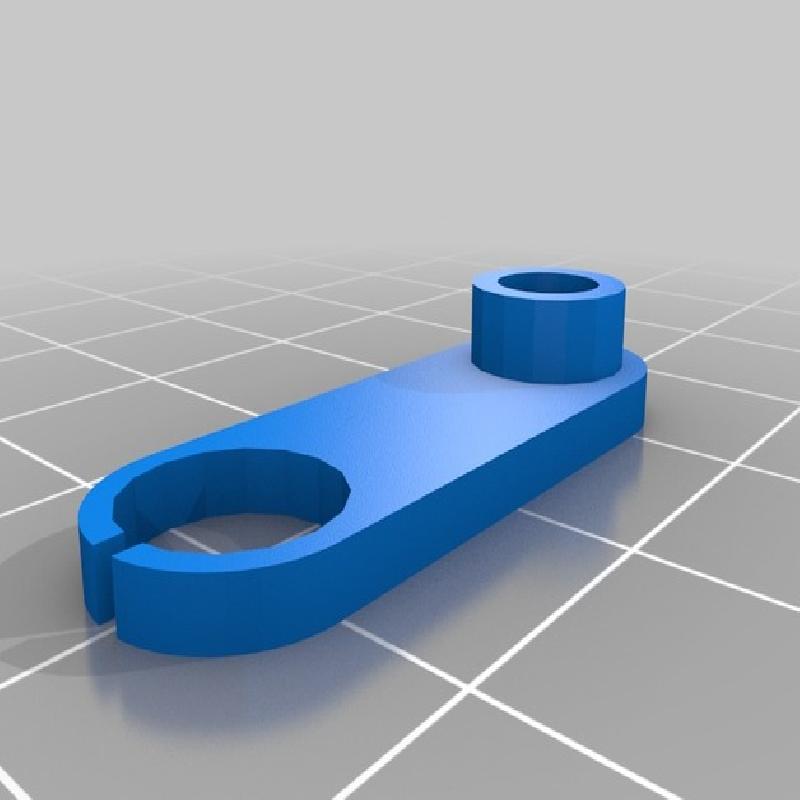

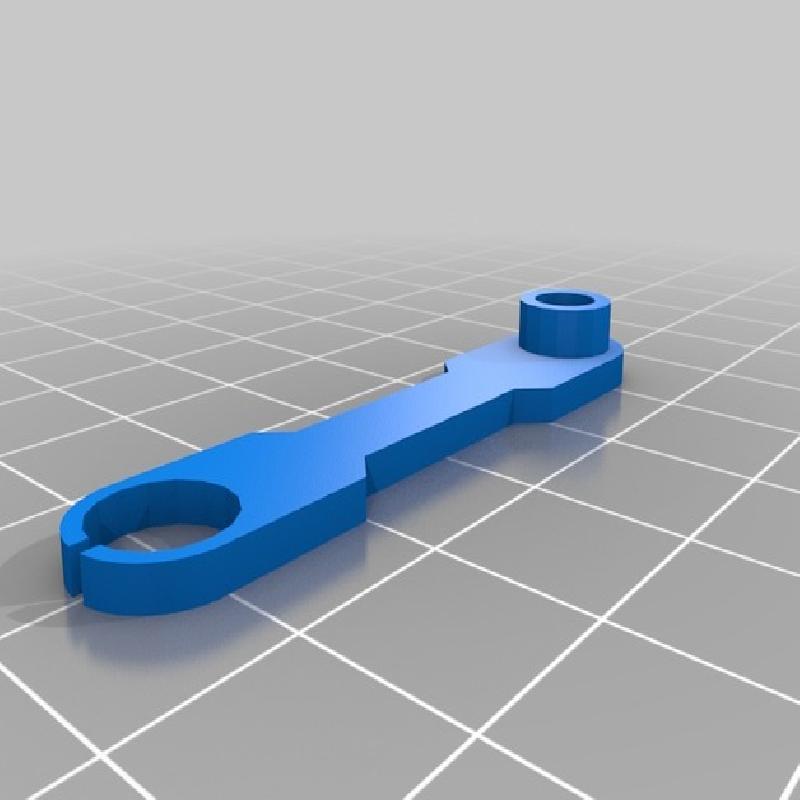

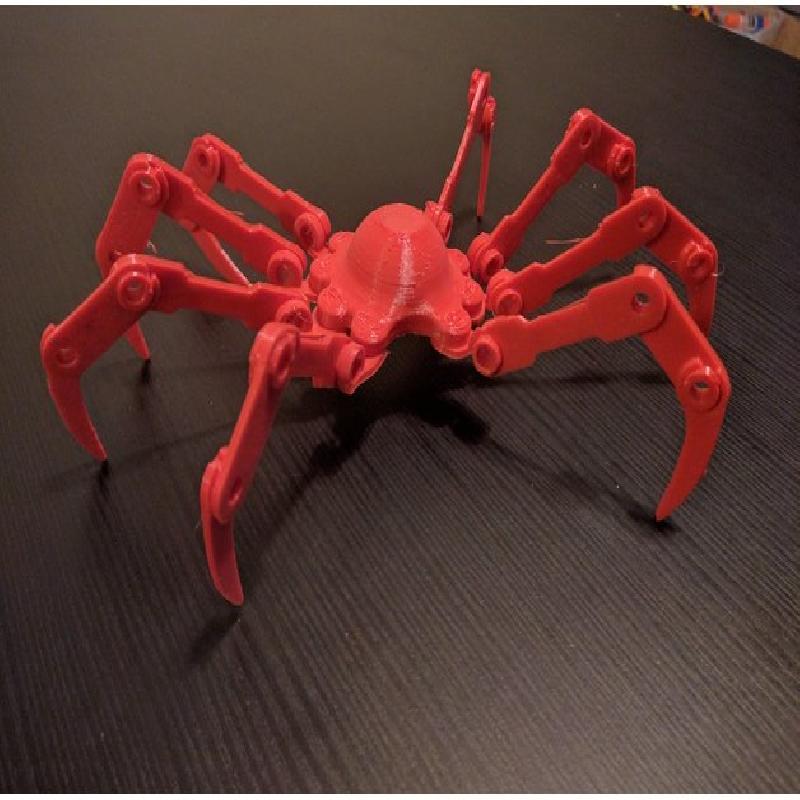

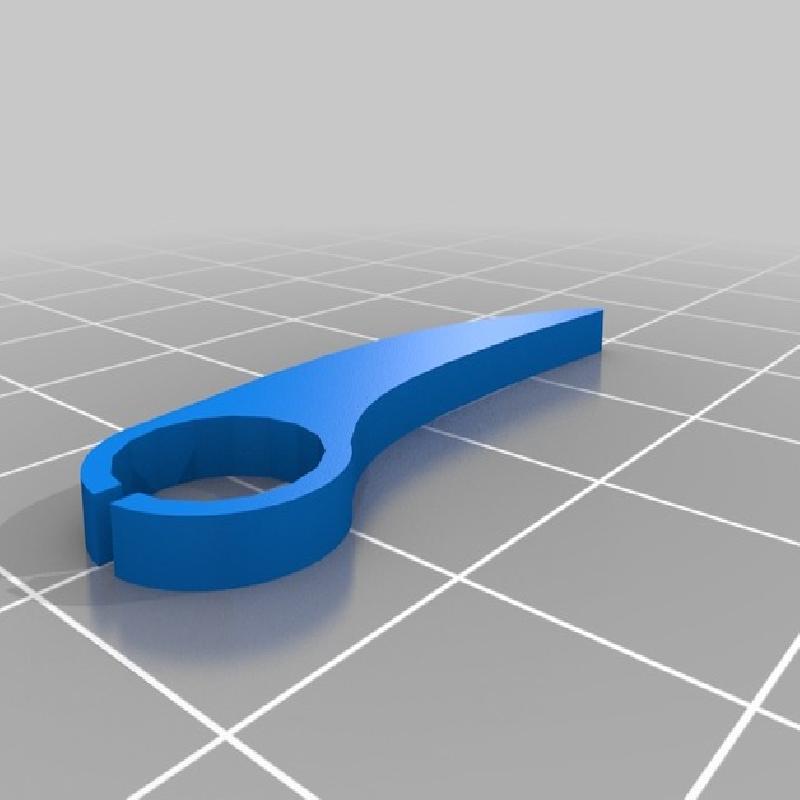

An assembly-required model of a spider type thing. This was a warmup for working on a legged servo robot. The pieces are joined with a little friction fit joint.
Printer Brand:
Printrbot
Printer:
Rafts:
No
Supports:
No
Resolution:
.1/.2
Infill:
10%
Notes:

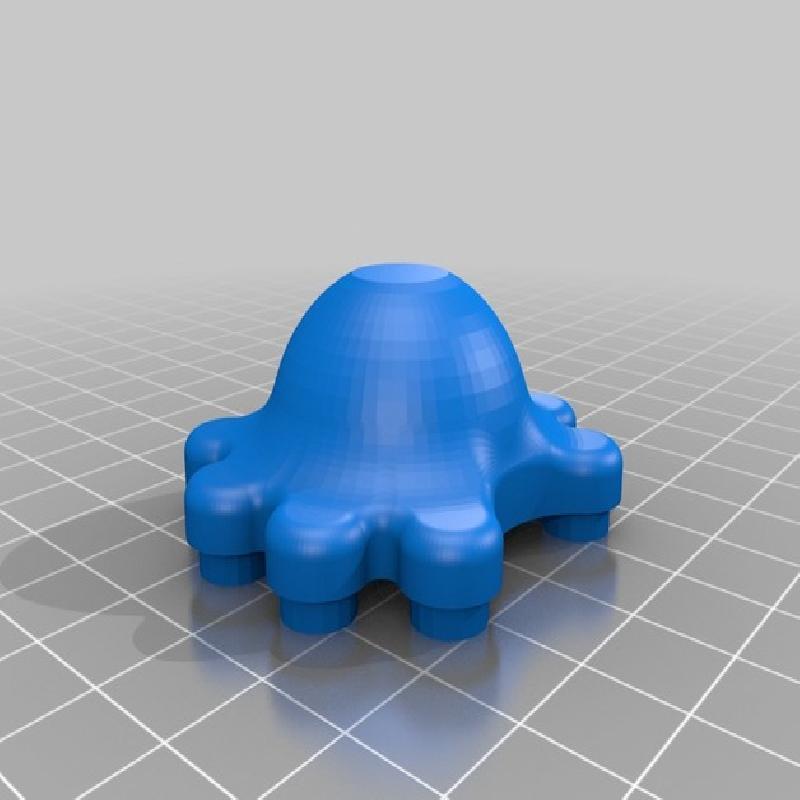

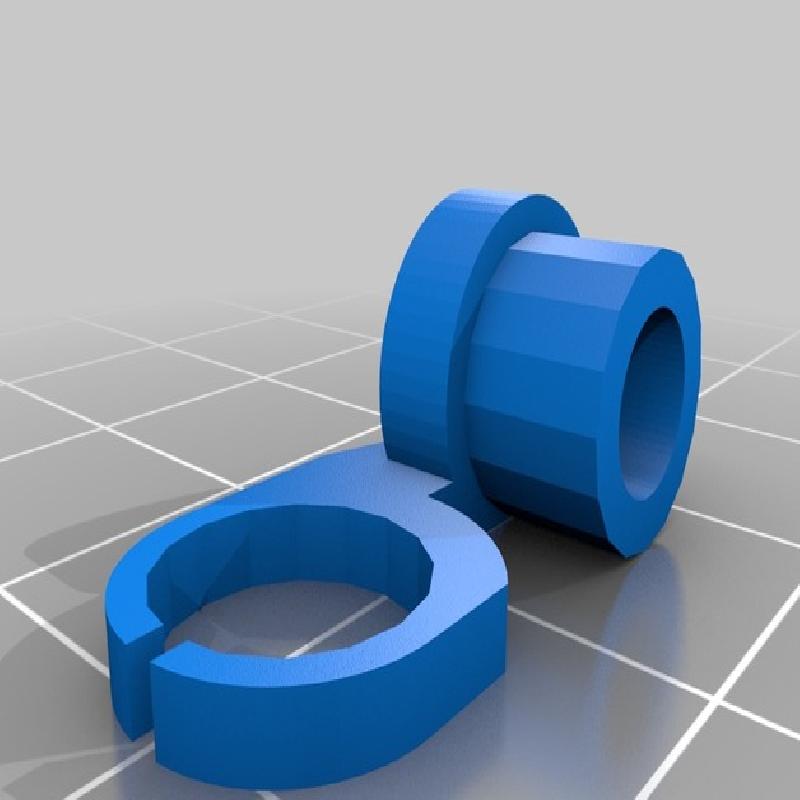

I printed the "root" joints that join to the base in .1, but the rest print quick at 0.2mm.
Also, I printed with PLA, and it looks like the joints loosen after a day or so. Please test fit the joints first. I am going to try to figure out if i can refine it so they don't loosen too much.

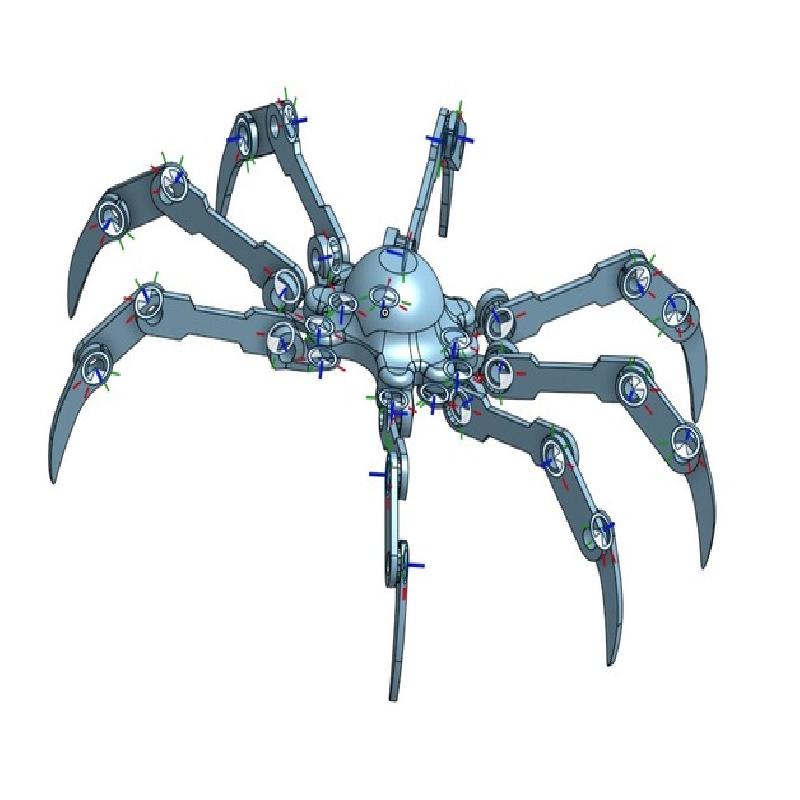

I used Onshape to design it
This was a learner design for me in using assemblies and mates.
Check it out!
