UNDER REVIEW - I'm currently updating the model as I know have my pipboy addition and sometime to update the model. Once I have updated the model I will release a cut down version of the model so it's easy to print and assemble. The current files will be left up until I upload the new ones incase someone really wants to print this in the meantime. (Dated as of 20/11/15)

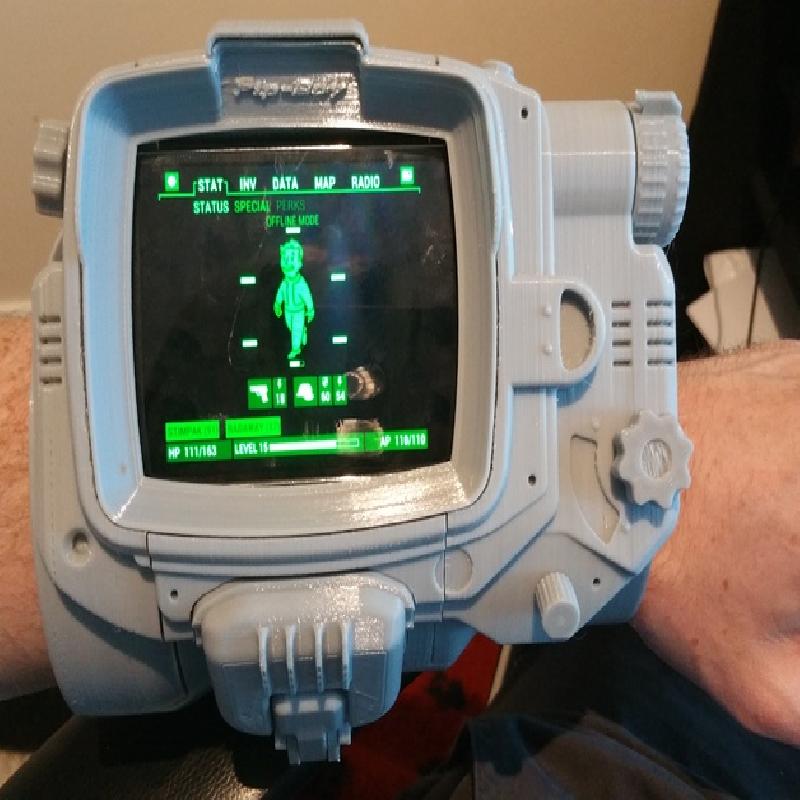

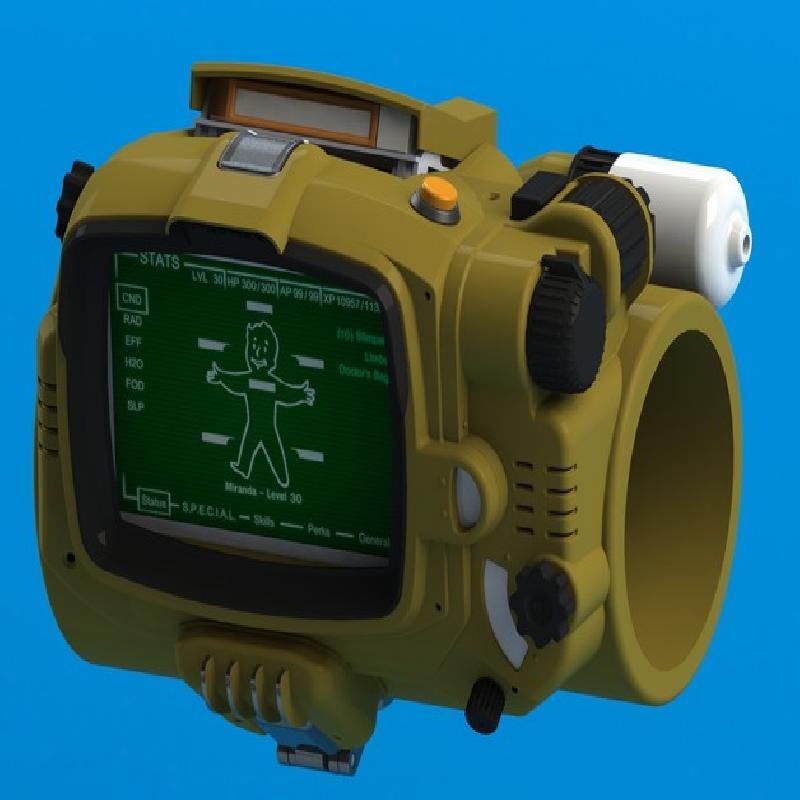

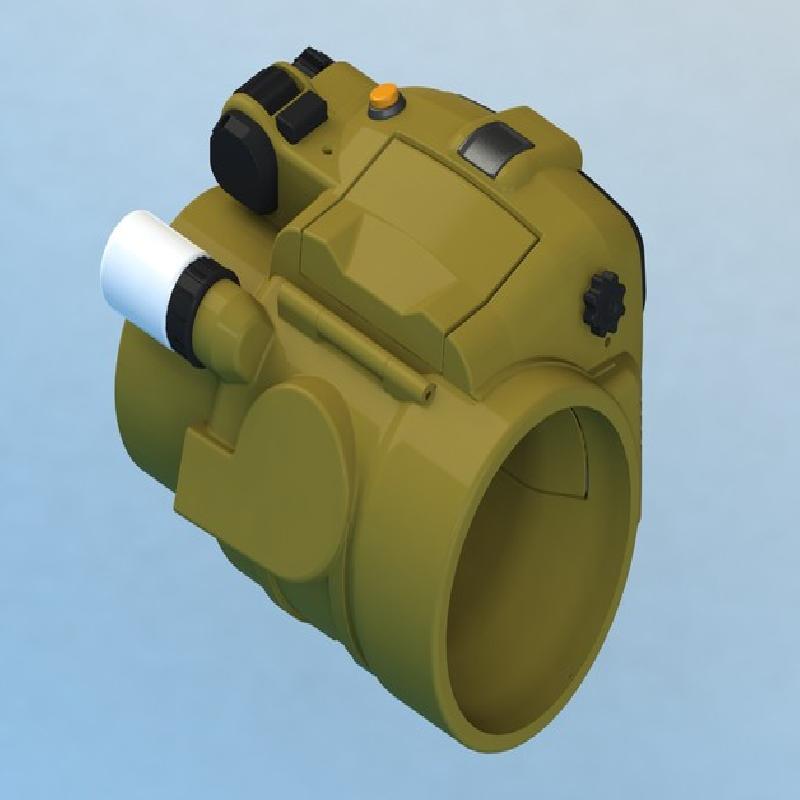

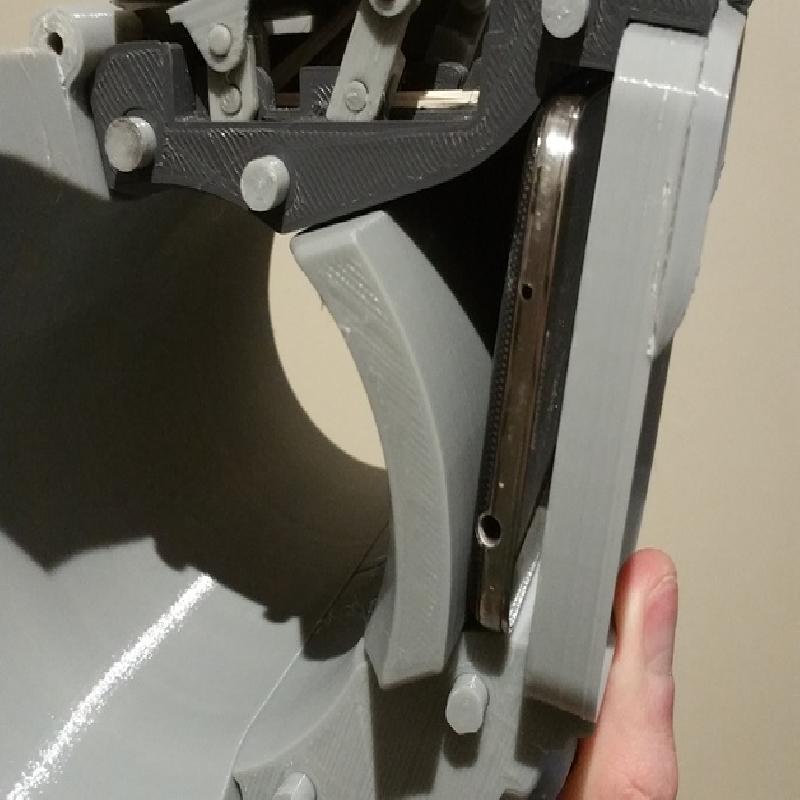

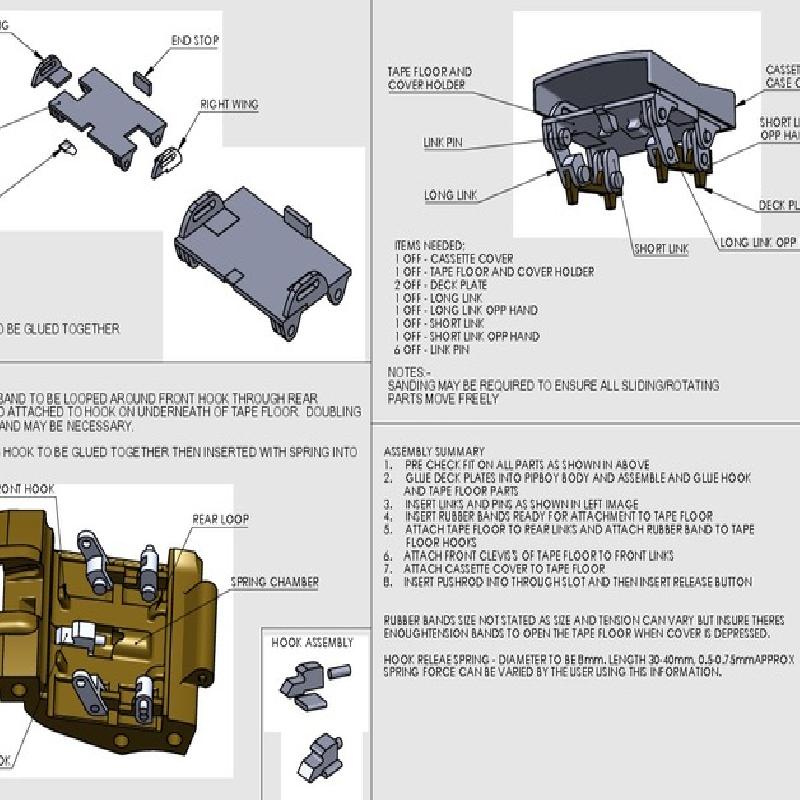

Here is the my version of the new pip boy from Fallout 4. Be aware this is as accurate as I can get it with the photos and references I have so far. My design features a operating tape deck and removable game cartridges like in Bethesda E3 conference and fits all the phones the Fallout 4 pip boy editions can hold. For some of the hinges I have intended to use 3mm Dia. steel wire as a printed dowel just won't be strong enough, it will also need a length of 1mm Dia. wire to be used as a spring for the tape deck. Details of which, I will detail when I upload the part files.

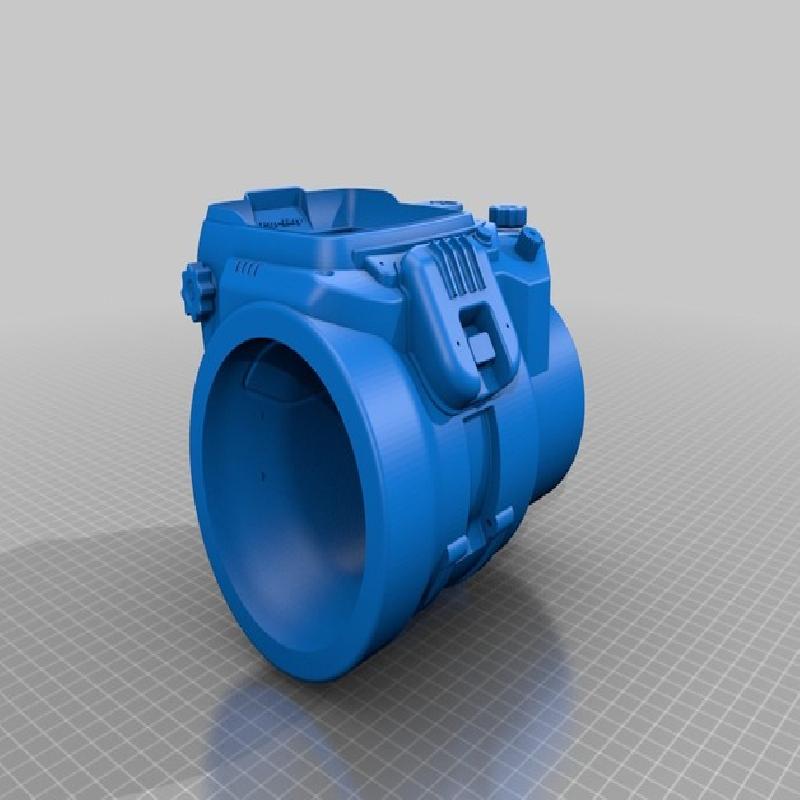

The only file attached for the moment is the whole assembly as an STL, I will release the part files after I'm happy that it assembles and operates correctly but the STL still show the detail I have included in the model.
