This an M16 mine, a bounding anti-personel mine based on the German WW2 S-mine.
Many of these were used in Vietnam, with or without some sort of tripwire. Sometimes another device was planted underneath this one. When you tried to disarm the M16 mine the one underneath would go of.
Size 1:1

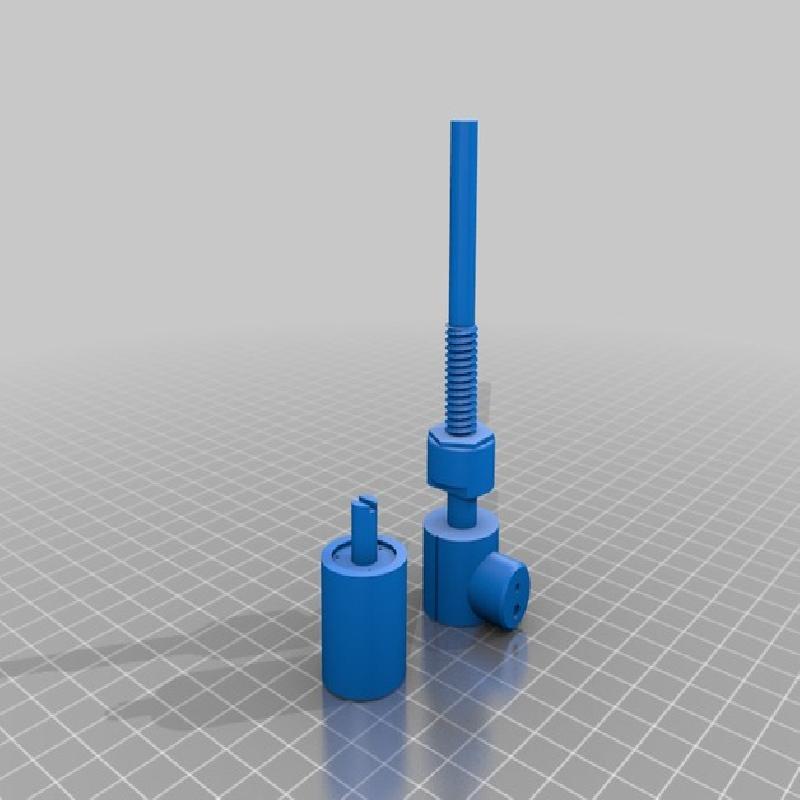

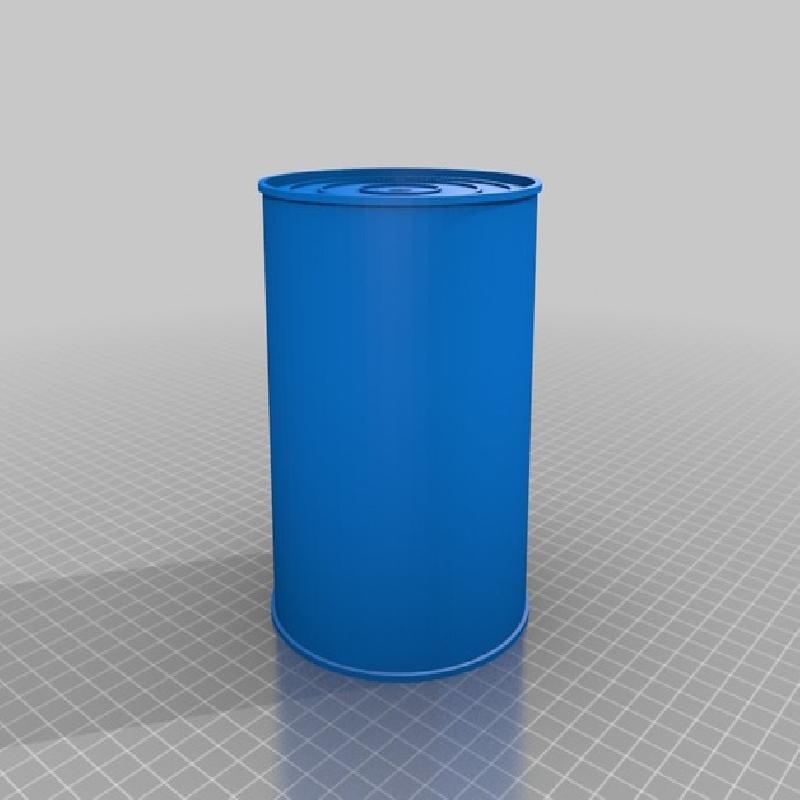

The body is 1 part, de fuze is 2-part, you need to glue them together.
I made the fuse with a screwable thread.
I made holes for the pins, I used paperclips on mine. The wires are to thin to print nicely.

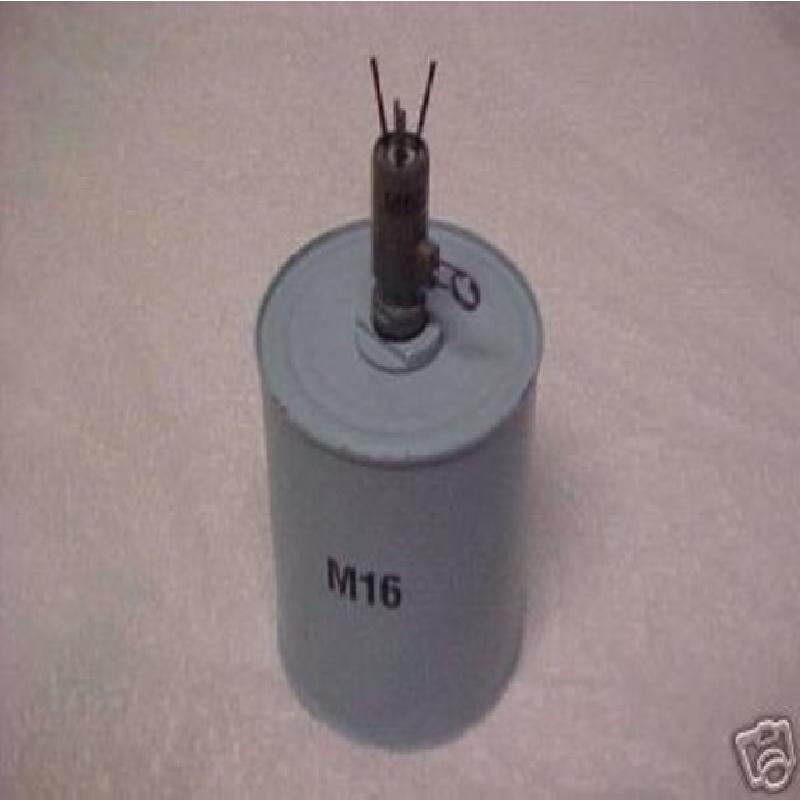

The mine in the picture is not mine (mine got it? ;))
It's a practice model.

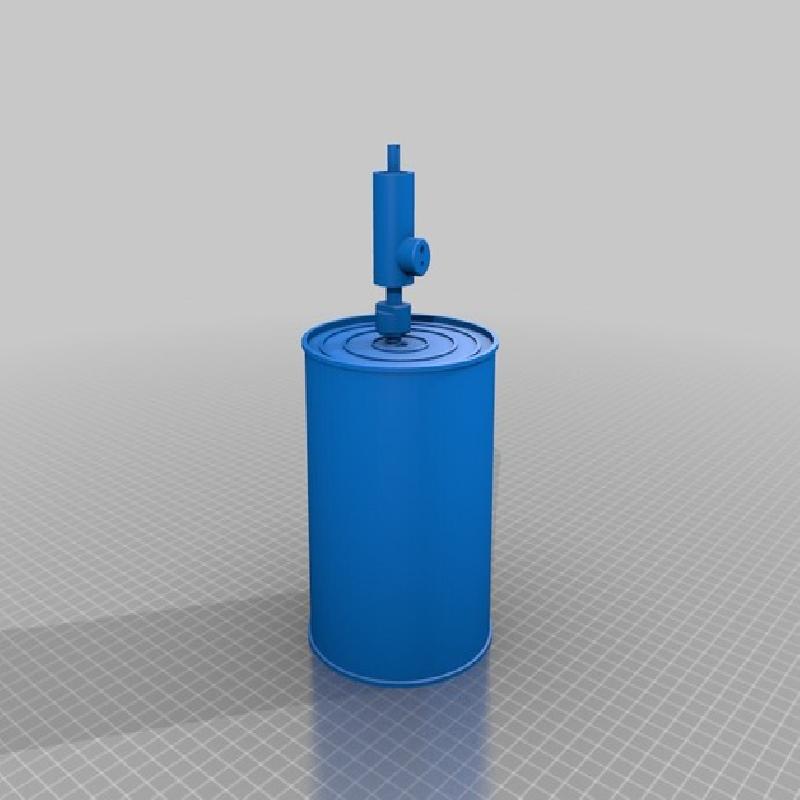

UPDATE: uploaded the complete mine with fuse inserted.
Printer Brand:
Creality
Printer:
CR-10S
Rafts:
Doesn't Matter
Supports:
Yes
Resolution:
0.2
Infill:
15
Notes:
some support for the overhangs on the body,
support needed for the fuse.
Body in 0.2-0.3
Fuse in 0.1
