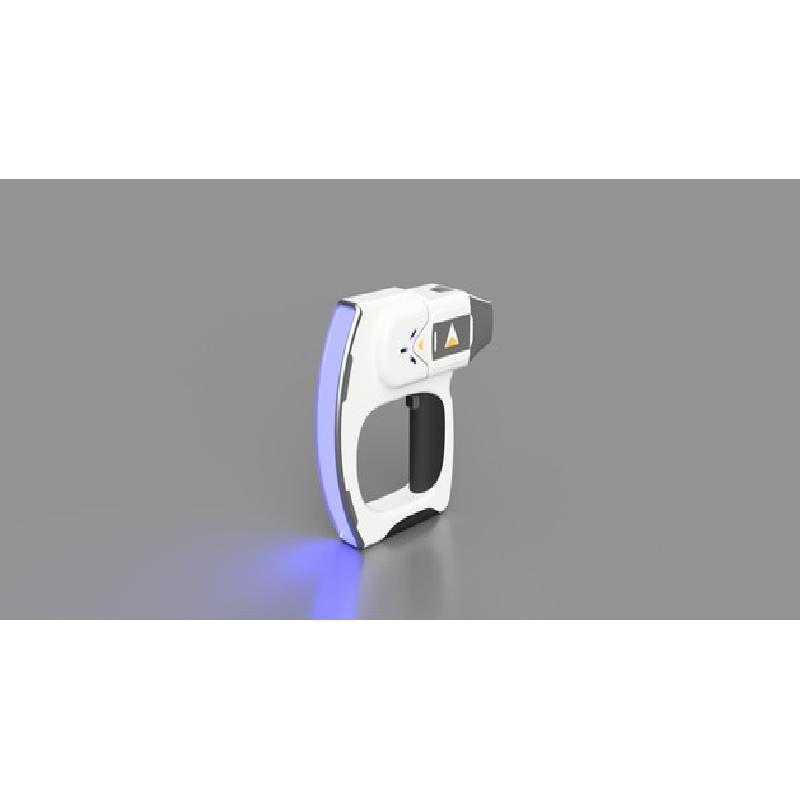

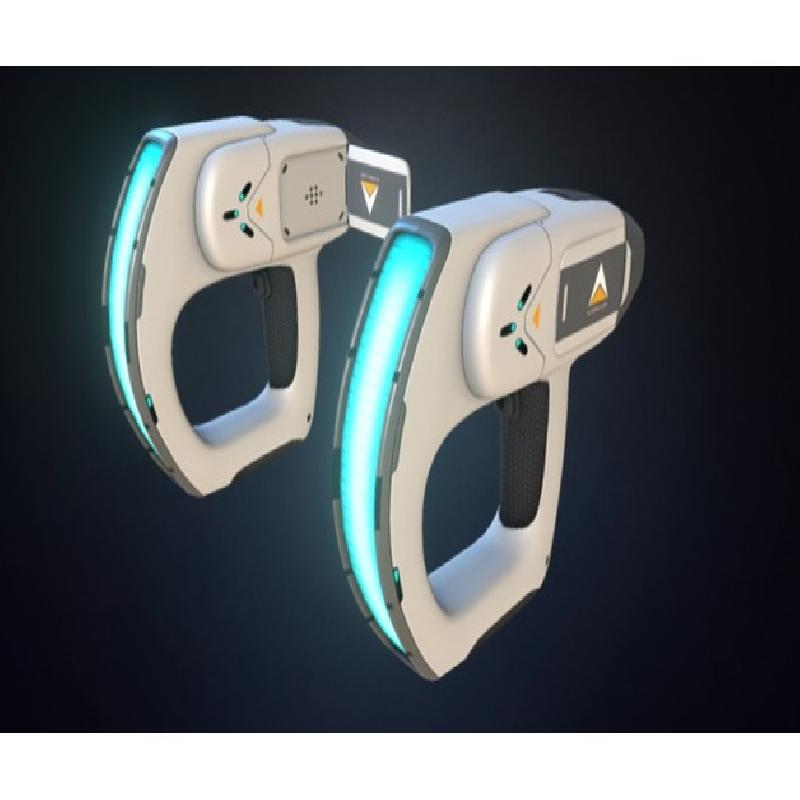

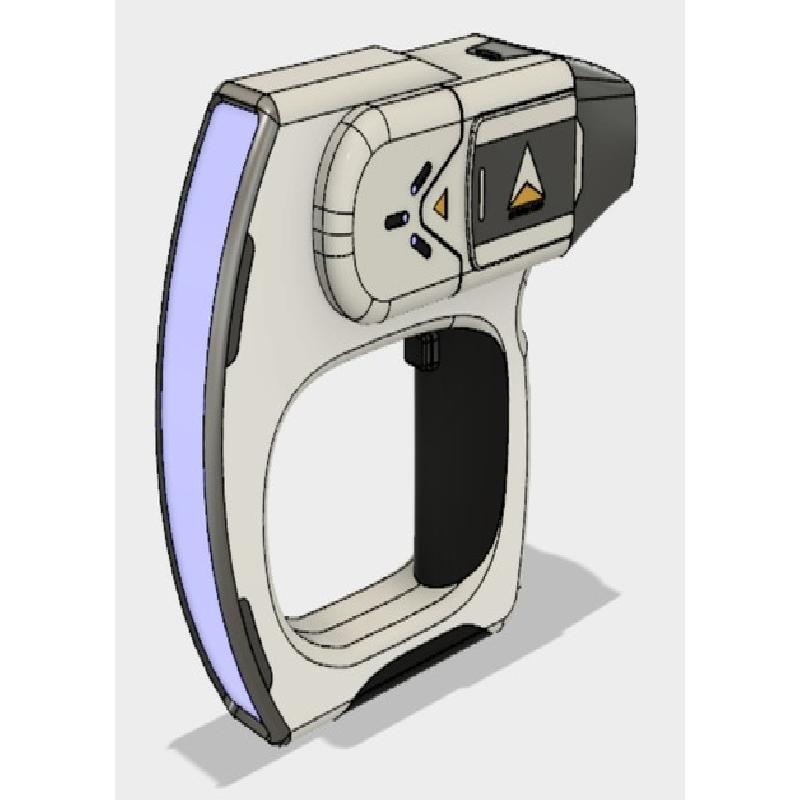

This is a life size prop of the handheld scanner tool from the game Subnautica. I used a references from the sketchfab page of the designer and but modelled in all the textures to make it easier to paint and give all the buttons and grooves texture. The print time all together is about 25-30hrs at 50mm/s. Make sure to use PLA and have good bed adhesion because otherwise the 2 halves of the model will not sit flush. The sketchfab page is https://sketchfab.com/models/6c6f5d3806764e7ca8481c0d8afba251 if you want a reference for painting.
Printer Brand:
Creality
Printer:
CR-10S
Rafts:
Doesn't Matter
Supports:
Yes
Resolution:
Battery+Screen: 0.08mm Scanner Halves: .2mm
Infill:
30% Battery, 20% Screen, 10% Scanner
Notes:

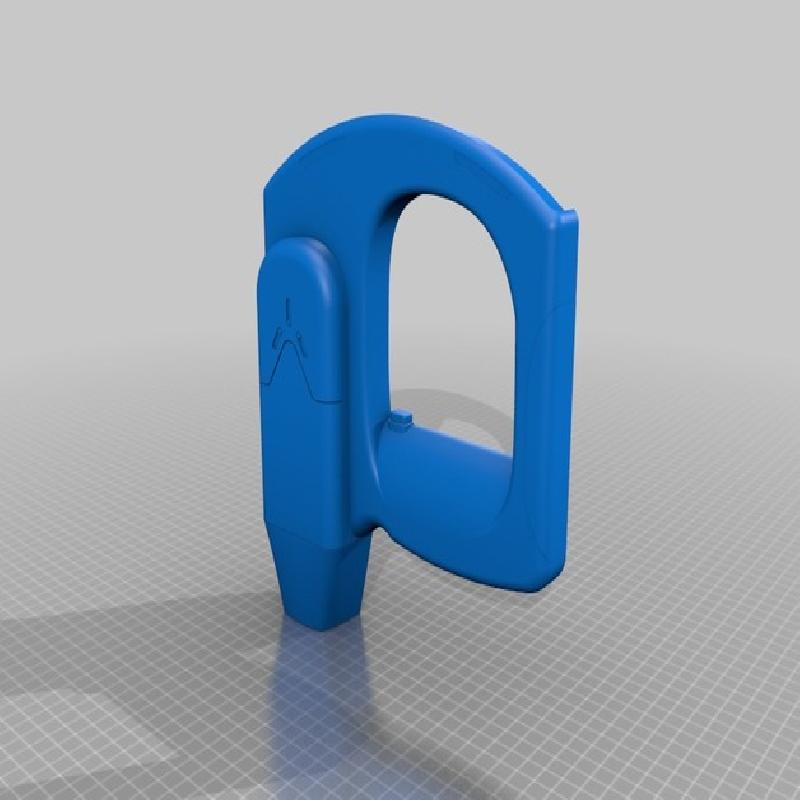

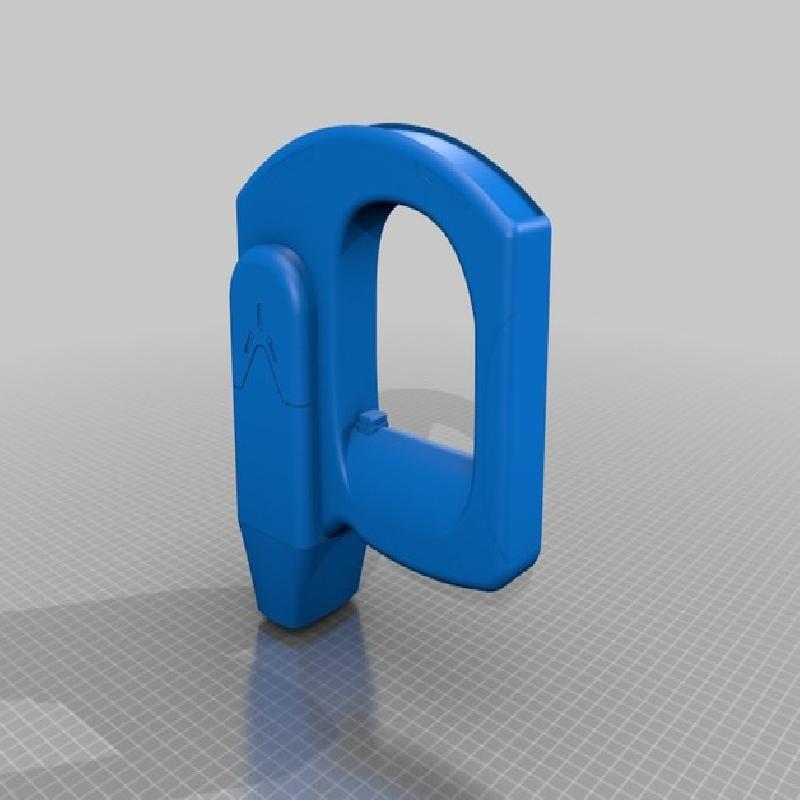

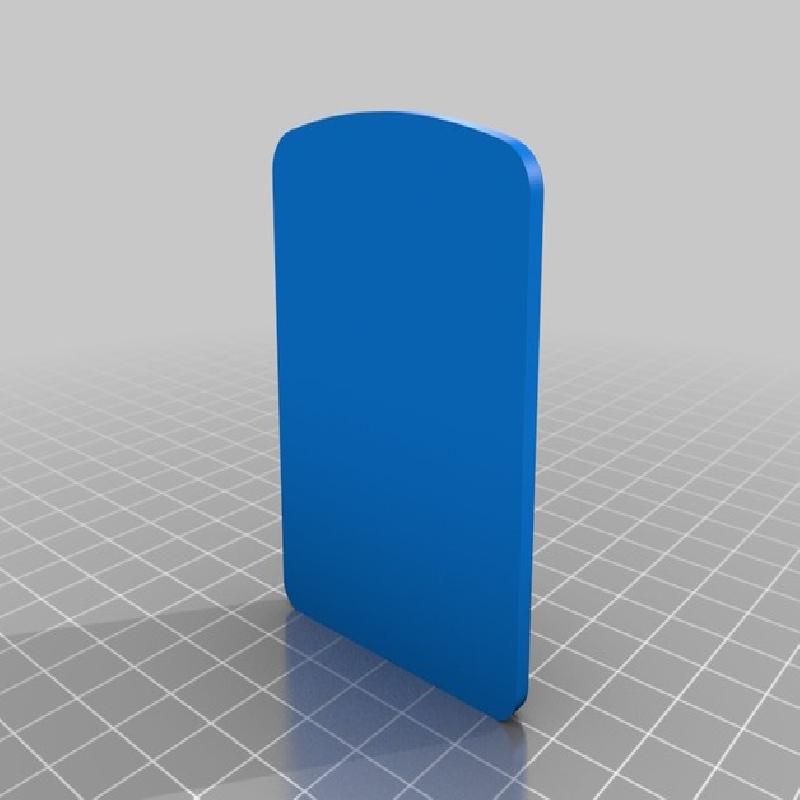

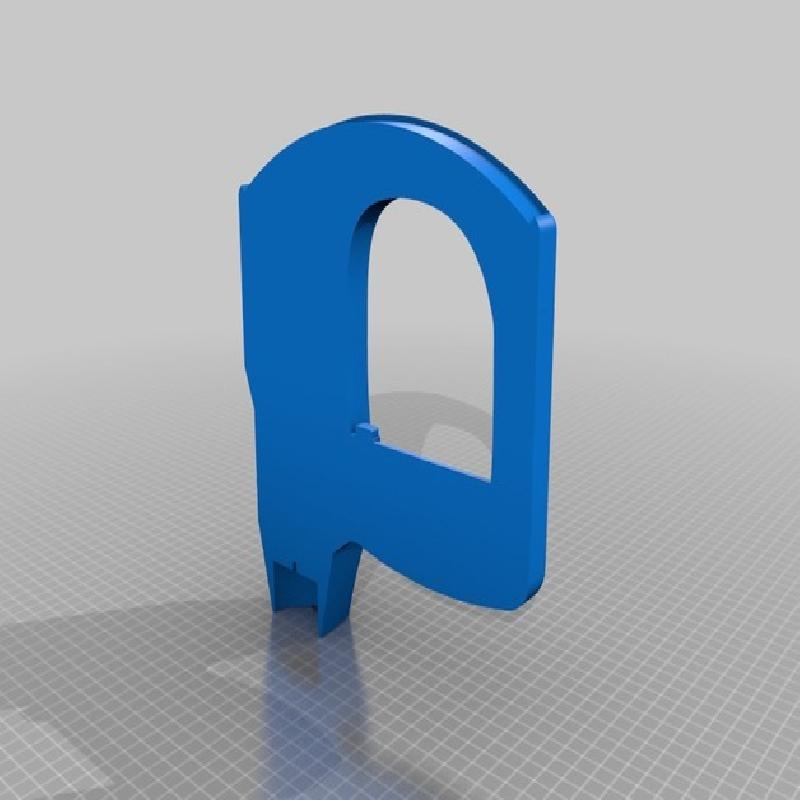

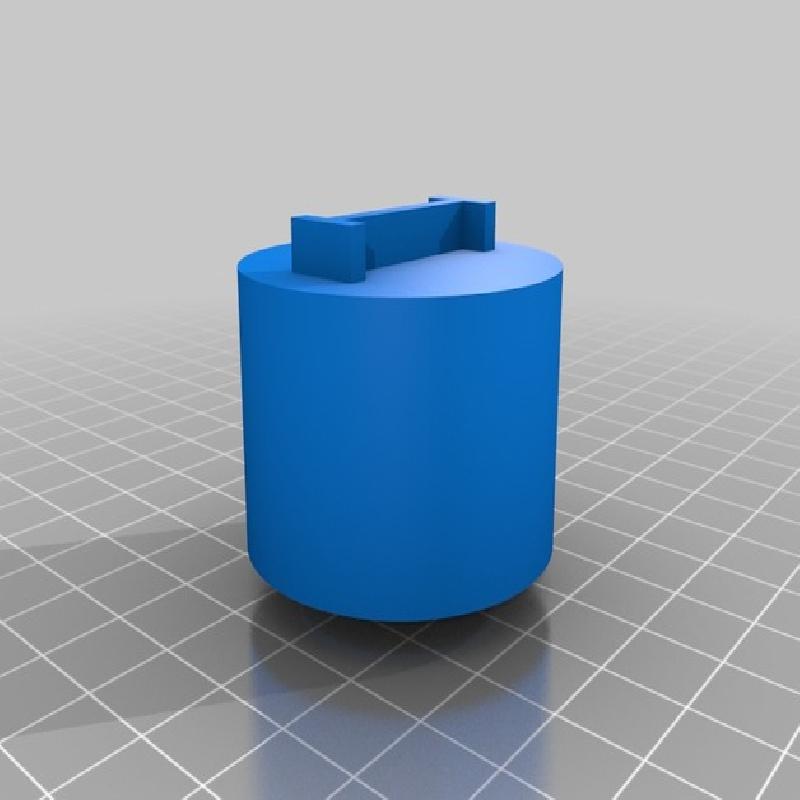

This is split up to fit on a cr10 sized printer and may need to be cut up more to fit on a smaller printer. Tolerance on all fitting parts is 0.3mm. I did mine at 50mm/s
