by LoboCNC, published
Printing Tips:
Printed in PLA with 0.2mm layers, 5 shell, and 35% infill. You want this fairly solid so that the spring works properly. (ABS is not a stiff as PLA, and I'm not sure it will work for this.)
You need very good adhesion between the perimeter lines for this to work properly. You may need to bump up the temperature, and maybe increase the extrusion multiplier parameter a little to make sure the perimeter lines fuse completely.
I put a small felt pad on the bottom clamp to protect the finish on neck. If the clamp is not quite tight enough, you can use a thicker pad.
Putting a rubber/vinyl pad on the presser bar can also help keep strings from buzzing. I use 2 layers of vinyl electrical tape on mine.
Don't leave this clamped on when you aren't using it because eventually the spring will relax and not squeeze hard enough.

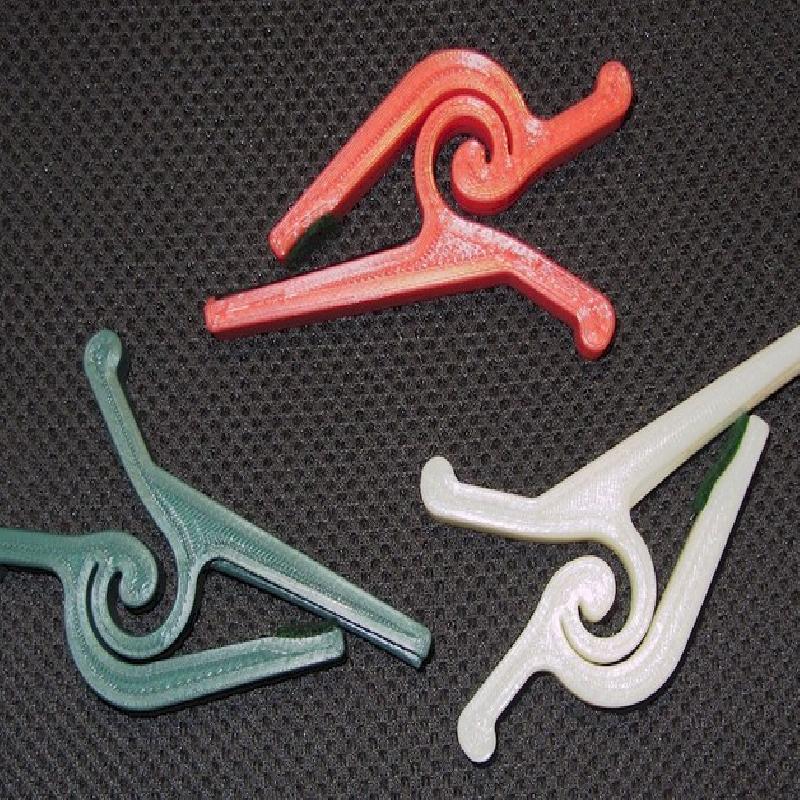

I've had some people say that their capo works well in one color but not in another. The pigment can affect the strength and stiffness of the PLA, so you might try a different color if yours doesn't work well. (I suspect less heavily pigmented PLA will work best.)
