Skipping rope handles with detachable screw-down caps.
UPDATE 02/03/18 - Modifed STL files for intended printing orientation.

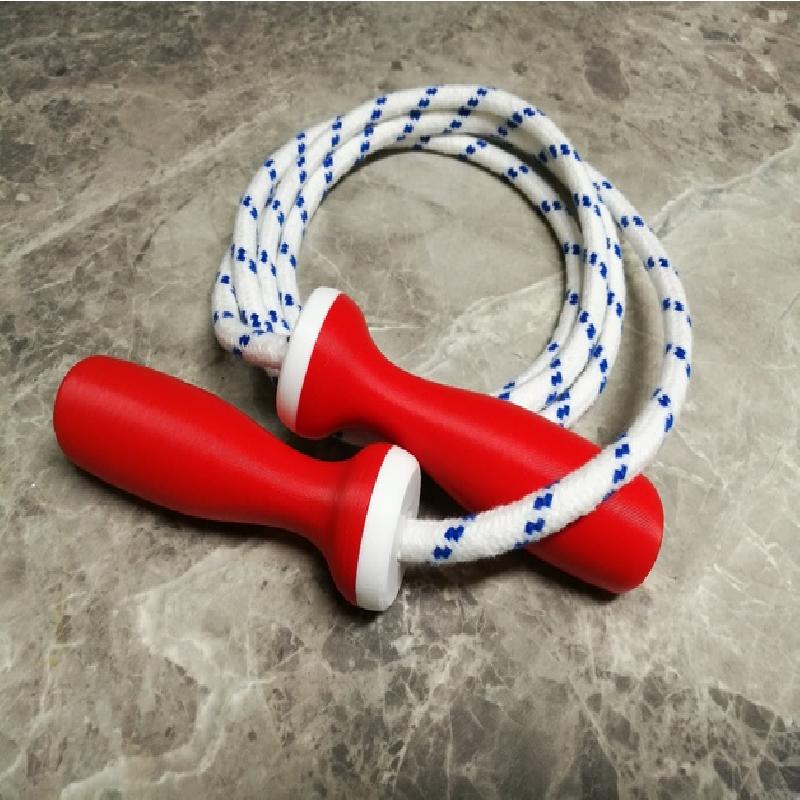

I created these for my 5 yr old daughter after she asked me to buy her a set from a shop... I thought I could do better (and for cheaper) so here we go.

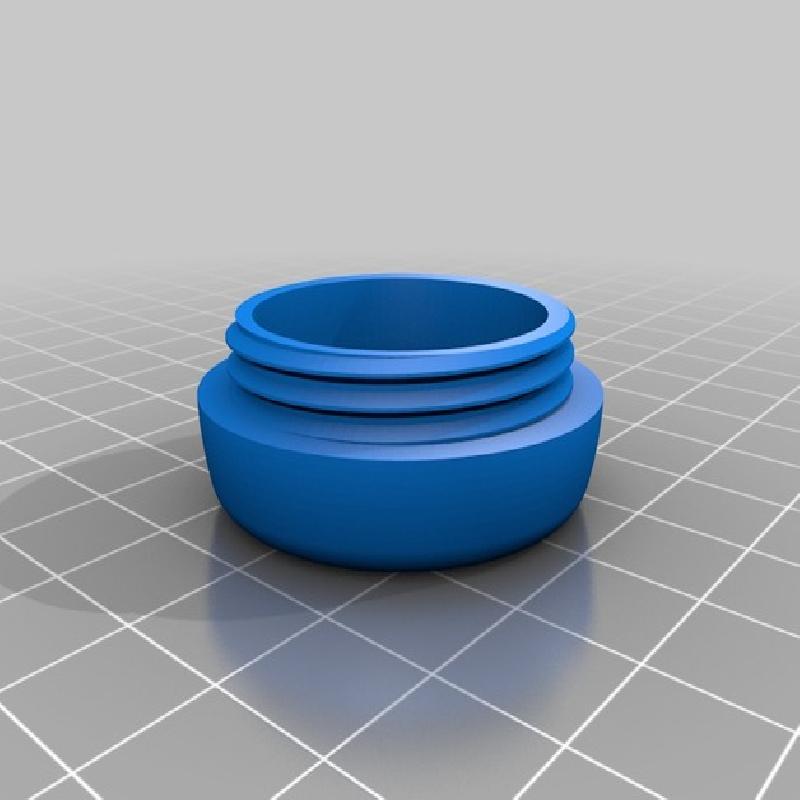

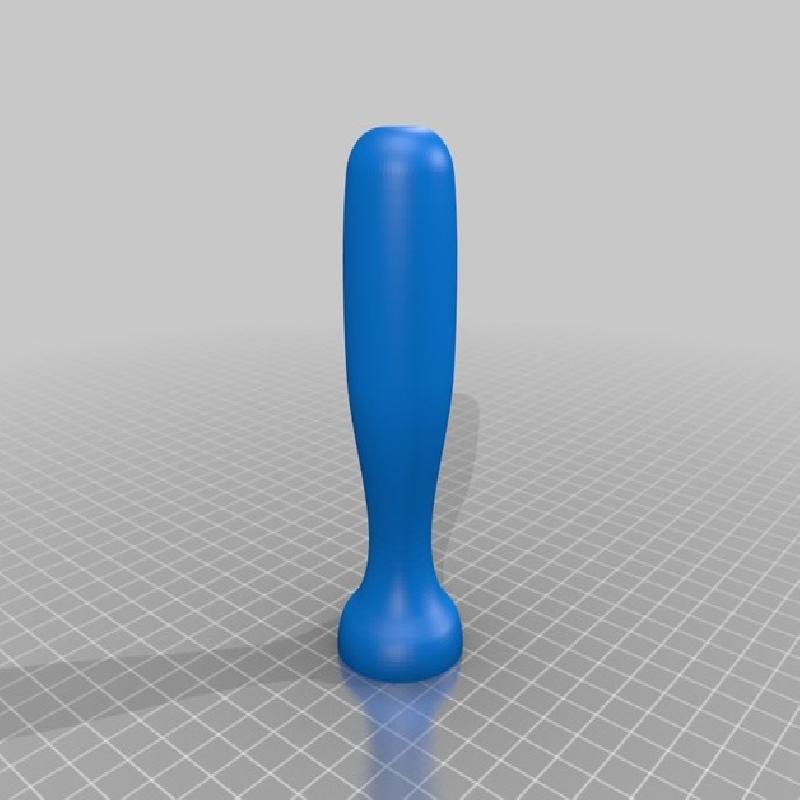

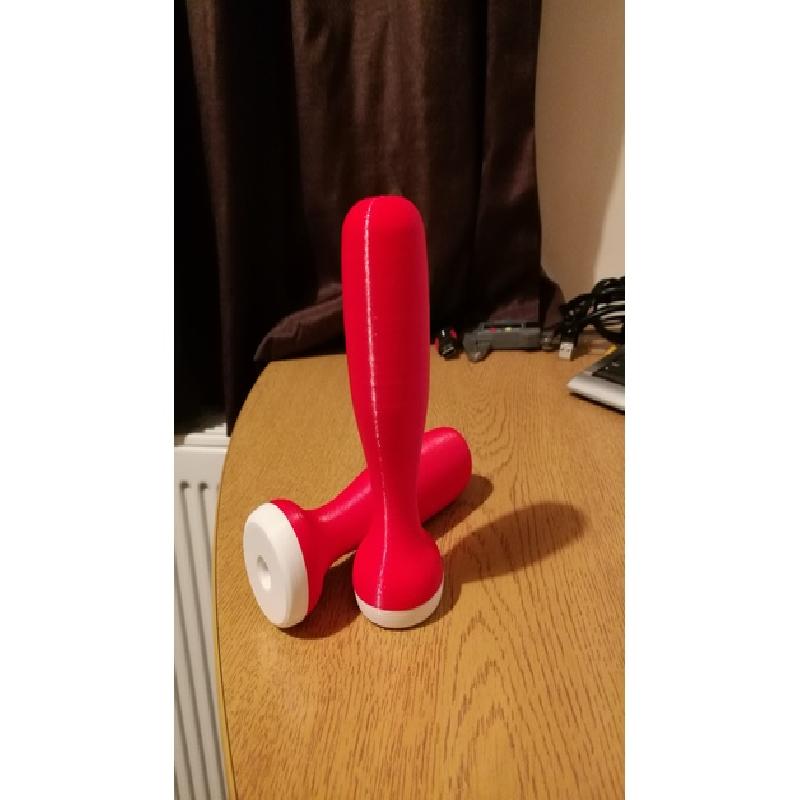

Should be fairly straightforward to print. PLA is fine for these. Print two each of 'Cap Body' and 'Handle Body' STL files. I printed them in different colours, as per photographs, for a nicer look.
I used 8mm climbing rope (not sure of composition, possible cotton/polyester, possibly nylon) but it should be good quality rope with a decent weight to it. Determine correct length of rope for height of individual (http://www.rxsmartgear.com/how-to-size-your-rope/)
thread the caps on and tie a single simple knot to secure, trim and screw cap down to handle body. Repeat for other end, and enjoy!
Rafts:
No
Supports:
No
Resolution:
0.2mm
Infill:
30%
Notes:
Print with 3 shells.
Print the handles separately for a clean print, threaded-end on the bed.
Print the two caps together to avoid overheating of the threads, threaded side up.
Designed in: Autodesk Fusion360
