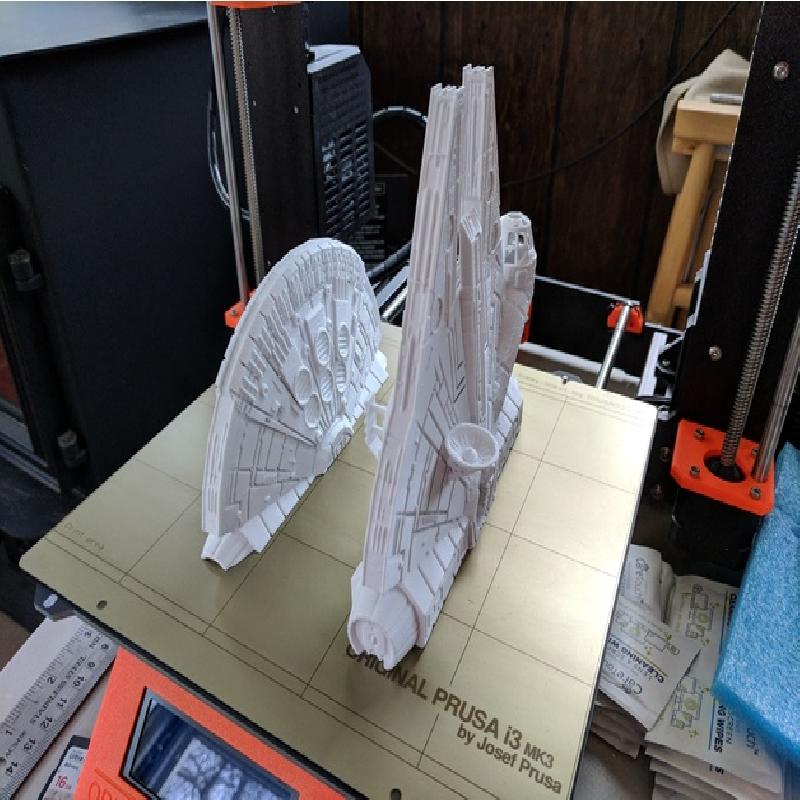

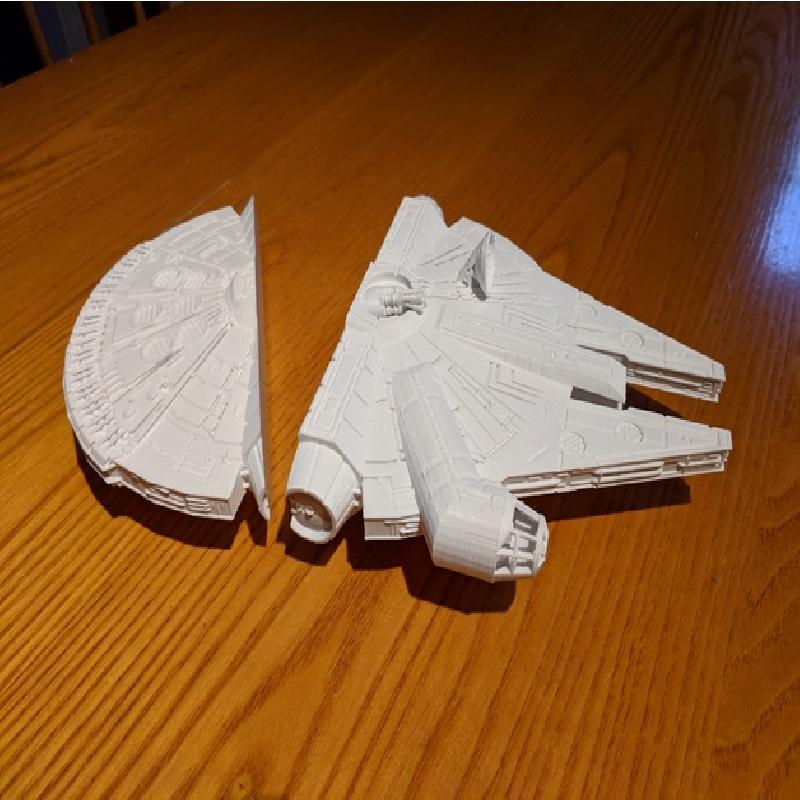

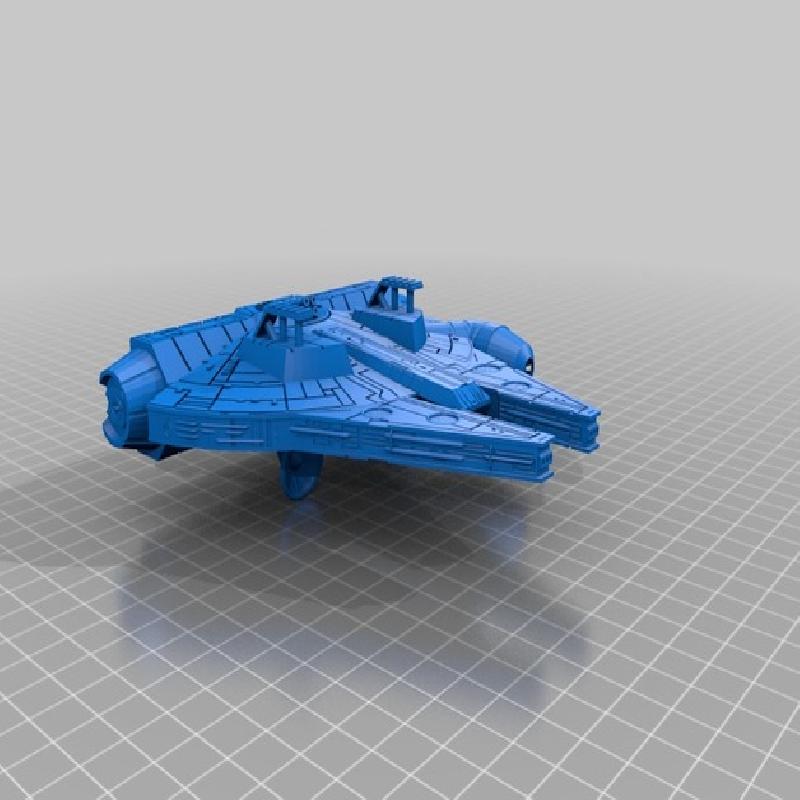

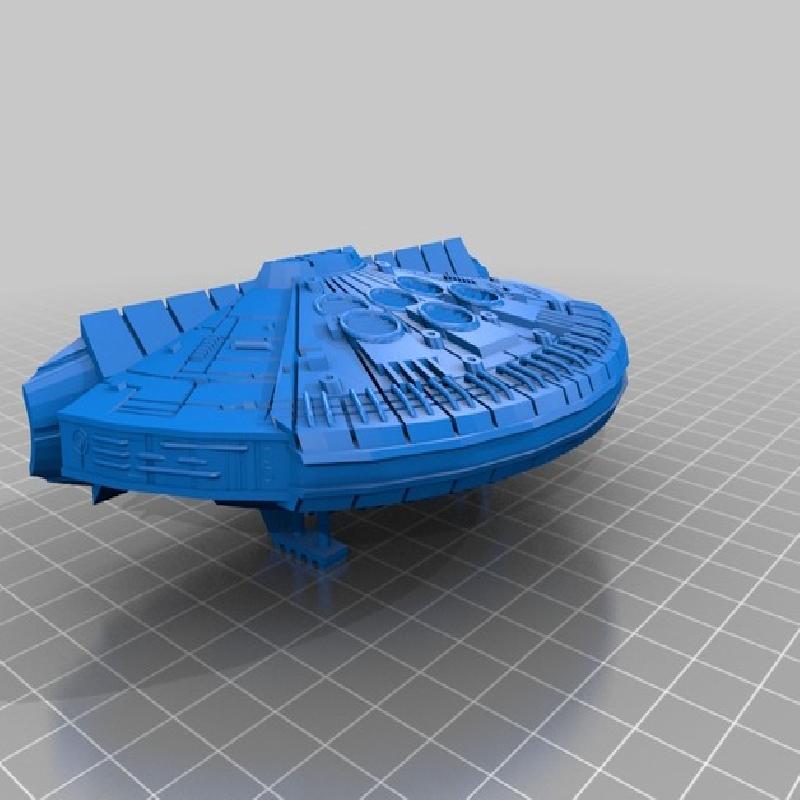

Yet another remix of the iconic spaceship from Star Wars. This one is split and oriented for easy printing, with each half resting securely on the bed. Alignment pegs ensure everything is positioned perfectly during assembly. All pieces print with NO support, NO raft, NO brim, NO infill.

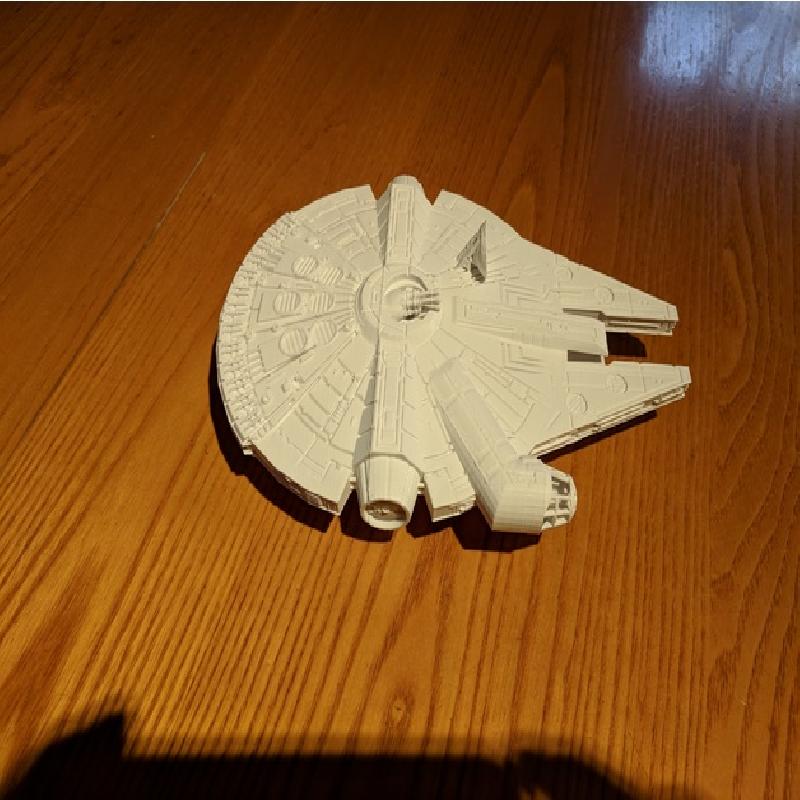

Printing at normal size yields a model with overall dimensions of about 131mm wide by 191mm long. Scaling up to 155% makes the front half around 191mm tall on the bed, for a completed size of 207mm wide by 297mm long.

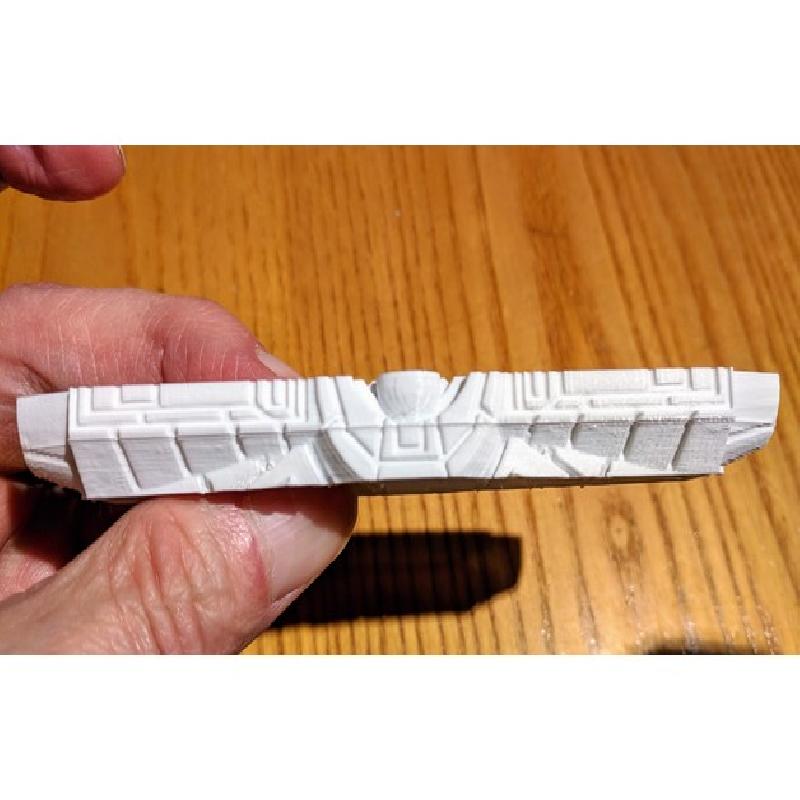

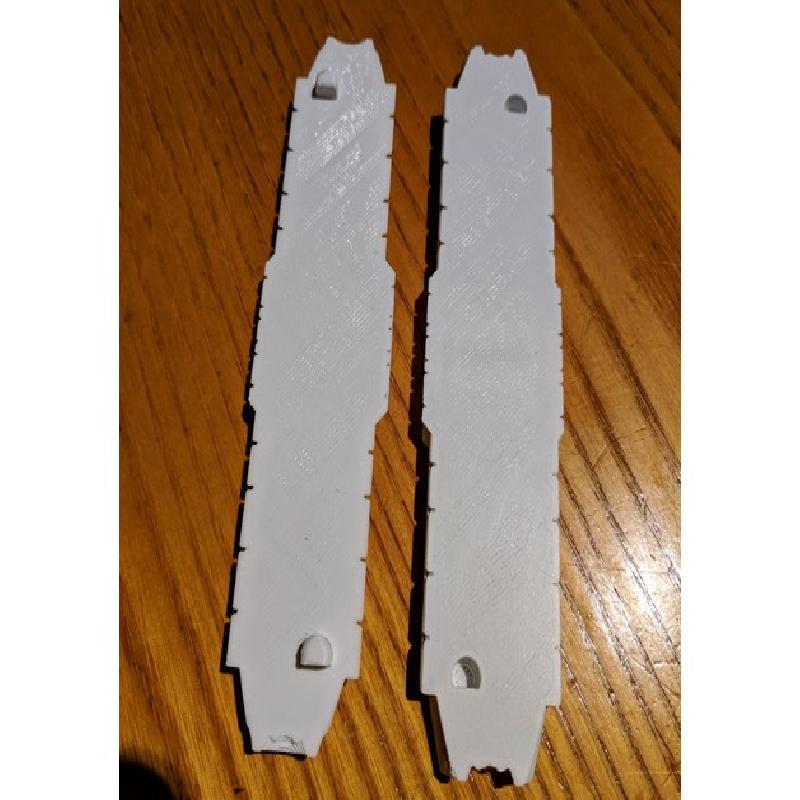

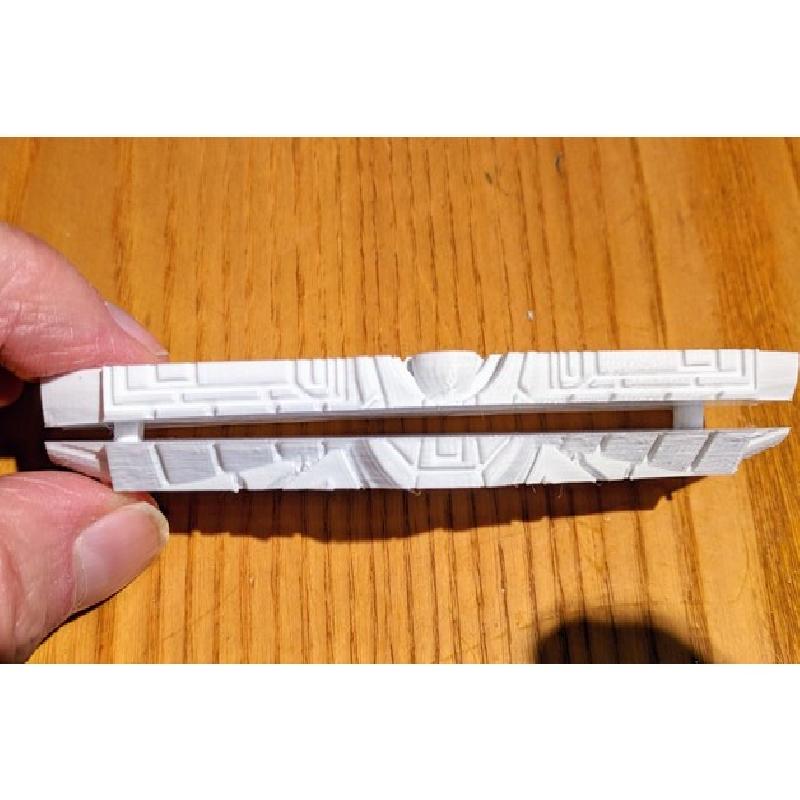

The last few photos show a quick test I made to check fitting of the pegs.
Printer Brand:
Prusa
Printer:
Rafts:
No
Supports:
No
Infill:
None
Notes:

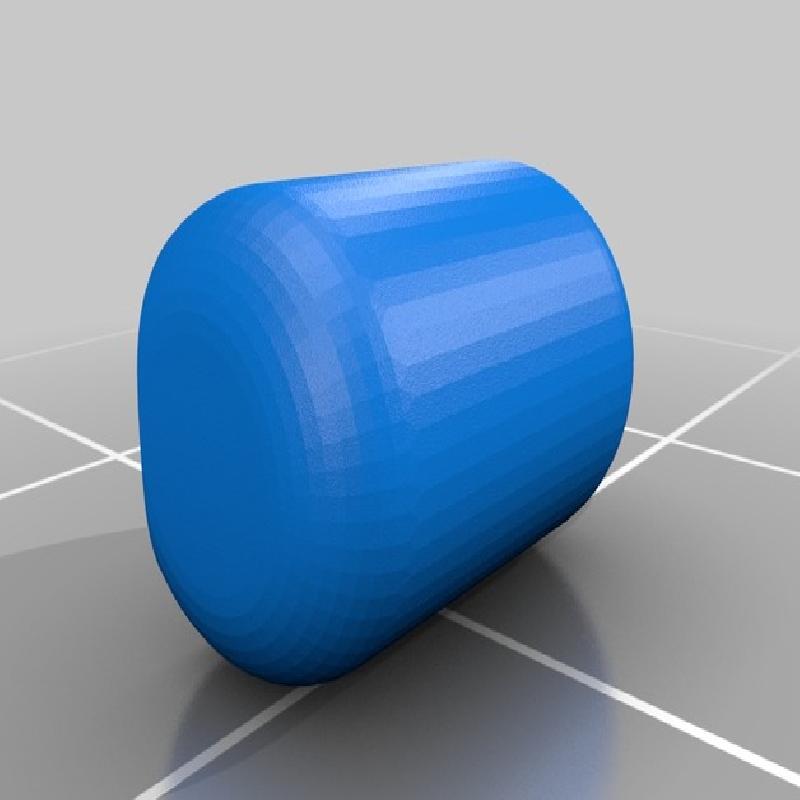

Print 2 copies of the alignment peg. Depending on dimensional accuracy of your printer, you may adjust scaling of the pegs slightly, if necessary, to achieve a perfect fit.
You may wish to use minimal infill (no more than 5%) for the front half of the body since there are a couple of flat platforms inside that part of the model. I used a setting of 5 Top Layers which sufficiently formed the platforms to work without any infill.
Since the rear half is being printed upside down from the way it was originally designed, you should expect a few details to be slightly deformed. But after a bit of cleanup, the overall appearance is still quite good.
