Rope pulley

The pulley diameter is 31 mm with a 6 mm groove. It uses 2 bearings for a smooth operation. The rope on the picture is 5 mm and runs very nice through it.
It is possible that a bit of sanding is needed to make the bearing fit in the pulley.

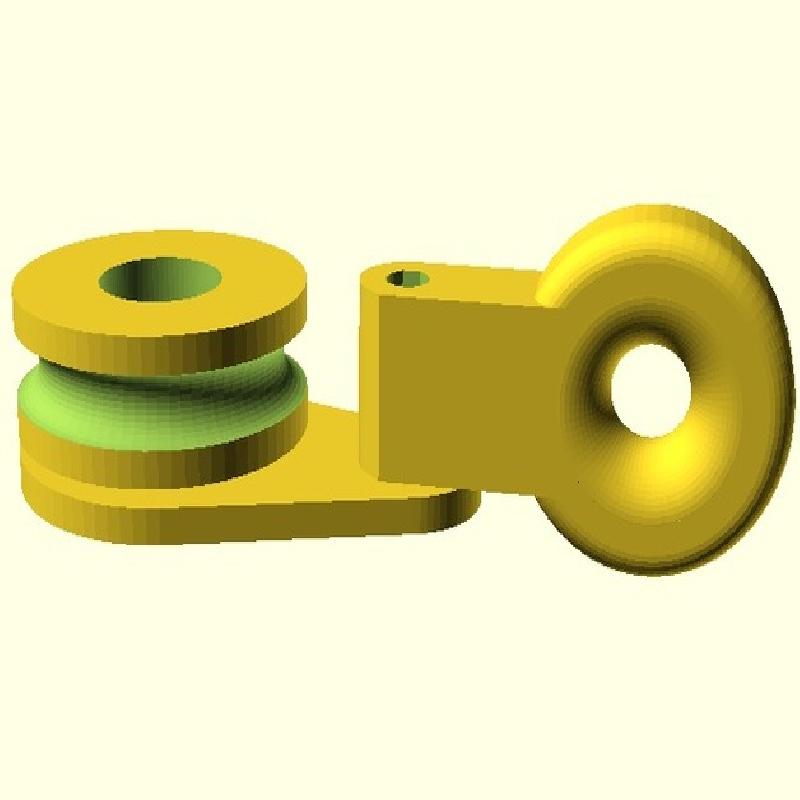

Parts to print:

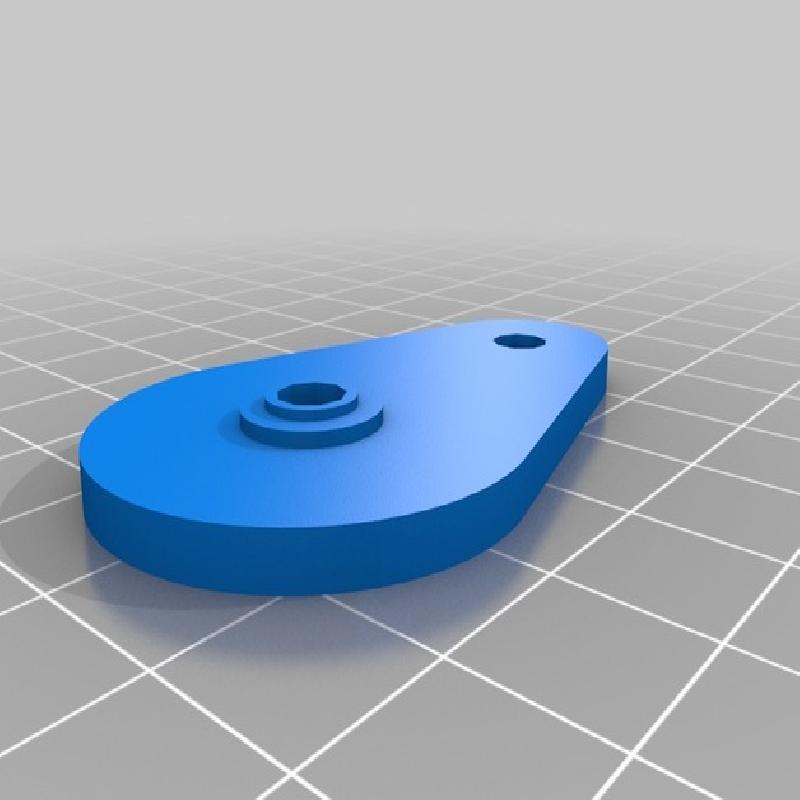

  • 2 sides

  • 1 ring

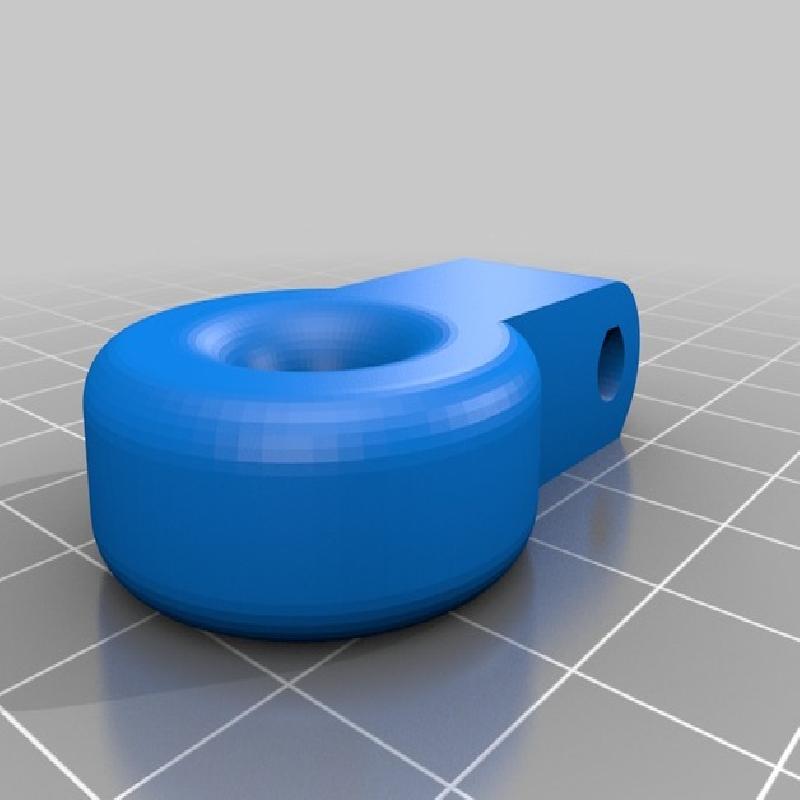

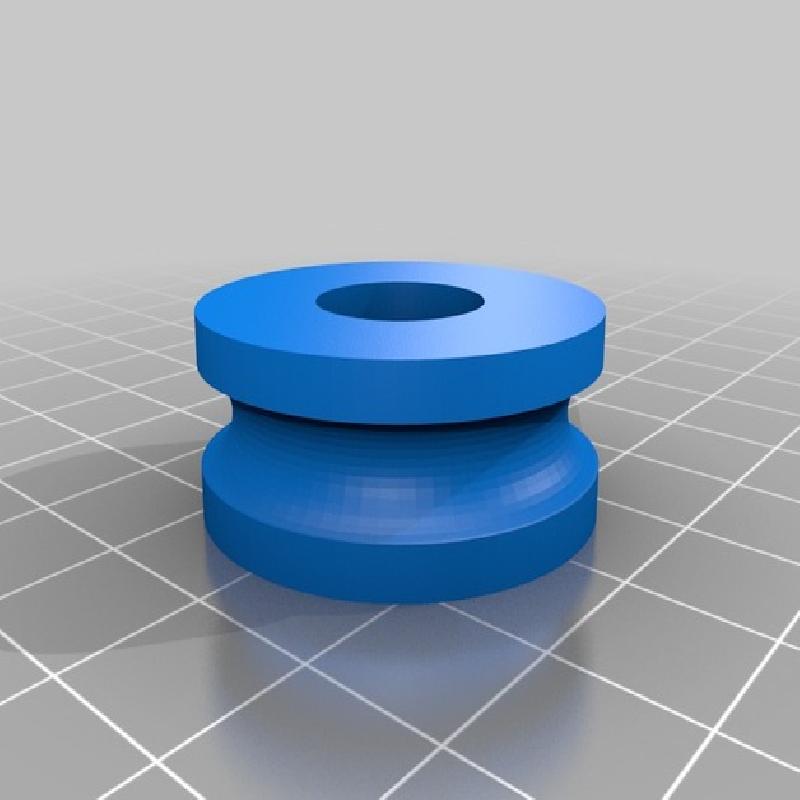

  • 1 pulley

I printed them with (transparent) ABS 0.3 mm at 90% fill.  Will also work with PLA or other plastics.
No support is needed. The pulley wheel has a designed in support. You need to break this out.

Other bits needed:

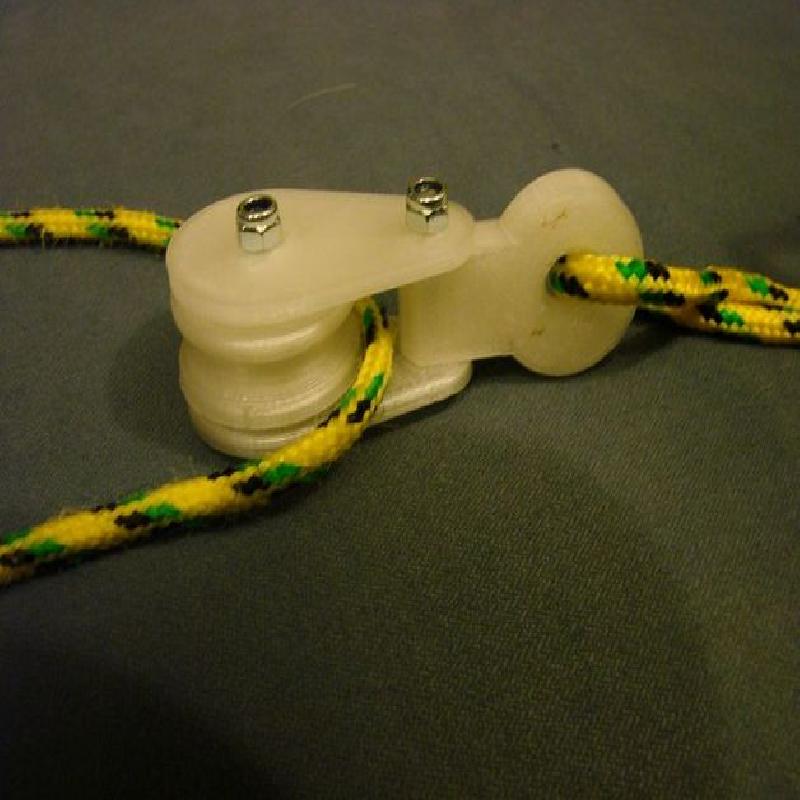

  • 2x  M4x25  (shown on photo. They just fit without washers)  or M4x30 (better) bolts

  • 2x  M4 lock nuts

  • 4x M4 washers (optional)

  • 2x bearing  624ZZ   4x13x5
