Summary

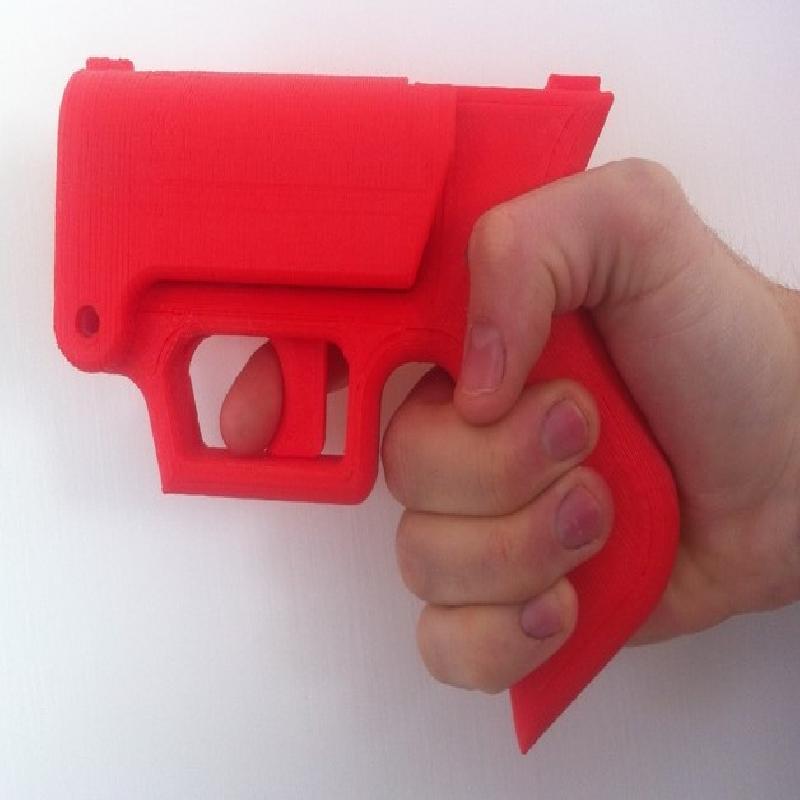

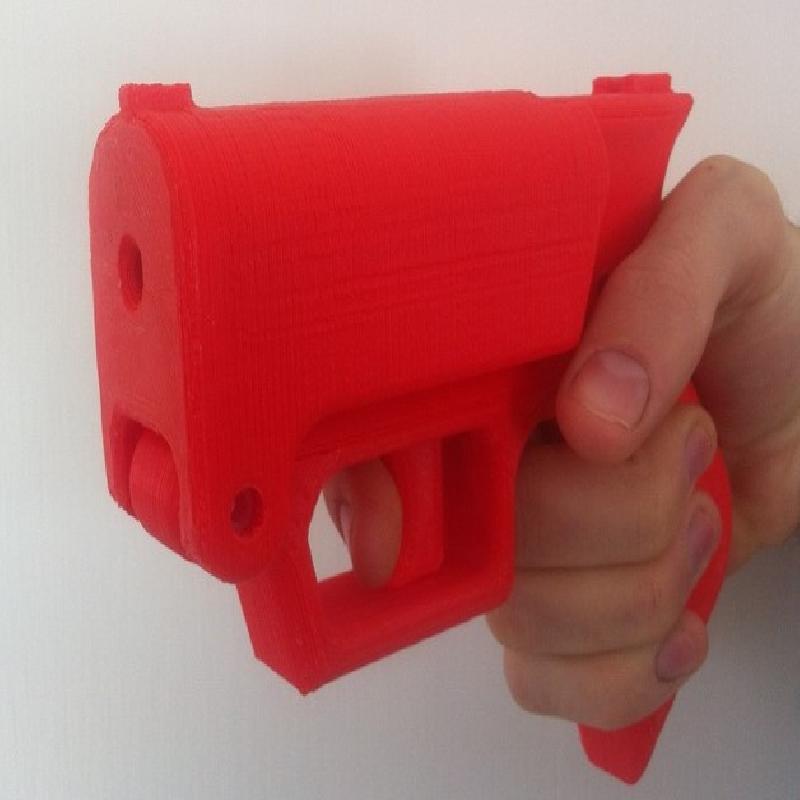

This is an updated model of the 3d printed pepper spray gun, redesigned to use less plastic, look better, and have a spring return on the trigger.

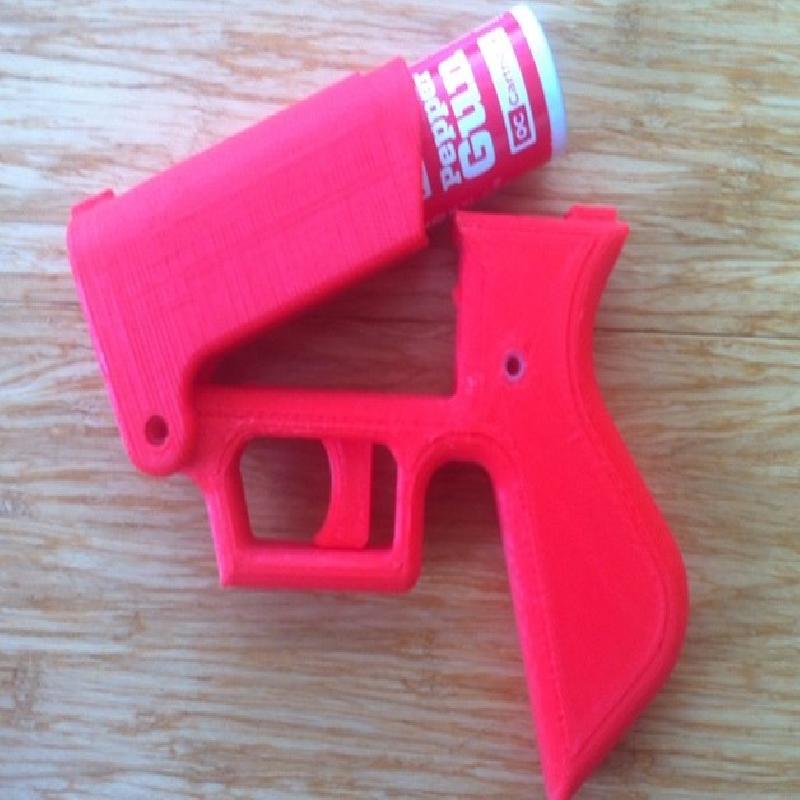

It is designed for use with 'Mace' brand spray cartridges. (All of the hazardous components are contained within the cartridges. The printed plastic gun is not inherently dangerous.)

Pepper spray is legal for use as a self defense tool in all 50 US states, although possession may be regulated in some cities. Never spray unless you feel threatened. Improper use could result in criminal action.

Pepper spray cartridges available through this link: http://amzn.to/1iGuPYq

Refer to linked remix source for PDF instructions on safe use of Mace spray.
Parts are not compatible with the original.

Print Settings

Printer Brand: Printrbot

Printer: Printrbot Plus

Rafts: No

Supports: Yes

Resolution: any

Infill: 33%

Notes:

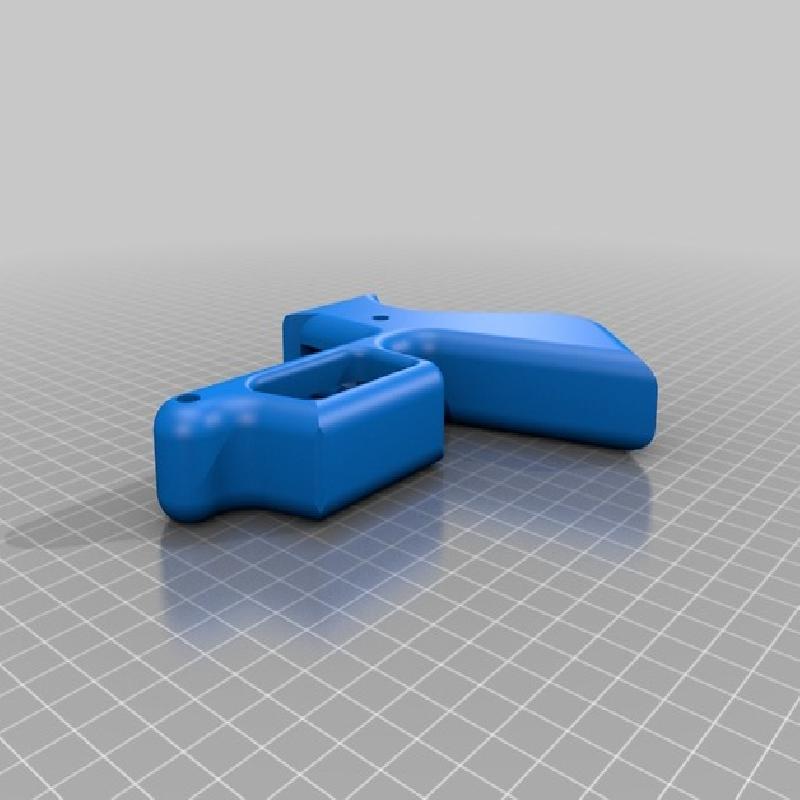

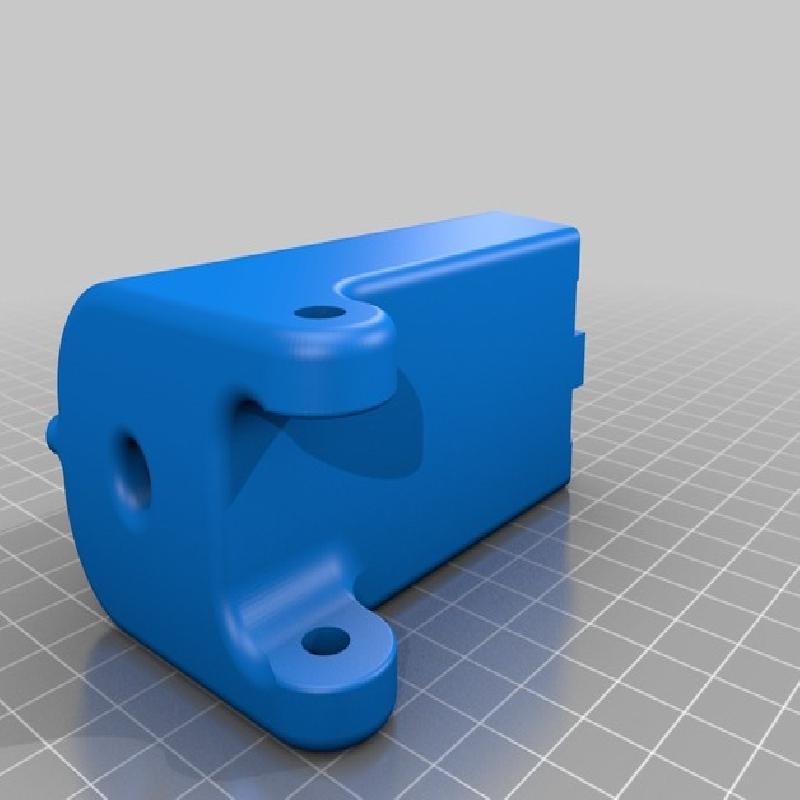

Printed using ABS at 33% rectilinear infill with 3 perimeters. Must use supports on the 'body' component! The barrel file should be rotated so that it is 'shooting the printbed' The two hinges are 1/4" polyethylene tube pressed into the holes.
