There are 5 files for this model, detailed below:
PRINT INSTRUCTIONS
.....................................................................................................

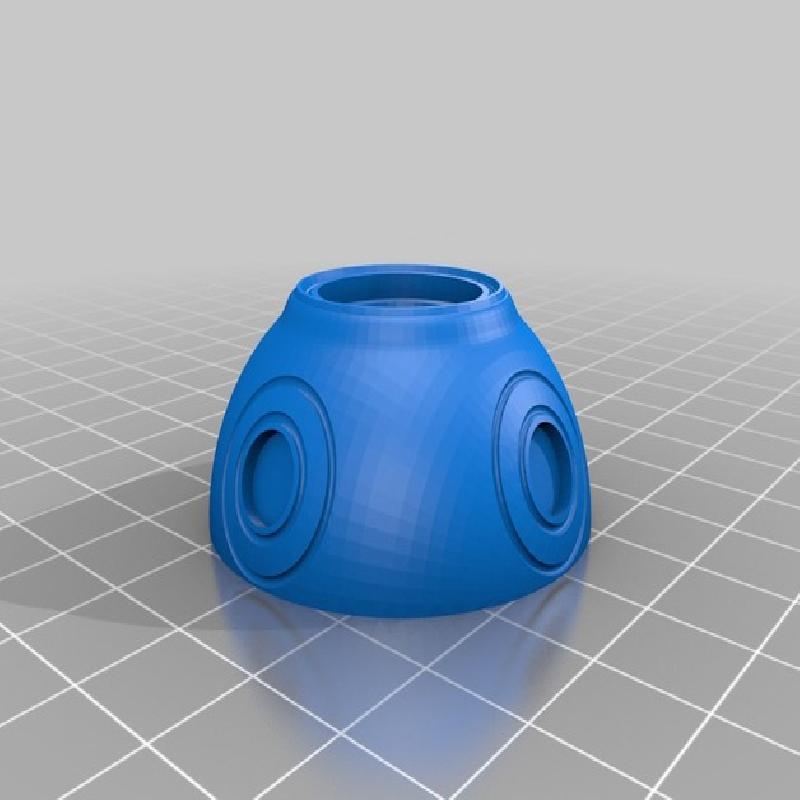

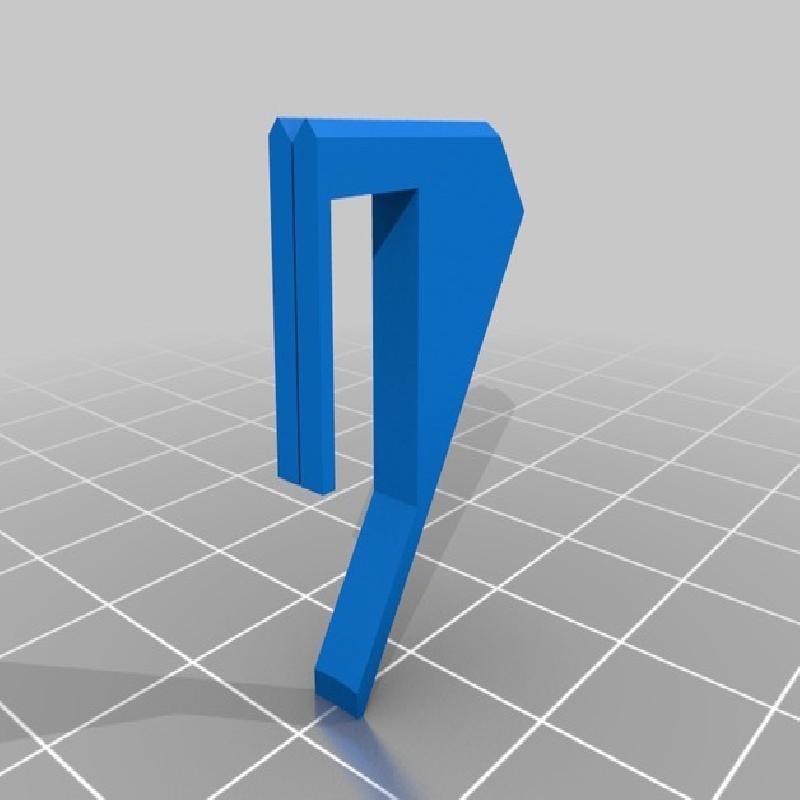

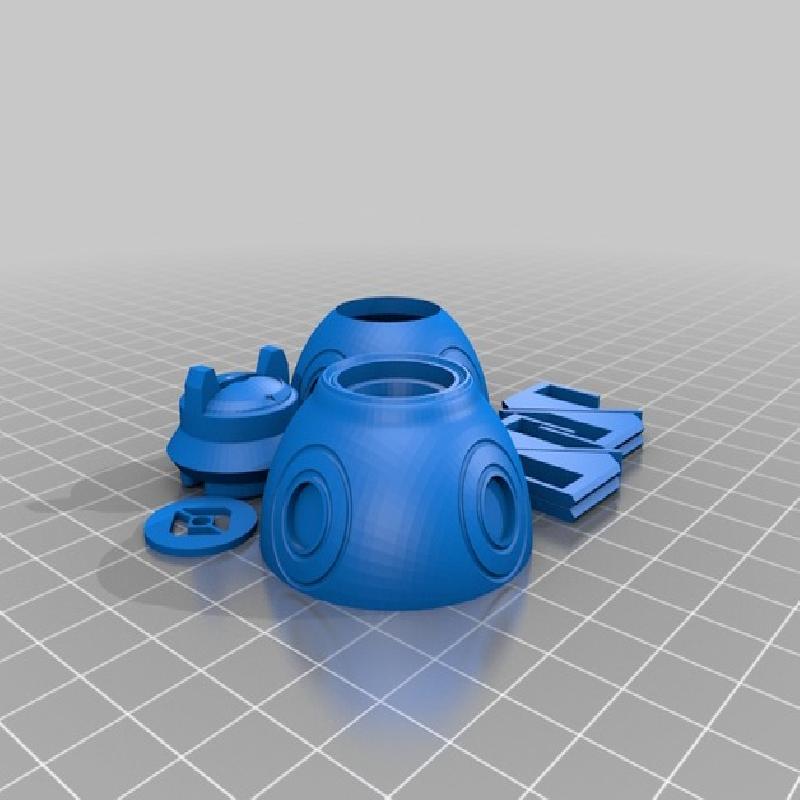

Black_Pieces.STL -Suggested Settings: Black PLA, 225C, 15% fill, 2 shell, 0.12mm layer height, Raft Optional. NO SUPPORTS

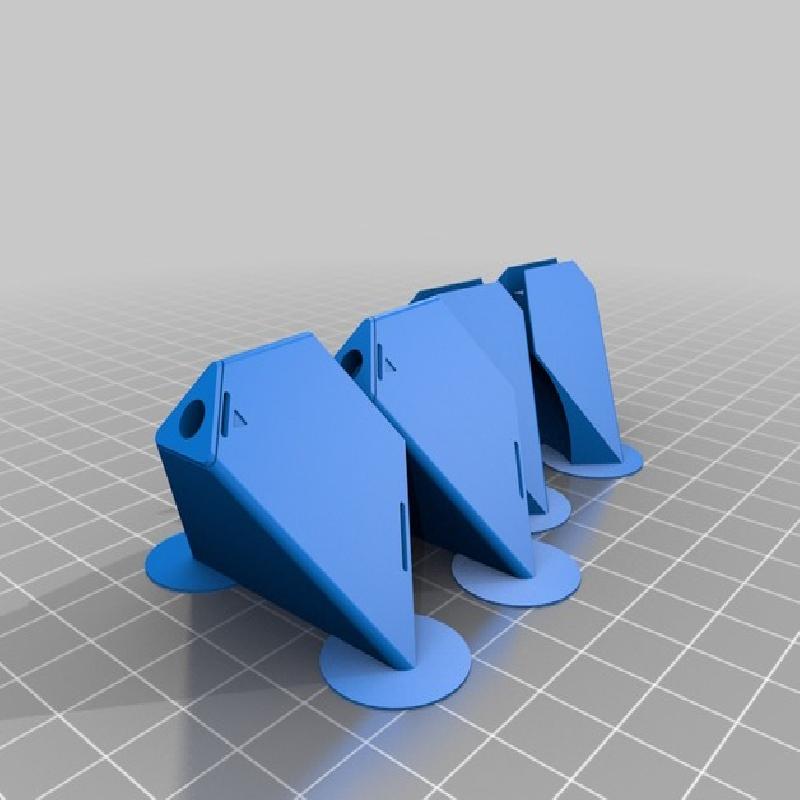

Wing_Set.STL - Print two of these to make one model. White PLA, 225C, 15% Infill, 2 Shell, 0.12mm layer height, No raft, No supports.

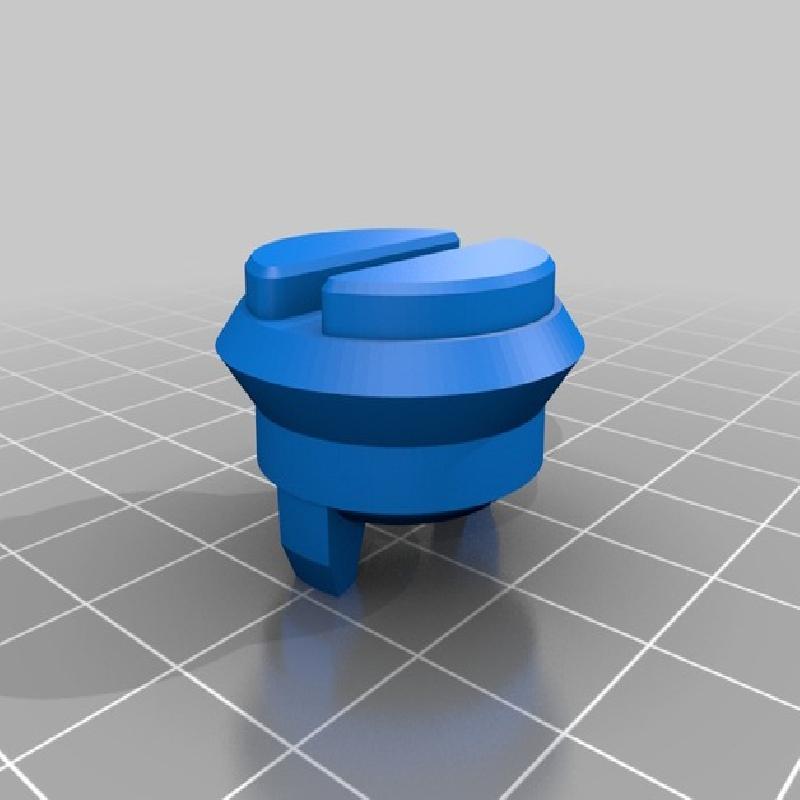

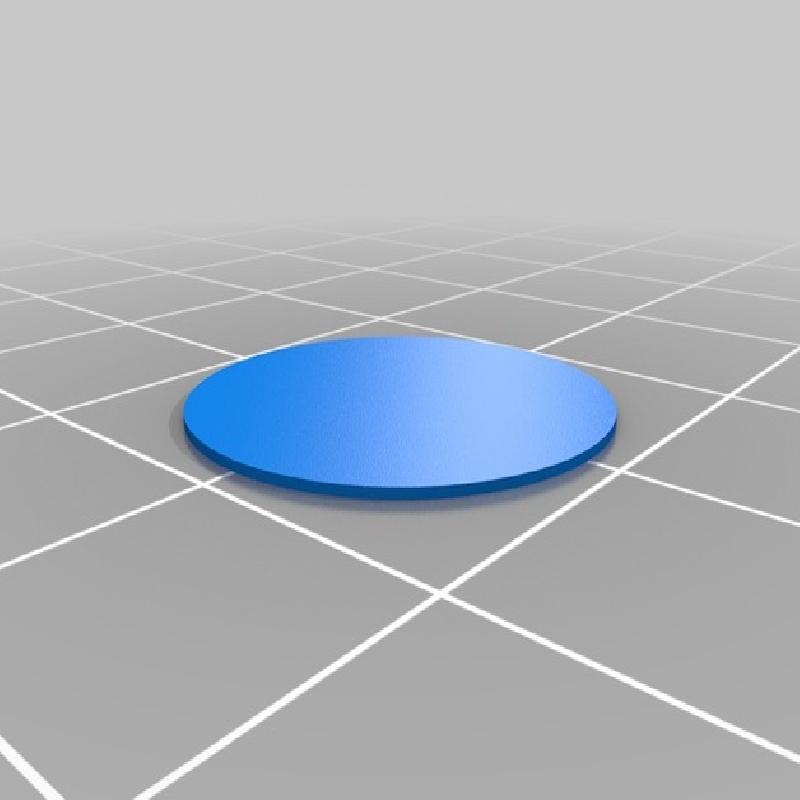

Diffuser_Ghost.STL - Transparent Blue or Aqua filament, 225*C, 15" Infill, 2 Shell, 0.20mm Layer, no raft, no supports.

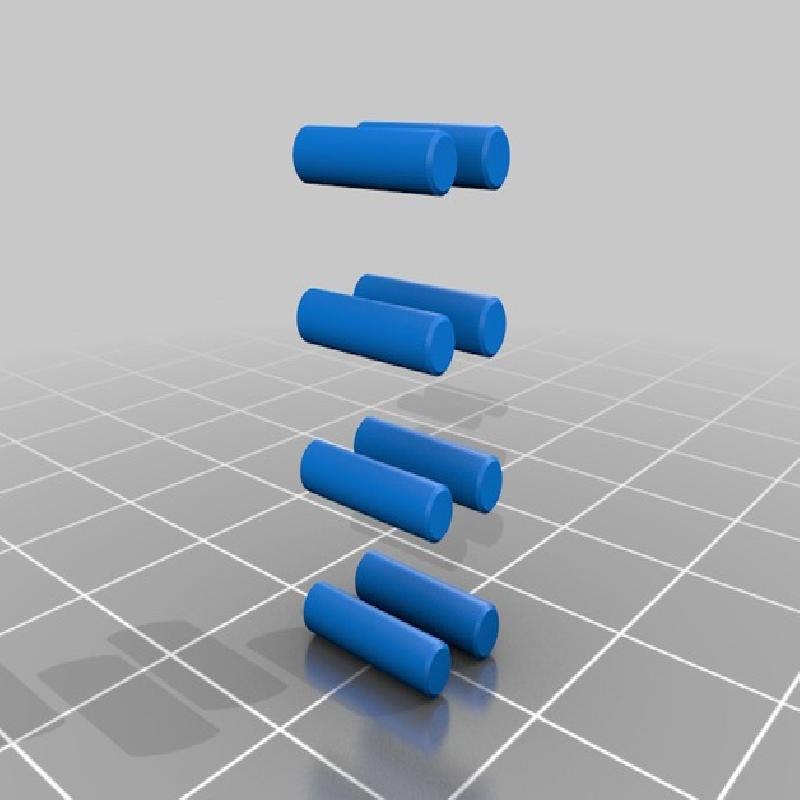

Pins.STL - Any color, 0.2mm layer height, 2 shell.

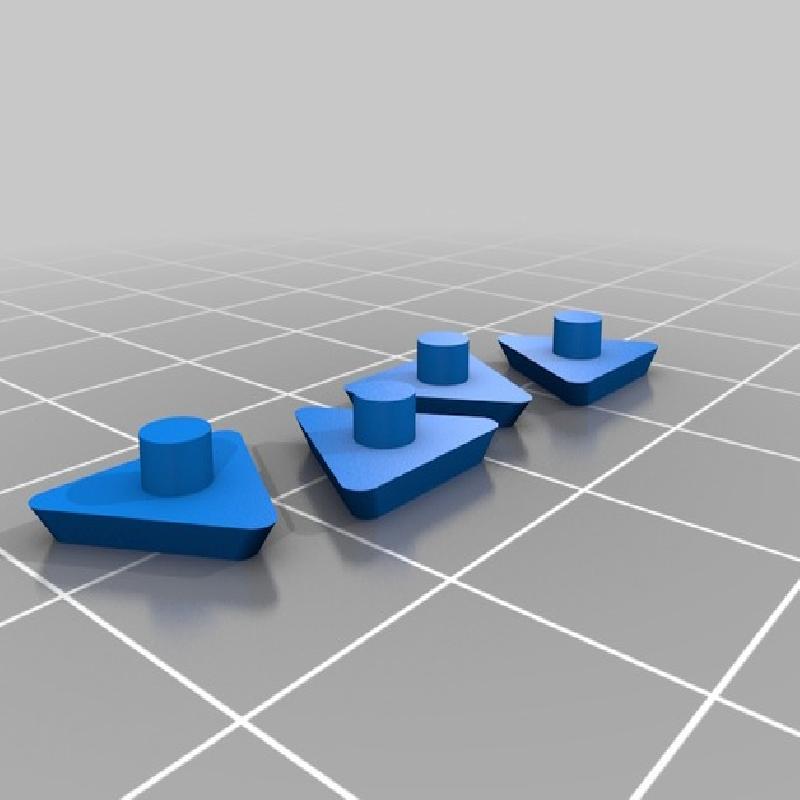

Tips.STL - Orange PLA, 2 shell, 15% infill, 0.12mm Layer Height. No raft, No supports.
........................................................................................................

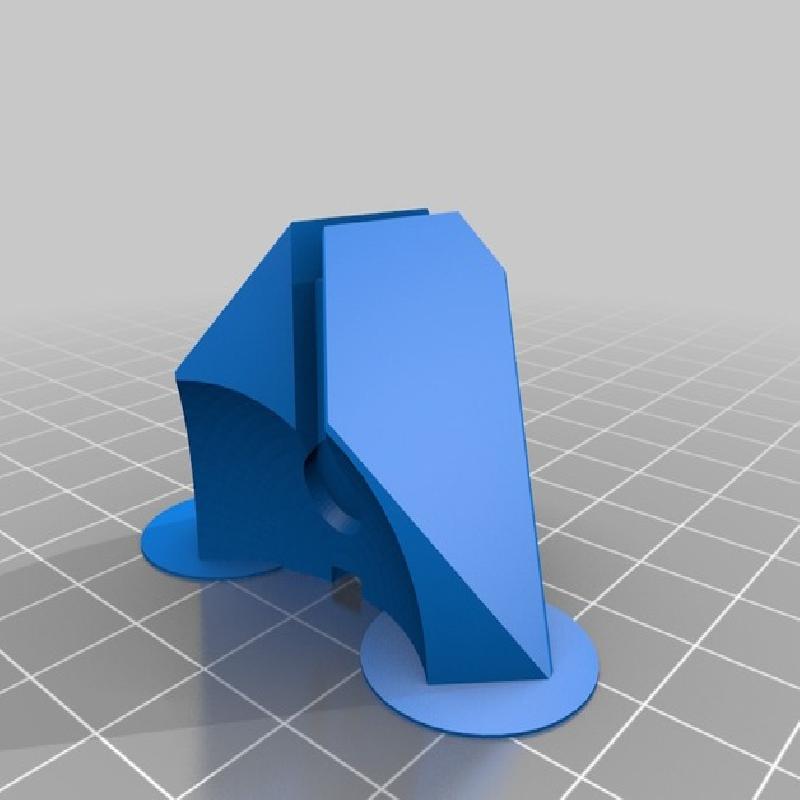

Winglets have built-in rafts to aid in keeping the corners stuck down. Trim these off afterwards with a deburring tool or razor blade.

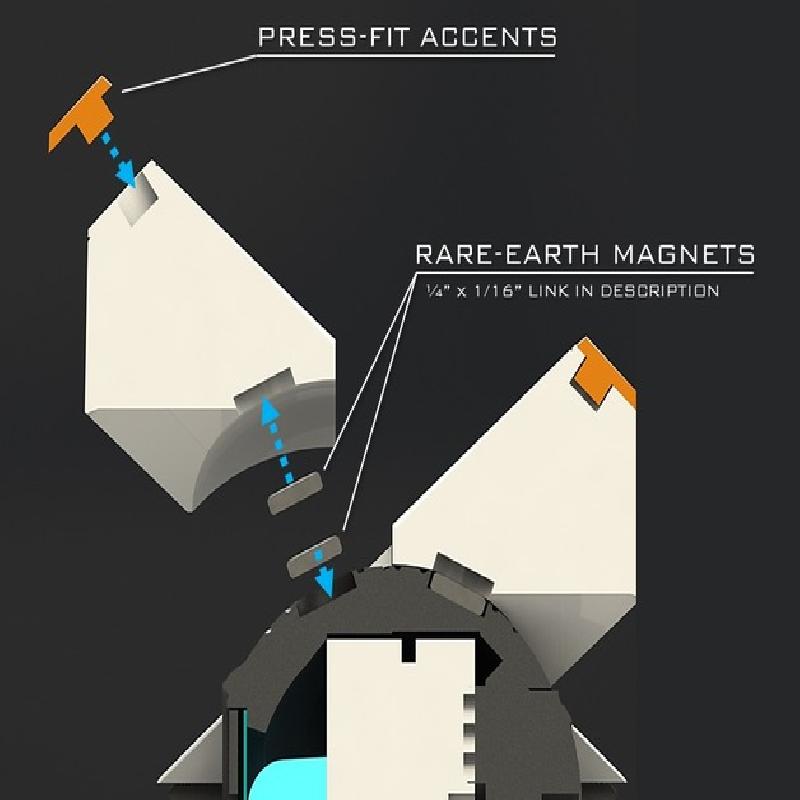

Use good super glue or 2-part epoxy to glue the Neodymium magnets to the body and the inside of the wings. Pay very close attention to the orientation of the magnets so that the correct sides attract each other, double check this before gluing

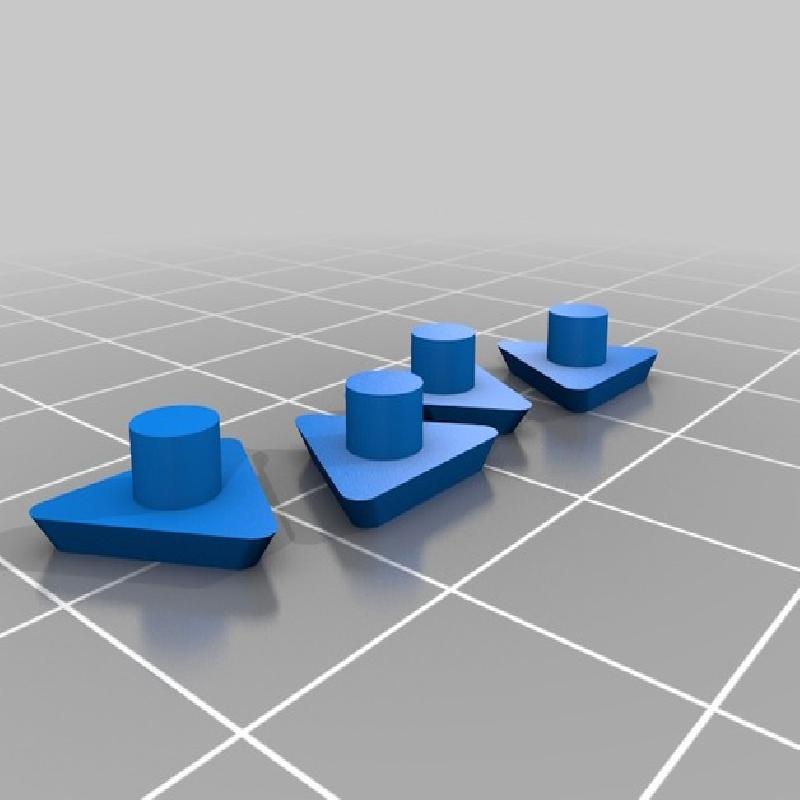

"Tips" should press fit into the top of the wings.
The black side wing inserts should slide onto the side wings and sort of click into place, glue shouldn't be necessary.

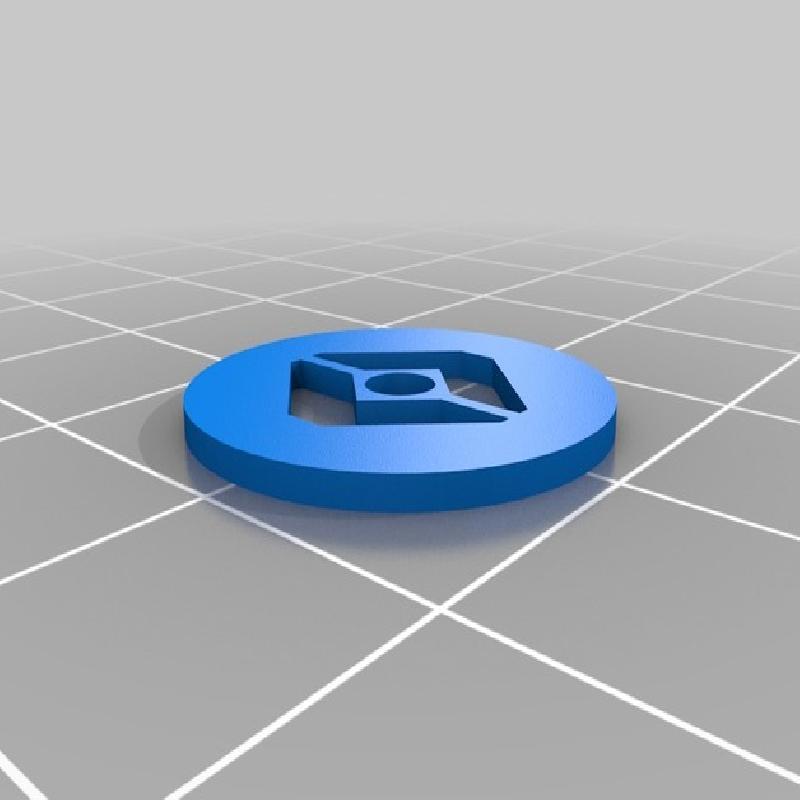

Glue diffuser and black eye-cover onto front of the body. They should fit snug.

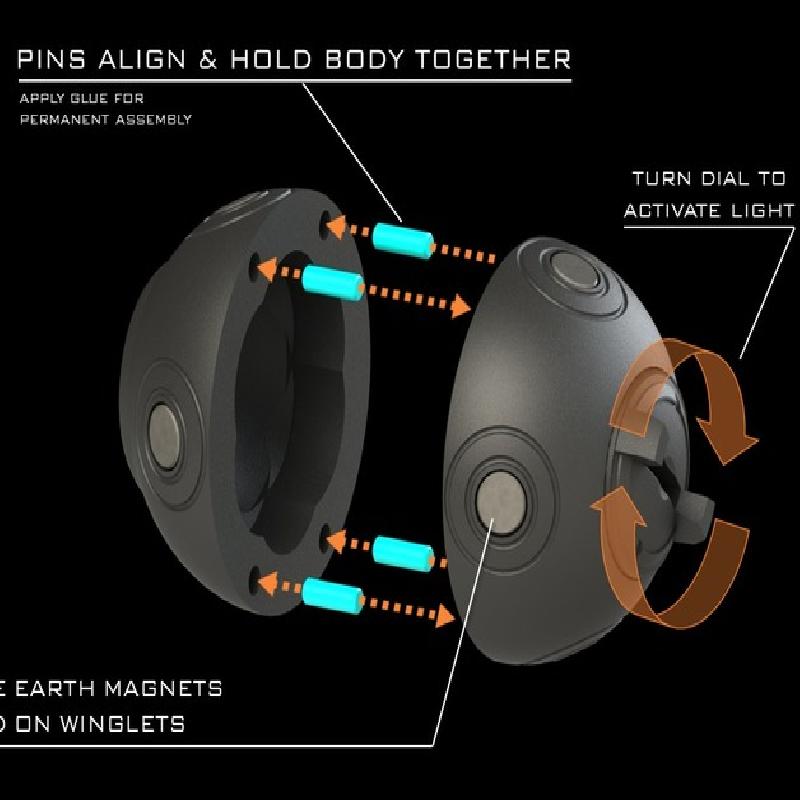

Use pins to allign the two halves of the main body. Apply a drop of glue to the holes first to permanently attach them.
