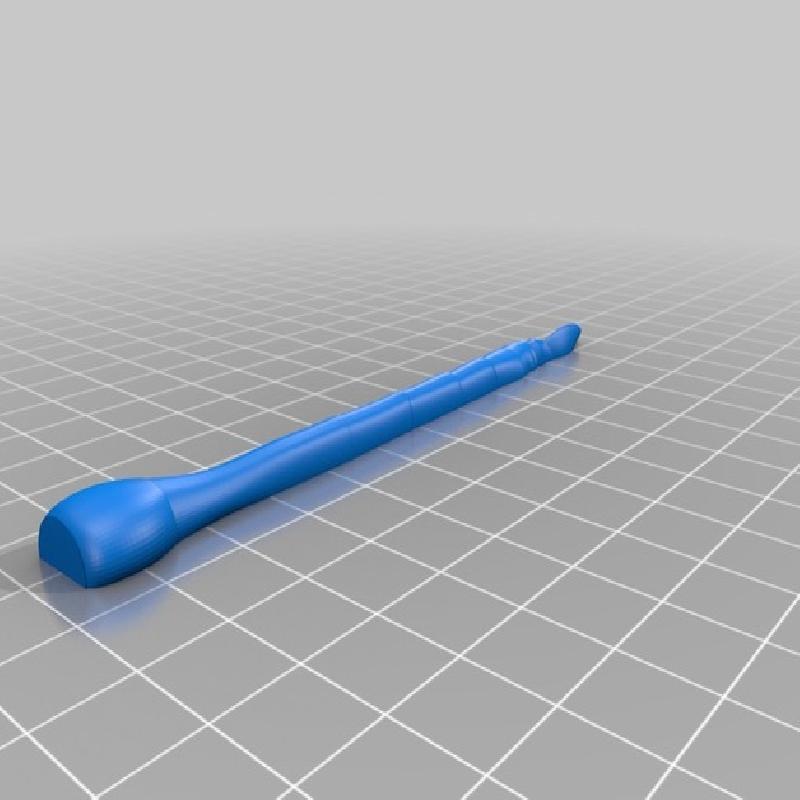

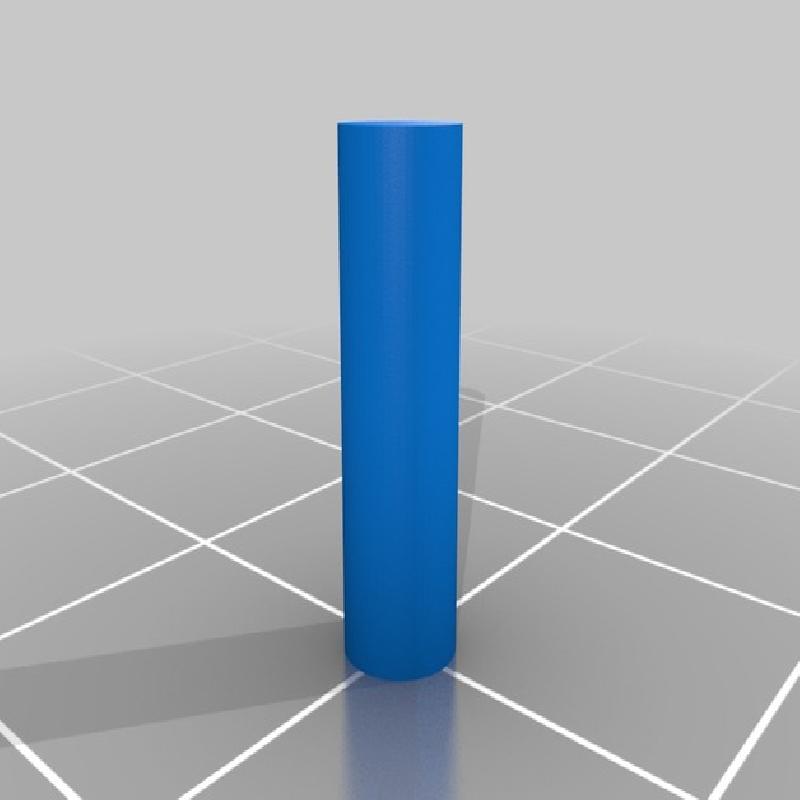

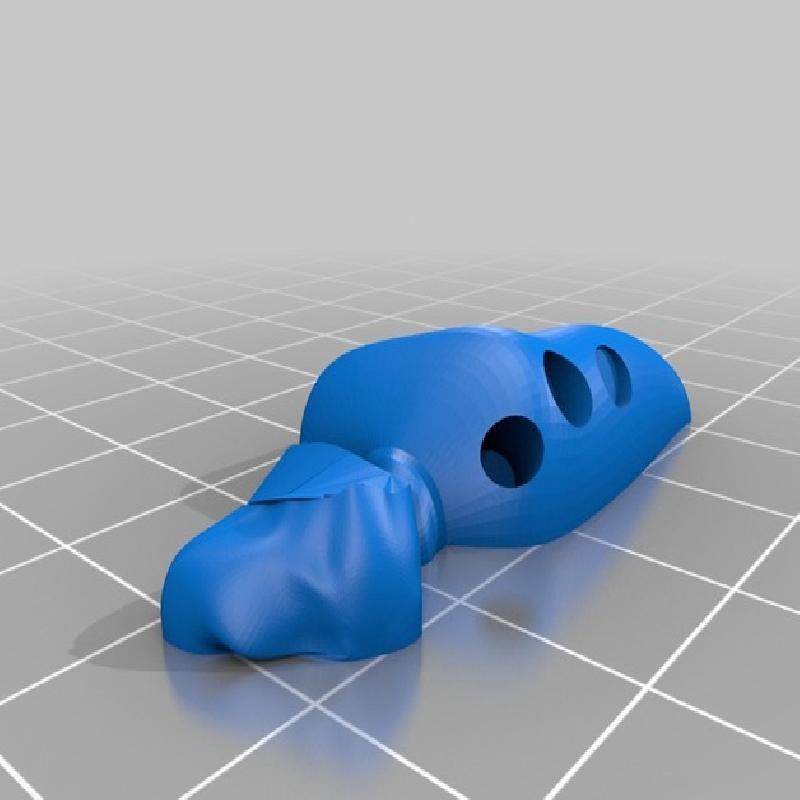

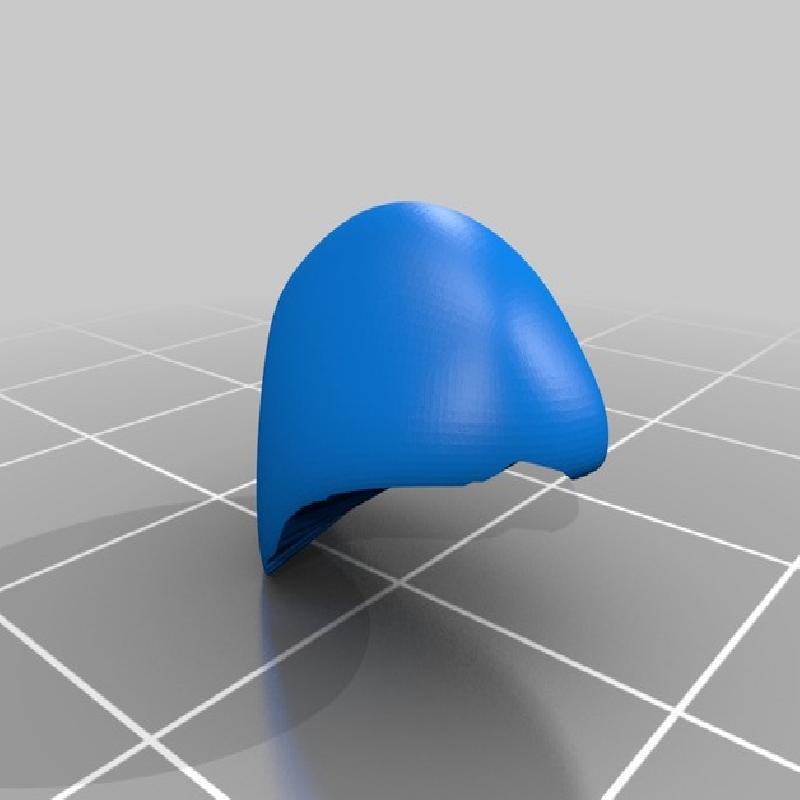

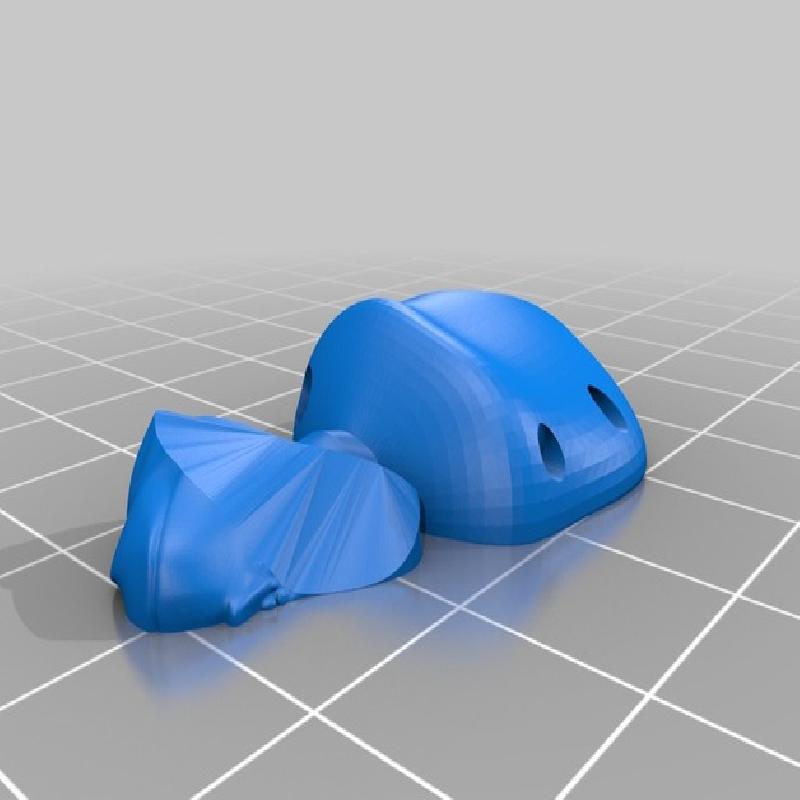

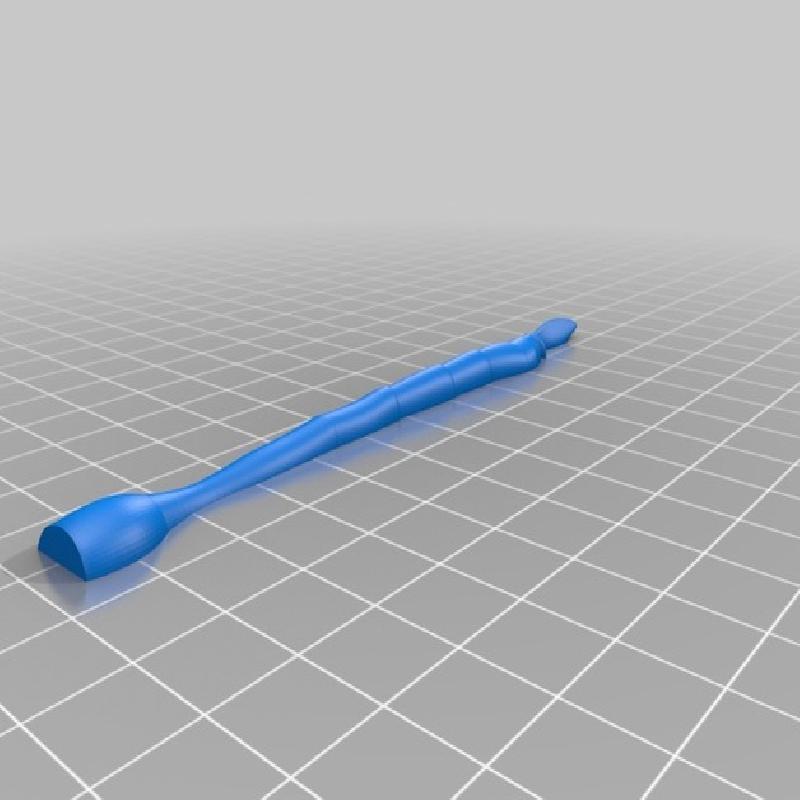

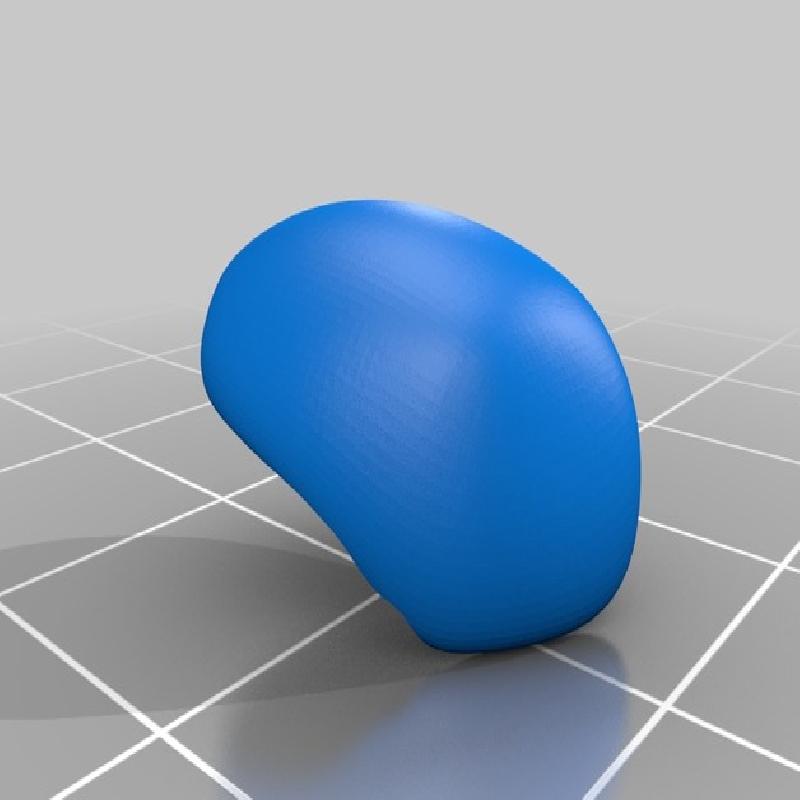

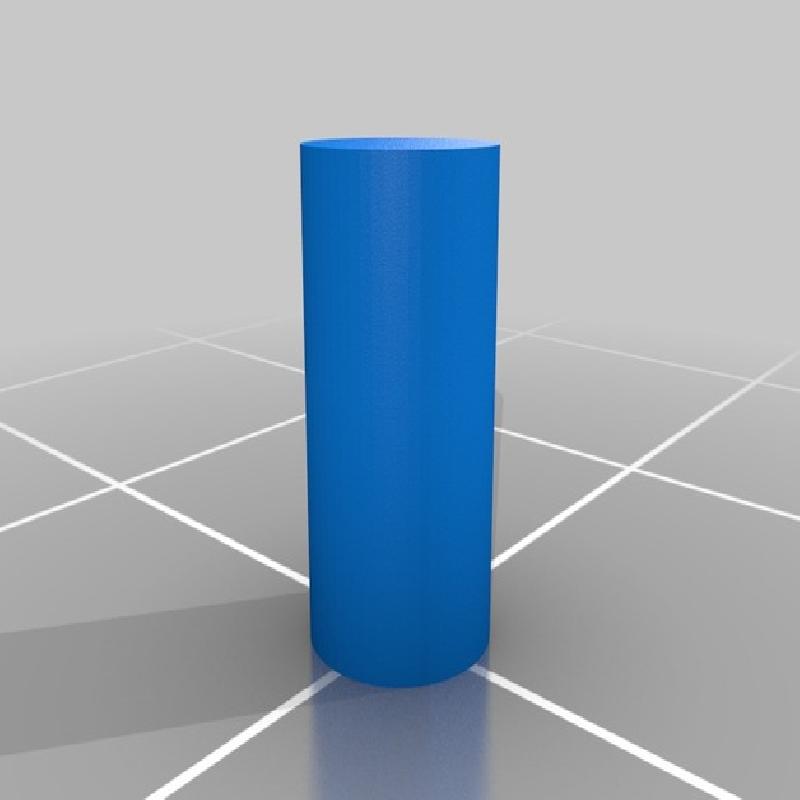

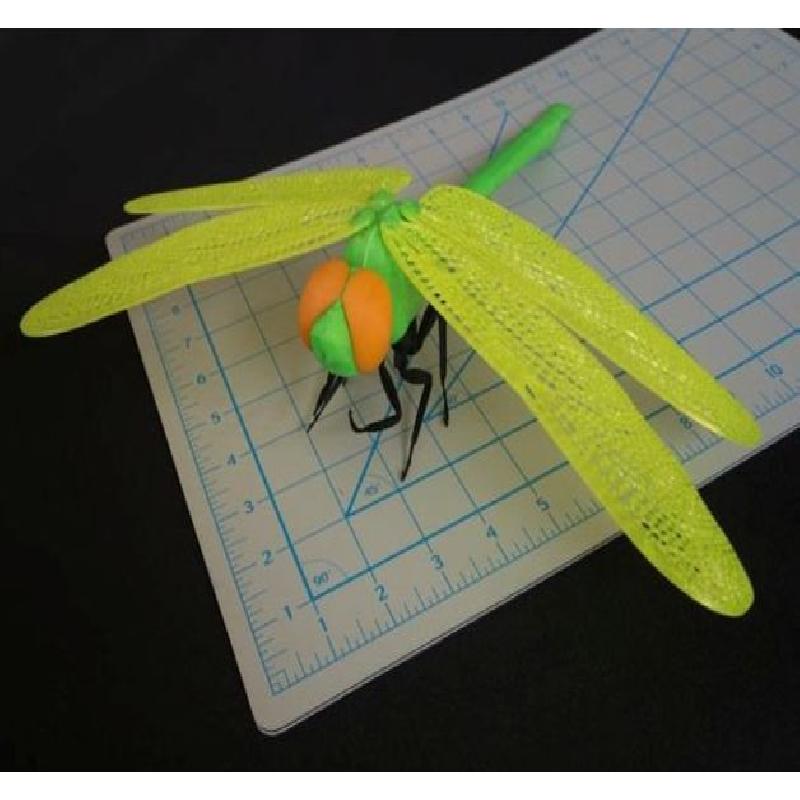

Remixed dragonfly to be used with dual extrusion. Eyes have been separated from the body. As I have a .4 nozzle I had to scale everything 200% so as not to lose detail in the wings, and as such cut the body in half to fit on the printer. Also created new, larger pins of two lengths to give more room to attach wings.
Printer Brand:
FlashForge
Printer:
Rafts:
Yes
Supports:
Yes
Resolution:
0.1 mm
Infill:
20%
Notes:
Printed all body pieces in ABS. Printed wings in transparent yellow PETG.
Wings didn't use supports but did have 100% infill to make sturdier.
Raft was only used for pins.
Used ABS slurry to connect peices together, with blobs to hold wings in place on pins.
Used Meshmixer to split and separate body and eyes.
