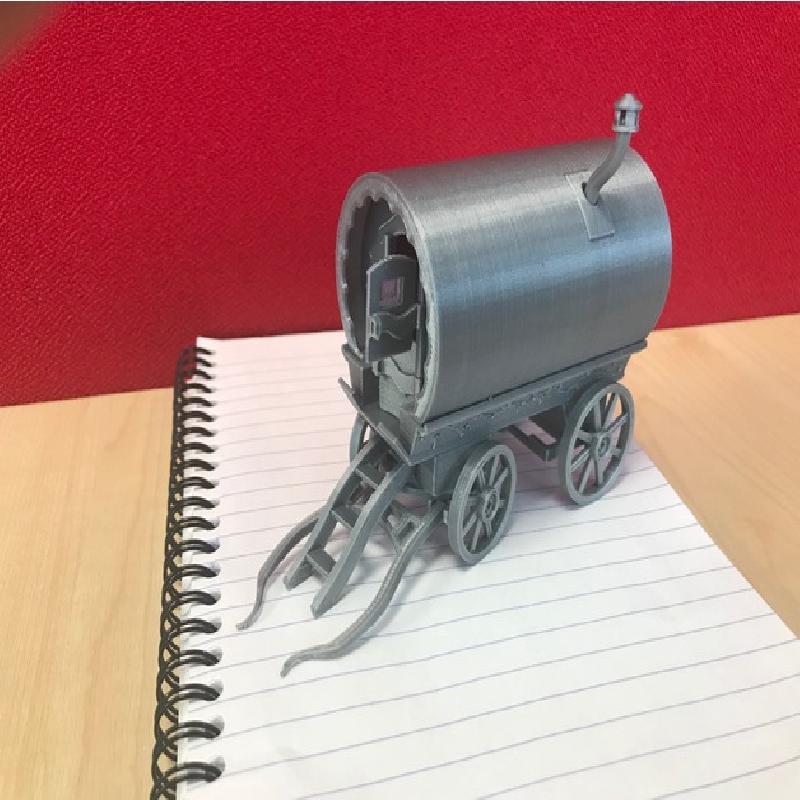

This is my take on a small scale Vardo Caravan. it is approximately 1:48 (1/4) scale and I have designed it to (hopefully) scale up to approx 1:12th.
There are a few configurations. the door can be printed separately or in place using the Wagon Base-Door-stove assy. if printed separately you could use a 0.5mm wire or pin for the hinge, when printed in place you must very carefully and slowly work the hinge to prevent it from breaking as it is only 0.4mm at this scale but it does work. The same applies to the shaft set.
The rear sub frame can be printed in one piece or two separate parts if you want some swivel to the rear wheels.

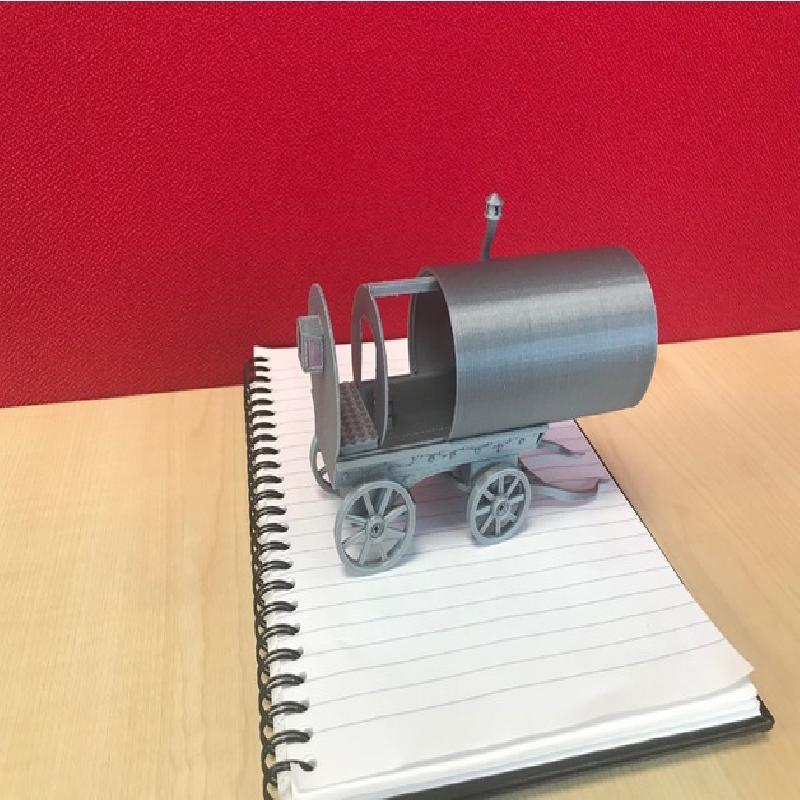

The wagon also doubles up as a puzzle box as lifting the smoke stack lets the roof slide open.
Everything will click / slide together so nothing is glued.

I should add that the initial orientation of the parts is as drawn not necessarily as you would want to print them, so most will need to be rotated -90 deg (roof should be 180 deg rotated) in order to get the best orientation for printing.

Please respect the non commercial licence and happy printing.
J.C..
