Updated on 26/03/2018
There was a gap inside Body.stl piece, that was a mistake. I think the print would still be okay, but just in case if you have downloaded the gun prior to this update feel free to re-download it and use the fixed piece! Thanks to Zimlorog for the catch!

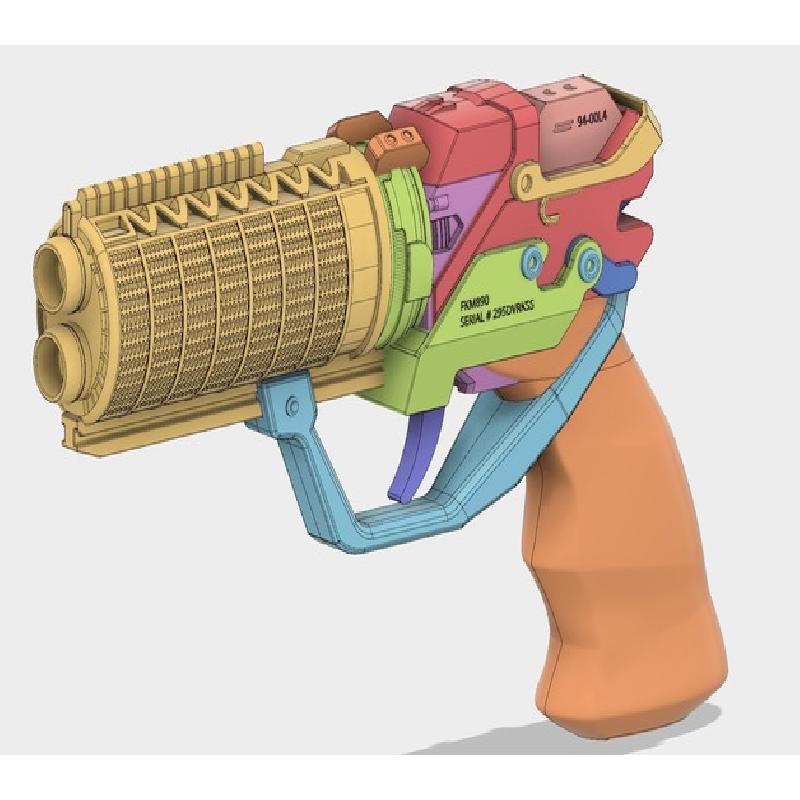

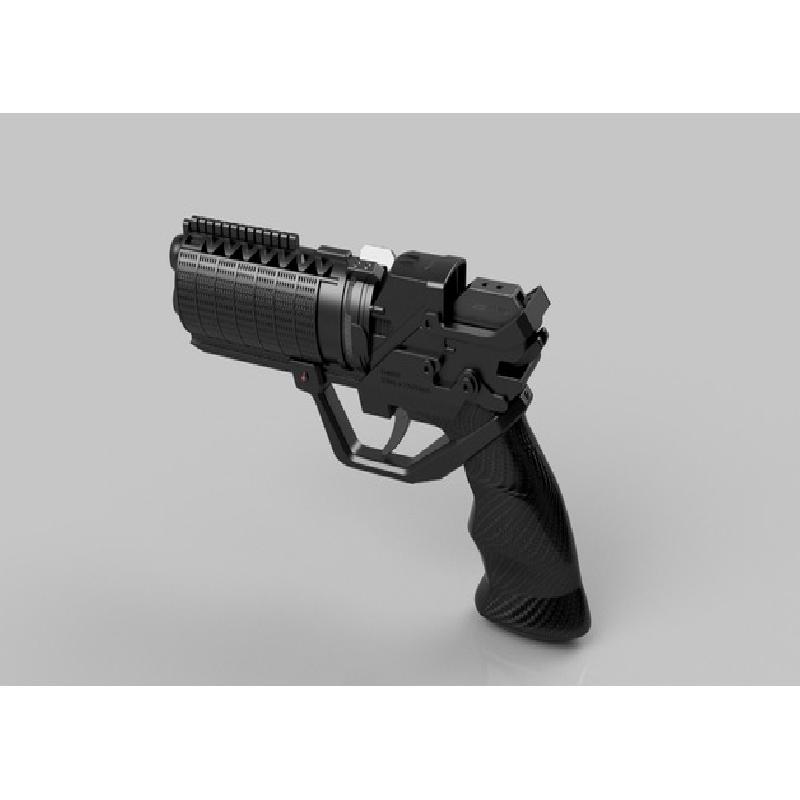

After the trailer came out and when the images were leaked, I knew I had to try and build one of these in 3D and print it.
It took me a long time using references I found here and there, until the video from Tested was uploaded where I could see it way more clearer and from different angles, after that was a bit easier. It still took me a long time to finish the model and prepare it for printing but in the end it was worth it.
I tried to make it as accurate as I could.
Hope you enjoy it!
Tips: Bitcoin: 3AjndvCCWVES9KvodSUZQzPj4PsMmUEcNR
Printer Brand:
Prusa
Printer:
Rafts:
No
Supports:
Yes
Resolution:
0.2mm
Infill:
10%
Notes:
Parts that I turned supports on:
Barrel
Body
Guard
Protector
Trigger Guard Right
Trigger Guard Left
Print Options

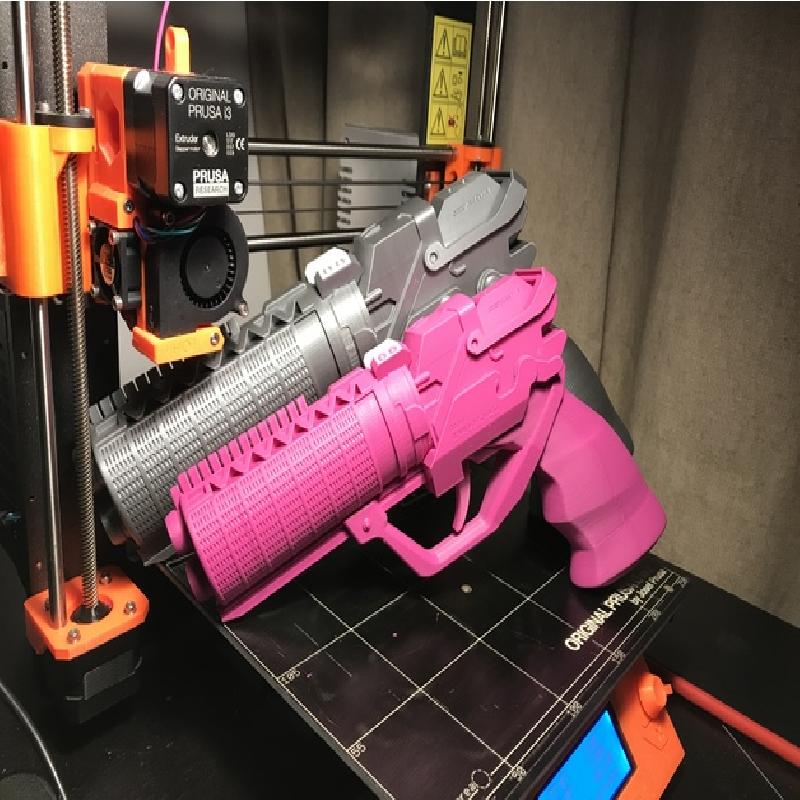

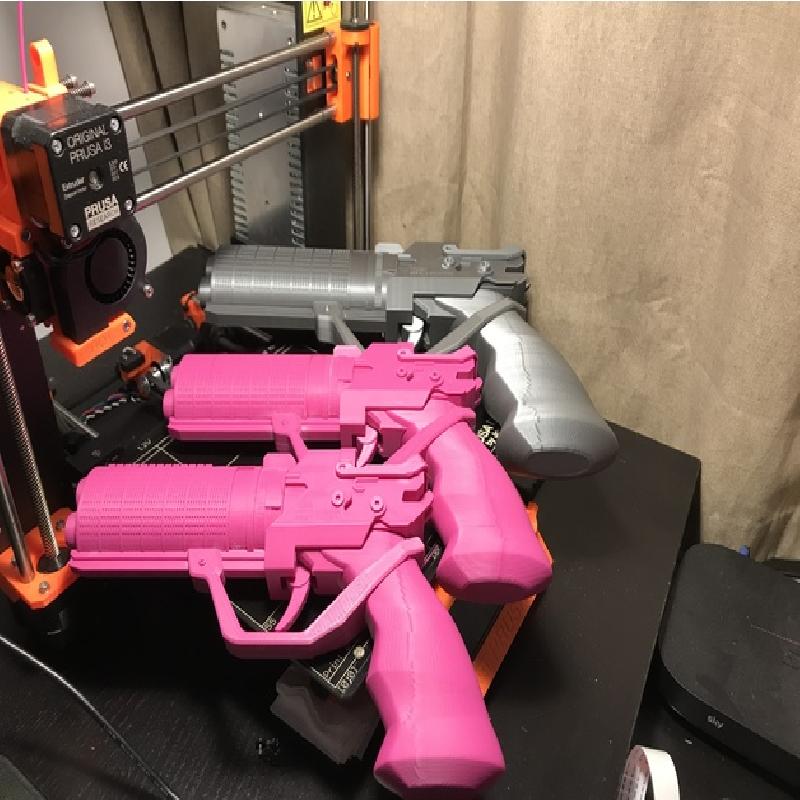

I printed all my pieces on a single plate of my Prusa i3 MK2S.
Feel free to print them how ever you want.

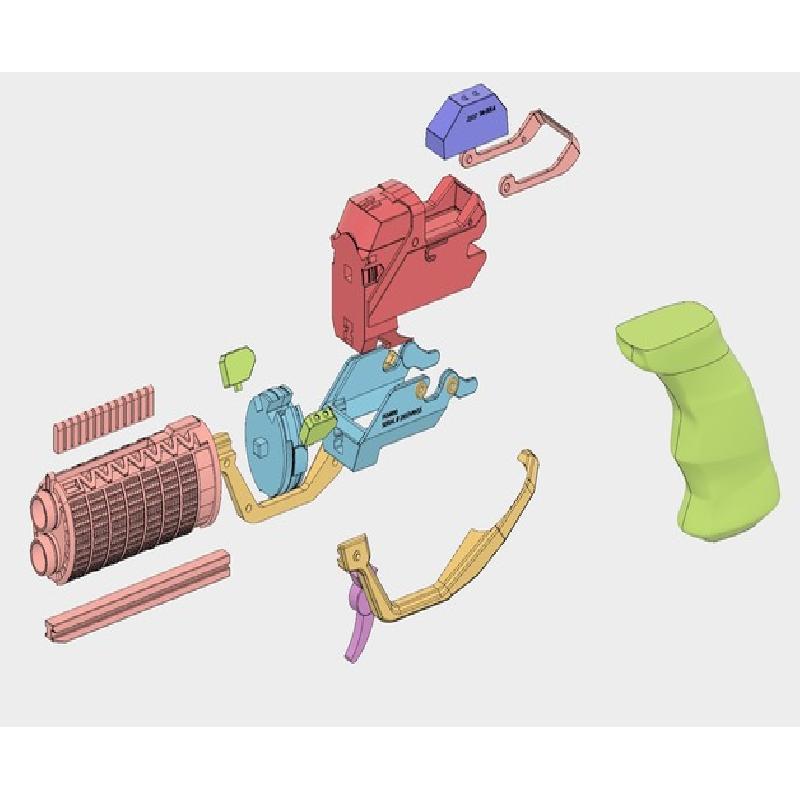

Assembly
The parts should all fit together and you will need some sort of glue to permanently secure them.
I assembled mine in this order:
Sight Row to Barrel
Sight to Barrel
Barrel to SpringSystem
Charges to SpringSystem
SpringSystem to Body (Make sure the rail is aligned properly)
Handle to Body
Protector Pin to Body
Protector to Body (Make sure the rail is aligned properly)
GuideRail to Barrel, Protector, Body
Trigger to Body
Trigger Guards to Handle and Guide Rail
Cocking to Body
Guard to Body
