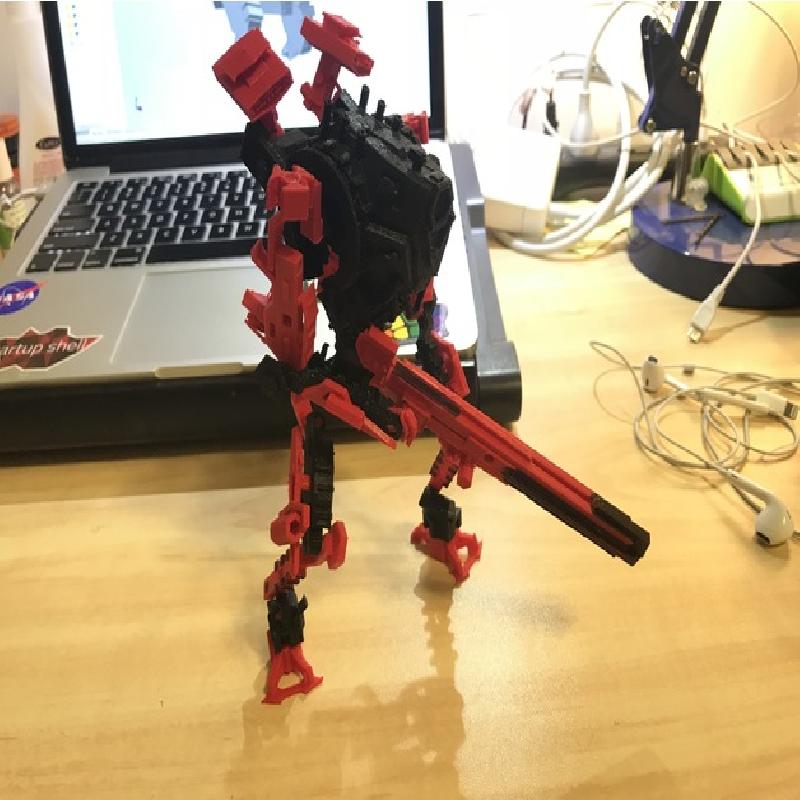

I made two titans shortly after titanfall 2 was released. I used the titanfall 2 titans as references for the drawings, but this is drawn from scratch. The joints will probably need to be sanded down to fit properly. I'm currently working on a third design- let me know about more ideas or possible designs I should work on!
The assembly is as follows
1x body-

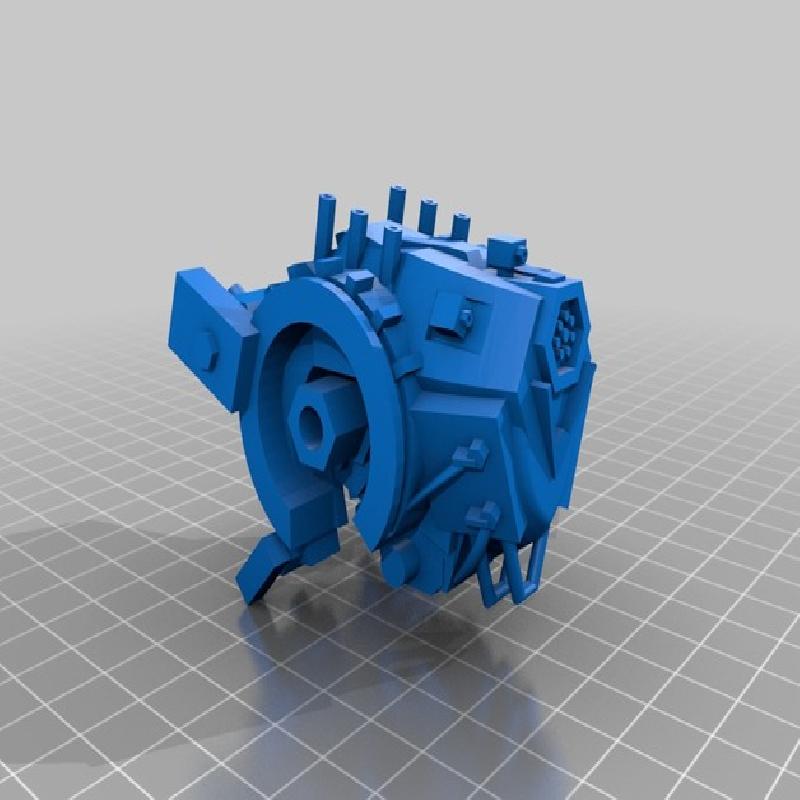

(av) b3 (head) <- 2 sections of b2 <- b1(hips)
b10 (thrusters) attach to back of b3
2x arms-

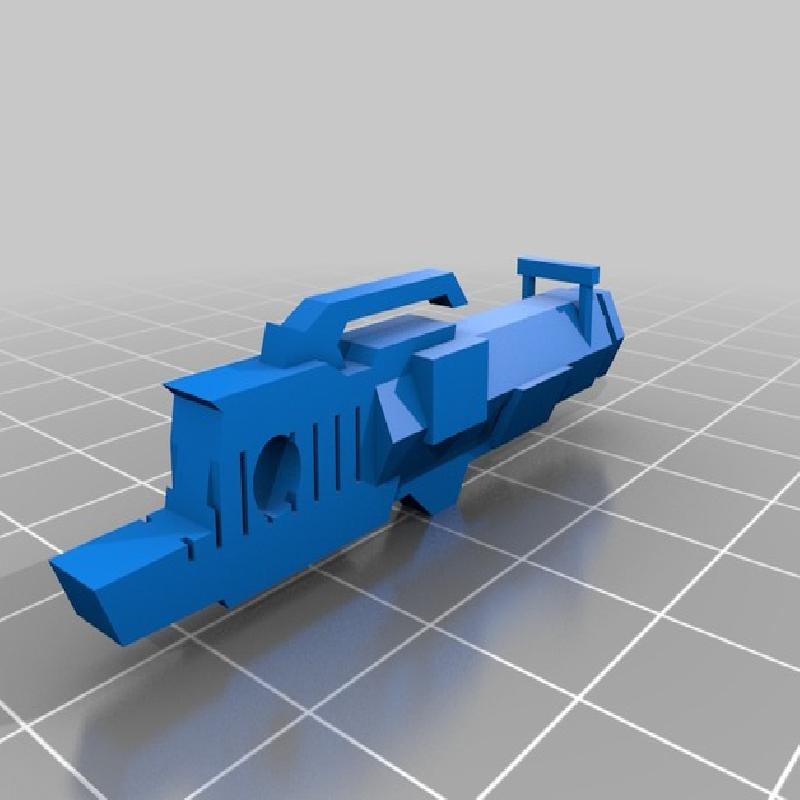

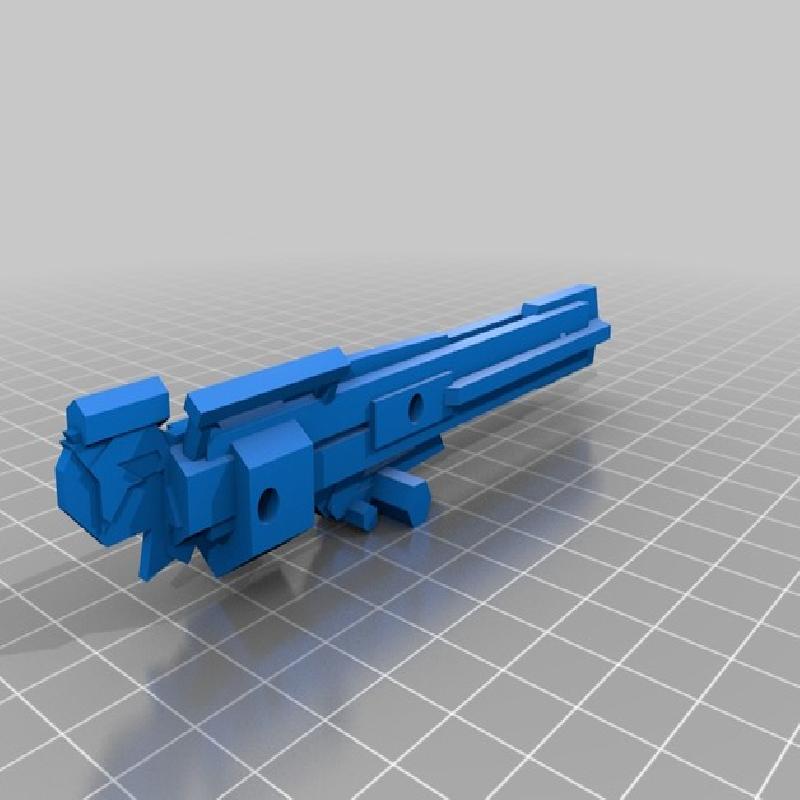

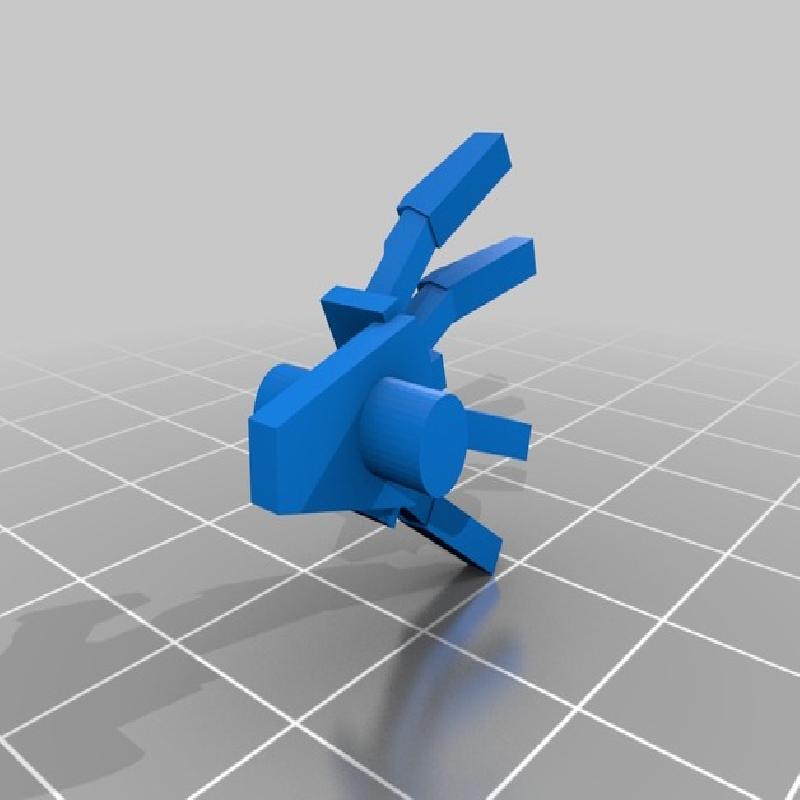

(av) b5 (shoulder) <- l01(shoulder) <- l02 (forearm) <- l03 (lower arm) <- a02 (gun hand) or a01 (open hand)
2x legs-
(av) b5 (hip) <- l01(hip) <- l02 (upper leg) <- l03 (lower leg) <- l04(ankle joint) <- lp7 (ankle) <-lp6(foot)
Printer Brand:
MakerBot
Printer:
