As a massive Star Trek fan i always loved the look of the warp core from the Enterprise NX-01, So I made one!
It took more then 100 hours of modeling. And over 50 hours of making. And this is the result.
There are files for 2 versions of the core.
The first version is complete for 3D printing while the second version is made for use with a few laser or cnc cut parts.

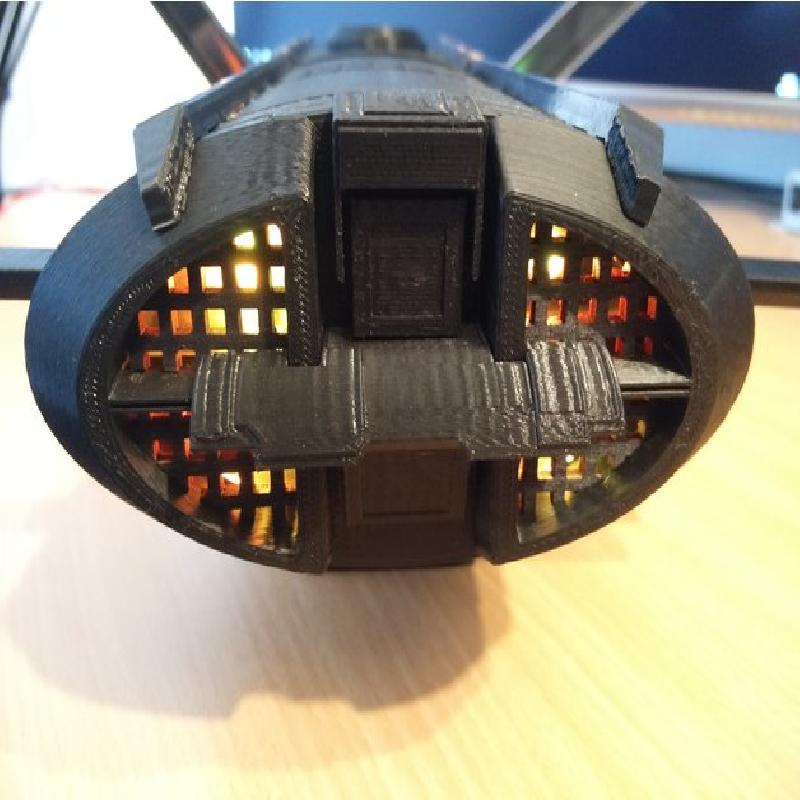

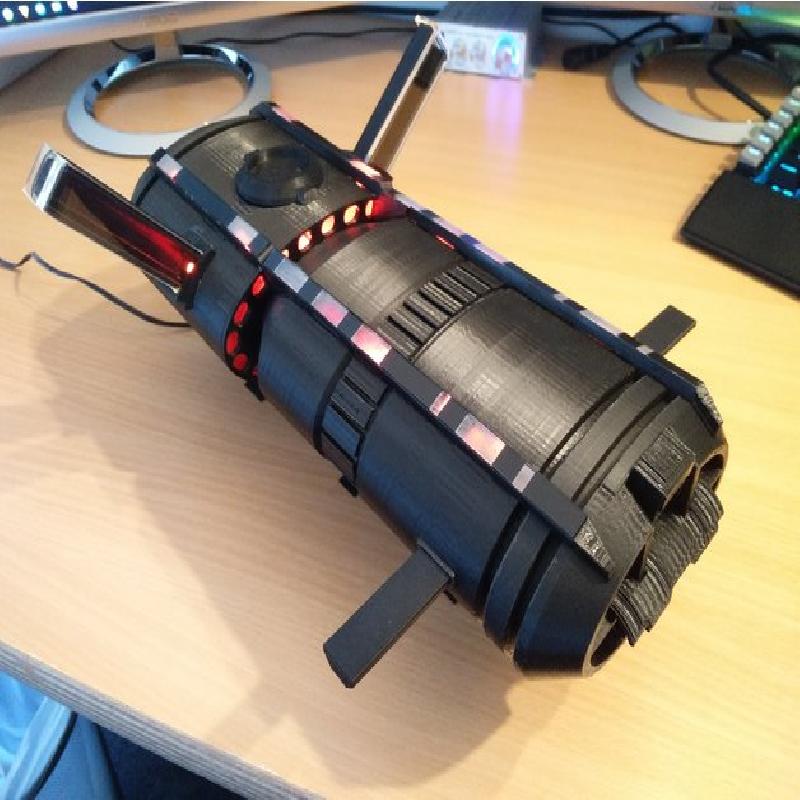

I also added holes for led's (RGB if you prefer). These give the model a nice working look. I also recommend to add a 15cm led strip in the middle to light up the side rails.
You can also find a file which contains info on most of the parts, how long it takes to print, how much matterial and the avarage cost.
Questions or suggestions, leave a comment and I will respond as soon as possible.
Created by Roel Versteeg
Feeling generous? Feel free to tip me, this helps covering the costs of waisted prototyping filament and time spend designing.
Printer:
Tevo Black Widow
Rafts:
No
Supports:
Yes
Resolution:
0.1 - 0.3
Infill:
10-30%
