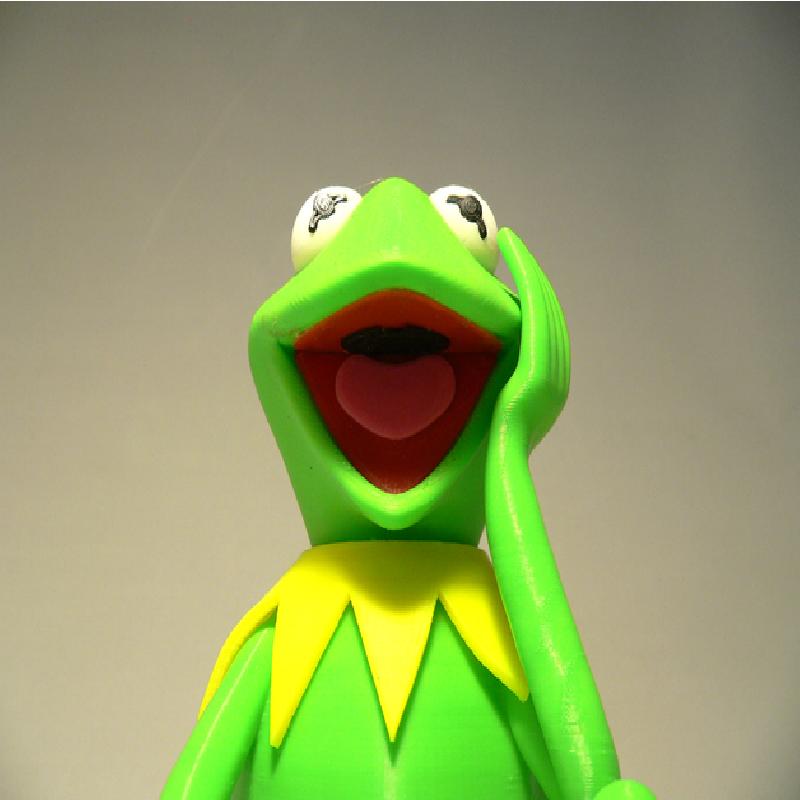

Kermit the Frog, a Muppet character by Jim Henson.
Kermit serves as the straight man protagonist of numerous Muppet productions, most notably Sesame Street and The Muppet Show, as well as in other television series, films, specials, and public service announcements through the years.
No supports are required. If you have the proper filament colors, no painting is needed.

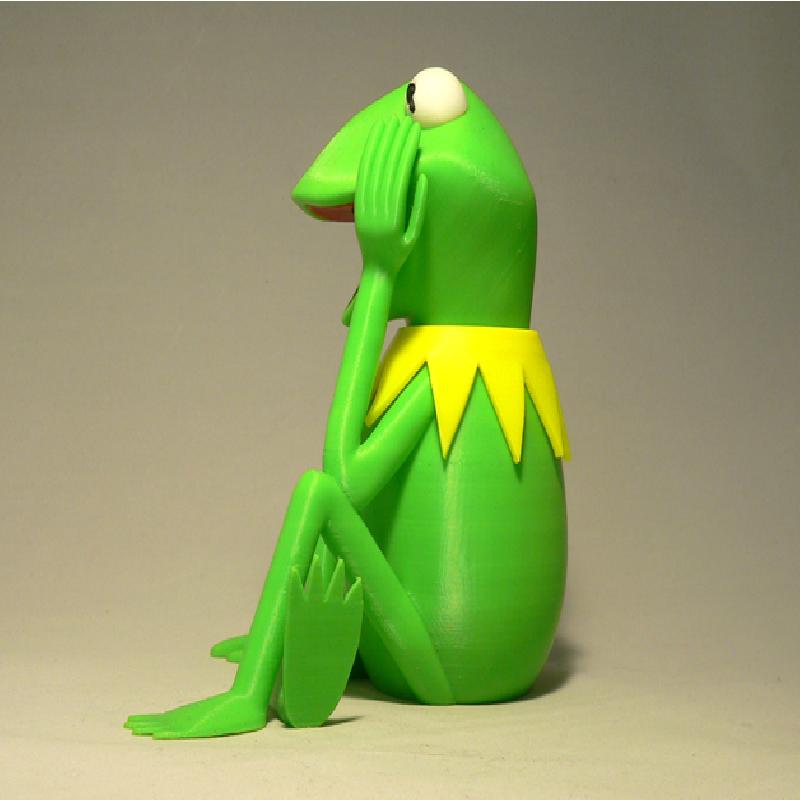

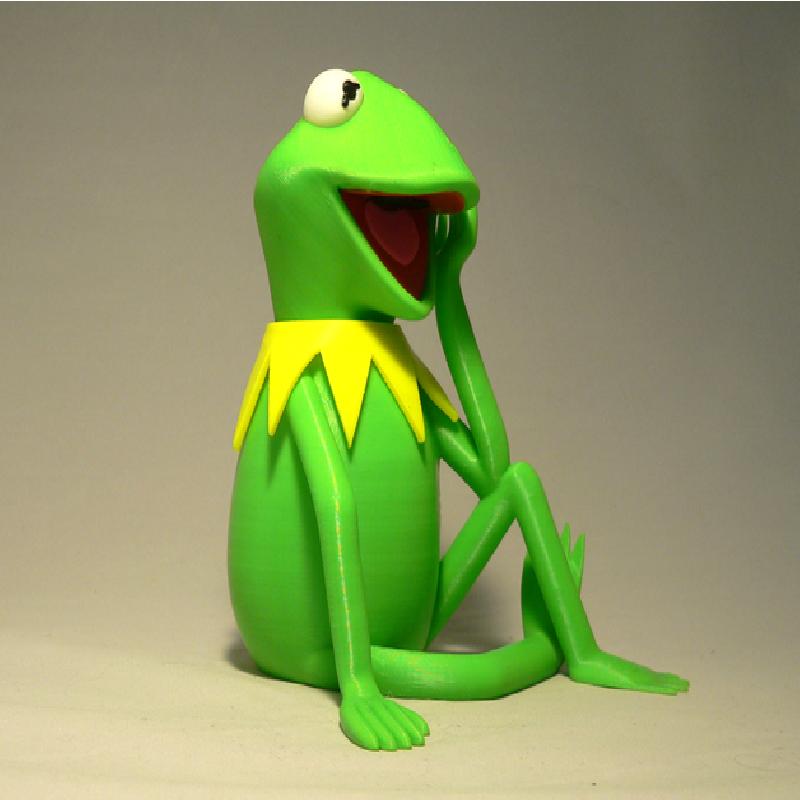

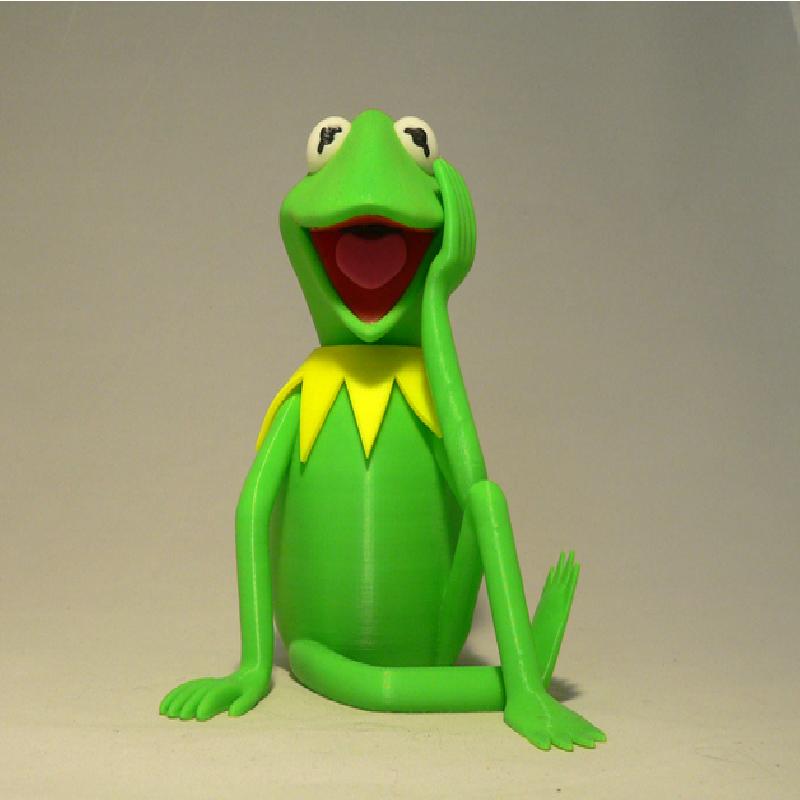

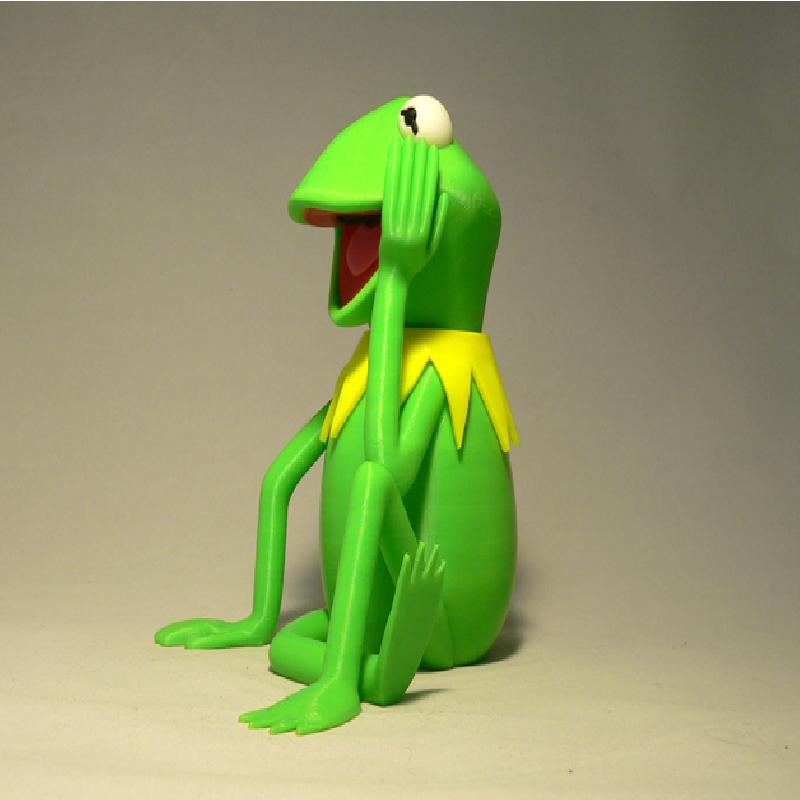

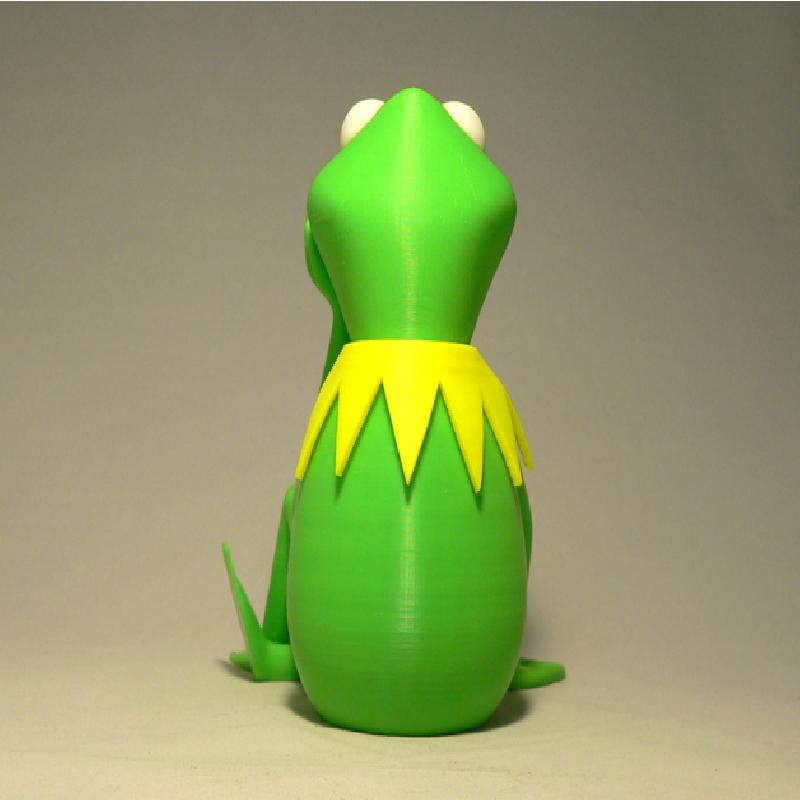

The assembled model is 140mm tall.
Enjoy!
Printer:
FlashForge Creator X
Rafts:
Doesn't Matter
Supports:
No
Resolution:
.2mm
Infill:
10%
Notes:
Refer to the notes below for helpful printing and assembly instructions.
Colors (there are no multiple printed pieces)
Black:
eye_black_right
eye_black_left
mouth_black
..
Red:
mouth_top
mouth_bottom
..
Green:

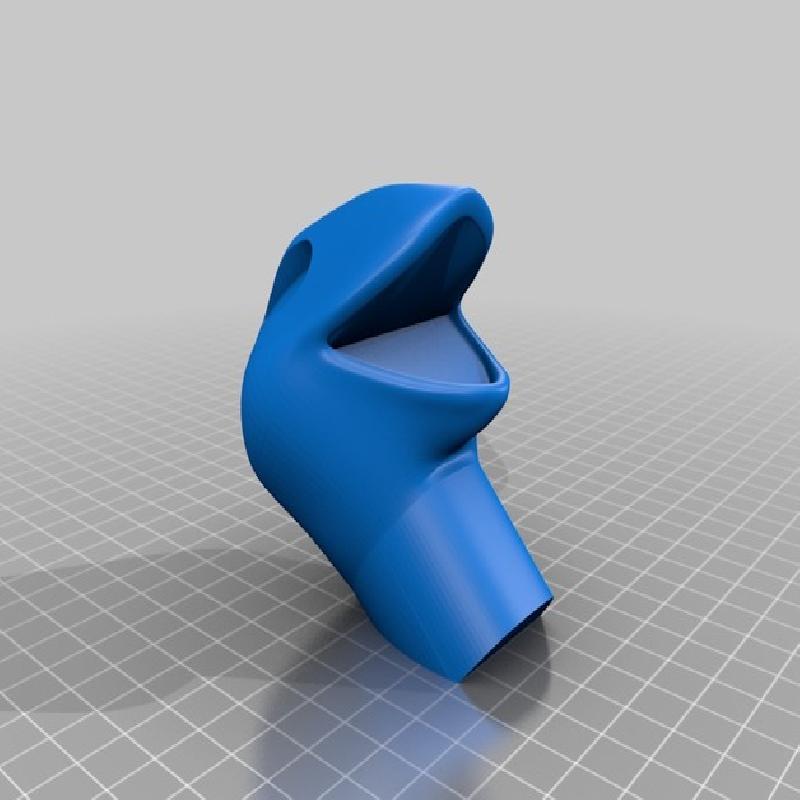

head

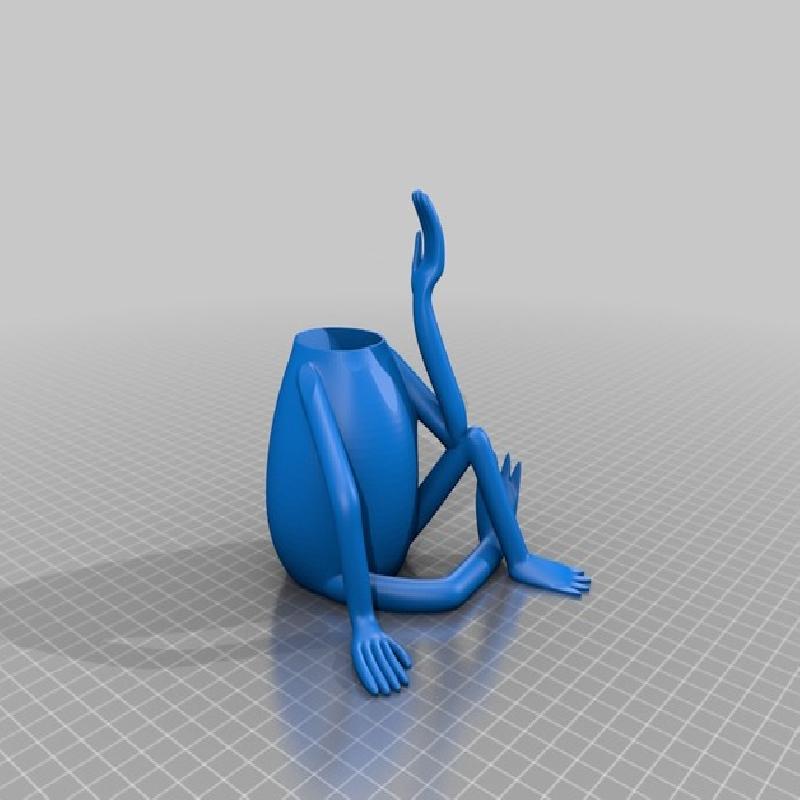

body
..
White:

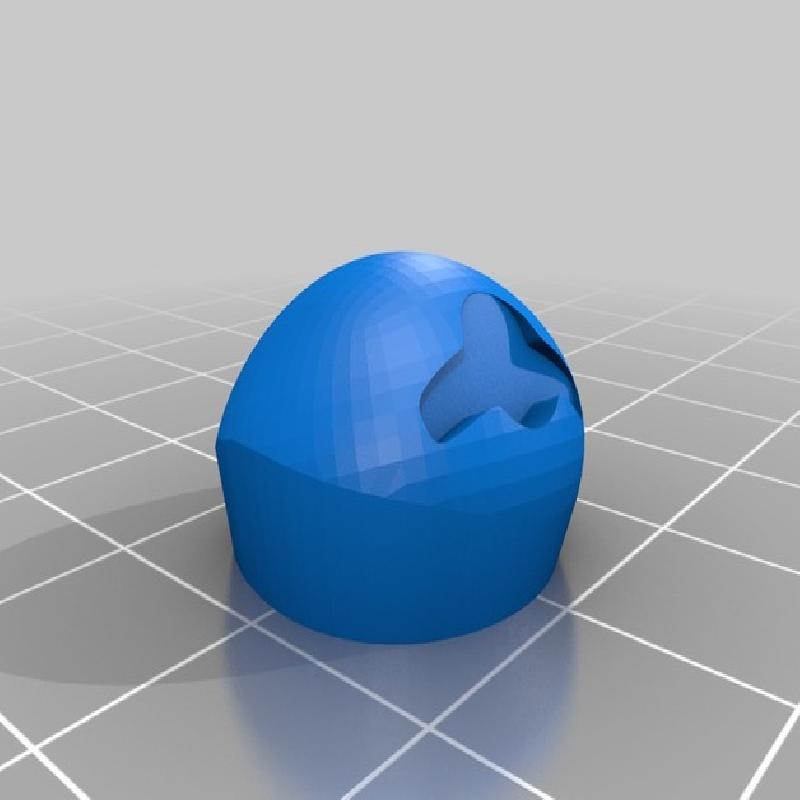

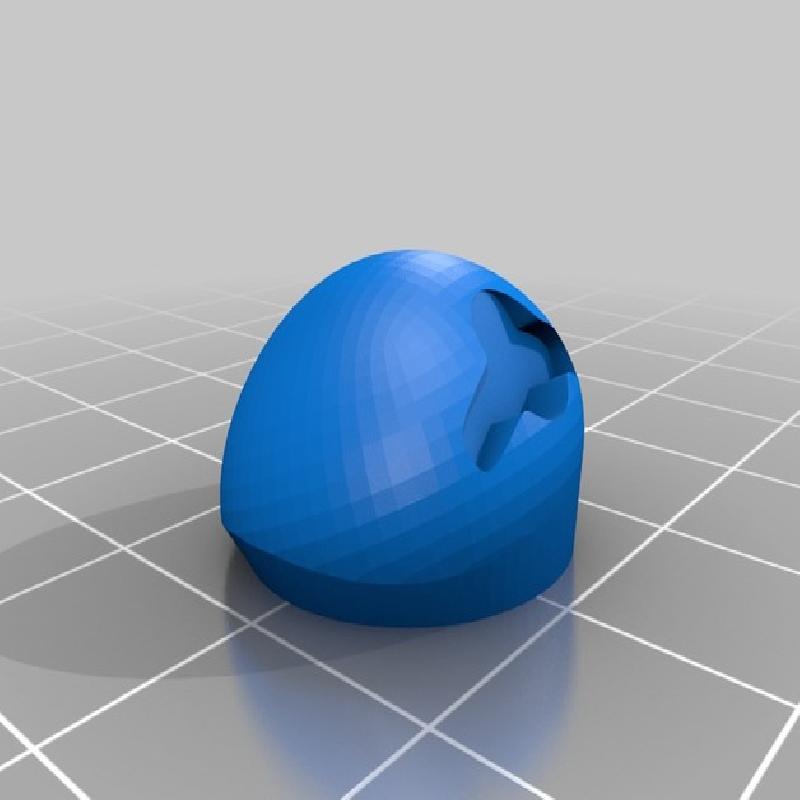

eye_white_right
eye_white_left
..
Yellow:
ruff
..
Pink:

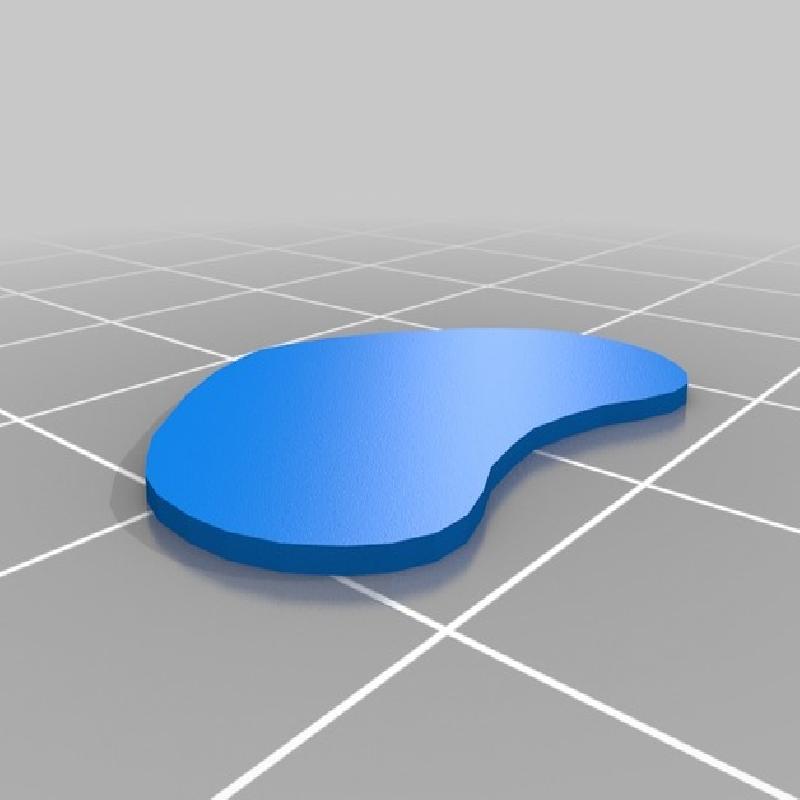

tongue
Printing and assembly tips
Printing tips
1-No supports are required. and I printed all the pieces without a brim or raft.
2-The parts should fit nicely when printed cleanly or with a slight first layer squish.
..
Assembly tips:
1-The left/right black eye pieces are interchangeable. I post all my parts exactly as modeled, even if they are duplicated.

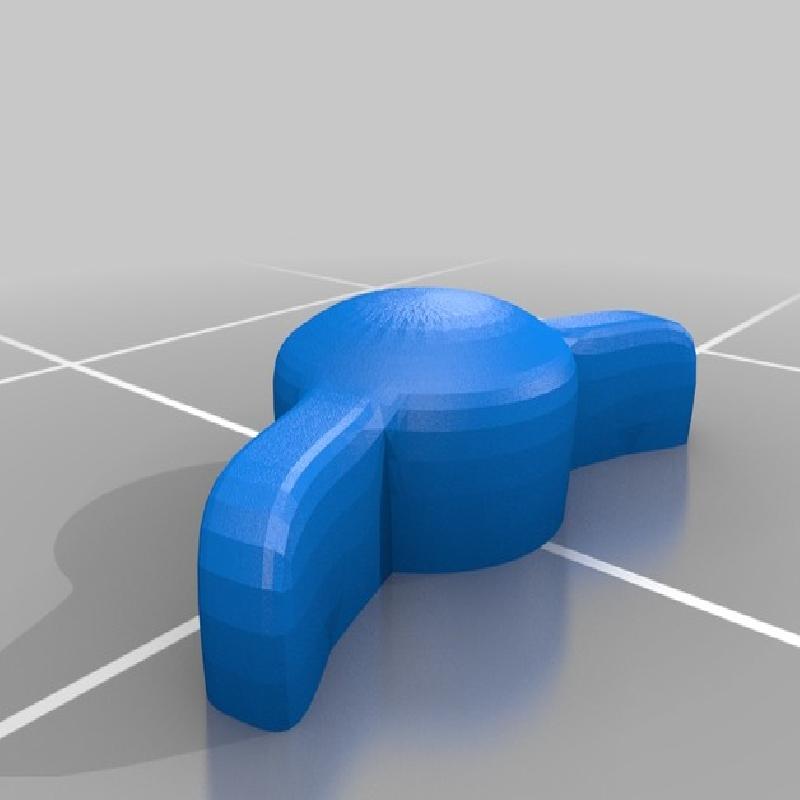

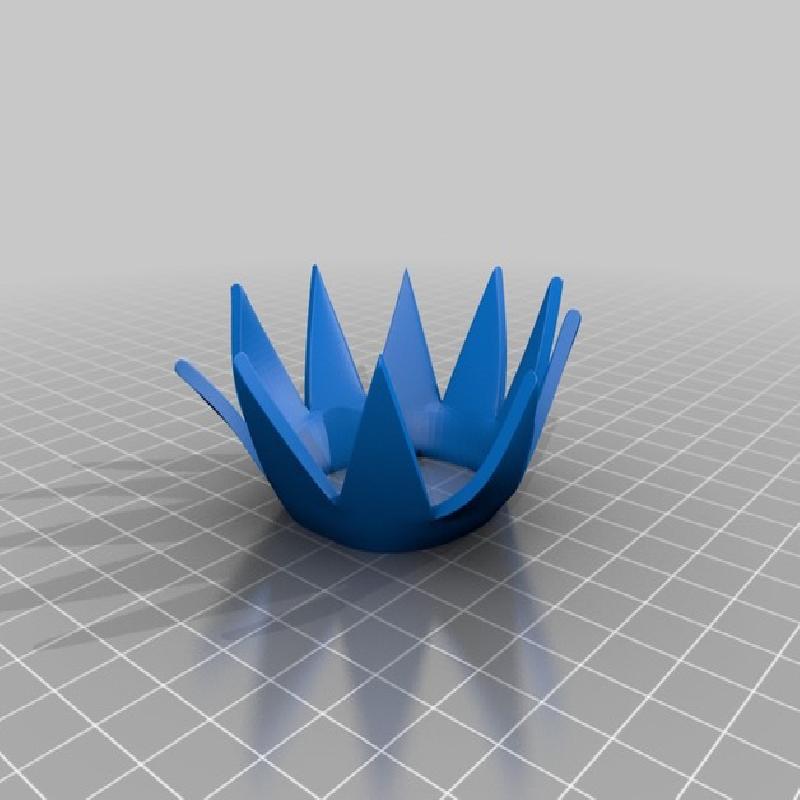

2-Position the ruff on the body, noting that the ruff should sit very comfortable over the shoulders.

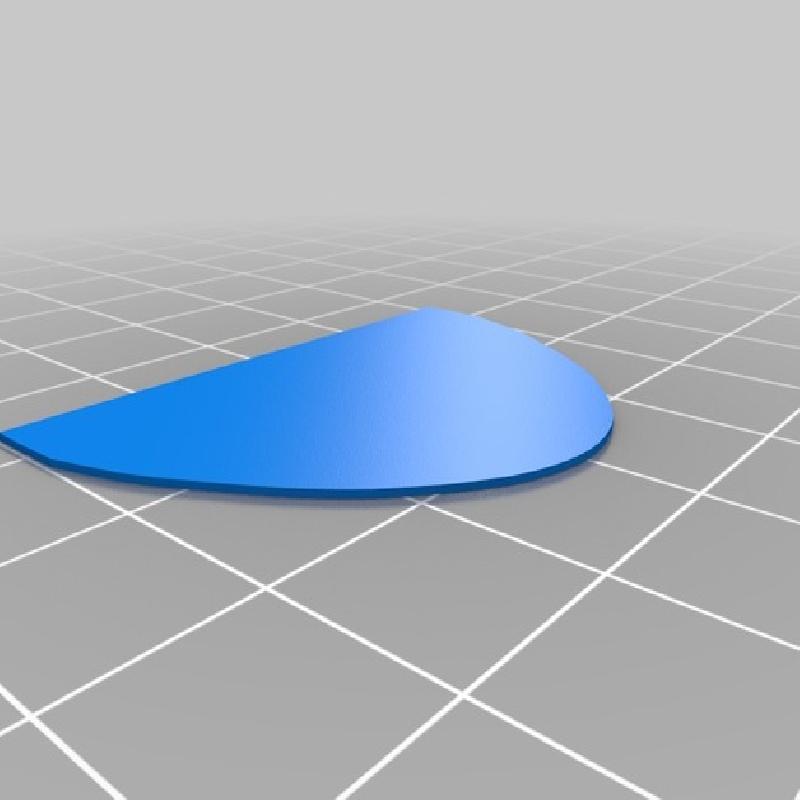

3-**Important: the mouth_top part is printed flat but the roof of the mouth is curved. Glue the mouth_bottom to the head first, then try and bend/flex the mouth_top piece so it fits the roof of the mouth a bit. You may need to hold this piece up while the glue is setting.

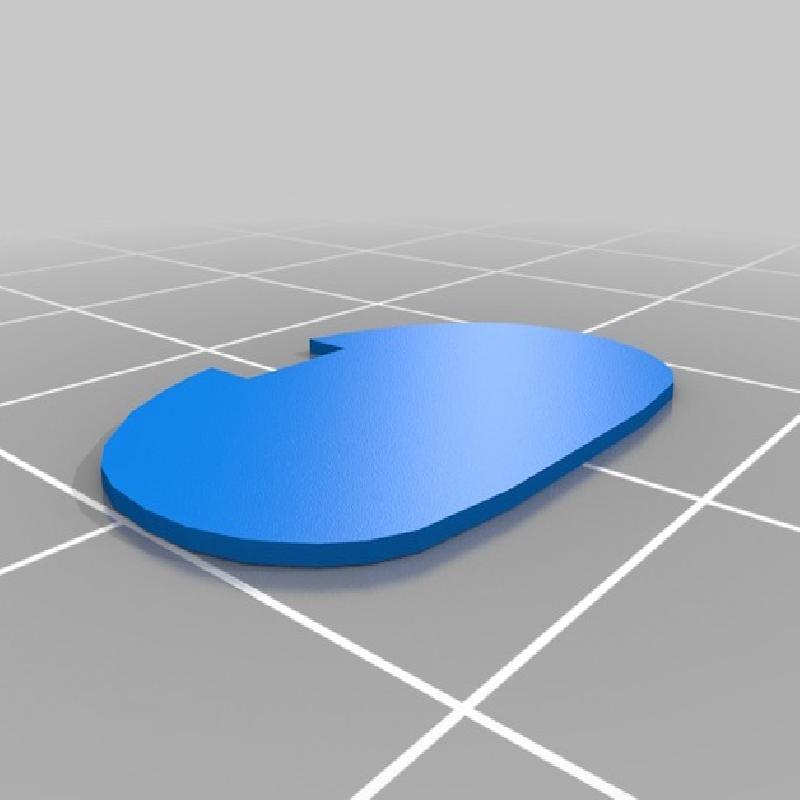

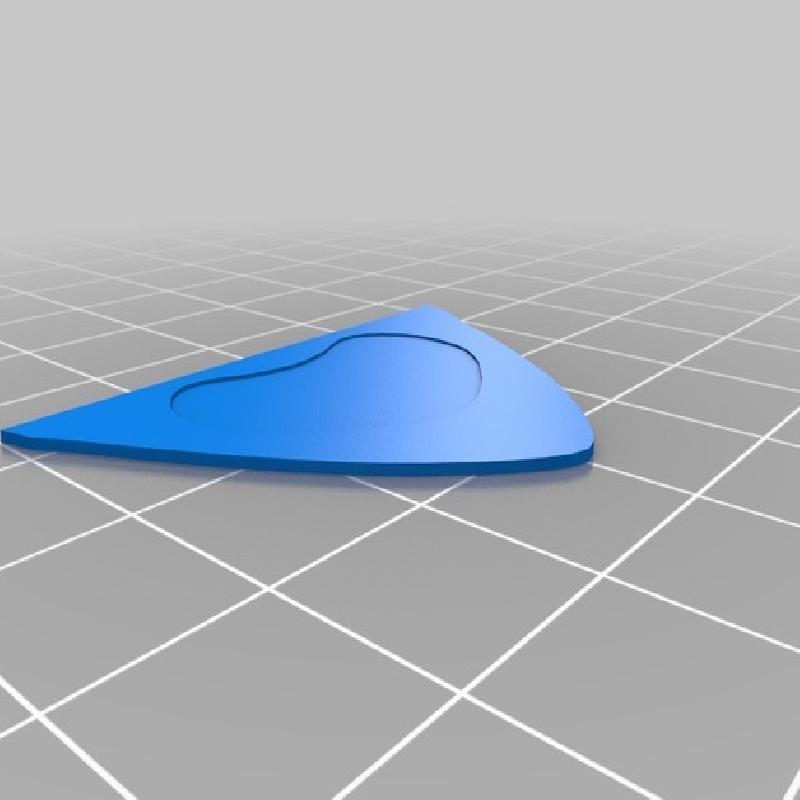

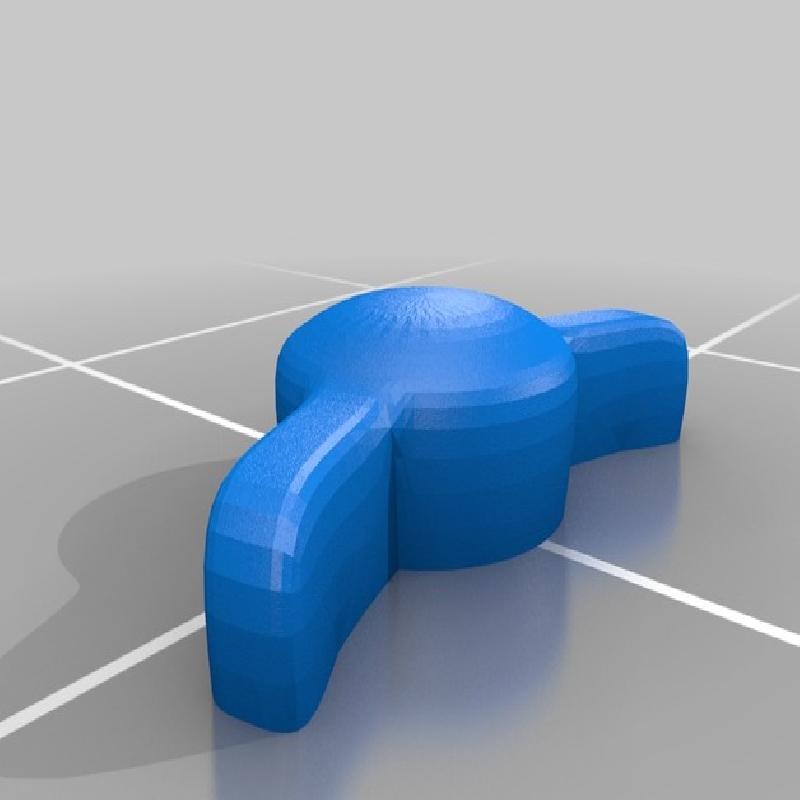

4-The tongue fits into a slight groove in the mouth_bottom piece. The mouth_black piece should be simply centered left/right and placed as far back on the mouth_top piece. The points of the mouth_black piece should point forward. I wanted to keep the mouth_top piece as thin and flexible as possible, so no indent was added for the mouth_black piece
5-Refer to the assembly diagram for putting the model together. The model is meant to be glued.
Kermit the Frog assembly diagram
