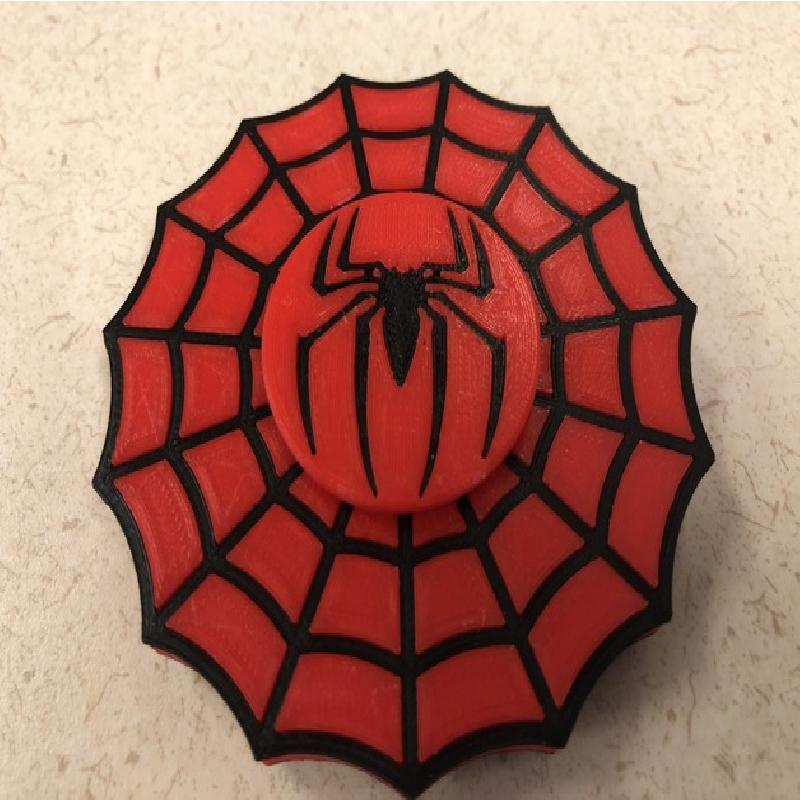

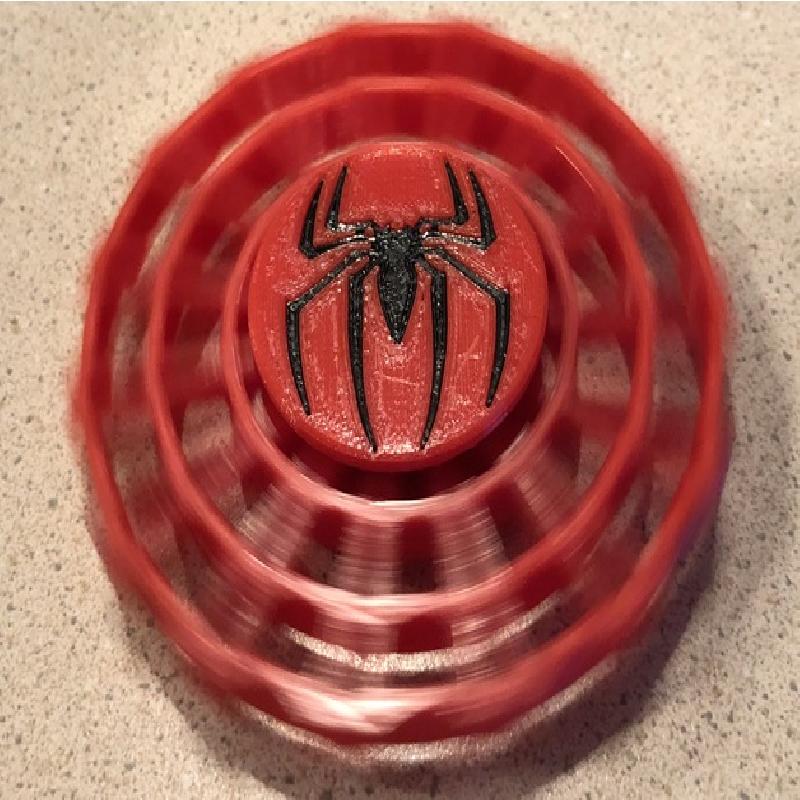

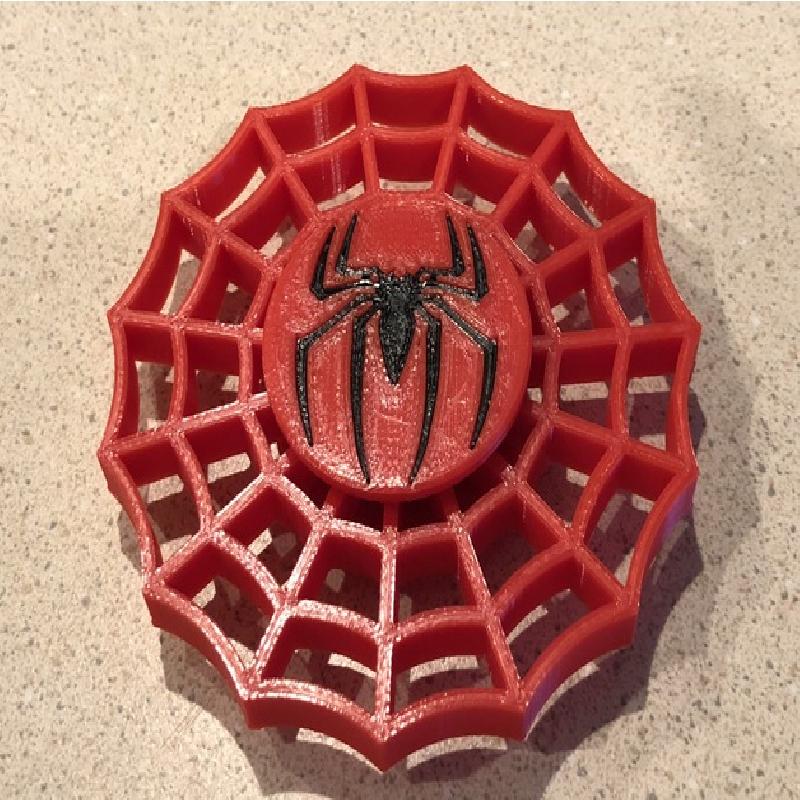

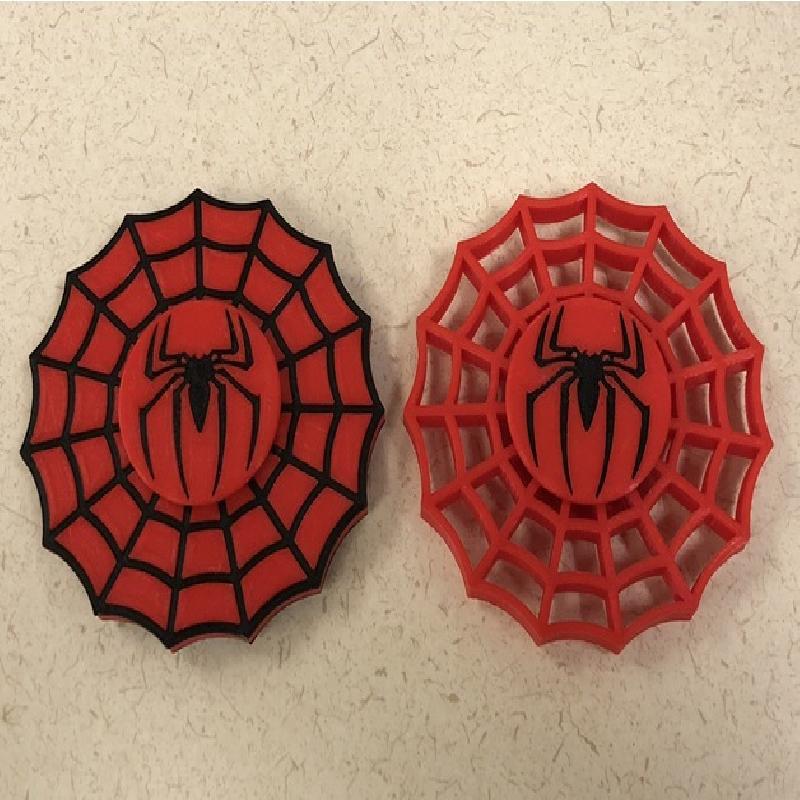

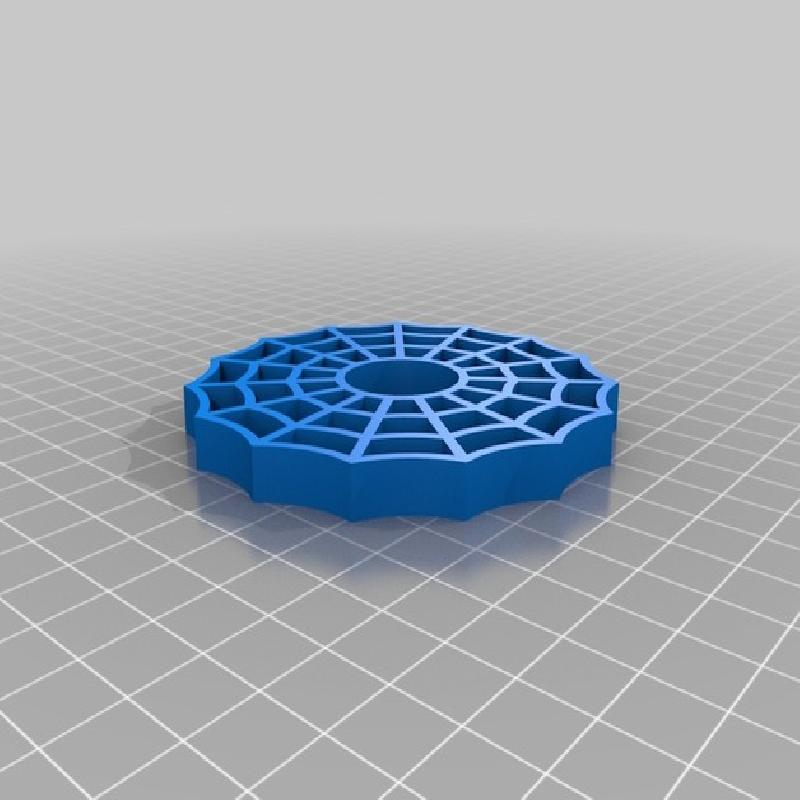

Spiderman Spinner. The spinner is made for a standard 608 bearing (22mm diameter). There are 2 versions of the spinner. One is solid and is made to snap together. The other is just the web.
The diameter of the cap is 36mm. This is pretty big but to get the detail of the spider I scaled it to this size to get most of the small details in.
The diameter of the spinner is 82mm
Printer Brand:
Creality
Printer:
CR-10
Rafts:
No
Supports:
Yes
Resolution:
0.1mm
Infill:
100%
Notes:

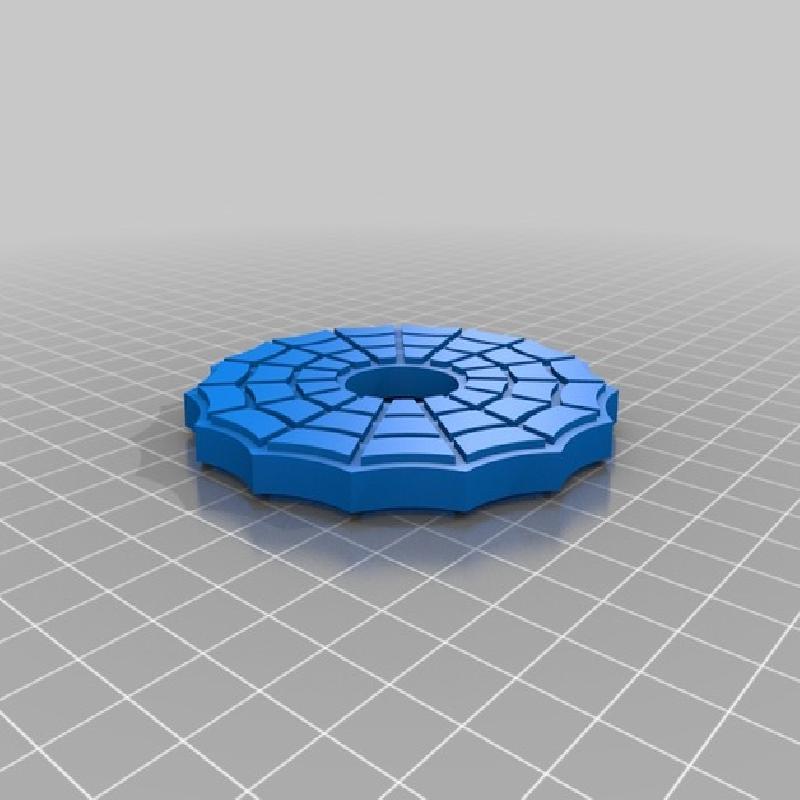

When printing the solid web (spiderman.stl) I made sure the support had a gap large enough so that it would be able to be removed. In cura it is the "Support X/Y Distance"

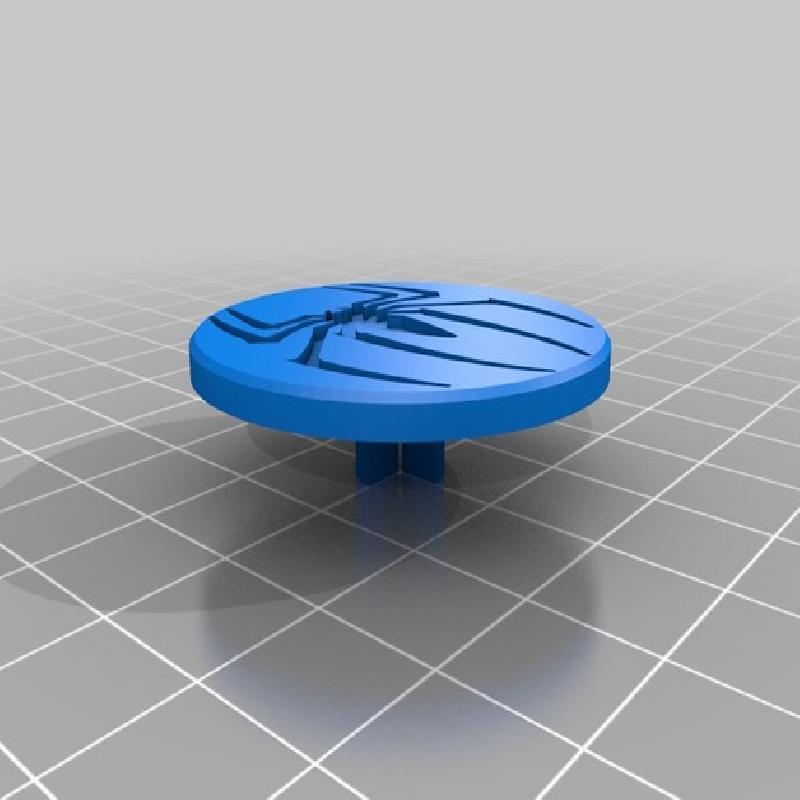

The caps I print as they are oriented in the stl file with support. I have been learning to make sure to print the caps a little hotter than you would normally. I normally print at 200c and print the caps at 208c. This is to make sure I get good layer adhesion.

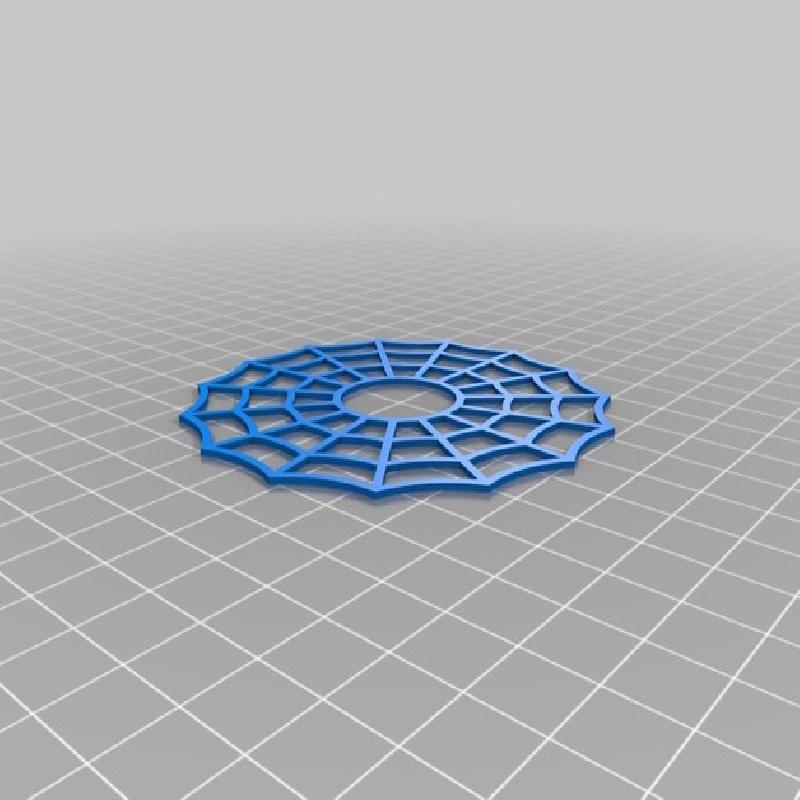

Note: The web inlay is very fragile. I printed with 99% Flow to get it to fit on the bottom of the spinner. Elephants foot causes it to fit a lot tighter.
