by lukie80, published

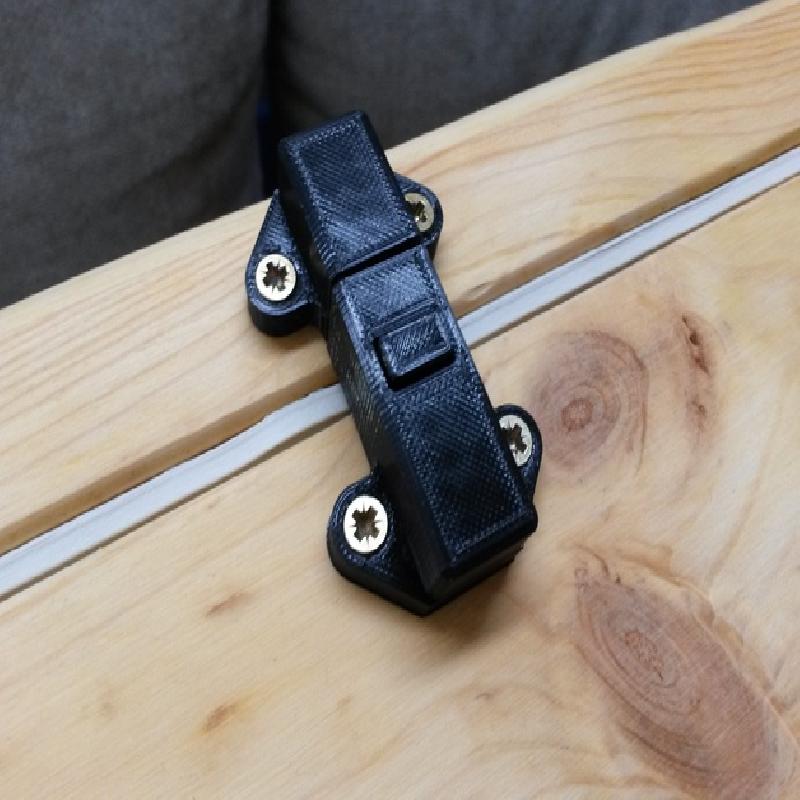

A latch lock for chest or sliding door - linear movement. Works satisfactory.
-Easy to open by a push of a button
-No assembly required
-Quite robust
Screw holes have a diameter of 4mm.
Notes:

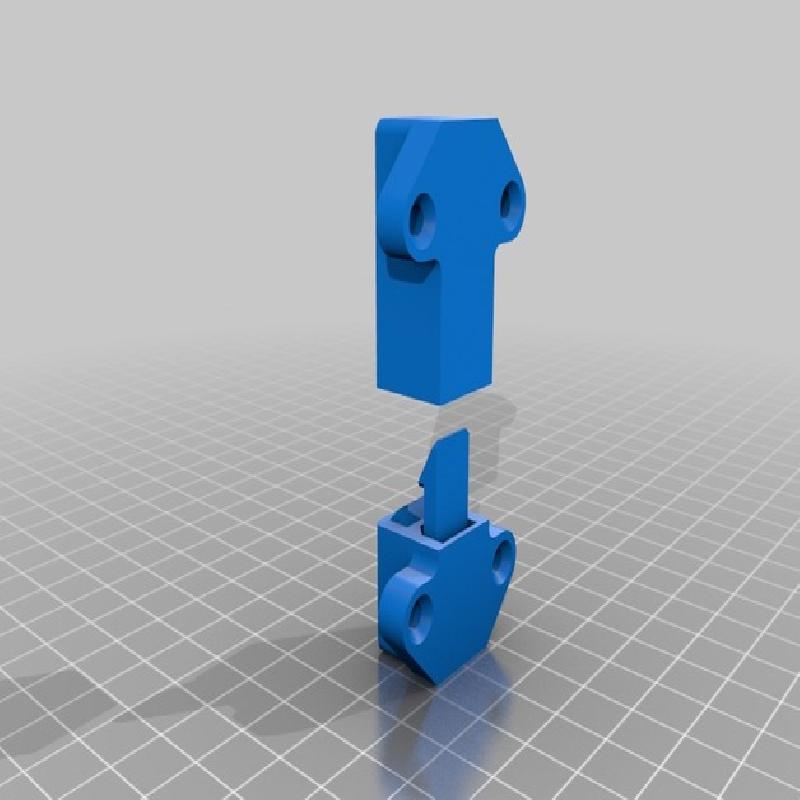

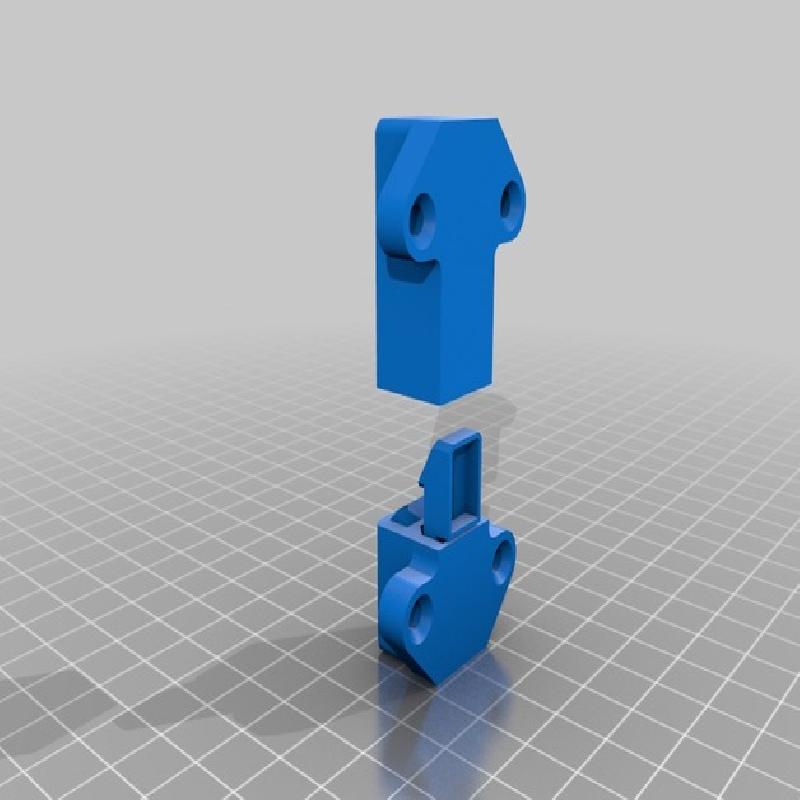

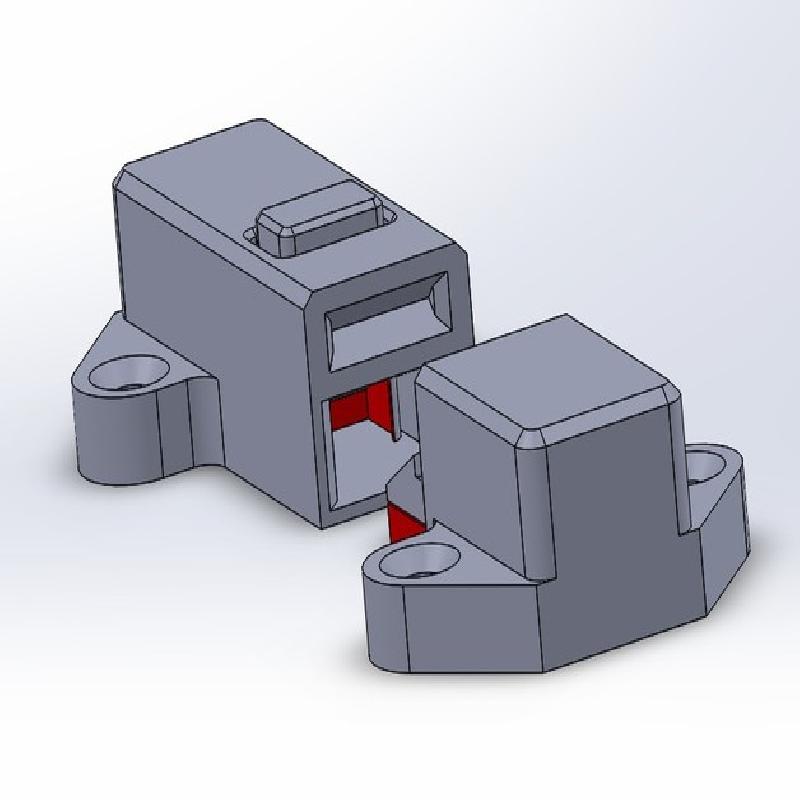

Please select proper printing orientation (see main cover image). Your printer must be able to bridge ~20mm. I provided a version with manual supports which should be sufficient: Remove the thin walls below the hook and remove the U-Shaped support within the opposite hole. The red parts in the last image.
