Finalized Parts! Feel free to download, as these won't be changing anymore.

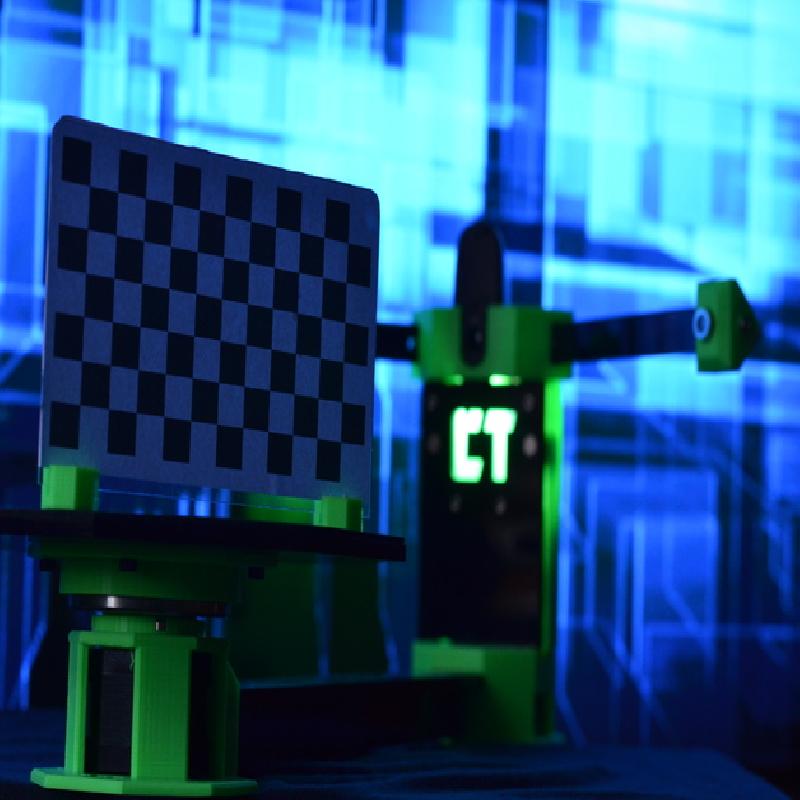

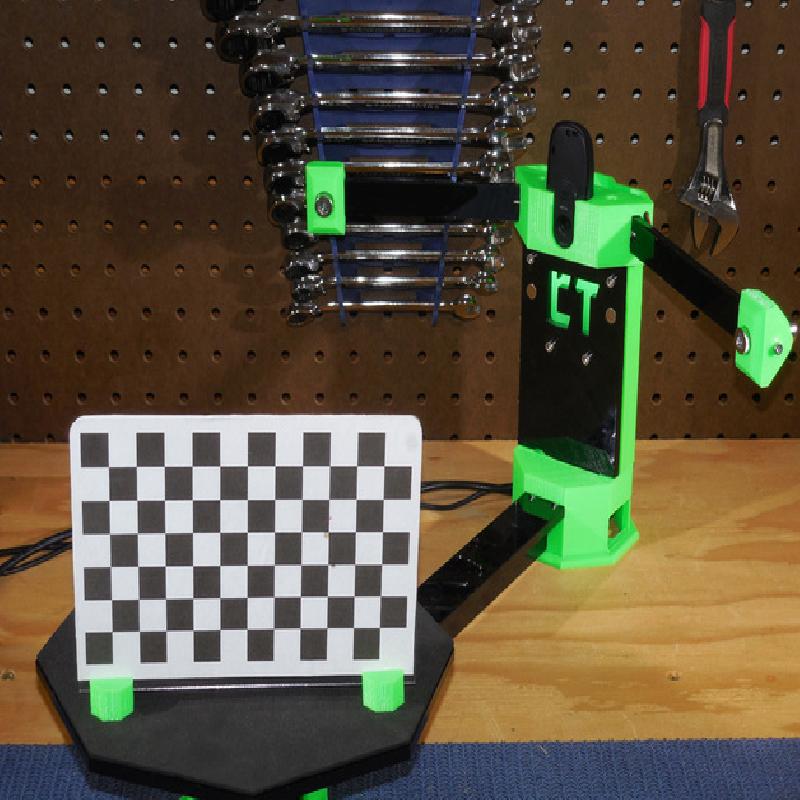

CowTech Ciclop, designed from the BQ Ciclop, but redesigned to use half the print time, 2/3 of the filament, and a tiny print bed area of only 115mm x 110mm x 65mm (4.5 x 4.3 x 2.6in) so the parts can be printed on nearly any printer. Funded on Kickstarter, raising $183,800 from 1400 backers. Kits now available for pre-order at www.cowtechengineering.com

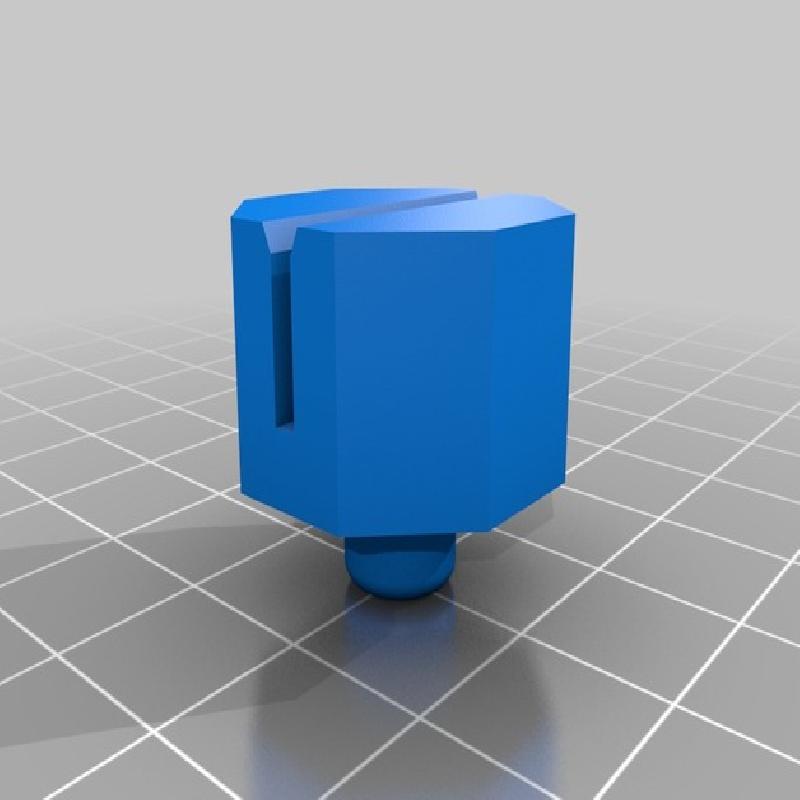

You will need two each of the laser core, laser holder, and pattern holder.
PLA or ABS are both fine.
Printer Brand: RepRap
Printer: Prusa i3
Rafts: No
Supports: Yes
Resolution: 0.2mm
Infill: 10%
Notes:

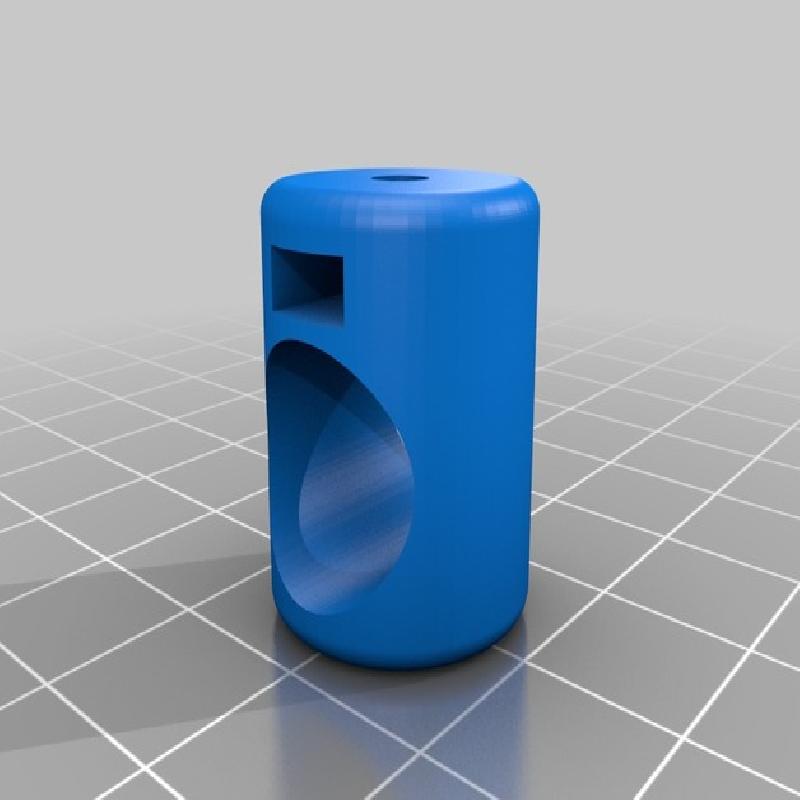

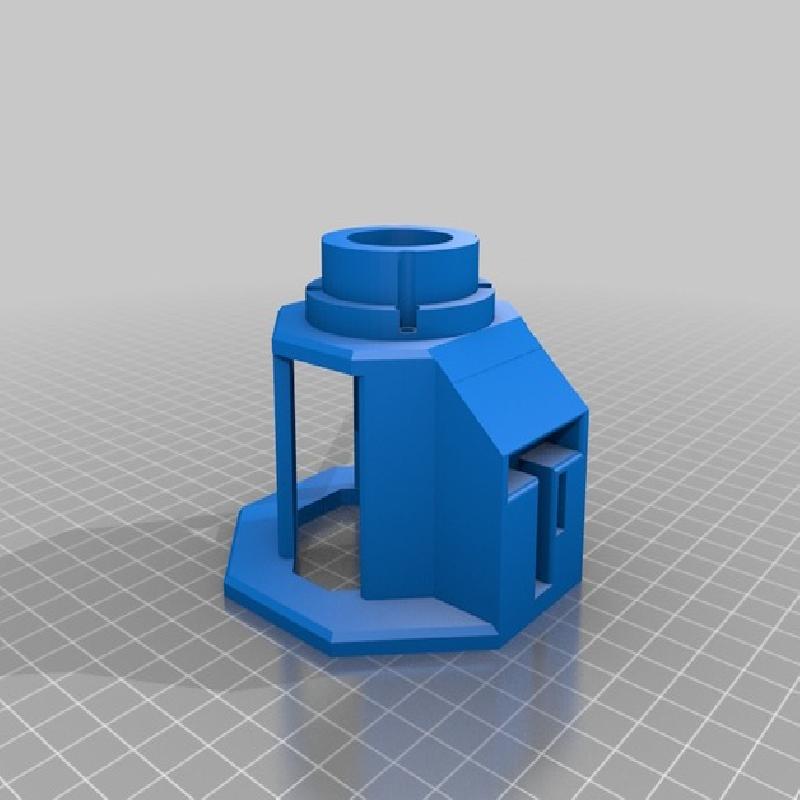

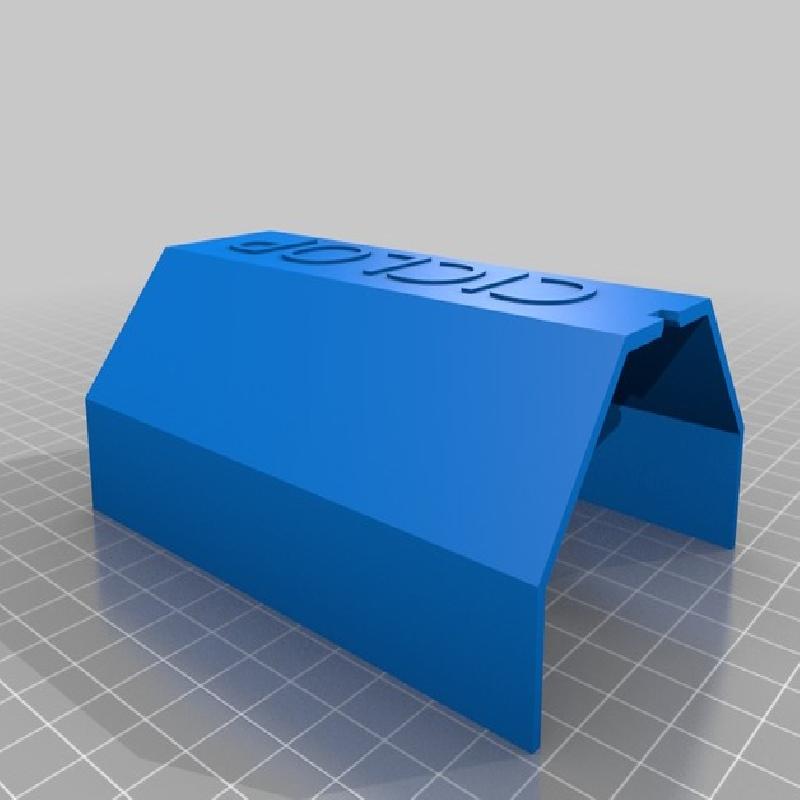

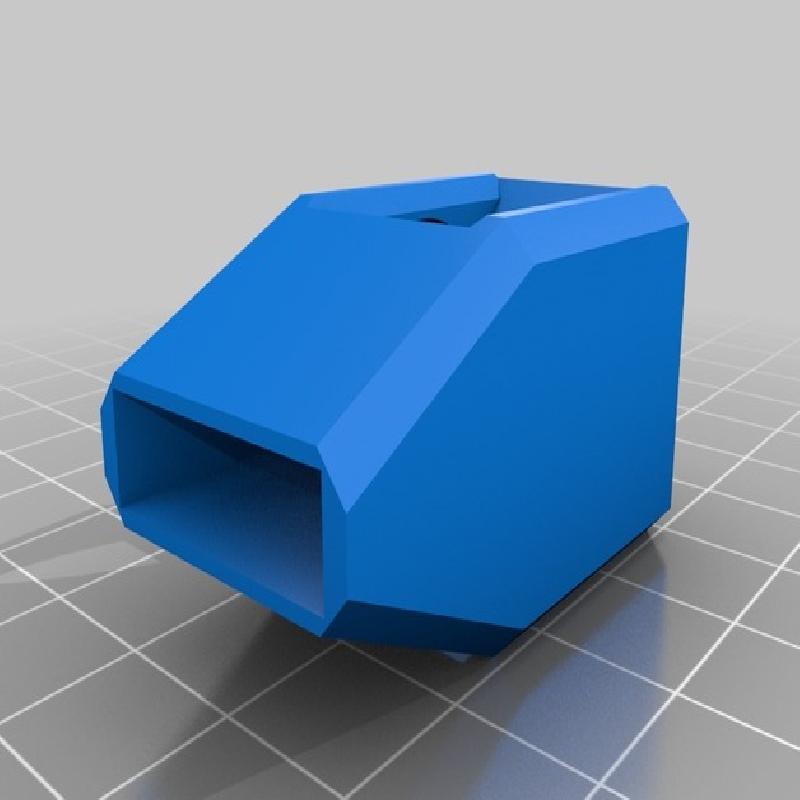

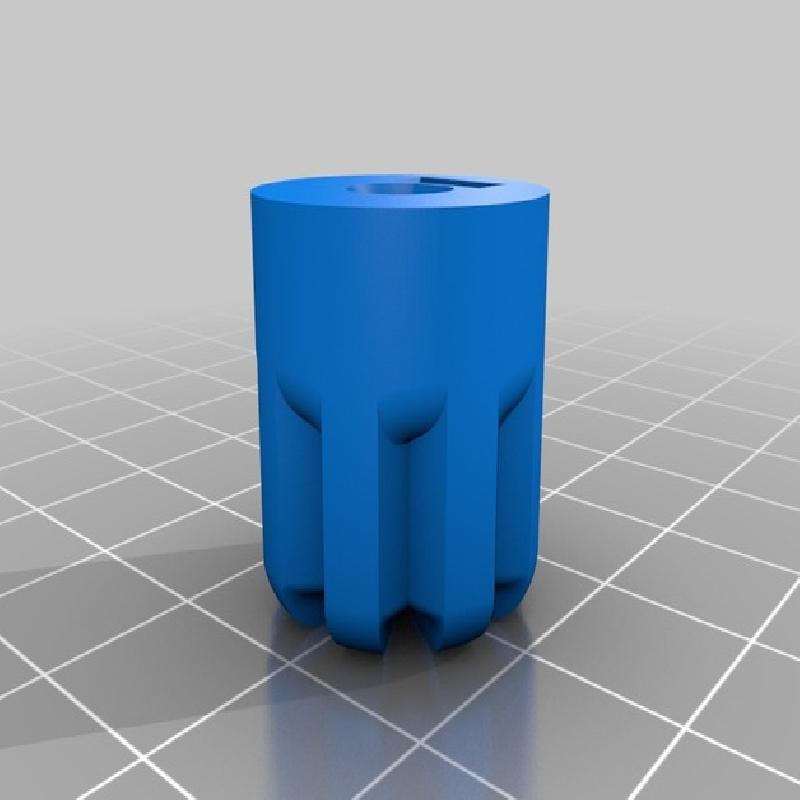

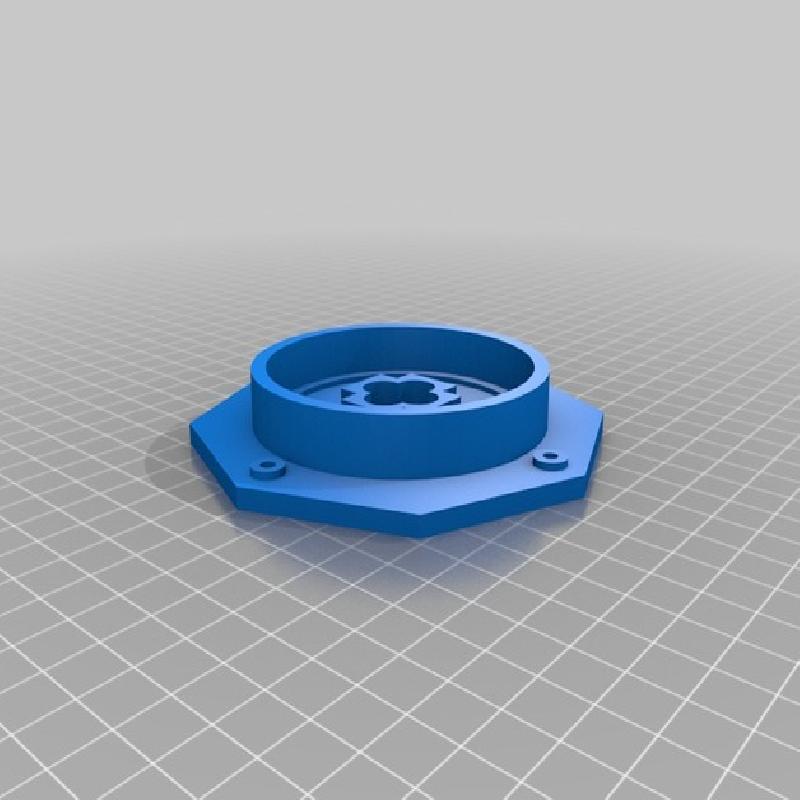

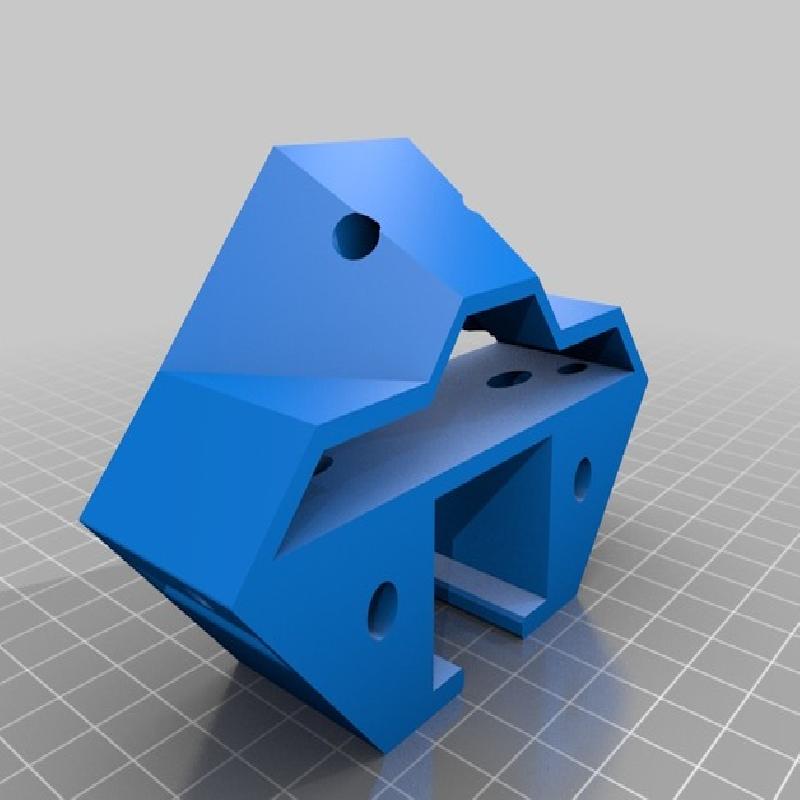

Camera Base : Support everywhere, no platform adhesion needed Motor base : Support everywhere, no platform adhesion needed Camera Holder: No support, no platform adhesion. Backplate : Support everywhere, no platform adhesion needed (print standing up with flat side down). Laser Holder : Support everywhere, no platform adhesion needed Bearing Holder : No Support, no platform adhesion Laser Holder Core : No Support, brim or raft suggested Gear : No Support needed, brim or raft suggested Note: Orientations do not necessarily match suggested printing orientation.
