by stofstik, published

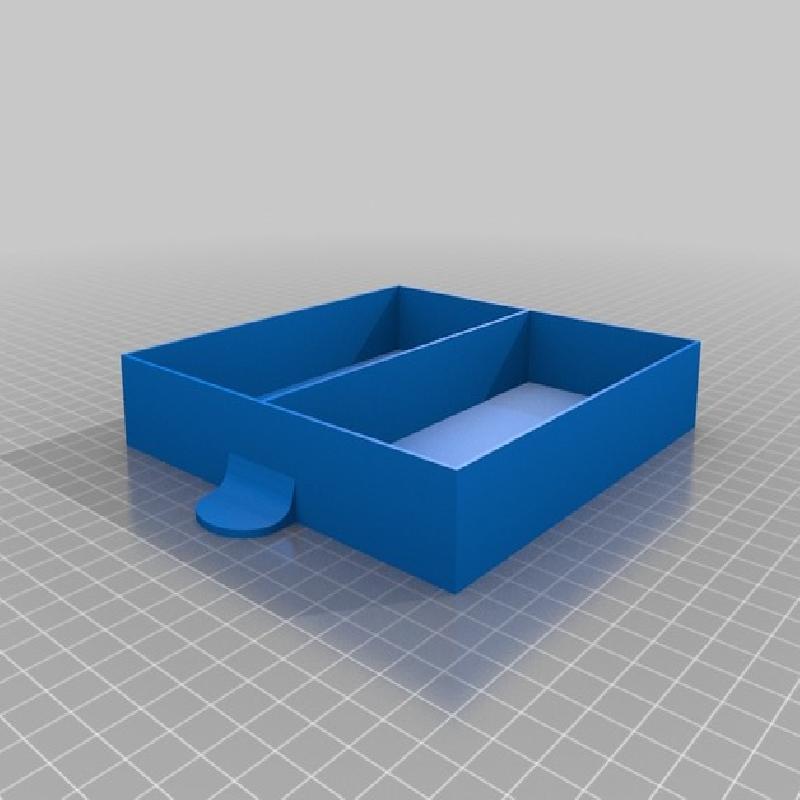

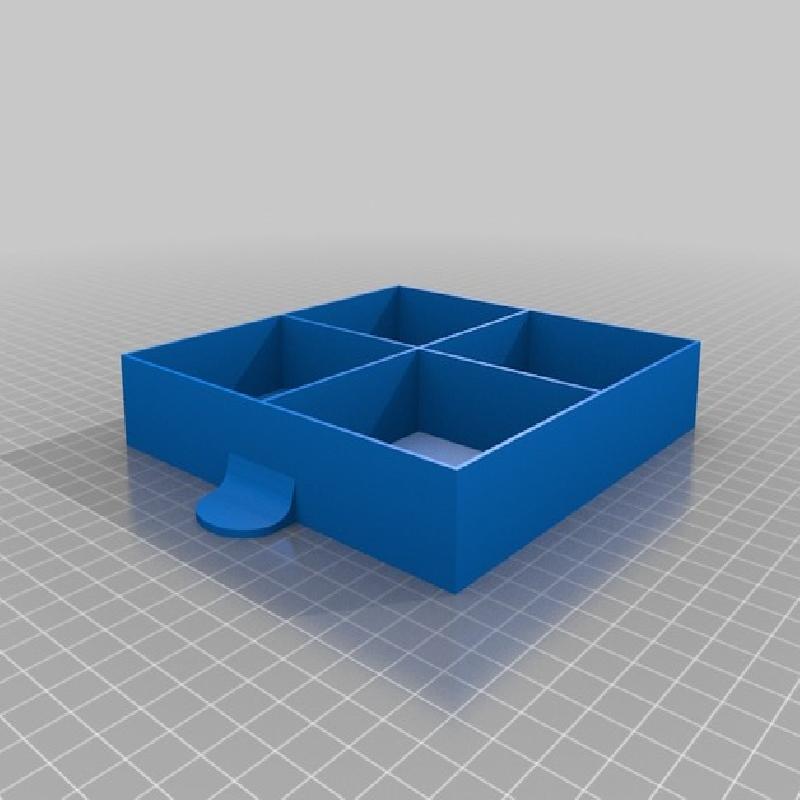

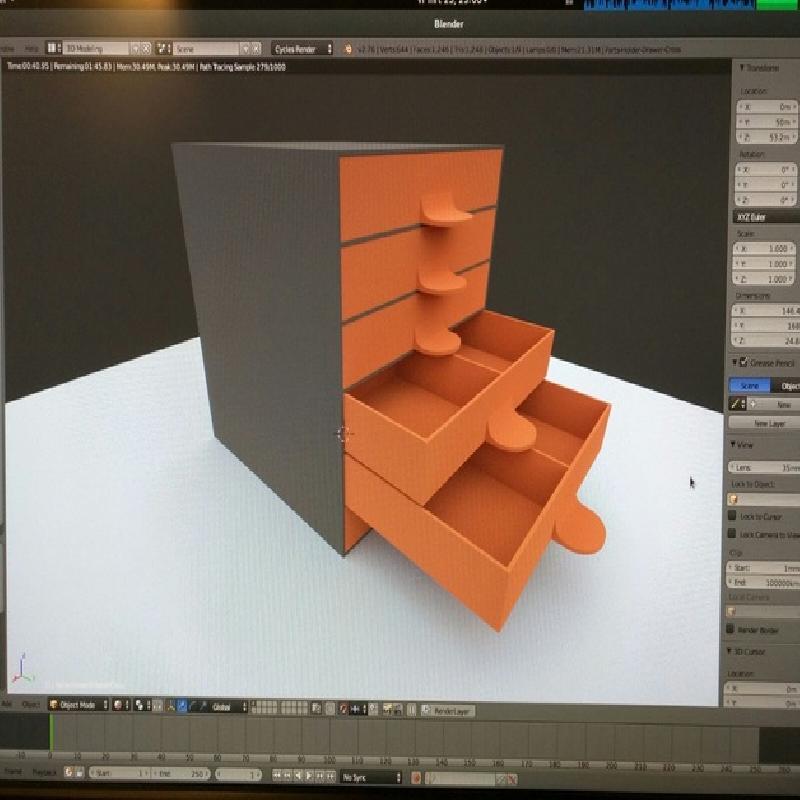

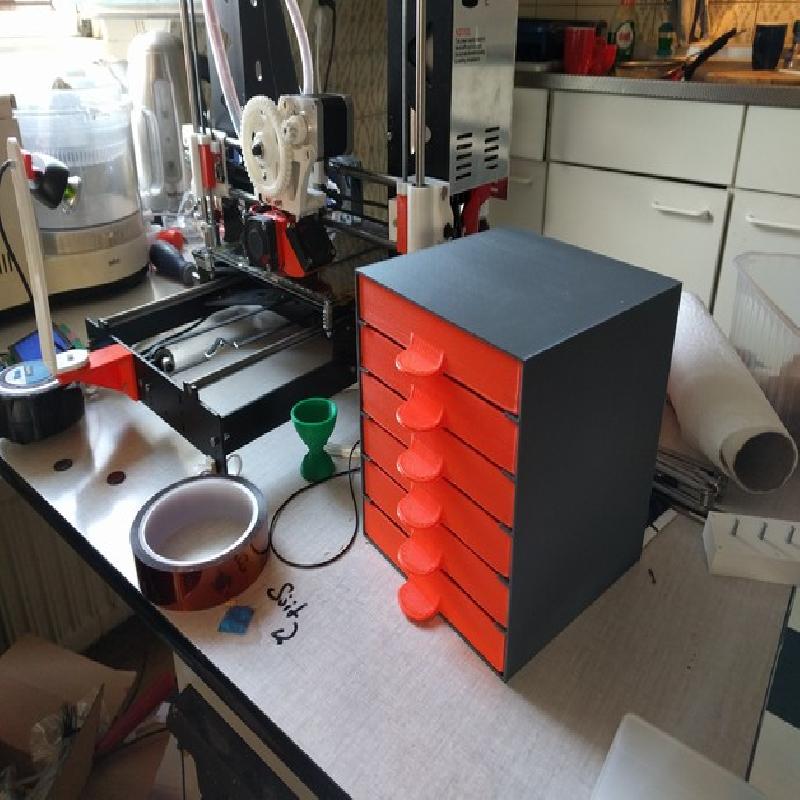

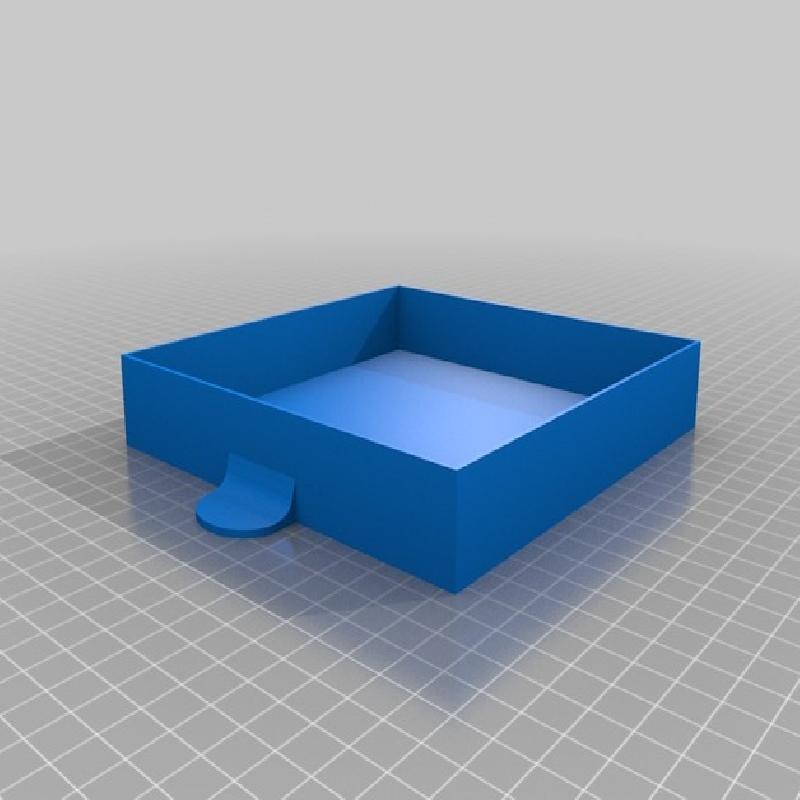

A not so tiny parts drawer cabinet.
It barely fits my build platform when using a 15 line brim.

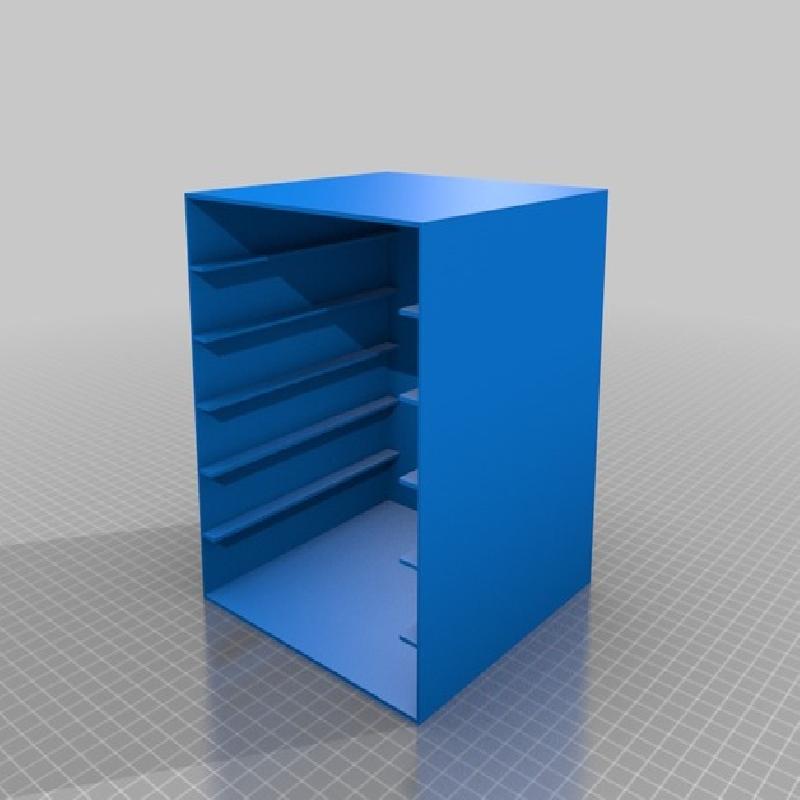

Note that the top of the drawers is not sealed off!
This has as an advantage that it's easier to slice.
Because layer change occurs at the same spot, prints generally come out nicer.
This does mean however that small flat parts like washers and nuts can slip through when the cabinet is not being kept upright!
One could stick some magnetic tape to the bottom of the drawers. (This was actually my mother's idea, how cool is that!)
Come to think of it, you could also stick some to the back of the cabinet and the drawers, so they won't fall out.
Please share your makes, I'd love to see your prints!
Printer Brand: RepRap
Printer: P3Steel
Rafts: No
Supports: No
Resolution: 0.3
Notes:
0.4mm Nozzle. 0.8mm Shell thickness. 1.6mm Bottom thickness. 15 line brim. Sliced with Cura.
