Background:
After how everyone liked my original comfort grip using both joycons, I edited my design and combined it with 3dBotMaker's single grip (http://www.semaker.com/productdetail/7160)
I have made a few different designs so far, will upload more as time goes on.
Edit 04/29/18: I didn't like the angles of my first design. I have taken those files down and will reupload soon.

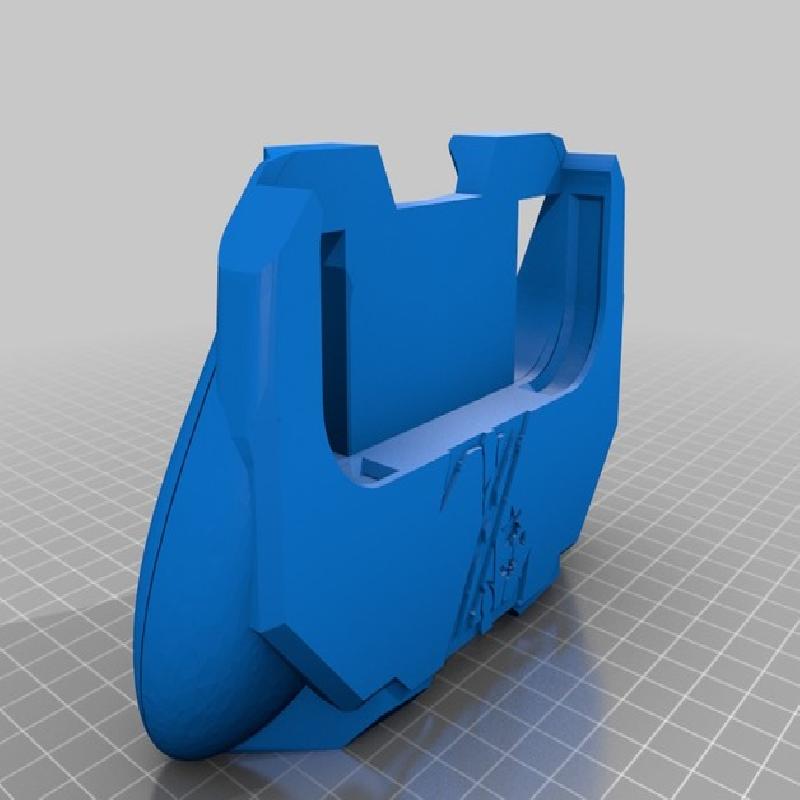

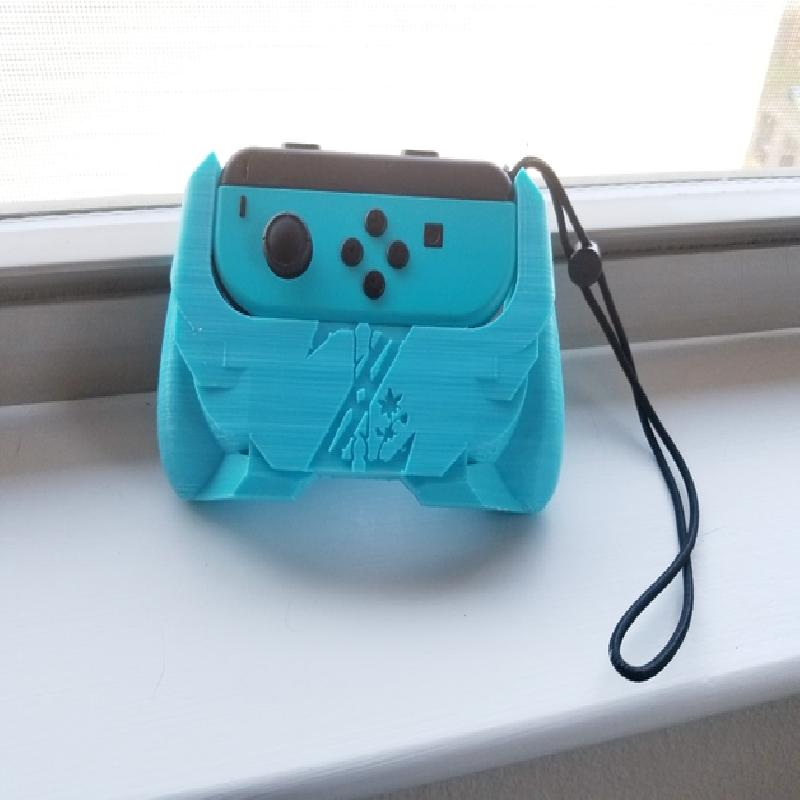

Edit 04/29/18 #2: Files should be back up with better design of the face. I'll post picks as soon as I can!

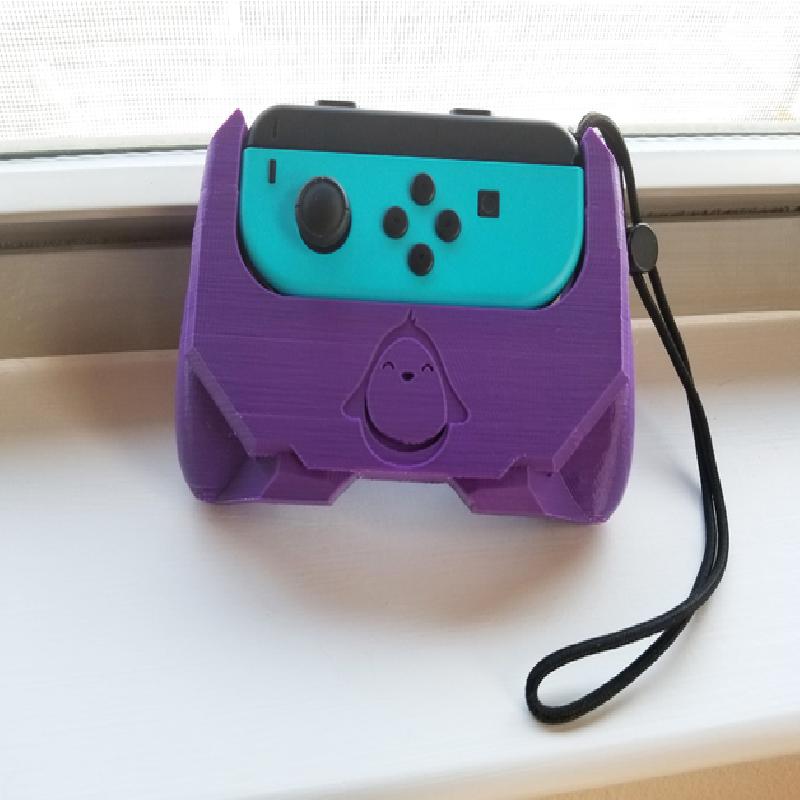

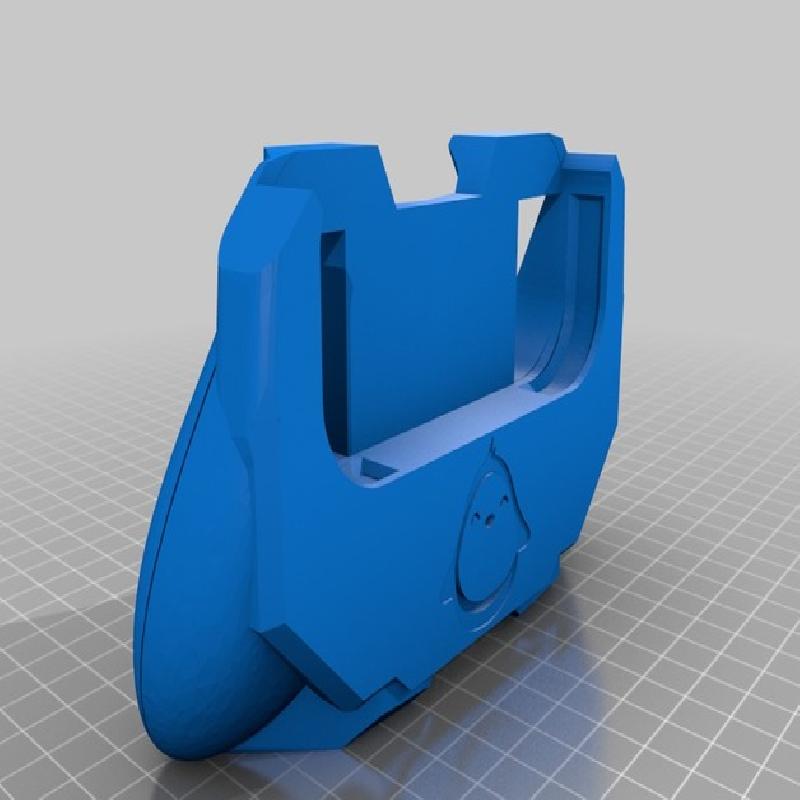

Edit 04/29/18 #3: Made a penguin in the new face design for my wife. Looks alot better. Might still make another style of the grip. Need to play some mario kart for testing. Will let you guys know.
Notes:
This design needs to be printed upright and will need supports. I have included my s3d support file if anyone wants to use it.
Rotating the grip 45° on the Z axis when printing helped me at least for getting the first layer to stick.
You shouldn't have to sand or trim the finished print other than remove supports. Just joycon shoulder trigger first into a slot and until it clicks and locks. Print and Play!
To remove the joycon, press the back of the joycon without the trigger from the backside of the grip and it should pop out easy.
Printer Brand:
Wanhao
Printer:
Rafts:
No
Supports:
Yes
Resolution:
0.20
Infill:
20%
