by BleedTheWay, publishedMay 3, 2018

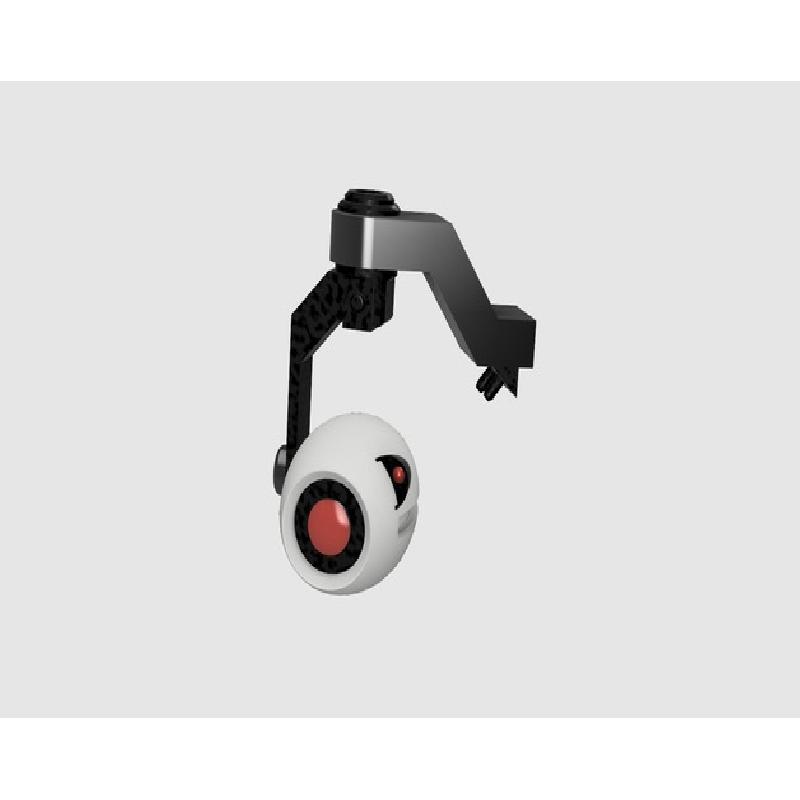

First Upload! Recently started learning Fusion 360 last weekend and decided to take a crack at making a Portal security camera.

I do plan on making some final adjustments to look a bit more like the model in game, and potentially some different ways of hanging the model, such as places for magnets in the wall arm piece.

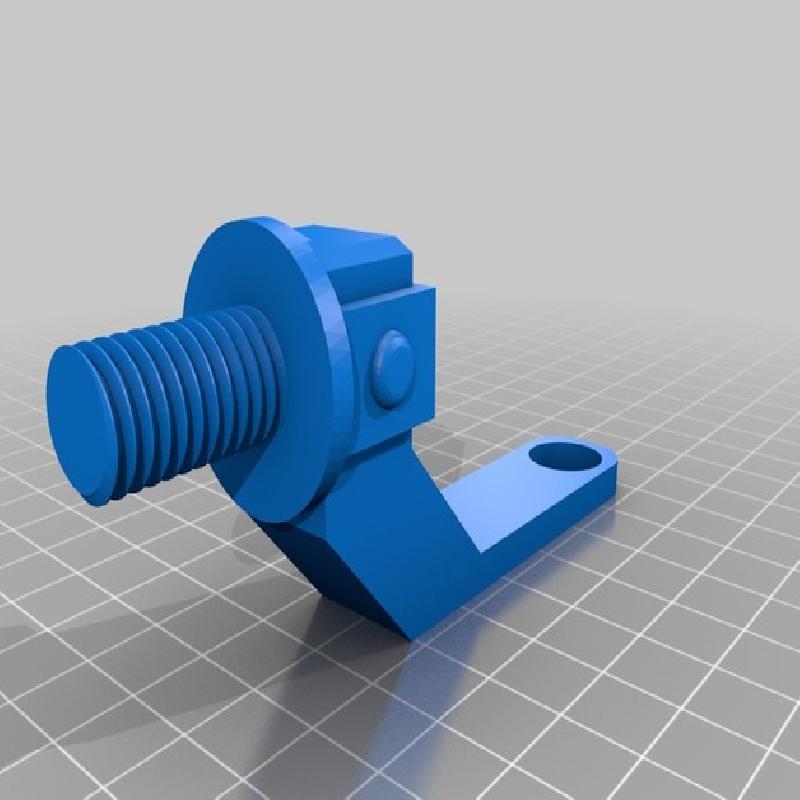

This print is designed so the pieces are press fit, and the main piece connections are threaded. You can position the camera at pretty much any angle you want. No glue on any of the parts in my print. There is about a .1mm tolerance between pieces, so you may have to play with the sizing a little bit to get them to fit together, or just print the smaller parts at maybe 98% to 99% and use glue if they are loose.

Print Settings

Printer Brand:

Prusa

Printer:

i3 MK3

Resolution:

.2

Infill:

10%

Notes:

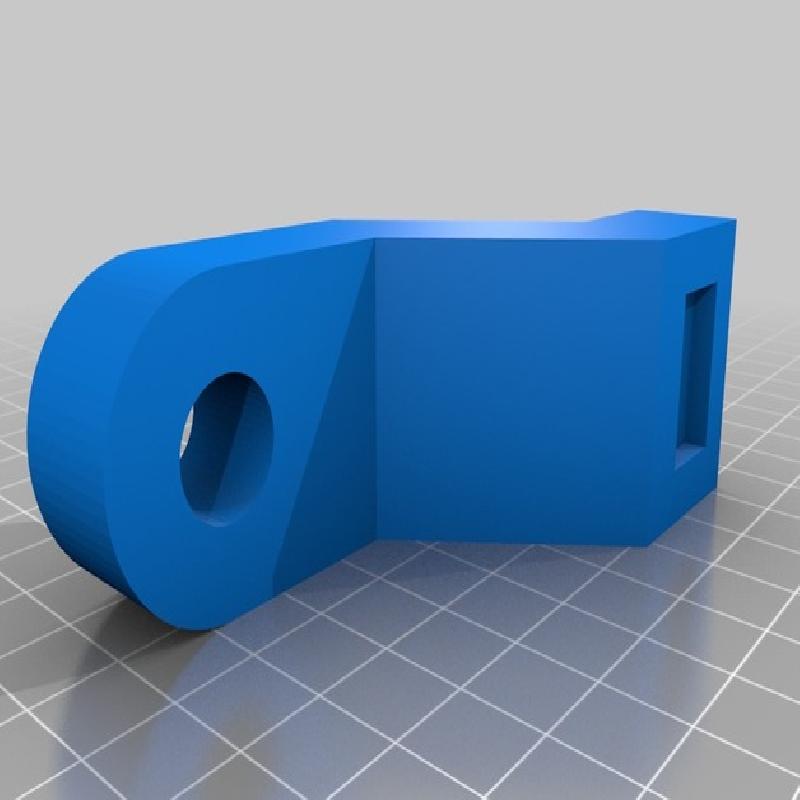

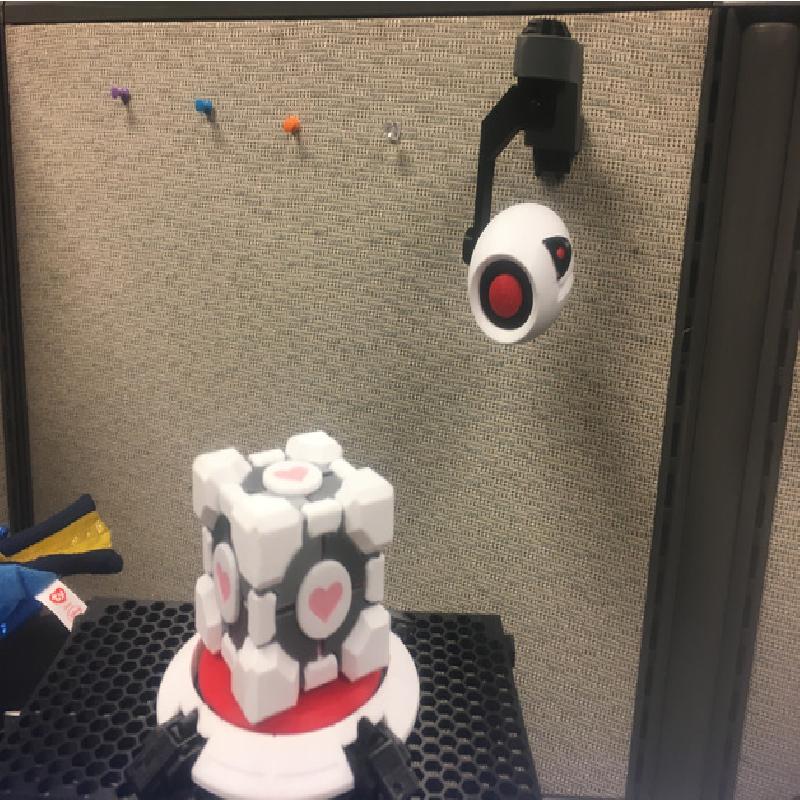

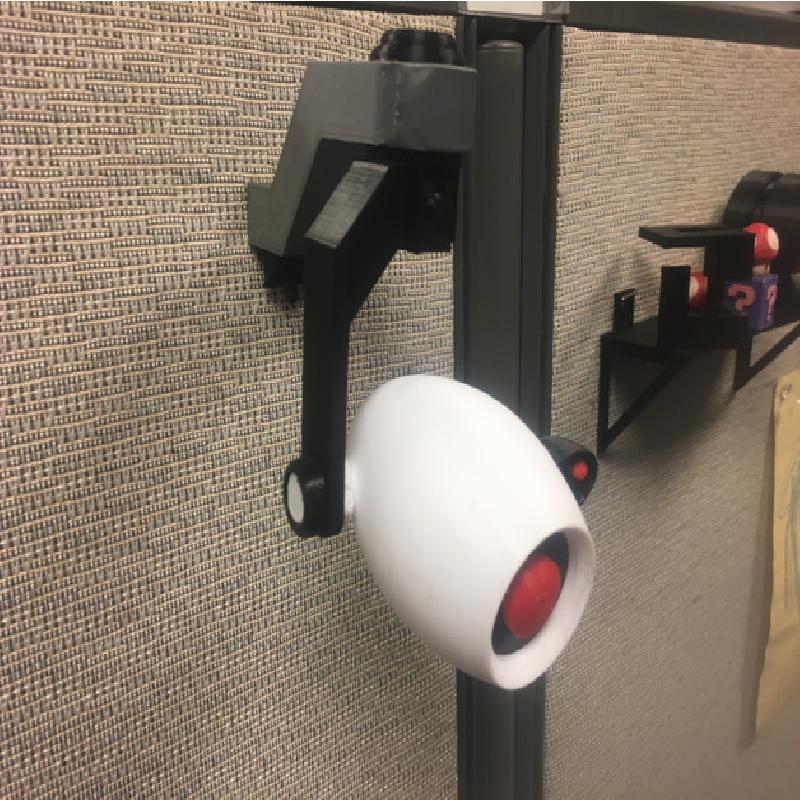

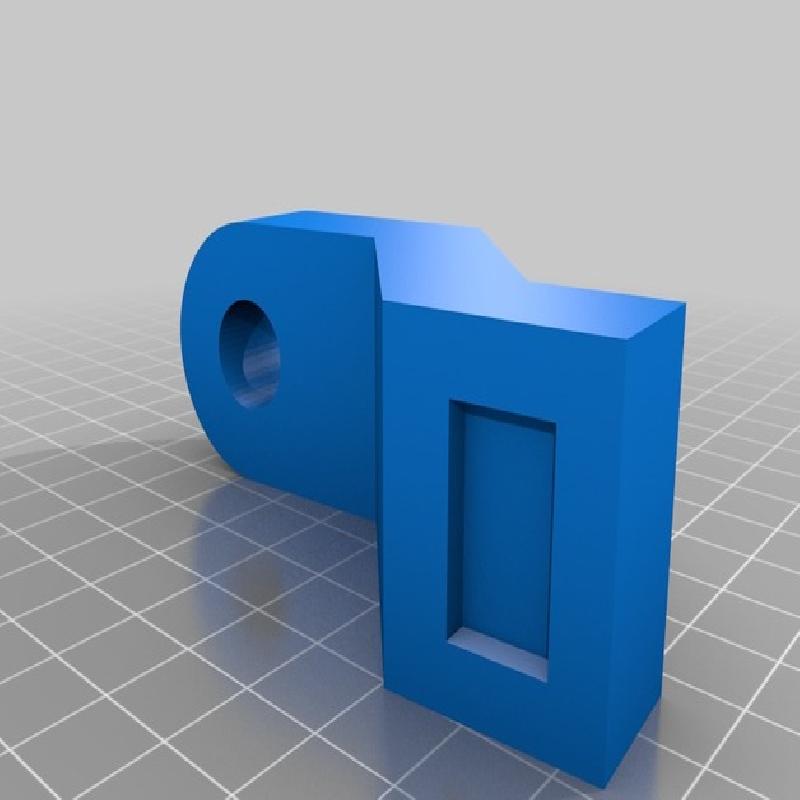

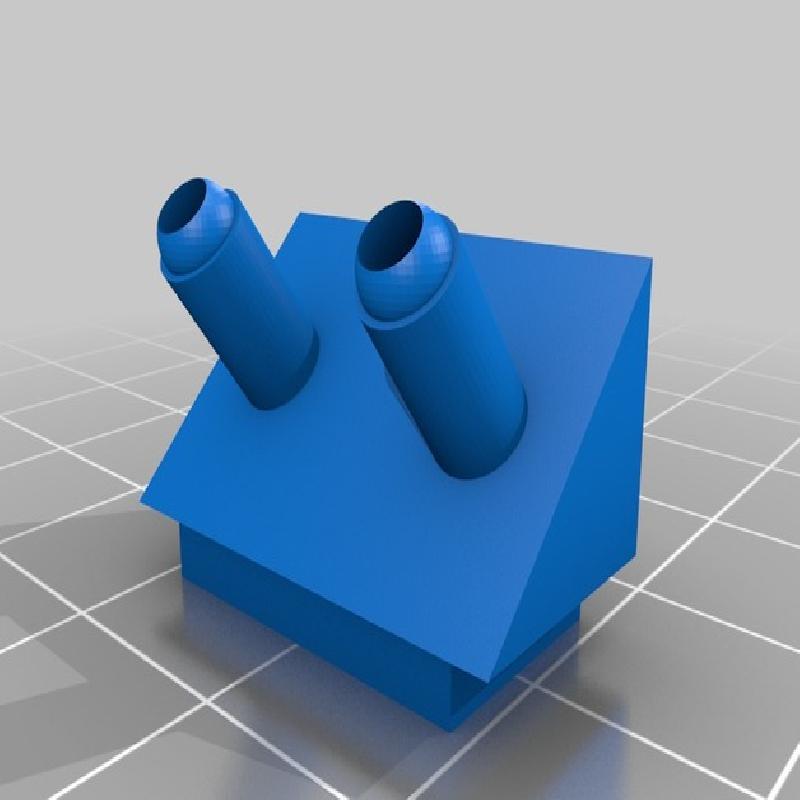

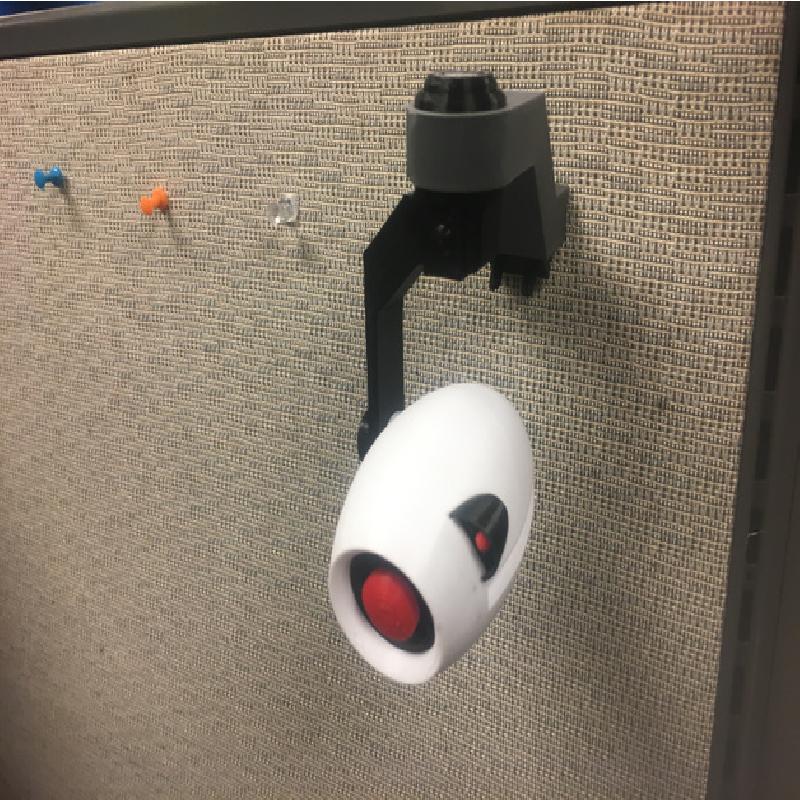

Print one of every file, EXCEPT the Wall-Arm Piece. I provided a blank Wall-Arm piece, and one with holes in it that you can use to hang the print on a cubicle wall or other place using those T shaped pins you find in office settings regularly.

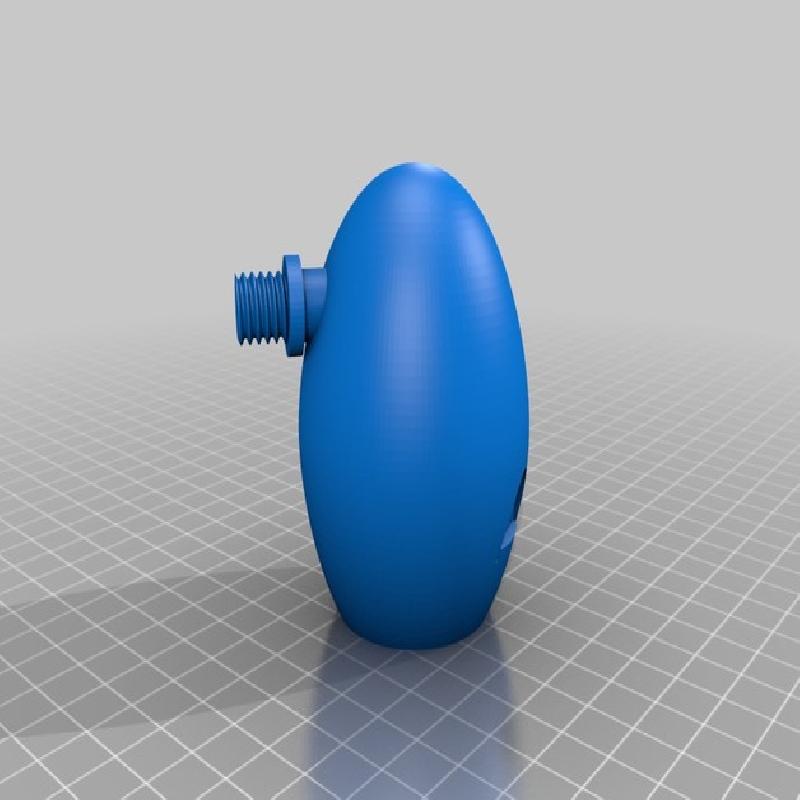

The Camera-Body, Camera-Body-Side-Piece, Camera-Arm, and Wall-Arm-Bottom-Piece will need supports.
