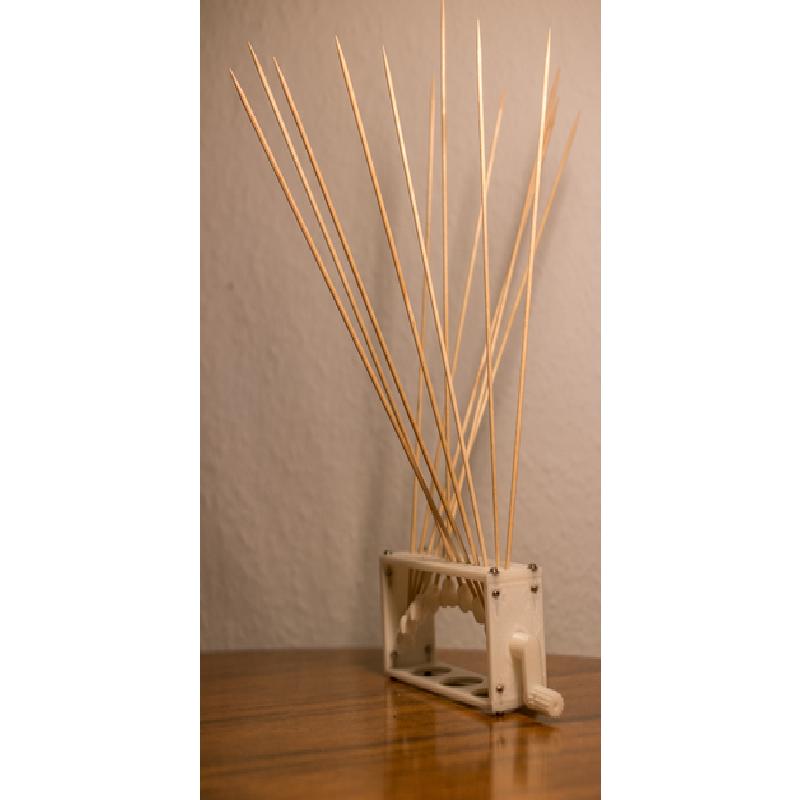

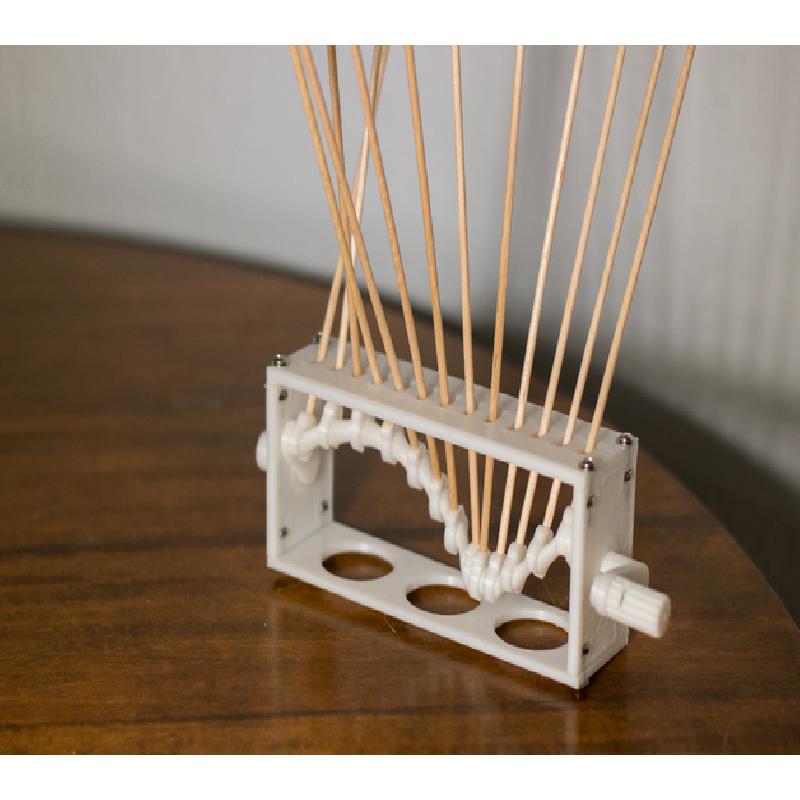

Wave is a kinetic art prototype I designed in a day to test an idea for the start of a modular 3D printed art piece. Currently, the design is made to be turned by hand but am working on making it motorised as well as modular so that multiple pieces can be connected together to make a much larger kinetic sculpture. The design uses bamboo skewers as blades. Print all parts flat and the cam standing vertically. I recommend printing the cam at 100% infill with no support. If you have any questions or request just let me know in the comments.
Printed parts needed

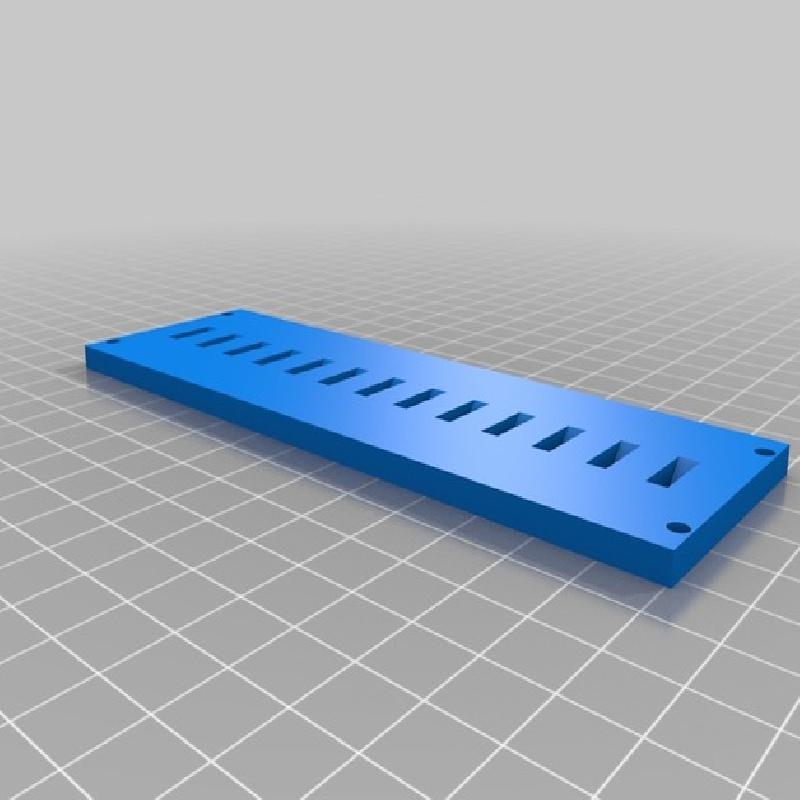

Top x1

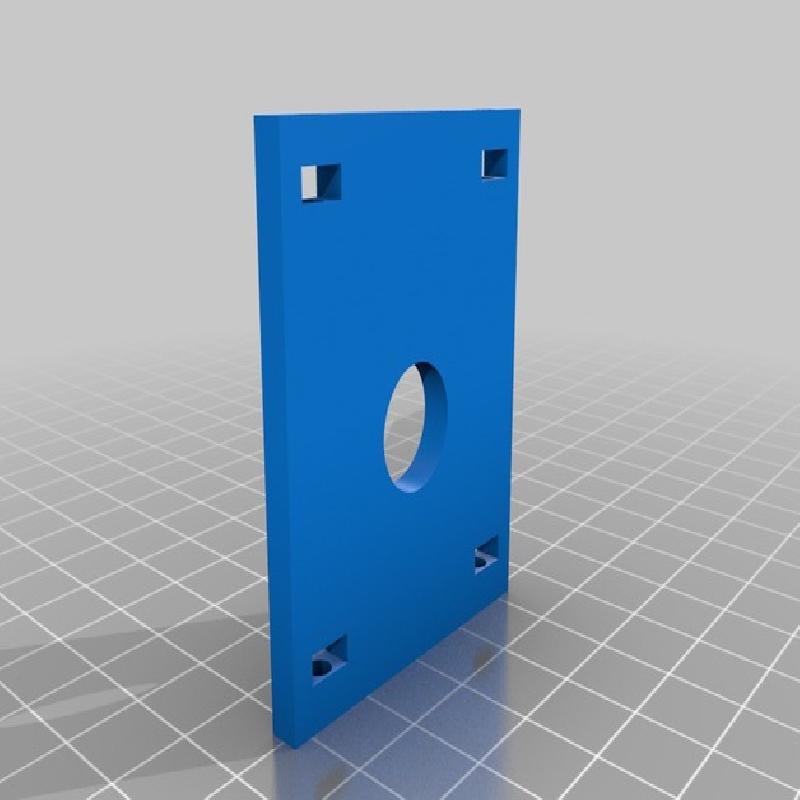

Side x2

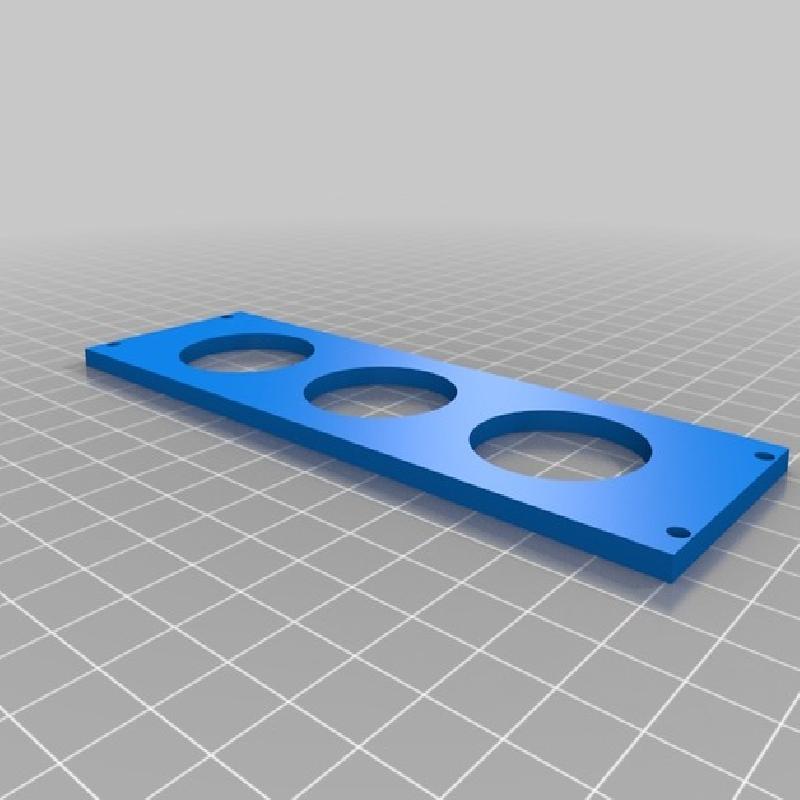

Bottom x1

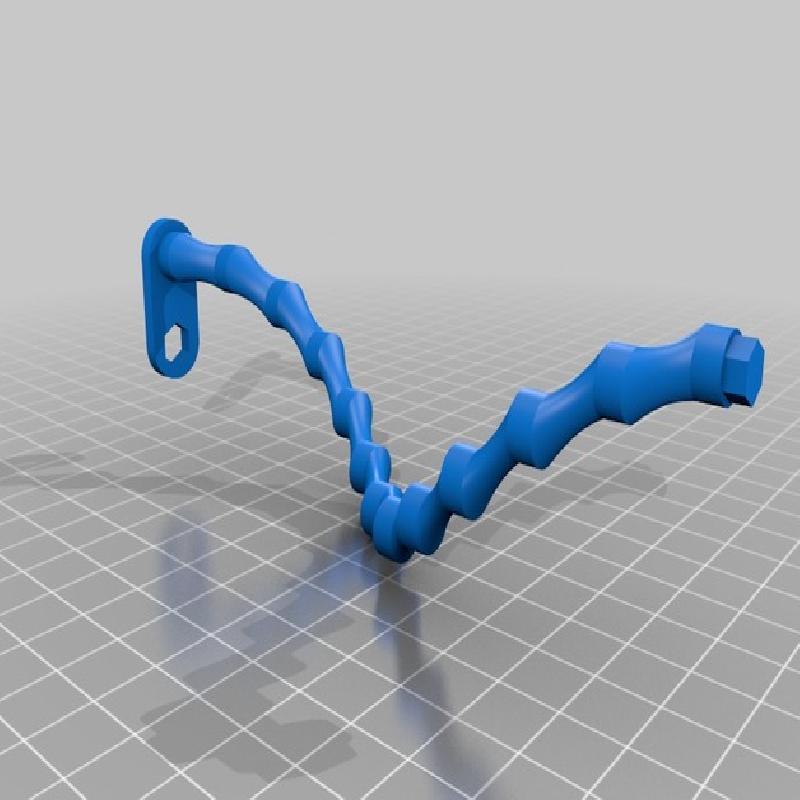

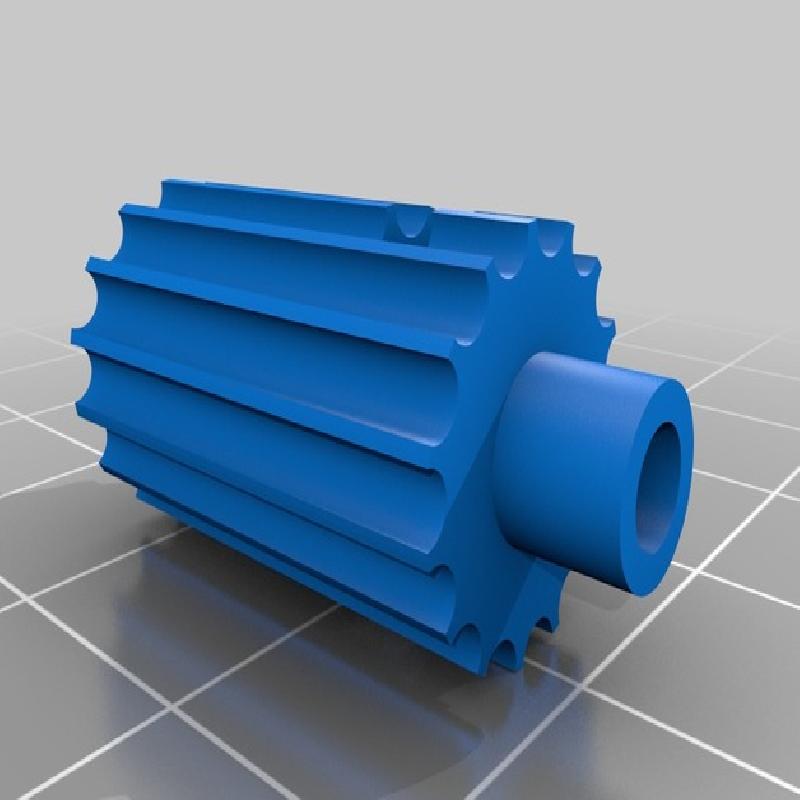

Cam x1

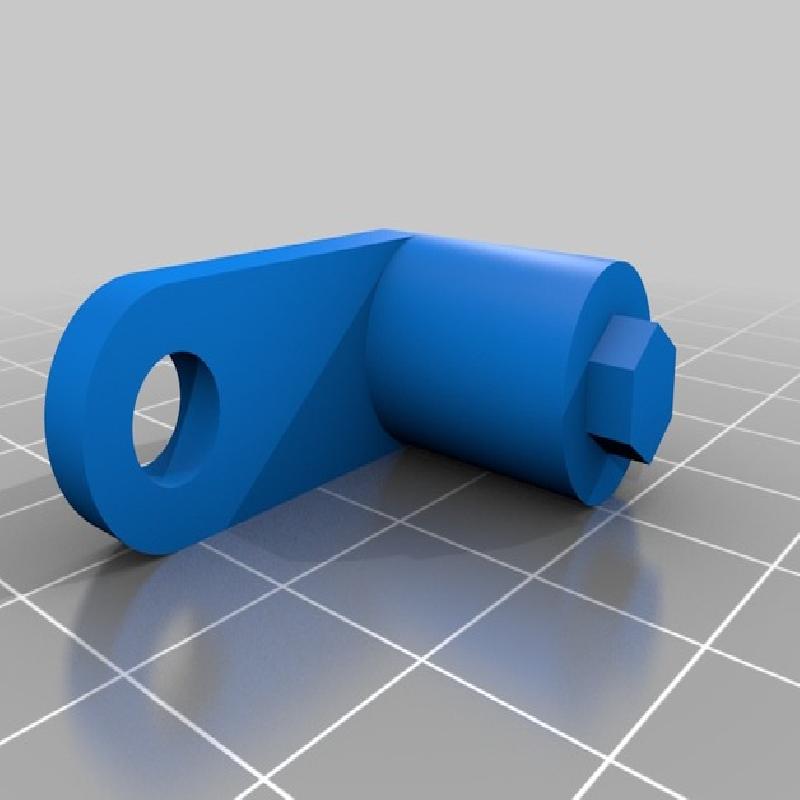

Crank x1
Crankhandle x1

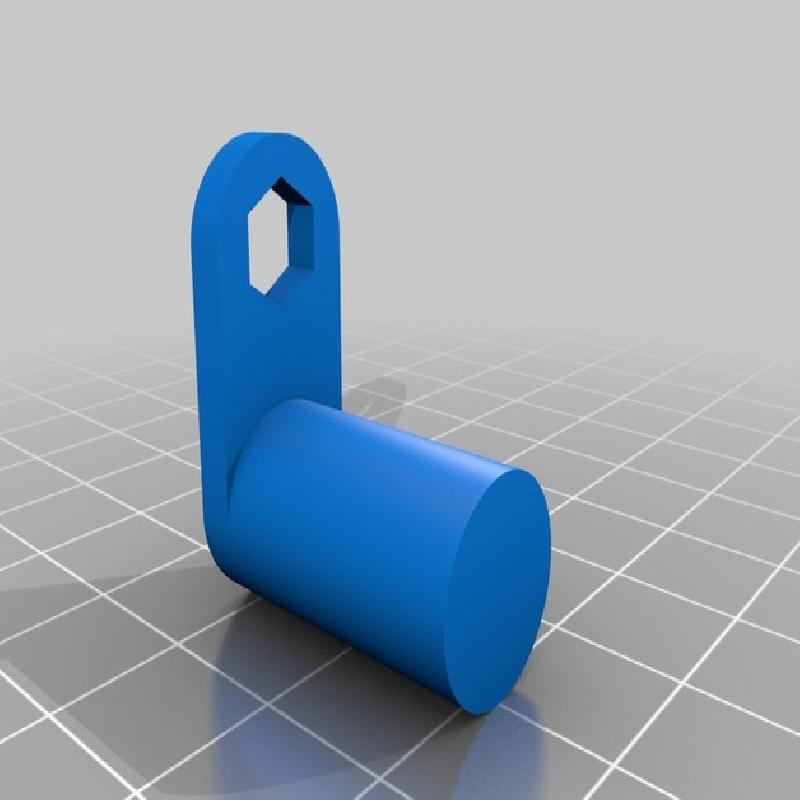

CrankB x1

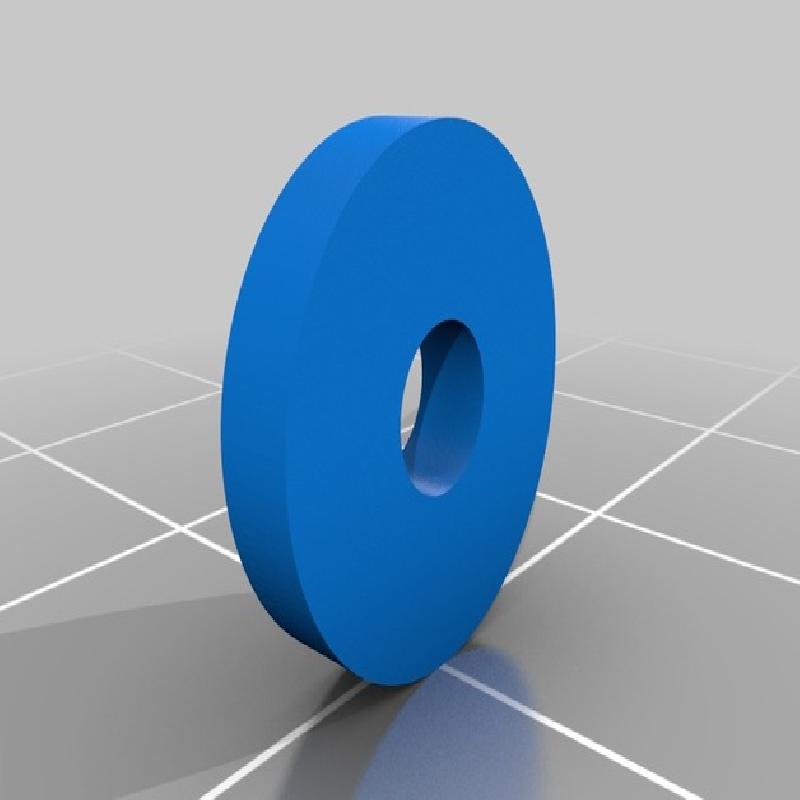

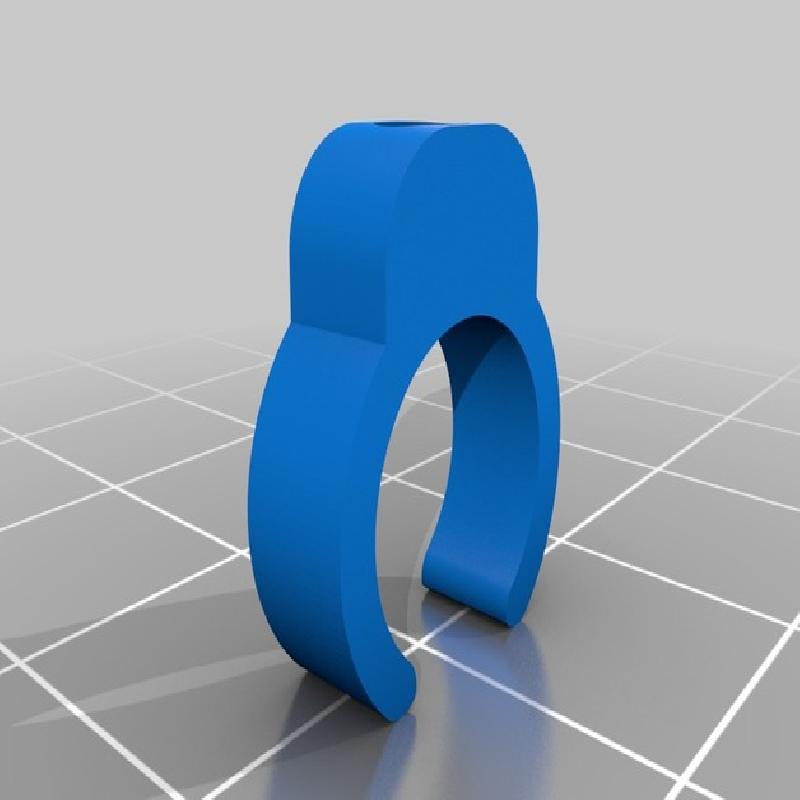

Cam follower x13
CH retainer x1
Non-printed parts
M3x12 x9
M3 washer x9
M3 nut x9
Bamboo skewers x13
