by ChaosCoreTech, published
If you want more information and to see it more closely, watch this video: https://youtu.be/Za5byBQs0I4

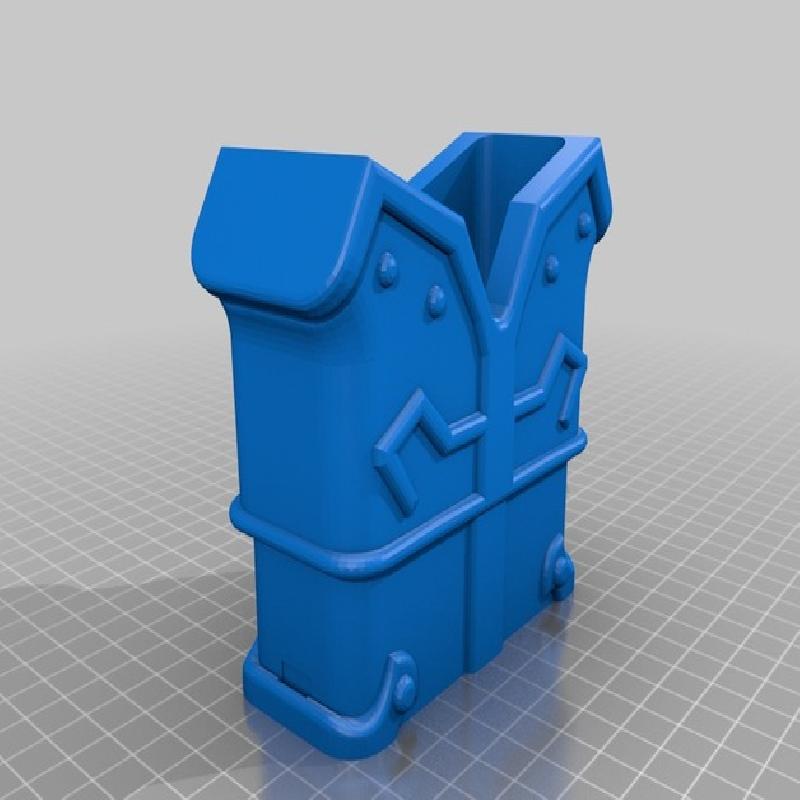

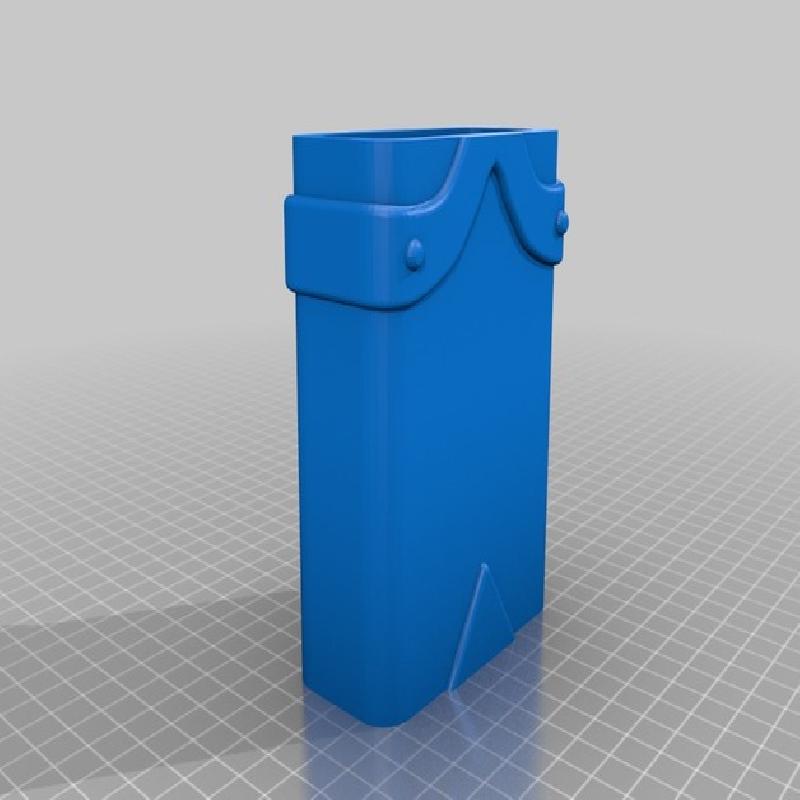

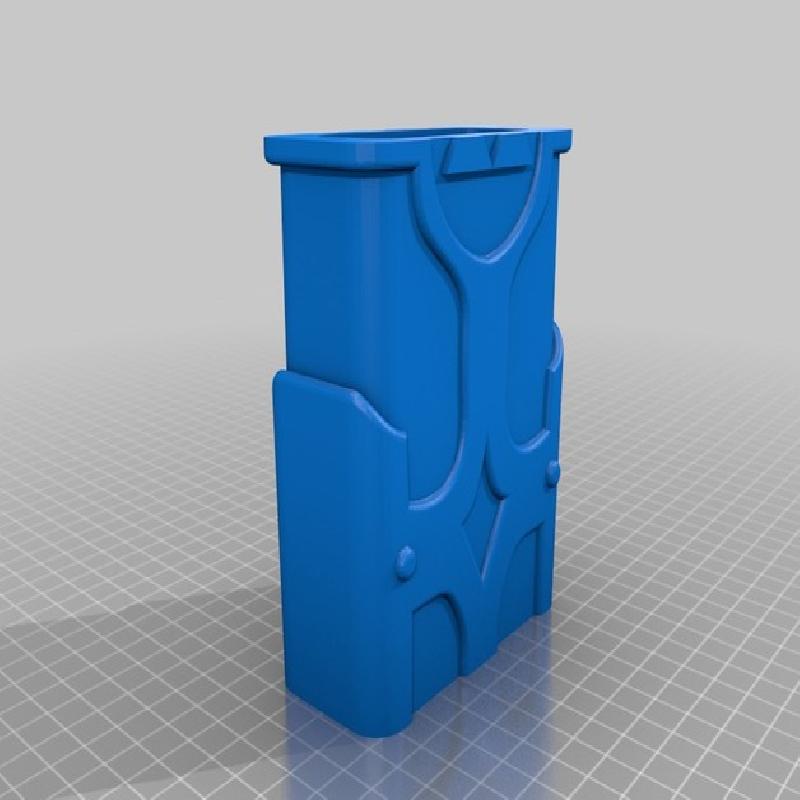

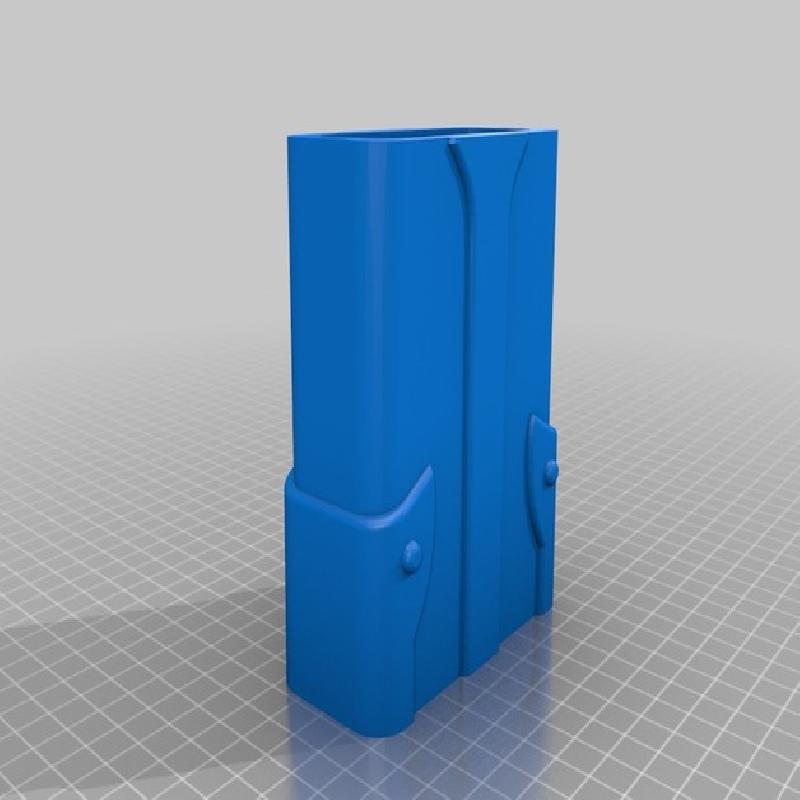

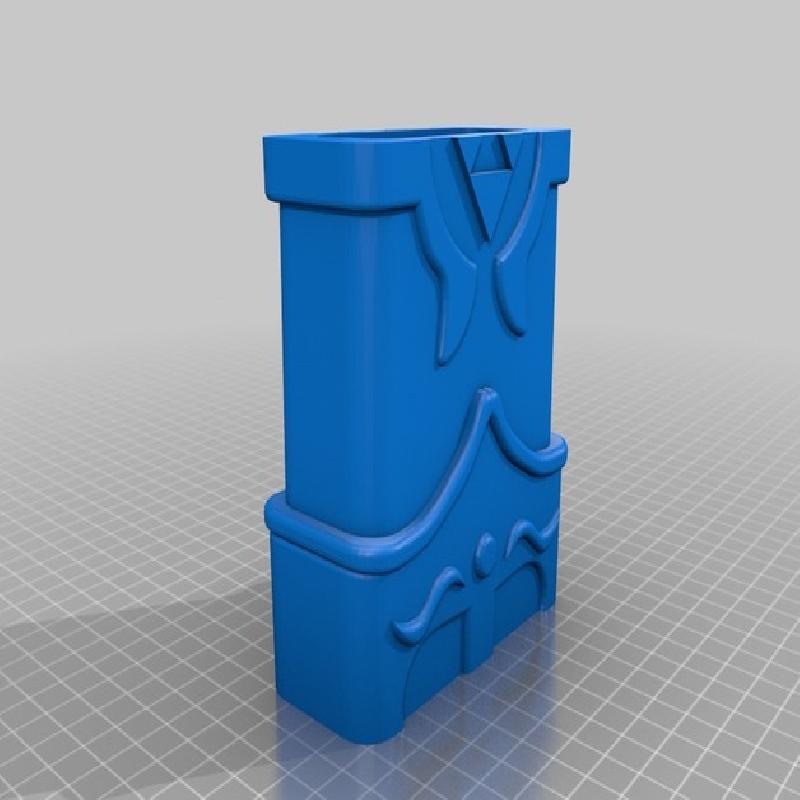

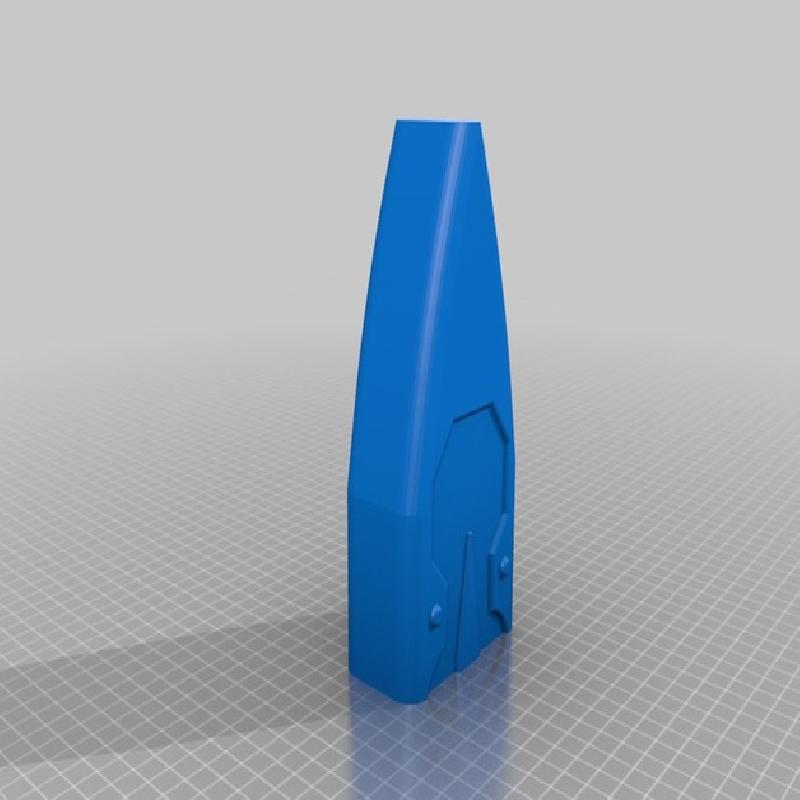

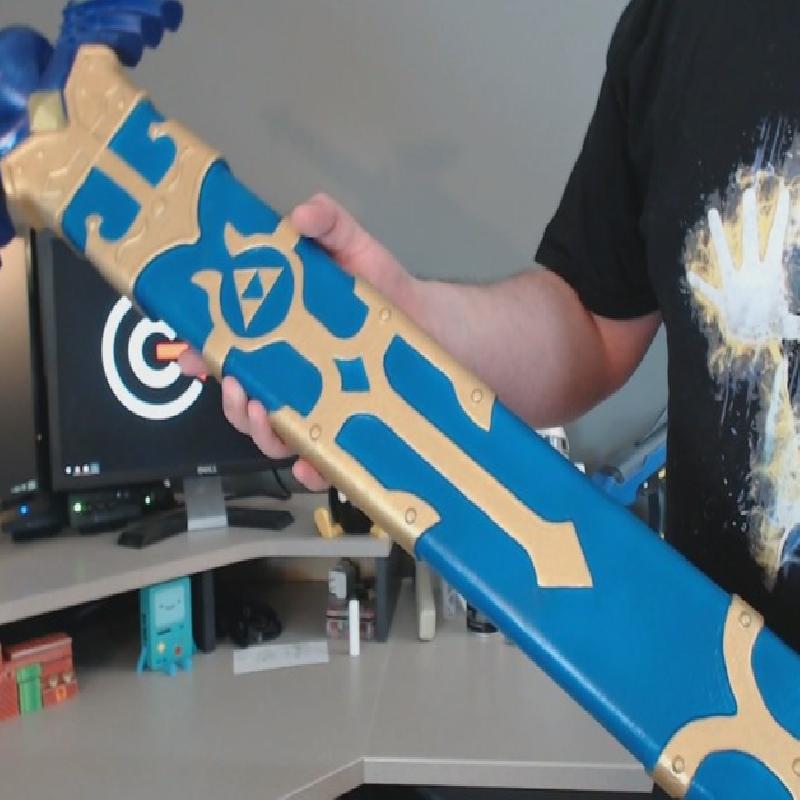

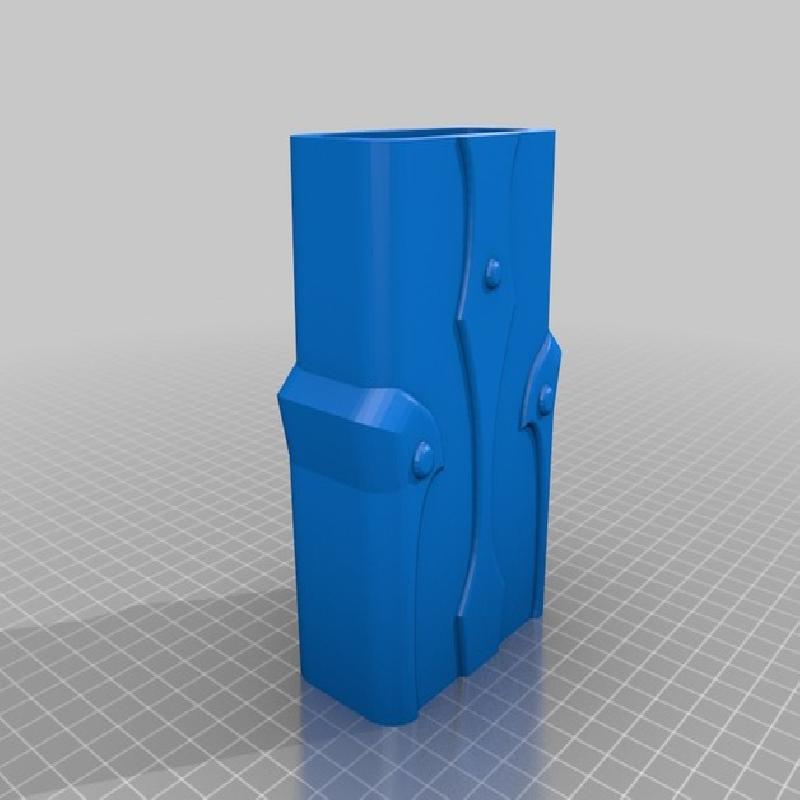

I created this sheath in Fusion 360 along with the sword. I printed this on my Robo 3D R1 using Hatchbox White PLA. The settings I used for this are listed below. The whole thing took about 14 hours to print.
Print Settings:
Layer Height: 0.3mm
Infill: 20%
Supports: No
Raft: No
Post-Processing:

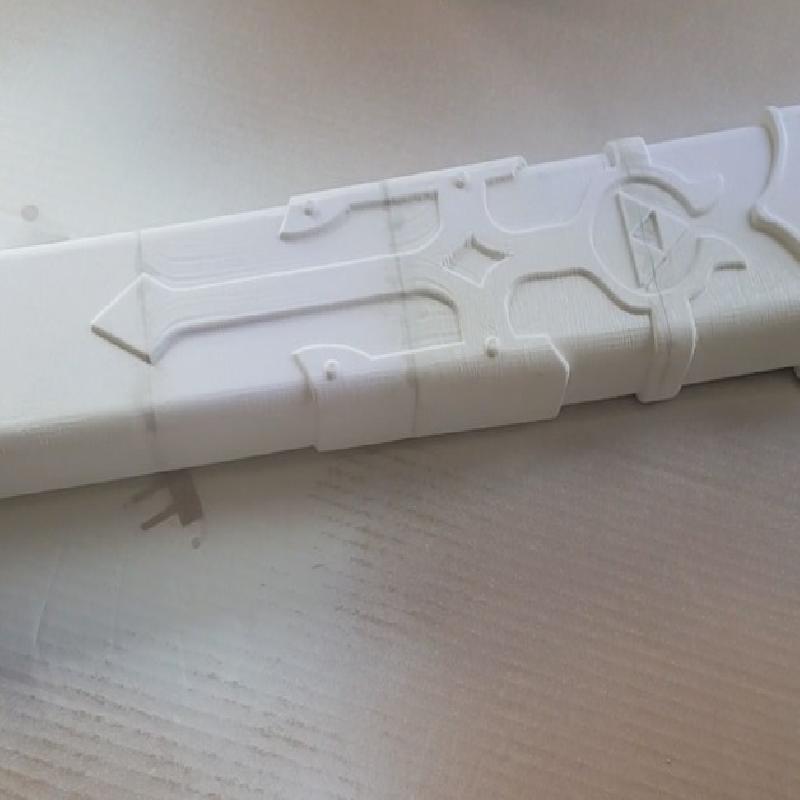

Step 1: Print and Assemble. Print all the pieces out and use the keys provided to position everything correctly.
Step 2: Glue. Use Super Glue to glue all of the pieces in place. Let them sit until the glue completely sets up. We let ours sits for several days.
Step 3: Hide the seams. We used Loctite repair putty and just smeared it on the seams in order to cover them up.
Step 4: Sanding. Sand any rough spots and make sure to get the repair putty sanded down flush with the rest of the sheath.
Step 5: Prime. Apply a couple coats of plastic primer, letting it dry completely after each coat.
Step 6: Paint the blue sections. We used an airbrush for this, but any painting technique can be used.

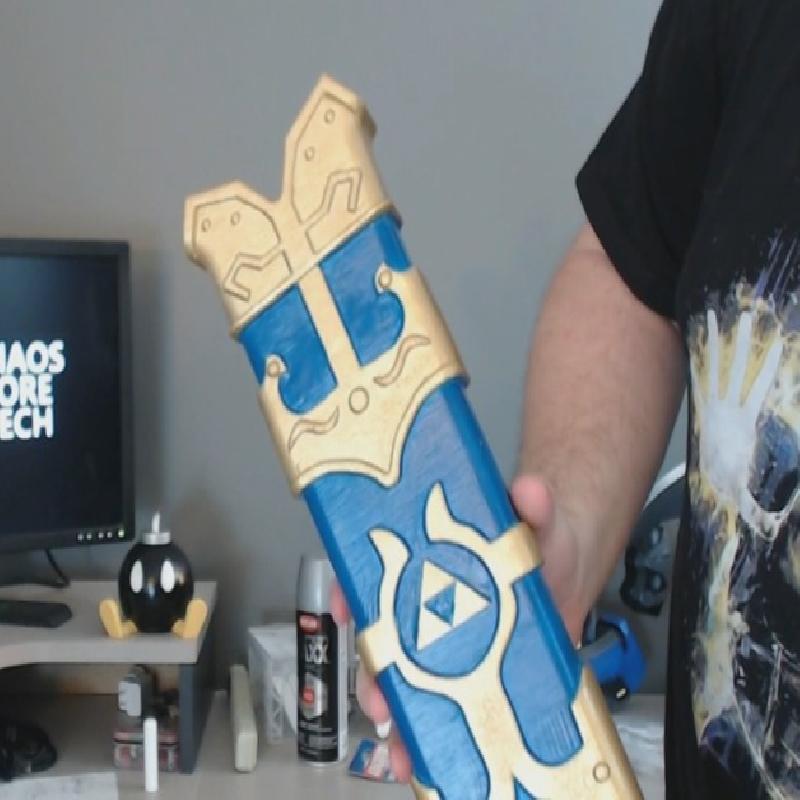

Step 7: Paint the gold. Again, any technique can be used, but we went with a small painting sponge to give it a cool texture and allow for easy coverage on these big areas. Just dip the sponge in the paint and dab it all over the areas you want to paint.
Step 8: Apply some sort of finishing coat to it in order to protect it from damage to the paint.
