These feet were designed and shock-tested for use by a 6-year-old, high-activity, K4 prosthetic foot user by students at the University of Maryland - College Park.
Designs are reversible for use on either side of the body. Designs were modeled around the WillowWood Pediatric Titanium Foot Pyramid.

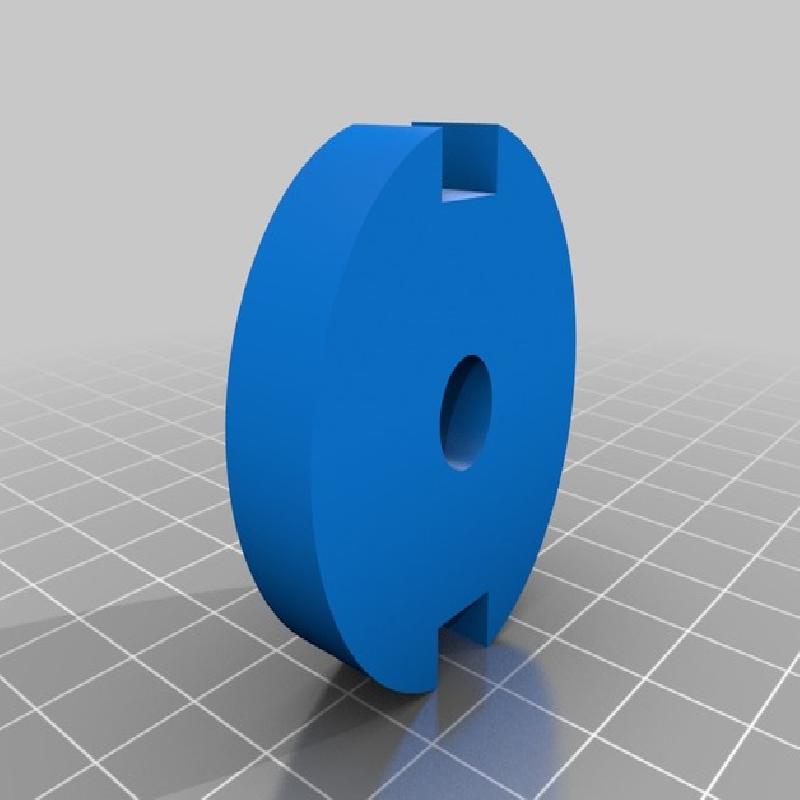

"Mark III" (printed with 45% infill) is paired with a shock absorber that should be printed in a flexible material (CheetahFlex, 17% infill, used in testing).
"Sandal" and "Shoelace" should be printed with 50% infill.
"4-7" has not been fully impact-tested, but estimated print infill is 40-50%.
Designs by: Shelli Bond, Brendon Bondoc, Cherie Landa, Dylan Taira
Printer Brand:
MakerBot
Printer:
Rafts:
Yes
Supports:
Yes
Resolution:
.2mm
Infill:
40 - 50%
