Winnie-the-Pooh, also called Pooh Bear, is a fictional anthropomorphic teddy bear created by English author A. A. Milne.
A. A. Milne named the character Winnie-the-Pooh after a teddy bear owned by his son, Christopher Robin Milne, who was the basis for the character Christopher Robin. The rest of Christopher Robin Milne's toys – Piglet, Eeyore, Kanga, Roo, and Tigger – were incorporated into Milne's stories. Two more characters, Owl and Rabbit, were created by Milne's imagination, while Gopher was added to the Disney version.
No supports are required. If you have the proper filament colors, no painting is needed.

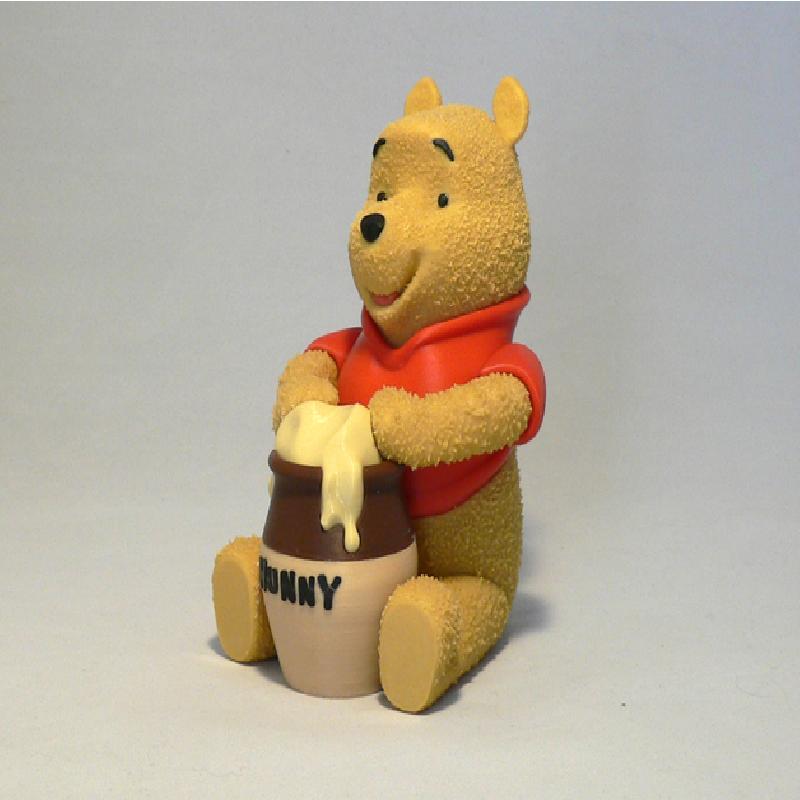

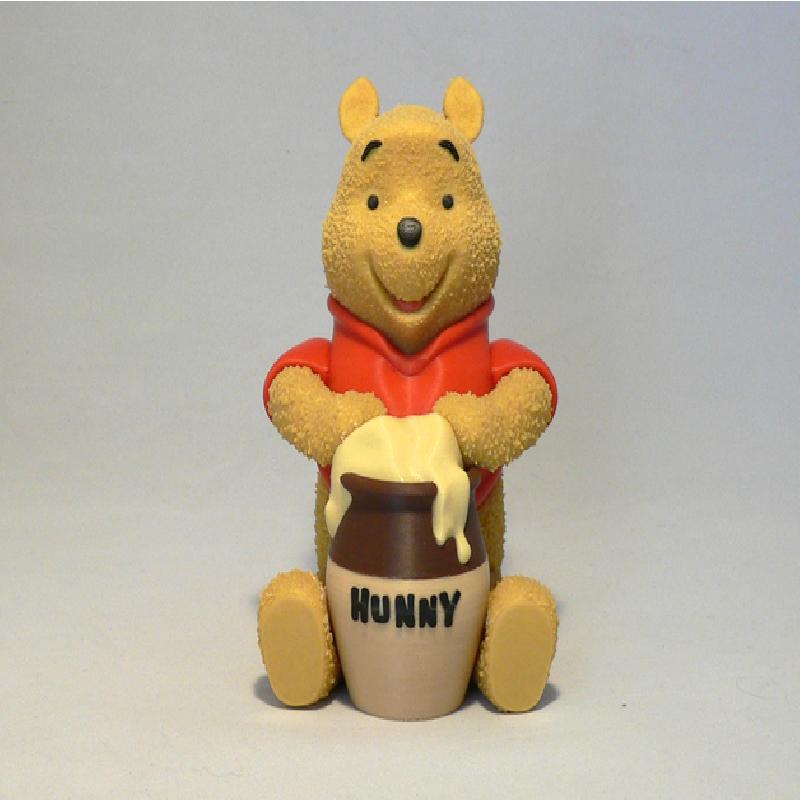

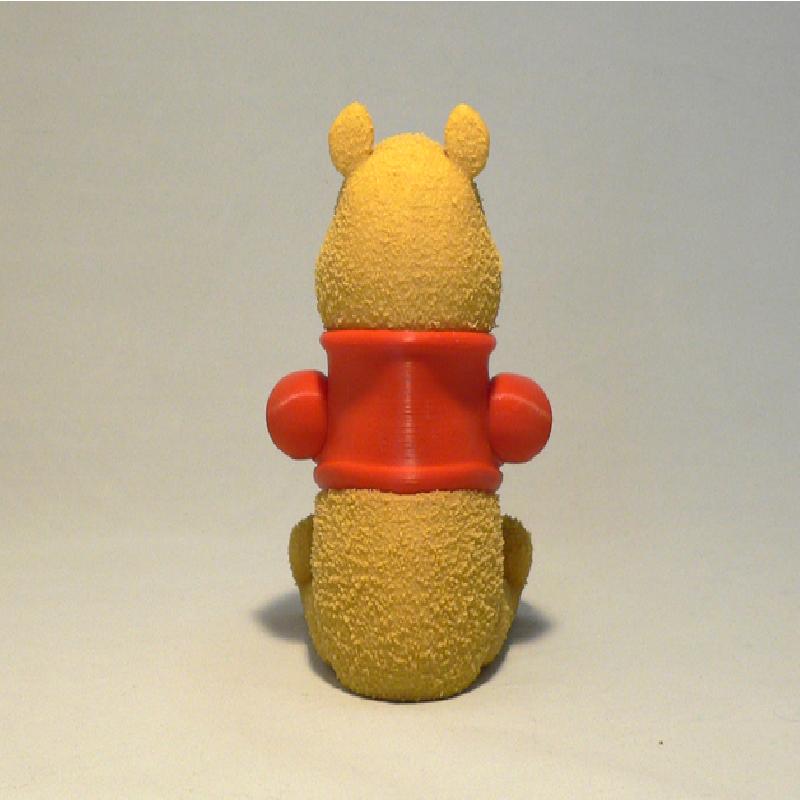

The assembled model is 140mm tall
**Note: Even though my slicer had no issues with this model, I found that other slicers did not handle some parts well. I updated three parts and added "_new" to them. If you have any slicing issues, please download these parts. I've removed the original ones.
Enjoy!
Printer:
FlashForge Creator X
Rafts:
No
Supports:
No
Resolution:
.2mm
Infill:
10%
Notes:
Refer to the notes below for helpful printing and assembly instructions.
Colors (there are no multiple printed pieces)
Black:
nose
eyebrow_right
eyebrow_left
eye_right
eye_left
hunny_text
..
Red:
shirt_new
tongue
sleeve_right
sleeve_left
..
Gold:
head
body_new
arm_right_new
arm_left
leg_right
leg_left
..
Dark Brown:
jar_top
..
Light Brown:
jar_bottom
..
Woodchip (color worked out for me):
honey
Printing and assembly tips
Printing tips
1-As with most of my models, I strive to make all the pieces support free. The interesting thing about this model is that I initially could not design the head piece completely support free around the mouth area. When it came time to print the head, I'm so used to not using supports that I forgot to add the supports to the mouth area. The head printed fine anyway, with a few loose strands in the mouth section that get covered by the tongue.stl part anyway.
2-The parts should fit nicely when printed cleanly or with a slight first layer squish.
3-Please not that due to the texture on all the body parts, print time is increased. Be patient printing those parts.
4-Due to the texture complexity of the body parts, slicing may take longer than expected. Again, be patient and you should have no issue with your slicer.
..
Assembly tips:
1-The left/right eye pieces are slightly different, but are small enough to be interchangeable. I post all my parts exactly as modeled.
2-The hunny_text letters are intentionally printed reversed. I find that they fit better with the flat side facing out. Since the letters are being attached to a slightly curved surface it is a good idea to bend the individual letters slightly before gluing them on to the jar.
3-Refer to the assembly diagram for putting the model together. The model is meant to be glued.

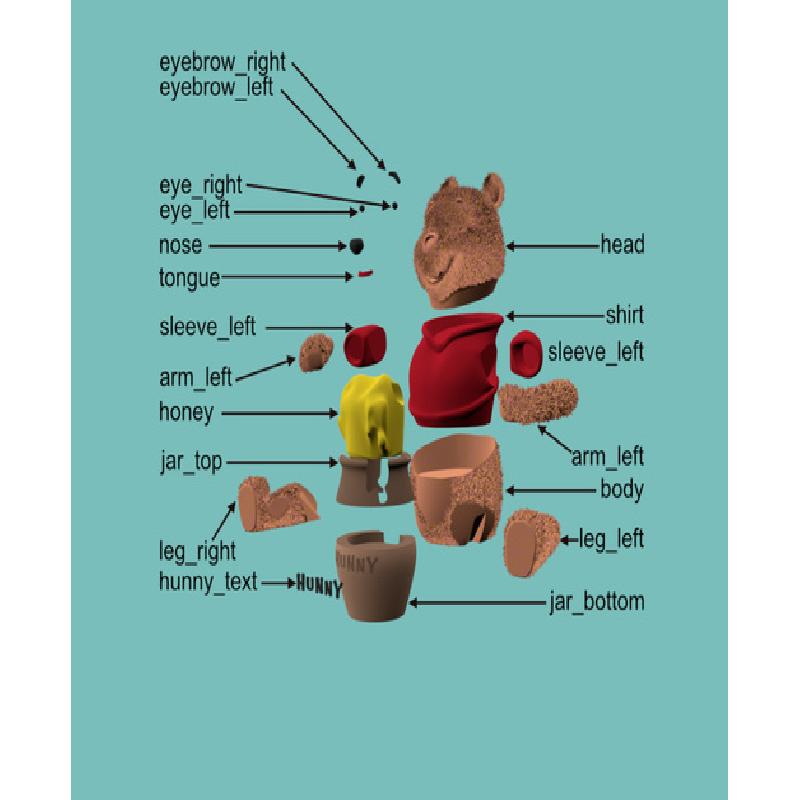

Winnie the Pooh assembly diagram
