by WillPio, published

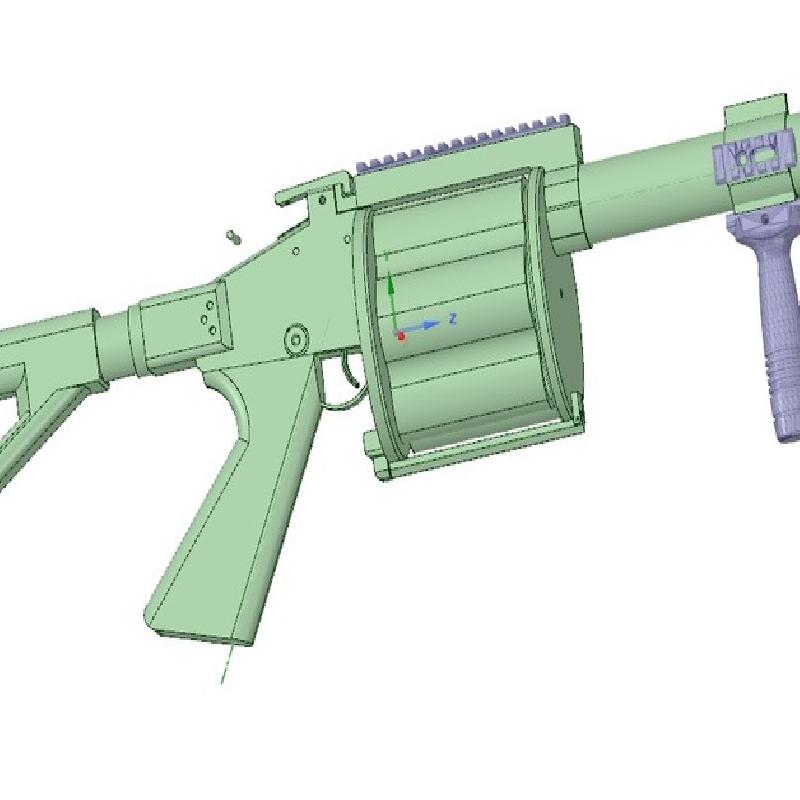

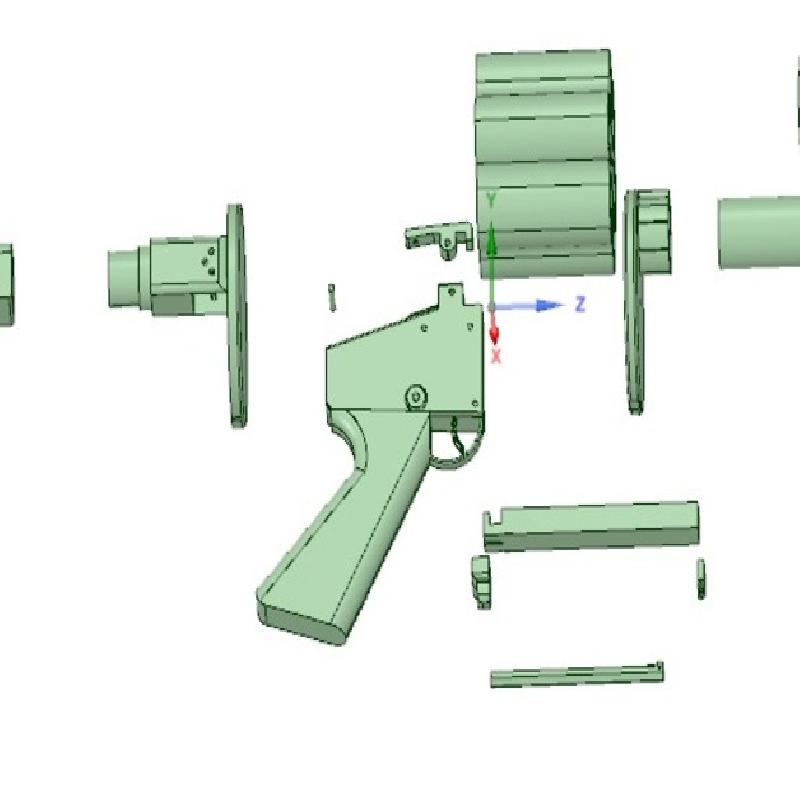

So this model was made by me. This is my second model. What I did was work out the cylinder barrel size and roughly designed the rest of this prop relative to that size. Some sizes will be off, I did modify the look of it a bit. It is ready to have 40 mm dummy grenades fit into it. It is intended to have moving parts.
The grip and picatinny I took off thingiverse just to show an example. Those models are not included in this print.

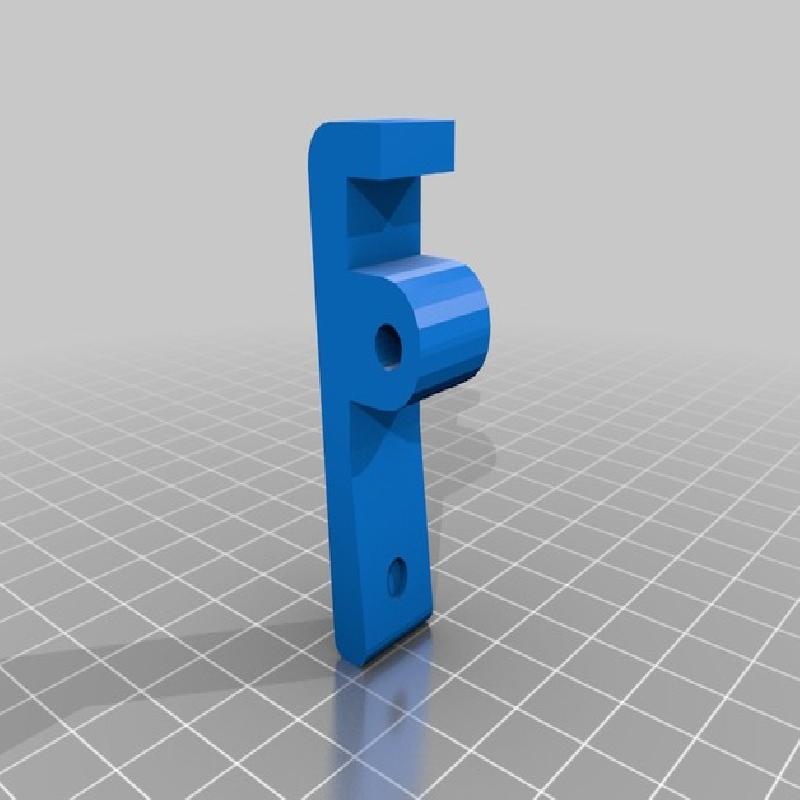

You will need a spring to put under the topclip (lever)

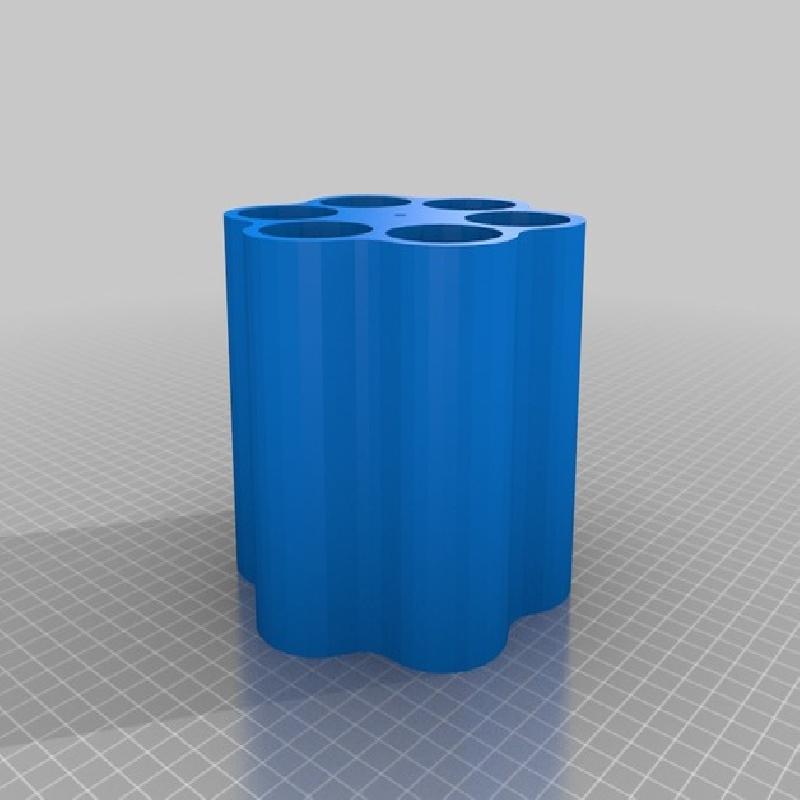

You will need a bolt and bearing to hold the barrel cylinder.
Some parts need gluing together.
You will need bolts to or pins to secure the hinge system.
I didn't orientate the parts as some of you may like to print the parts in different orientation.
I will probably put this item up for sale in my shop:
https://www.etsy.com/au/shop/ALPCreative
https://www.youtube.com/channel/UCnUgkBmiQfixJcNUzDw5YWA
https://www.facebook.com/AandPcreative/
Printer: Da Vinci 1.0A
Rafts: No
Supports: Yes
Resolution: 0.3
Infill: 25% - 35%
Notes:
I tried to make some parts not need supports.
