---- Grenade MK2 WW2 ----

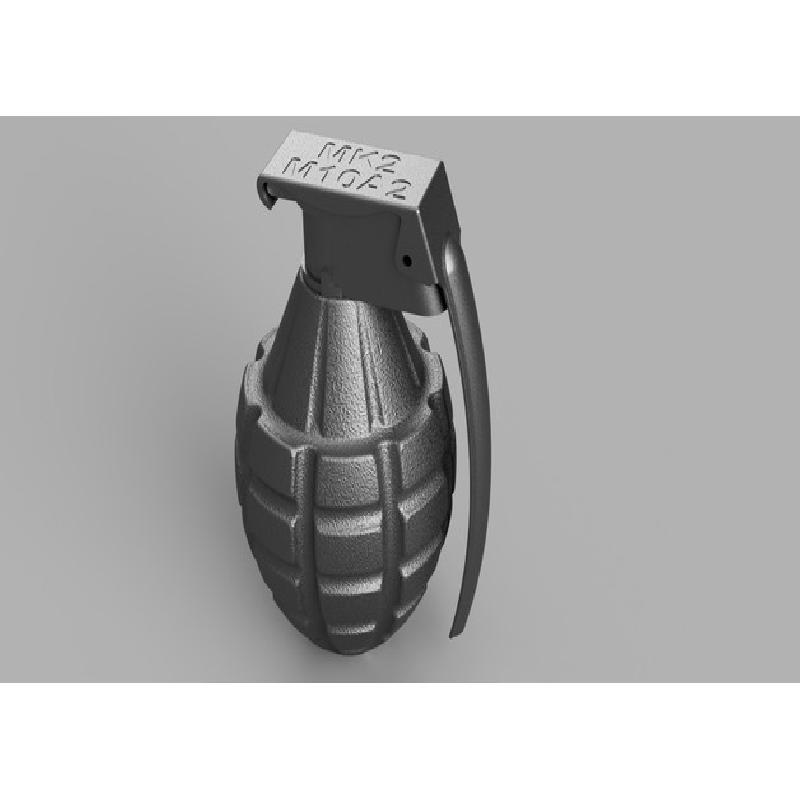

Tried to make a Grenade, and as a reference I used the
American MK2 fragmentation grenade from WW2.
Sliced with Simplify3D.
All 4 parts where printed in 0.24 (100% infill)

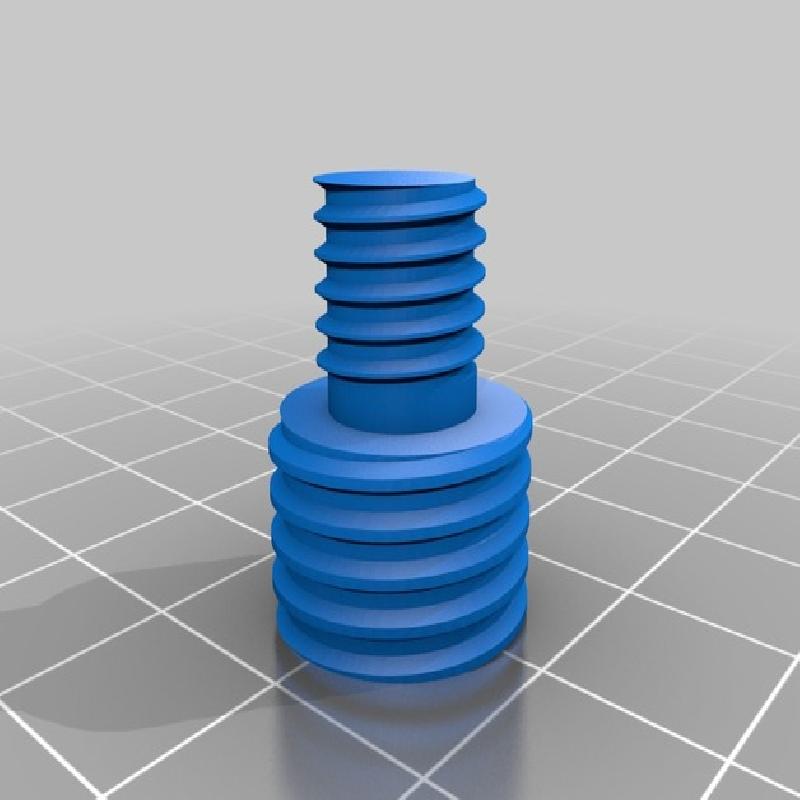

The "thread pin" is meant to be glued together with the "Head" on the 10mm end (optional)

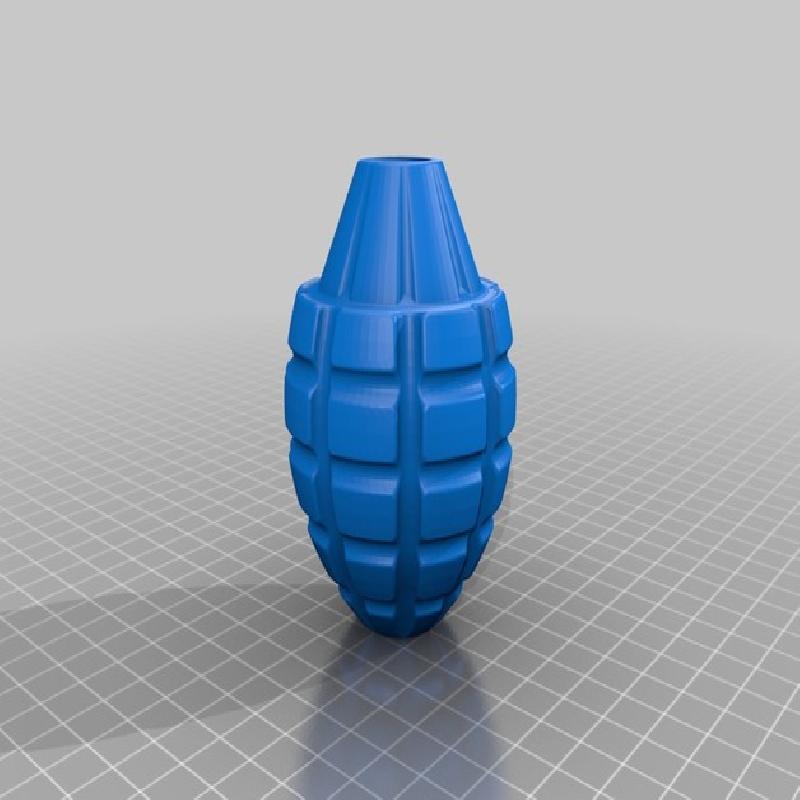

The top layer in the Grenade body, beneath the 16mm thread is only 1 layer thick, meant to be cut away
and filled with sand or something else. (optional)

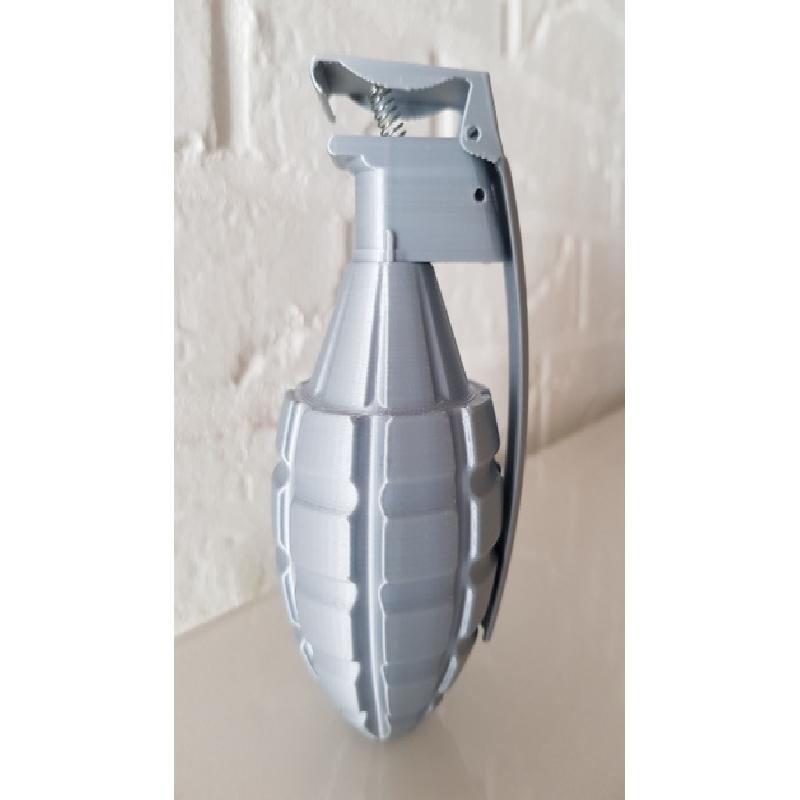

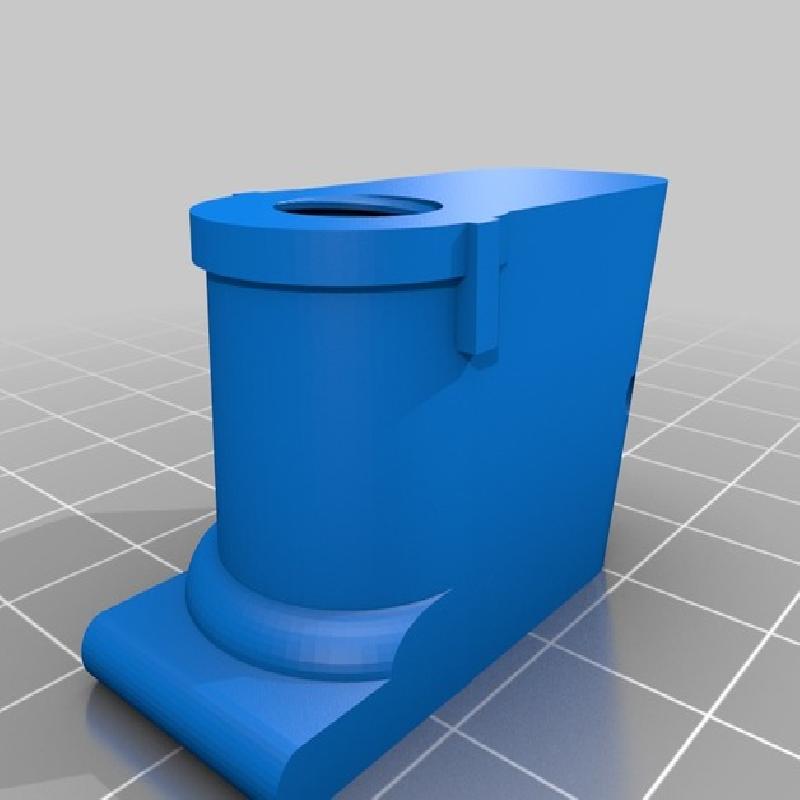

The 6mm hole on the "Head" is for a spring (Pencil).

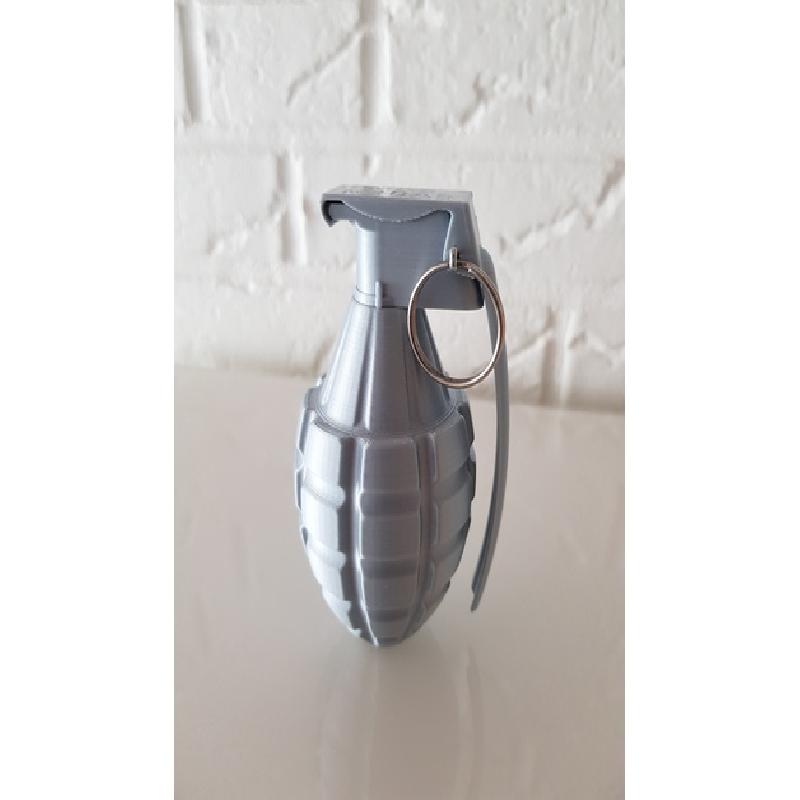

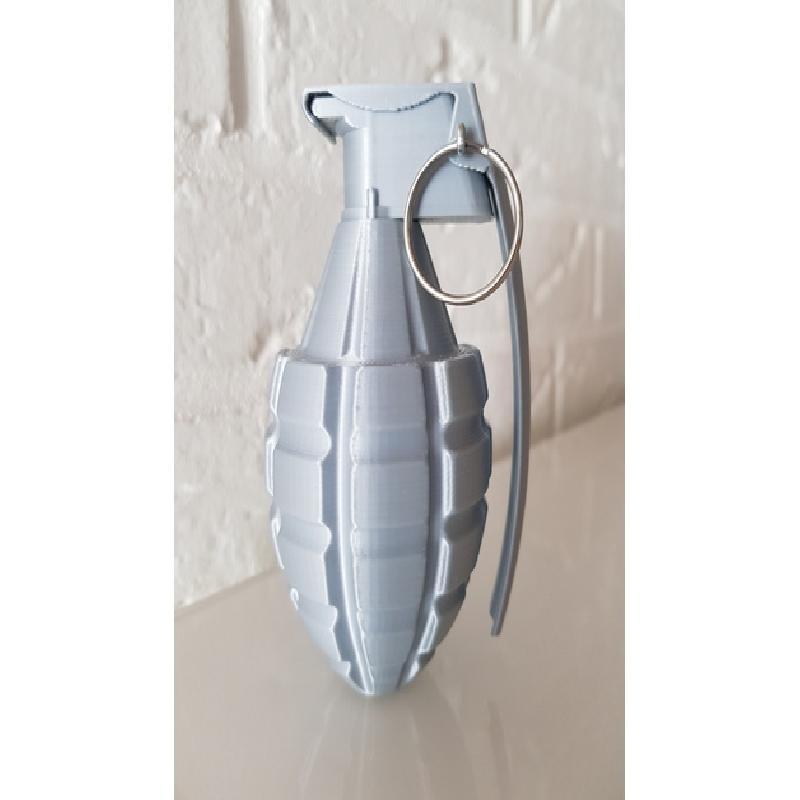

As a "pull pin" I just used a split pin and normal key ring.
This is just how I did mine.
If you have any questions, please feel free to ask.
NB. The best glue for PLA is "Loctite super glue GEL" (just my oppinion)
See my other Things HERE
Printer:
Creality CR8
Rafts:
No
Supports:
No
Resolution:
0.15 - 0.24
Infill:
100%
Notes:
All parts in the image where printed in 0.24.

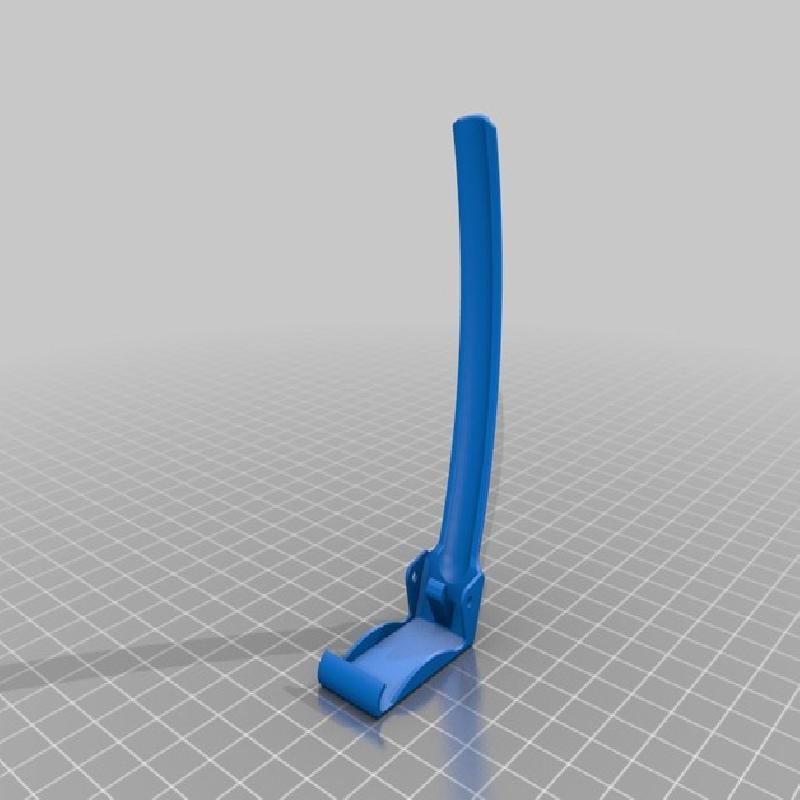

except the first 2 layers on the "Safety" it was printed in 0.15.
