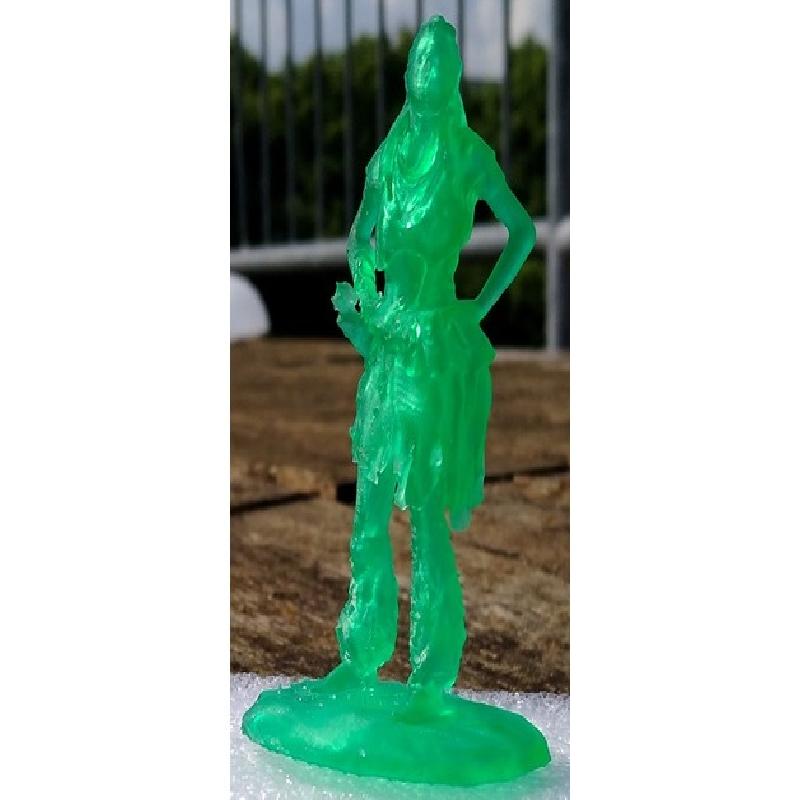

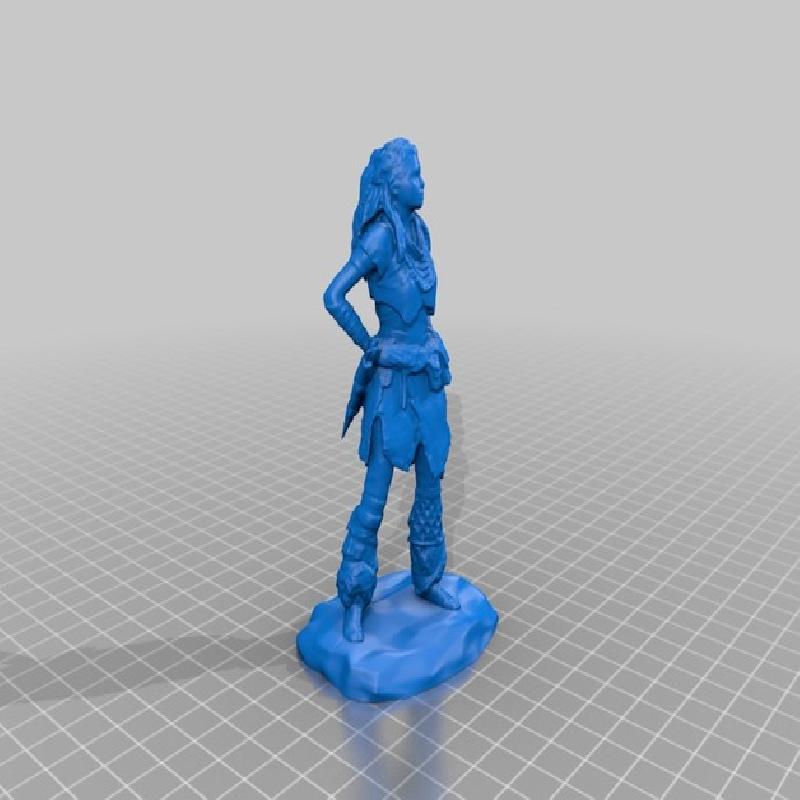

I wanted to try out my new Anycubic Photon and had free space on my buildplate. So i've used this Model scaled down.
Printer Brand:
Anycubic
Printer:
Photon
Rafts:
No
Supports:
Yes
Resolution:
0.05
Infill:
100%(SLA)
Notes:

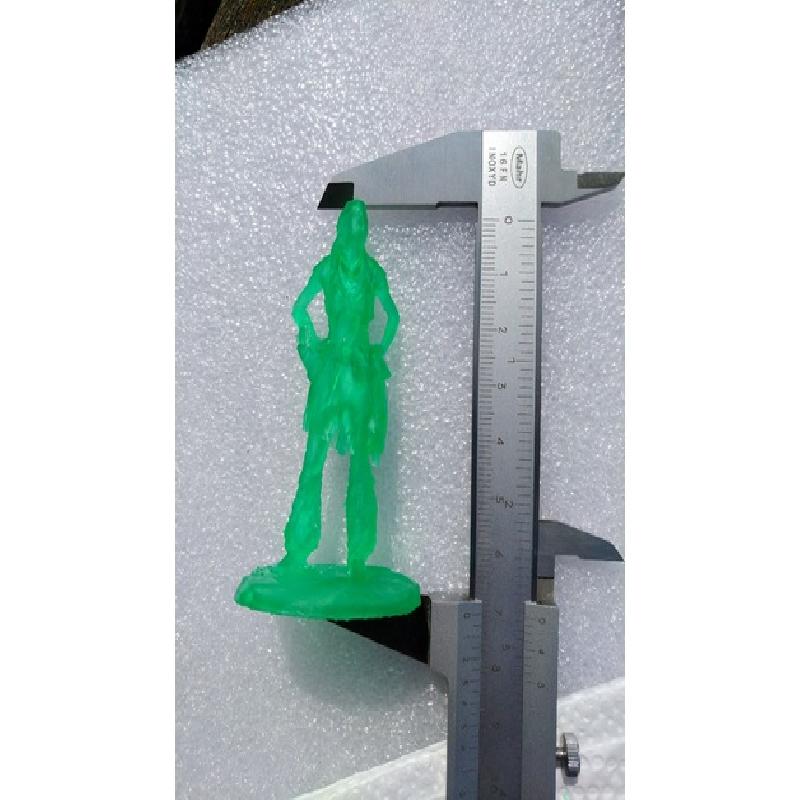

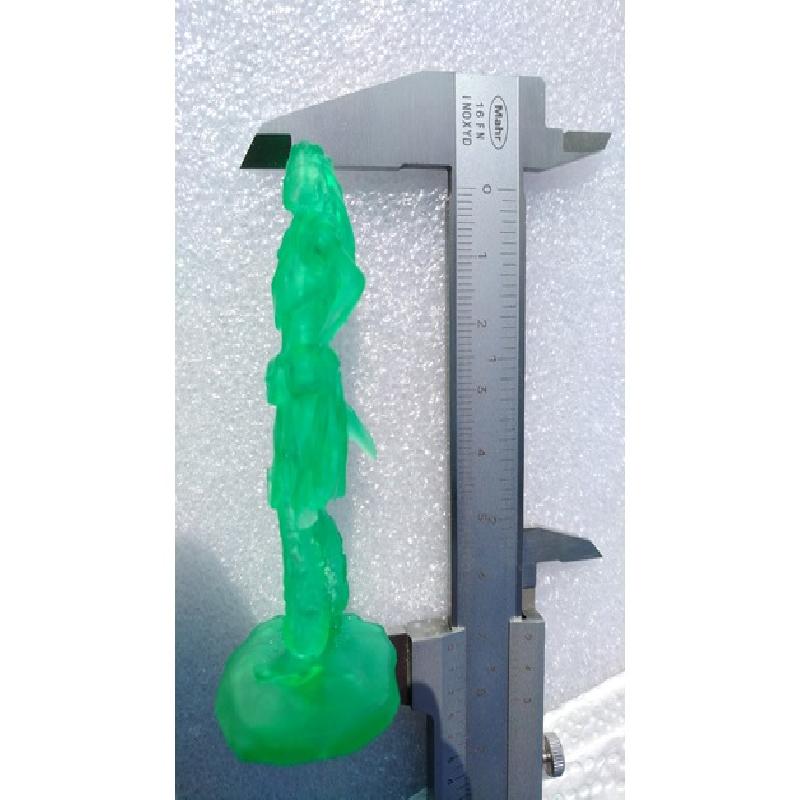

Scaled to 65% in my example.
Used Resin: Anycubic UV Resin Basic - Green
Exposure: 10s
OffTime: 6.5s
Bottom Exposure Time: 50s
Bottom Layers: 8
WEAR GLOVES!
Submerged in ethanol for ~10-15 minutes and let it dry.
Removed Supports (not shure i had to do this after curing)
Post cured in direct sunlight.
Basically very simple.
I opened it up on Meshmixer
used edit -> Solid with a high accuracy
edit -> Hollow
Here i played with the offset (wall thickness) so i've got a channel through both feet from the Baseplate to the head.
I've added two holes to prevent the suction-cup effect.
