by Pratyeka

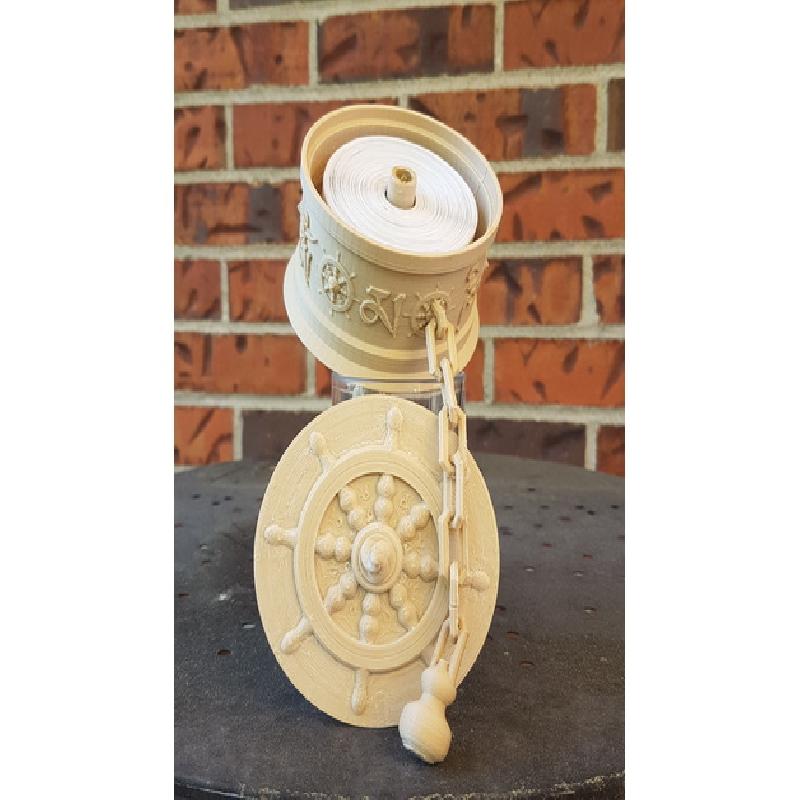

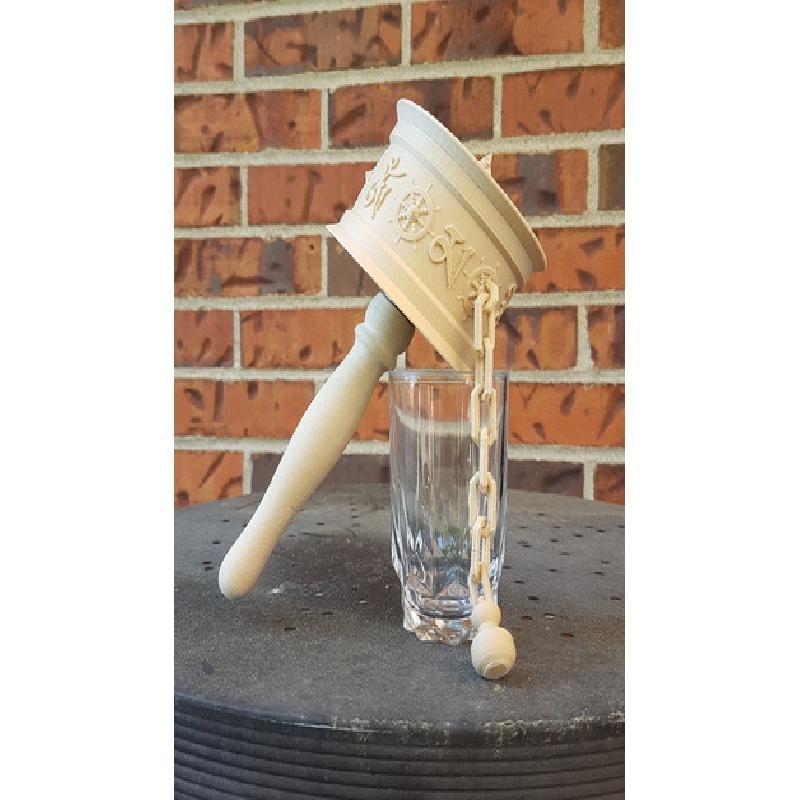

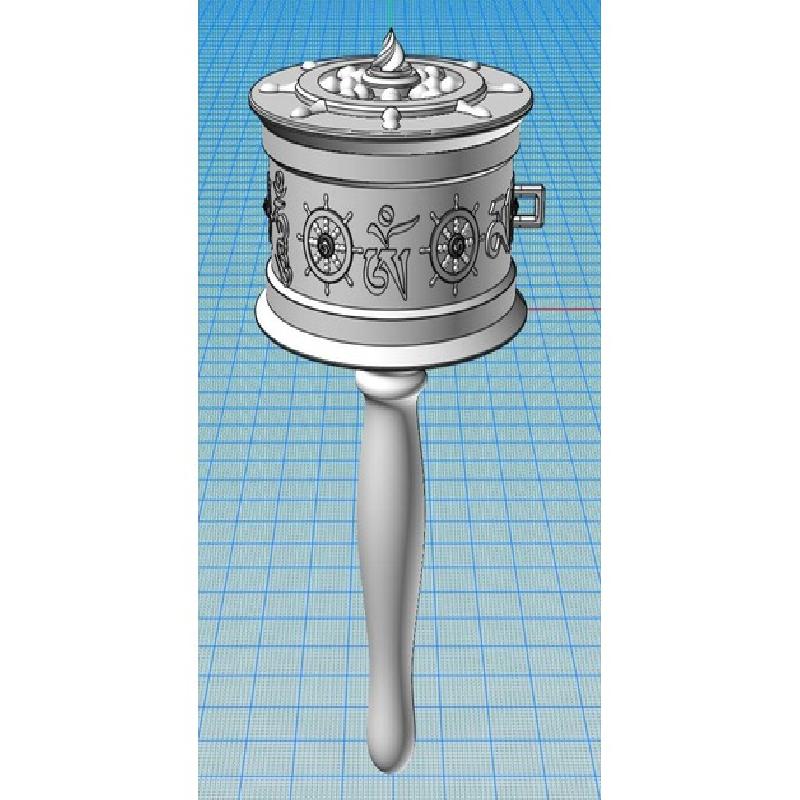

I found few models of prayer wheels on the web. I decided to make my own.
Printer:
Flsun Prusa i3
Rafts:
No
Supports:
No
Resolution:
0.2
Infill:
20%
Notes:

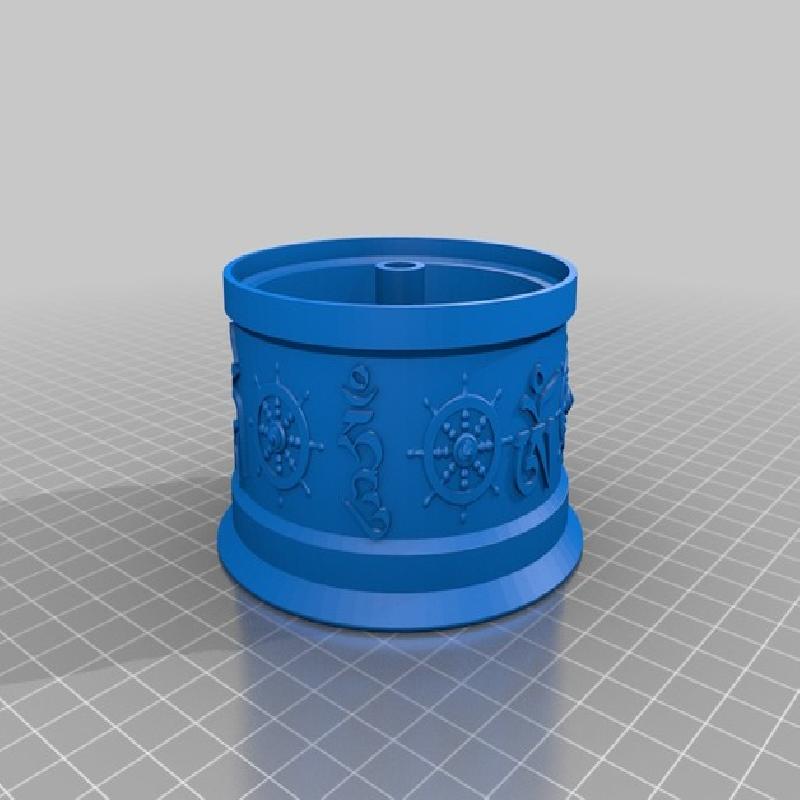

Use support only on the "main.stl"

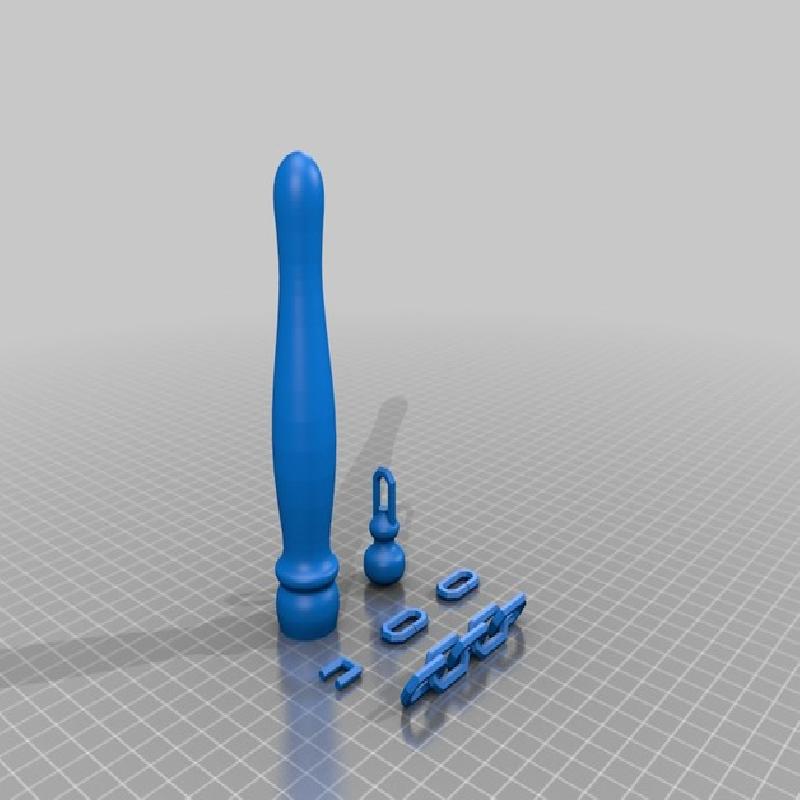

Use brim on "handle and chain.stl"

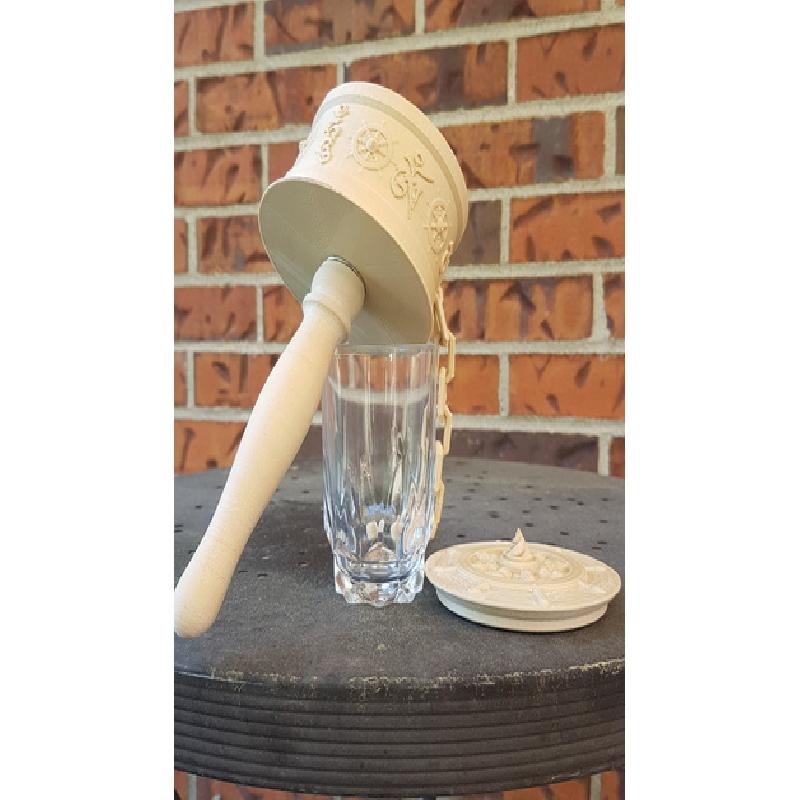

I use a 8mm dia X 45mm long carbon fiber rod to join the handle to the main part, through the bearing.
The bearing is a 608 (22mm X 8mm X 7mm thick), used in making spinners.
I used MoI 3D to design this.
