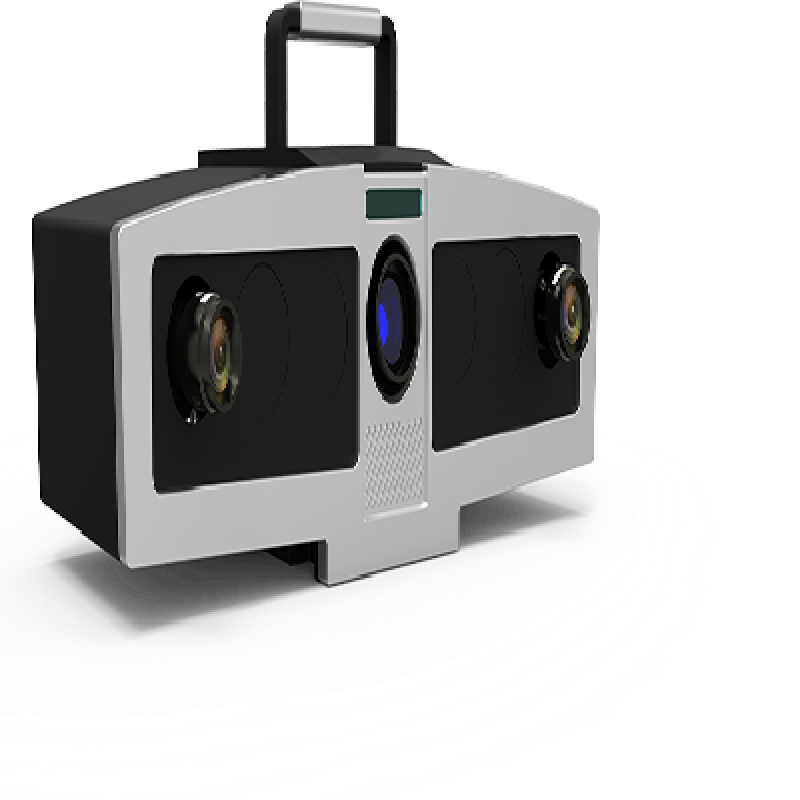

Weibu 3D Reeyee 5M Blu-ray 3D Scanner
1. Main parameters:
Equipment type: camera 3D optical scanning
Single-sided measuring range: adjustable from 400×300 mm2 to 100×75mm2
★ Measurement accuracy: 0.015mm ~ 0.005mm;
Average sampling point distance: 0.16mm~0.04mm
3D optical scanning system configuration and functional requirements
Data acquisition sensor: imported, high-speed, high-precision industrial camera 5,000,000 pixels
★Grating generation device: Blu-ray high-speed digital type, non-ordinary projector
Portable tripod, PTZ load bearing 10KG
★Computer system: support windows 7, 64-bit operating system, support memory above 16G
★ Scanning speed: high-speed scanning, single measurement time ≤ 1.5 seconds
★Grating output: built-in grating, USB3.0 interface control, raster without dual graphics card setting output
Stitching method: system integration "one-button" automatic marker point splicing module
Global error control mode: system integration GREC global error control module
★Support high speed Bluetooth light pen
Laser point alignment for easy working distance adjustment
★Support infrared remote control operation
★ Supports connection of electric turntable for automatic scanning mode
★The measuring head is highly integrated, and the device only needs to transmit data with a high-speed USB3.0 cable.
★Using Blu-ray grating machine, the interference to ambient light is minimized
★ Compatible with 3D photogrammetry system for large object measurement.
3D optical scanning system software functional requirements
Automatic splicing module
The powerful Chinese scanning software integrates the “one-click” logo point automatic splicing module, eliminating the need for external software for data splicing.
Real-time detection of system accuracy, automatically report the quality of the stitching after each scan, and can view the corresponding mark point accuracy in real time.
The system software integrates the global error control module to globally control the spliced errors.
Feature splicing, which can be spliced by using features of objects without sticking markers
Point cloud processing module
After scanning the data, it can perform point cloud noise processing and trimming
Curvature-based point cloud reduction
Automatically generate triangle faces
★Alignment and detection module
Feature fitting functions such as plane, circle, cylinder, ball, etc.
Feature transformation function
Flatness, cylindricity, sphericity detection
★Data input and output
The output results are widely distributed in ASC, STL, OBJ, OKO and other formats. The measurement results can be freely exchanged with reverse engineering software such as CATIA, Geomagic Studio, and Imageware.
Equipped with 3D data management system 1 set
Use 3D engine to display 3D models, pictures and texts;
★Using Access database, it can realize the tree management of objects and the selection of areas from the image to switch, so as to realize the effective management of 3D data, pictures and texts;
★ It can manage multi-level tree structure of 3D data and realize effective management from large scene to local detail;
★ Supports integrated management of 3D models, pictures and texts, and can switch to each other;
Support for selecting area switching from the picture, the user can browse every detail of the object as desired;
★ intercept high-resolution light map information;
★Implement the analysis of 3D models such as distance, and obtain the most accurate surveying and mapping data;
The database is based on the Windows XP operating system;
Supported formats for 3D models are: STL, OBJ, VRML, IGES, OKO;
The format supported by the image is: JPG, BMP;
The format of text support is: html;
★ Material support: equipped with a 3D material library, the number of material libraries must be more than 20,000, the material covers characters, cartoons, education, architecture, fashion, toys, animals, plants, home, tools, animation games, etc. The material has 25 The above featured topics, each topic contains at least 5 quality materials of the same category. The material library contains the website and APP, and the APP supports Android and IOS downloads synchronously. The material library system must obtain the computer software copyright registration certificate for the computer terminal and the iphone mobile terminal and the Android mobile terminal.
2. Provide the manufacturer's original project authorization letter of attorney and the original after-sales service commitment letter of the project. (must be stamped with the official seal of the manufacturer)
3. The 3D model library provided by the bidder is required to provide the Software Copyright Registration Certificate. (copy and stamp the official seal of the software supplier unit)
4. The bidder's 3D scanner has a 3D scanning brand certificate for the China-US Youth Maker Competition.
The product parameters listed in Article 1 are the basic requirements for bidding, and the addition of part is mandatory. The parameter values of the bidding products shall meet or exceed the requirements of this article. The bidding unit shall provide the printing color page of the bidding product and affix the official seal of the manufacturer's unit, otherwise it shall be deemed unable to respond to the bidding parameters.
The Article 2 project authorization letter and after-sales service commitment letter shall be provided with the original and affixed with the official seal of the manufacturer's unit, otherwise it shall be deemed unable to respond to the parameters of the bidding documents.
Article 3 "Software Copyright Registration Certificate" shall provide a copy and affix the official seal of the software supplier unit, otherwise it shall be deemed unable to respond to the parameters of the bidding documents.
Article 4 requires additional requirements for bidding. If the bidding product meets the requirements, it may add 5 points. If it does not meet, it shall be reduced by 5 points.
