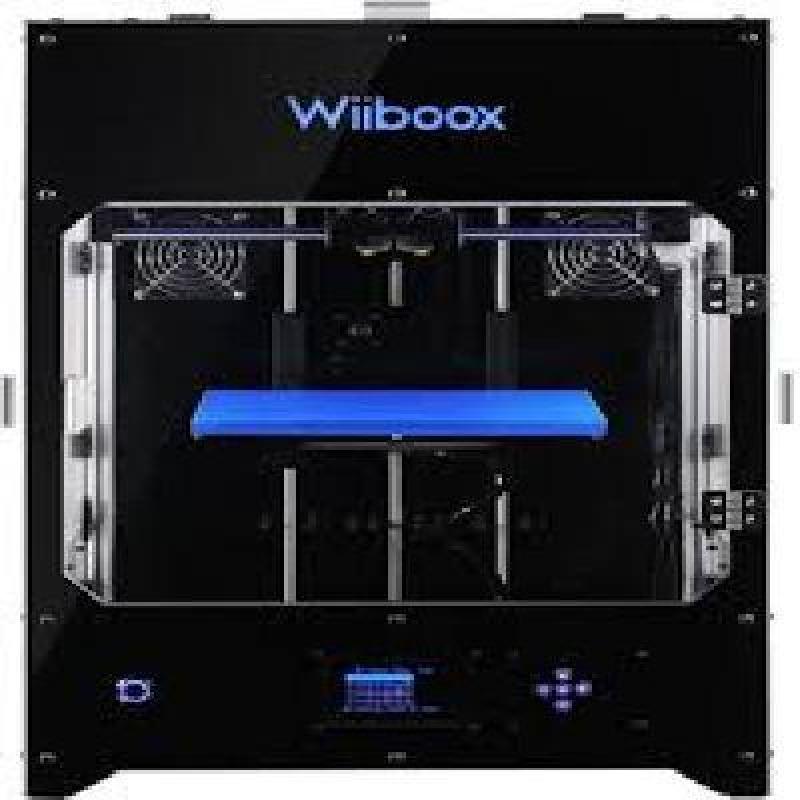

威布三维Wiiboox Company Pro300双喷头桌面级FDM 3D打印机(Wiiboox 3D Wiiboox Company Pro300 dual nozzle desktop FDM 3D printer
威布三维Wiiboox Company Pro300双喷头桌面级FDM 3D打印机(Wiiboox 3D Wiiboox Company Pro300 dual nozzle desktop FDM 3D printer
Price£3707
Shipping:£8
SOLD3 [Comment0Article]
- +
Add to Cart
In Stock:99
Seller:Another WorldV
Satisfaction Good rating0%
Rating:0
Service Attitude:0
Logistics:0
Recommended

威布三维Wiiboox Company Pro300产品招标参数

名称及图片

技术参数、规格

单位

市场价

威布三维Wiiboox   Company Pro300双喷头桌面级FDM 3D打印机


1.       主要参数:

打印技术:熔丝沉积成型(FDM)

机器尺寸:530*530*670mm

机身结构:铝合金

机器净重:25KG

★机器结构:全封闭且支持四向开启

★打印尺寸:300mm*300mm*300mm

★打印精度:0.05mm-0.5mm

打印速度:20-180mm/s

工作台载重:4 公斤 (8.8 磅)

定位精度:XY轴0.011mm    Z轴0.0025mm

软件分辨率:G-code 模式:0.01 毫米/步 (0.000394 寸/步)

机械分辨率:0.011 毫米/步   (0.000433 寸/步) (微步控制)

喷头电机:步进电机,最大 30 W

识别文件:STL、OBJ、G-CODE、X3G

★喷头数量:2

喷嘴直径:0.4mm

打印平台:可更换式亚格力平台,支持磁扣拆卸

显示界面:中英文LCD,可切换

打印方式:USB联机打印/SD卡脱机打印

★安全性能:带有2个三层网状微粒过滤模块

★自动关机:支持自动关机

★附加功能:顶部四色LED灯光、支持续点打印、料丝拖链保护系统

打印耗材: PLA  直径1.75mm

功率要求:AC100 至 240±10%,   1.0 A, 50/60 Hz (过电压类别 II, IEC 60664-1)

随机配备:用户配件1套,电子版说明书,质保卡,SD卡,打印软件ReplicatorG、Cura,配件工具盒。

★素材支持:配备一个3d素材库,素材库数量须大于2万个,素材涵盖人物、卡通、教育、建筑、时尚、玩具、动物、植物、家居、工具、动漫游戏等类别,素材拥有25个以上特色专题,每个专题包含至少5个以上同类别优质素材。素材库包含网站及APP,APP同步支持安卓及IOS下载,素材库系统须取得电脑终端与iphone移动终端及Android移动终端《计算机软件著作权登记证书》。

2.  投标单位所投3D打印机需通过韩国TVOC空气认证。(复印件并加盖生产厂商单位公章)

3. 提供生产厂商对本项目的原厂项目授权委托书及售后服务承诺书原件。(须加盖生产厂商单位公章)

4. 投标单位配备的3D模型库需提供《软件著作权登记证书》。(复印件并加盖软件供应商单位公章)

5.  所投产品具有CE认证与FCC认证证书(复印件并加盖生产厂商单位公章);

6.投标人所投3D打印机具有中美青年创客大赛指定3D打印品牌证书

第1条所列产品参数为招标基础要求,加★部分为必须满足项,投标产品的参数值应符合或高于本条要求。投标单位须提供投标产品的印刷彩页,并加盖生产厂商单位公章,否则视为不能响应招标参数。

第2条TVOC空气认证须提供复印件并加盖生产厂商单位公章,否则视为不能响应招标文件参数。

第3条项目授权委托书及售后服务承诺书须提供原件并加盖生产厂商单位公章,否则视为不能响应招标文件参数。

第4条《软件著作权登记证书》须提供复印件并加盖软件供应商单位公章,否则视为不能响应招标文件参数。

第5条CE认证与FCC认证证书须提供复印件并加盖生产厂商单位公章,否则视为不能响应招标文件参数。

第6条要求为招标附加要求,投标产品如符合要求,可加5分,如不符合,须减5分。







Wiibox 3D Wiiboox Company Pro300 product bidding parameters

Name and picture

Technical parameters, specifications

unit

Market price

Weibu 3D Wiiboox Company Pro300 dual nozzle desktop FDM 3D printer


1. Main parameters:

Printing Technology: Fuse Deposit Forming (FDM)

Machine size: 530*530*670mm

Body structure: aluminum alloy

Machine net weight: 25KG

★ Machine structure: fully enclosed and supports four-way opening

★Print size: 300mm*300mm*300mm

★Printing accuracy: 0.05mm-0.5mm

Printing speed: 20-180mm/s

Workbench load: 4 kg (8.8 lbs)

Positioning accuracy: XY axis 0.011mm Z axis 0.0025mm

Software resolution: G-code mode: 0.01 mm / step (0.000394 inch / step)

Mechanical resolution: 0.011 mm / step (0.000433 inch / step) (microstep control)

Nozzle motor: stepper motor, up to 30 W

Identification files: STL, OBJ, G-CODE, X3G

★Number of nozzles: 2

Nozzle diameter: 0.4mm

Printing platform: replaceable yili platform, support magnetic buckle removal

Display interface: Chinese and English LCD, switchable

Printing method: USB online printing / SD card offline printing

★Safety performance: with 2 three-layer mesh particle filter module

★Automatic shutdown: support automatic shutdown

★Additional functions: top four-color LED lighting, support for continuous printing, wire towline protection system

Printing supplies: PLA diameter 1.75mm

Power requirements: AC100 to 240±10%, 1.0 A, 50/60 Hz (overvoltage category II, IEC 60664-1)

Comes with: 1 set of user accessories, electronic version of the manual, warranty card, SD card, printing software ReplicatorG, Cura, accessory tool box.

★ Material support: equipped with a 3D material library, the number of material libraries must be more than 20,000, the material covers characters, cartoons, education, architecture, fashion, toys, animals, plants, home, tools, animation games, etc. The material has 25 The above featured topics, each topic contains at least 5 quality materials of the same category. The material library contains the website and APP, and the APP supports Android and IOS downloads synchronously. The material library system must obtain the computer software copyright registration certificate for the computer terminal and the iphone mobile terminal and the Android mobile terminal.

2. The 3D printers submitted by the bidders must pass the Korean TVOC air certification. (copy and stamp the official seal of the manufacturer)

3. Provide the manufacturer's original project authorization letter of attorney and the original after-sales service commitment letter of the project. (must be stamped with the official seal of the manufacturer)

4. The 3D model library provided by the bidder is required to provide the Software Copyright Registration Certificate. (copy and stamp the official seal of the software supplier unit)

5. The products submitted have CE certification and FCC certification (copy and stamped with the official seal of the manufacturer);

6. The bidder's 3D printer has a 3D printing brand certificate for the China-US Youth Maker Competition.

The product parameters listed in Article 1 are the basic requirements for bidding, and the addition of part is mandatory. The parameter values of the bidding products shall meet or exceed the requirements of this article. The bidding unit shall provide the printing color page of the bidding product and affix the official seal of the manufacturer's unit, otherwise it shall be deemed unable to respond to the bidding parameters.

Article 2 TVOC air certification shall provide a copy and affix the official seal of the manufacturer's unit, otherwise it shall be deemed unable to respond to the parameters of the bidding documents.

Article 3 The project authorization letter and the after-sales service commitment letter shall be provided with the original and affixed with the official seal of the manufacturer's unit, otherwise it shall be deemed unable to respond to the parameters of the bidding documents.

Article 4 "Software Copyright Registration Certificate" shall provide a copy and affix the official seal of the software supplier unit, otherwise it shall be deemed unable to respond to the parameters of the bidding documents.

Article 5 CE certification and FCC certification shall be provided with a copy and stamped with the official seal of the manufacturer's unit, otherwise it shall be deemed unable to respond to the parameters of the bidding documents.

Article 6 requires additional requirements for tendering. If the bidding product meets the requirements, it may add 5 points. If it does not meet, it shall be reduced by 5 points.
