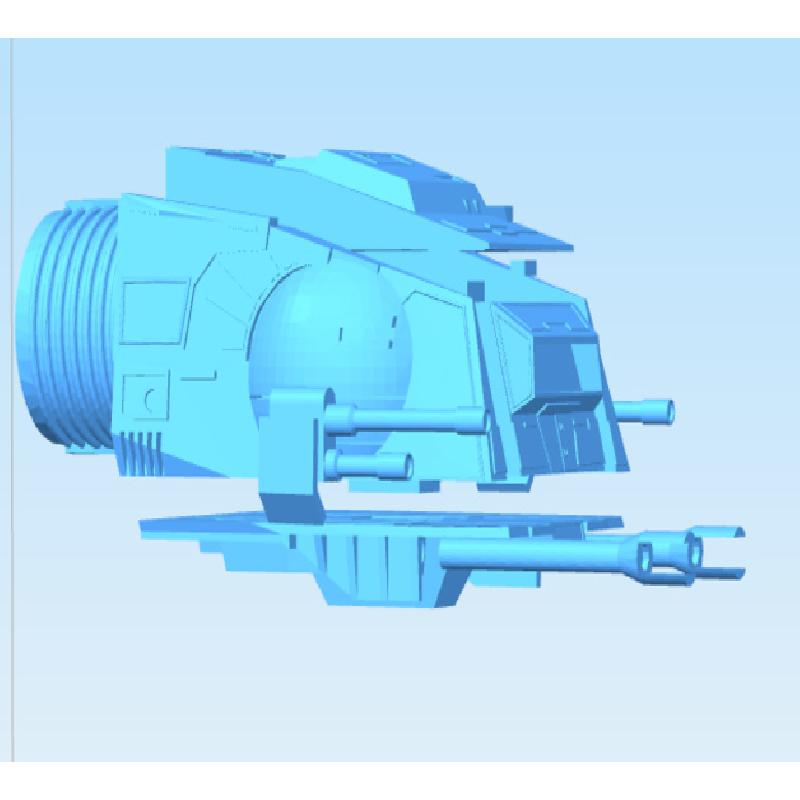

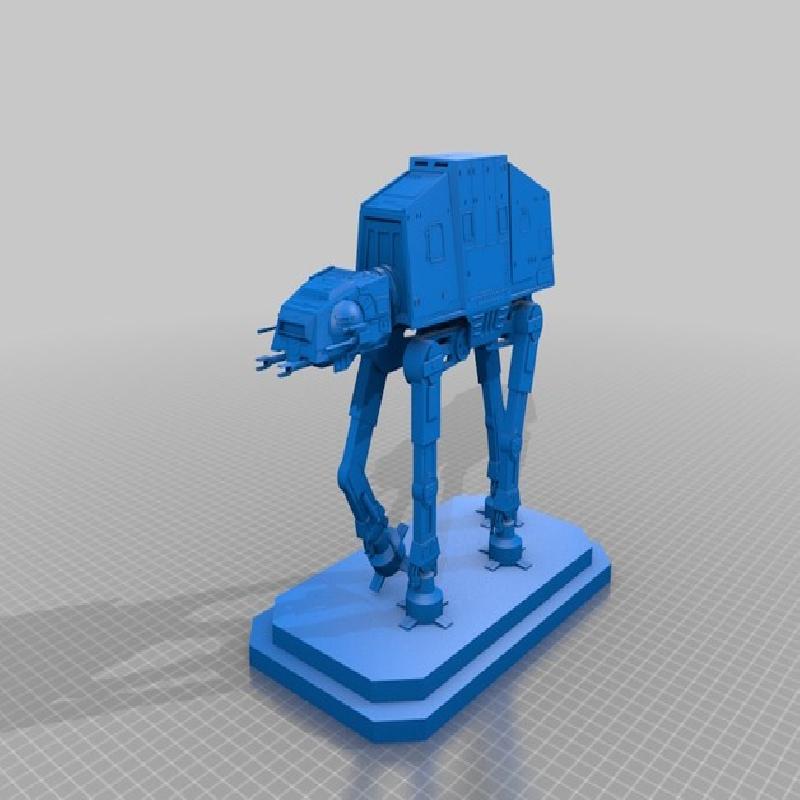

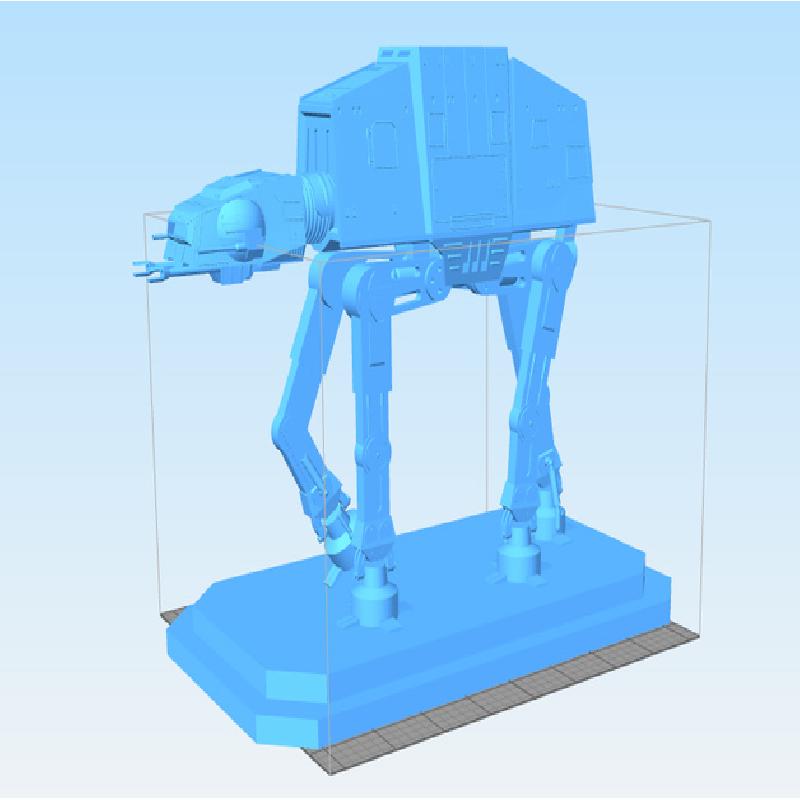

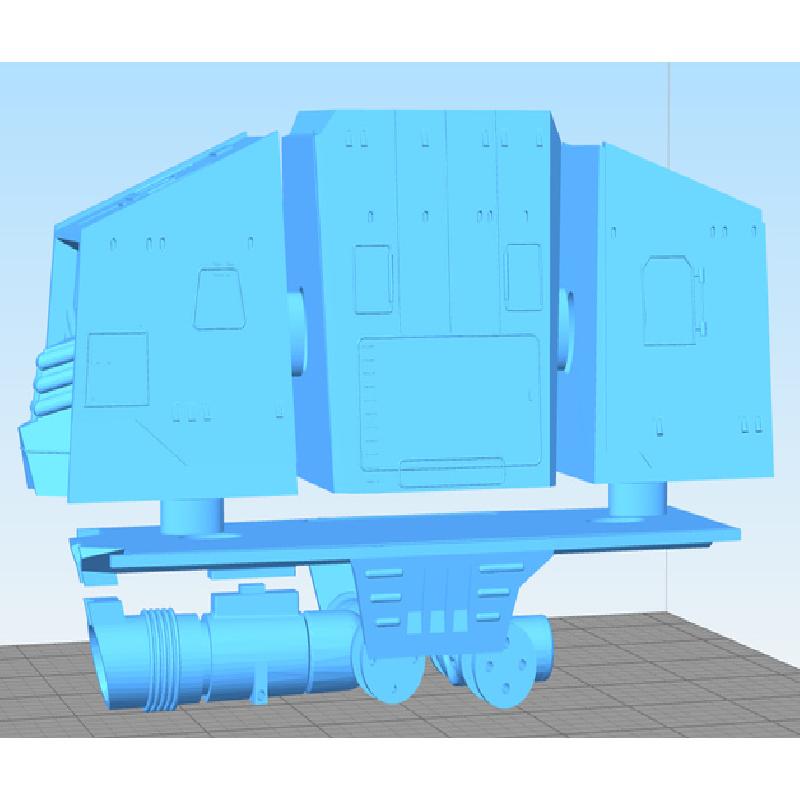

A remix of the AT-AT Walker by Kolo33 ( http://www.semaker.com/productdetail/5090 ). I've separated that model into many parts, modifying them so they are easily printable in a reasonable time and with minimal supports. I also added an optional display base. Each section (body, head, and legs) includes an exploded view as a guide to assembly.
IMPORTANT NOTES:
Assemble the Front and Rear round engine hubs to the four Leg Connectors, then attach the hubs to the engines BEFORE attaching the engines to the body. If you mount the engines to the body first, there won't be enough clearance to attach the Leg Connectors. Pay attention to the positioning of the Leg Connectors - get these wrong and the body won't stand straight.
Keep close track of the Upper and Lower Leg parts making sure to match the left, right, front, and rear parts. They're not all interchangable.
Printer:
BIBO Touch 2
Rafts:
No
Supports:
Yes
Resolution:
0.2 layer hieght worked well
Infill:
Not important - I used 15%
Notes:
There are some small parts in the legs that will require a brim (I don't recommend a raft). Some of the connecting inserts will probably need a modest amount of sanding for fit.
